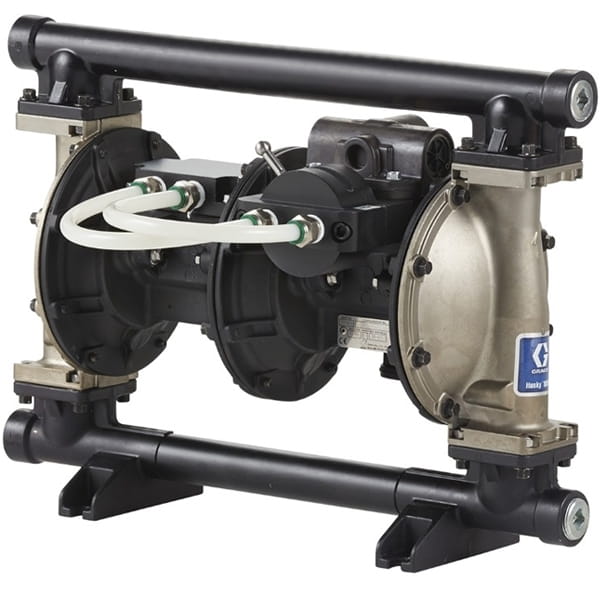

Husky 1050HP 25.4 mm (1") BSPT Al pump, AL centre housing, SS seats, CW balls, CO diaphragm
€5,085.82*
% €5,983.32* (15% saved)Ready for shipping in 5-8 Werktage
The Husky 1050HP air-operated diaphragm pump is the first commercially available pump that allows the user to select high pressure or low pressure operation using the Graco pressure switch valve. High pressure operation is not always required. When operating at low pressure, air consumption is reduced by up to 50%. These features, combined with the quality and reliability of Husky's standard diaphragm pump, make this high pressure diaphragm pump one of the most unique products on the market.
Advantages of the Husky 1050HP double diaphragm pump
- Increased fluid pressure without compromising flow
- Use the low-high pressure mode valve to operate the pump as a standard air-operated double-diaphragm pump or as an air-operated high-pressure double-diaphragm pump
- Reduce air consumption by up to 50% with low pressure mode
- Same repair parts as Husky 1050 diaphragm pump
External pilot valves
- Easy maintenance
- Reduced downtime (quick changeover time)
- Spring-loaded for faster changeover
Modular air valve
- Easy maintenance
- Non-contact and lubricant-free
Material distributor
- stainless steel or aluminium
Additional diaphragm
- for high-pressure operation
Low/high pressure service valve
- Selectable operating setting
- Reduces air consumption
- High pressure only used when needed
Wetted components
- Share the same parts as the Husky 1050, reducing inventory
| Air inlet size (inches): | 3/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Polychloroprene with additional weight |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Material: | aluminum |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | aluminum |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 862 |
| Maximum air pressure (bar): | 8.62 |
| Maximum air pressure (kPa): | 862 |
| Maximum air pressure (psi): | 125 |
| Maximum delivery rate (L/min): | 189 |
| Maximum material pressure (MPa): | 1.72 |
| Maximum material pressure (bar): | 17.2 |
| Maximum material pressure (kPa): | 1720 |
| Maximum material pressure (psi): | 250 |
| Maximum number of cycles (DH/min): | 140 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | Polychloroprene |
| Membrane material: | Polychloroprene, cast over |
| Model: | Husky |
| Seat material: | stainless steel |
| Series: | 1050HP |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 2:1 |
| Type: | Pneumatic diaphragm pump |
- Product number: 1033722
- Manufacturer: Graco
- EAN: 00755652063179
- Weight: 29.029 kg
- Length: 580 mm
- Width: 440 mm
- Height: 470 mm
