Manufacturer no.: 24W763

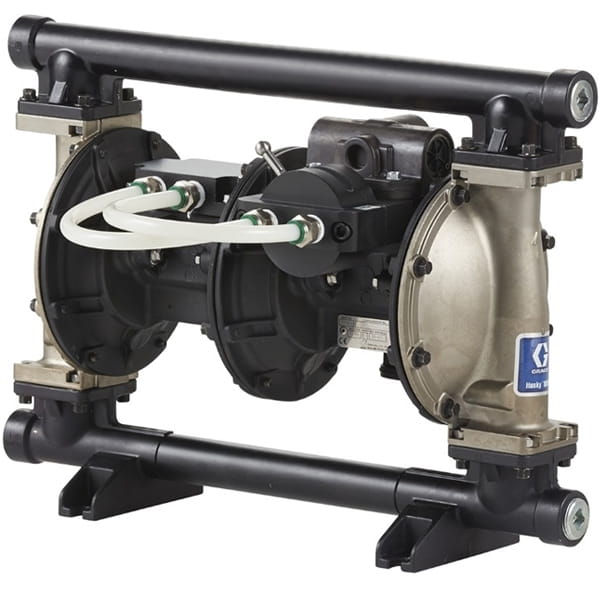

Husky 1050HP (1" BPST) AL pump, AL centre housing, SP seats, SP balls & SP diaphragm

€4,511.74*

% €5,156.27* (12.5% saved)

Prices include VAT plus shipping costs

€3,791.38*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Husky 1050HP air-operated diaphragm pump is the first commercially available pump that allows the user to select high pressure or low pressure operation using the Graco pressure switch valve. High pressure operation is not always required. When operating at low pressure, air consumption is reduced by up to 50%. These features, combined with the quality and reliability of Husky's standard diaphragm pump, make this high pressure diaphragm pump one of the most unique products on the market.

Advantages of the Husky 1050HP double diaphragm pump
- Increased fluid pressure without compromising flow
- Use the low-high pressure mode valve to operate the pump as a standard air-operated double-diaphragm pump or as an air-operated high-pressure double-diaphragm pump
- Reduce air consumption by up to 50% with low pressure mode
- Same repair parts as Husky 1050 diaphragm pump
External pilot valves
- Easy maintenance
- Reduced downtime (quick changeover time)
- Spring-loaded for faster changeover
Modular air valve
- Easy maintenance
- Non-contact and lubricant-free
Material distributor
- stainless steel or aluminium
Additional diaphragm
- for high-pressure operation
Low/high pressure service valve
- Selectable operating setting
- Reduces air consumption
- High pressure only used when needed
Wetted components
- Share the same parts as the Husky 1050, reducing inventory

Air inlet size (inches):	3/4
Air inlet thread type:	NPT
Application:	industry
Ball material:	Santoprene
Connection type:	With thread
Distributor O-ring material:	PTFE
Distributor configuration:	End opening
Gender of the air inlet thread:	Internal thread
Material:	aluminum
Material inlet thread type:	NPT
Material in the liquid housing:	aluminum
Material of the centre housing:	aluminum
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Material outlet thread type:	NPT
Maximum air pressure (MPa):	862
Maximum air pressure (bar):	8.62
Maximum air pressure (kPa):	862
Maximum air pressure (psi):	125
Maximum delivery rate (L/min):	189
Maximum material pressure (MPa):	1.72
Maximum material pressure (bar):	17.2
Maximum material pressure (kPa):	1720
Maximum material pressure (psi):	250
Maximum number of cycles (DH/min):	140
Maximum solids size (cm):	3,175
Maximum solids size (mm):	3,175
Membrane, compatible material:	Santoprene
Membrane material:	Santoprene
Model:	Husky
Seat material:	Santoprene
Series:	1050HP
Size of the exhaust air opening (inches):	3/4
Size of the material inlet opening (cm):	2.54
Size of the material inlet opening (inches):	1
Size of the material inlet opening (mm):	25.4
Size of the material outlet opening (inches):	1
Standards met::	ATEX, CE
Supply voltage:	Air
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Transmission ratio of the pump:	2:1
Type:	Pneumatic diaphragm pump

More information

Product number: 1031361
Manufacturer: Graco
EAN: 00755652063117
Weight: 12.982 kg
Length: 590 mm
Width: 440 mm
Height: 480 mm

Technical details

Specifications

Operating specifications

UPC product	755 6 52063117
Division	PRO
Price Block	2 62
Country of origin	US
Unit	EA
Height	48 CM
Length	59 cm
Width	44 cm
Volume	. 125 m³
Shipping weight	12.98 kg
HTS code (GB)	8413508090
HTS code (EU)	8413508090

Technical

Air exhaust port size (in)	3/4
Air exhaust port thread gender	Female
Air inlet size (in)	3/4
Air inlet thread gender	Female
Fluid inlet size (cm)	2. 54
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4
Fluid outlet size (cm)	2. 54
Fluid outlet size (mm)	25. 4
Maximum air consumption (SCFM)	95
Maximum air pressure (bar)	8. 62
Maximum air pressure (kPa)	862
Maximum air pressure (psi)	125
Maximum cycle rate (CPM)	1 4 0
Maximum flow rate (L/min)	1 89
Maximum fluid pressure (bar)	17. 2
Maximum fluid pressure (kPa)	1720
Maximum fluid pressure (psi)	2 50
Maximum solid size (cm)	0. 3175
Maximum solid size (in)	0. 125
Maximum solid size (mm)	3. 175
Model	H usky
Series	1 0 50HP
Maximum fluid pressure (MPa)	1. 72
Maximum Air Pressure (MPa)	0. 862
Diaphragm compatible material	Sant op rene
