Manufacturer no.:
647648

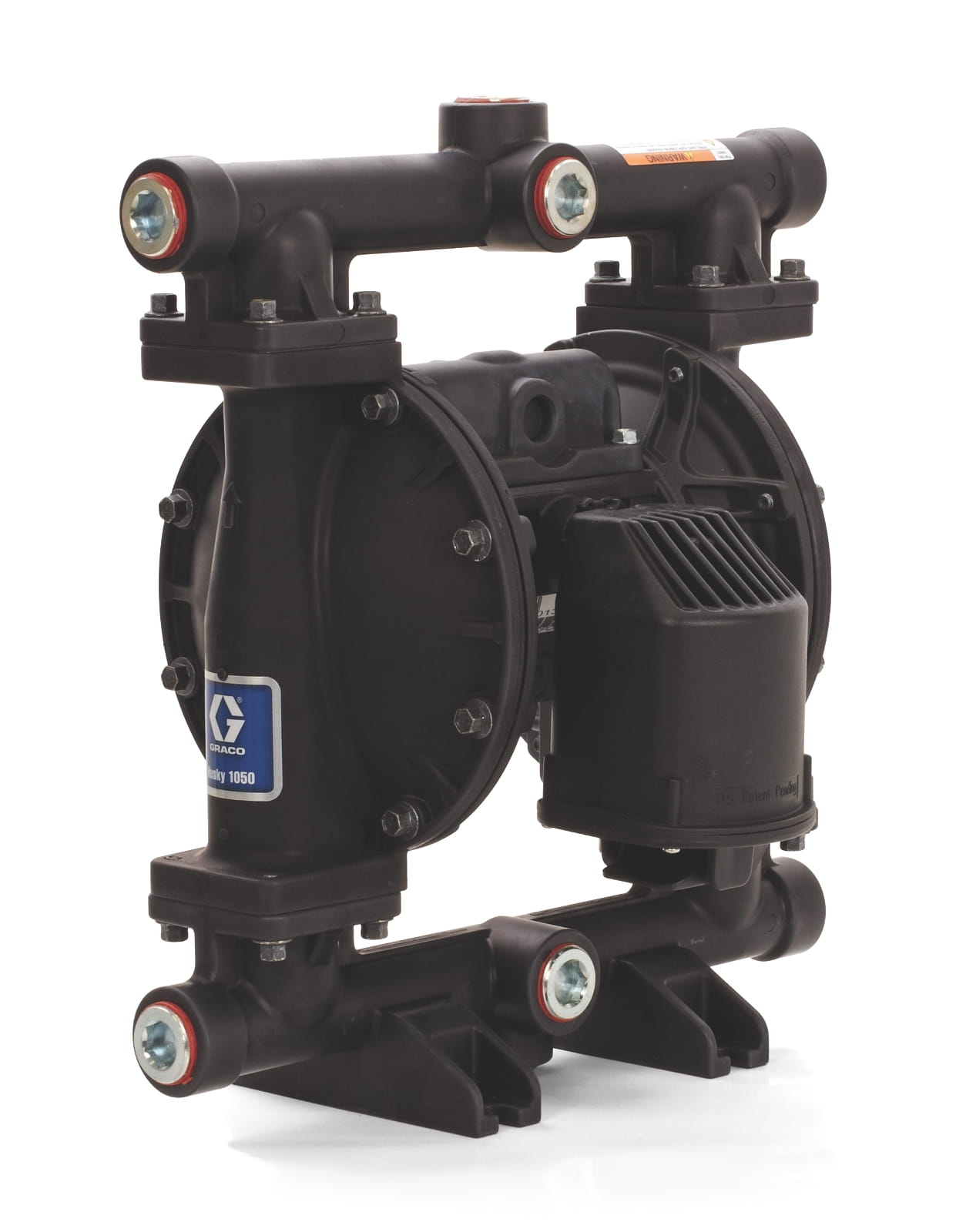

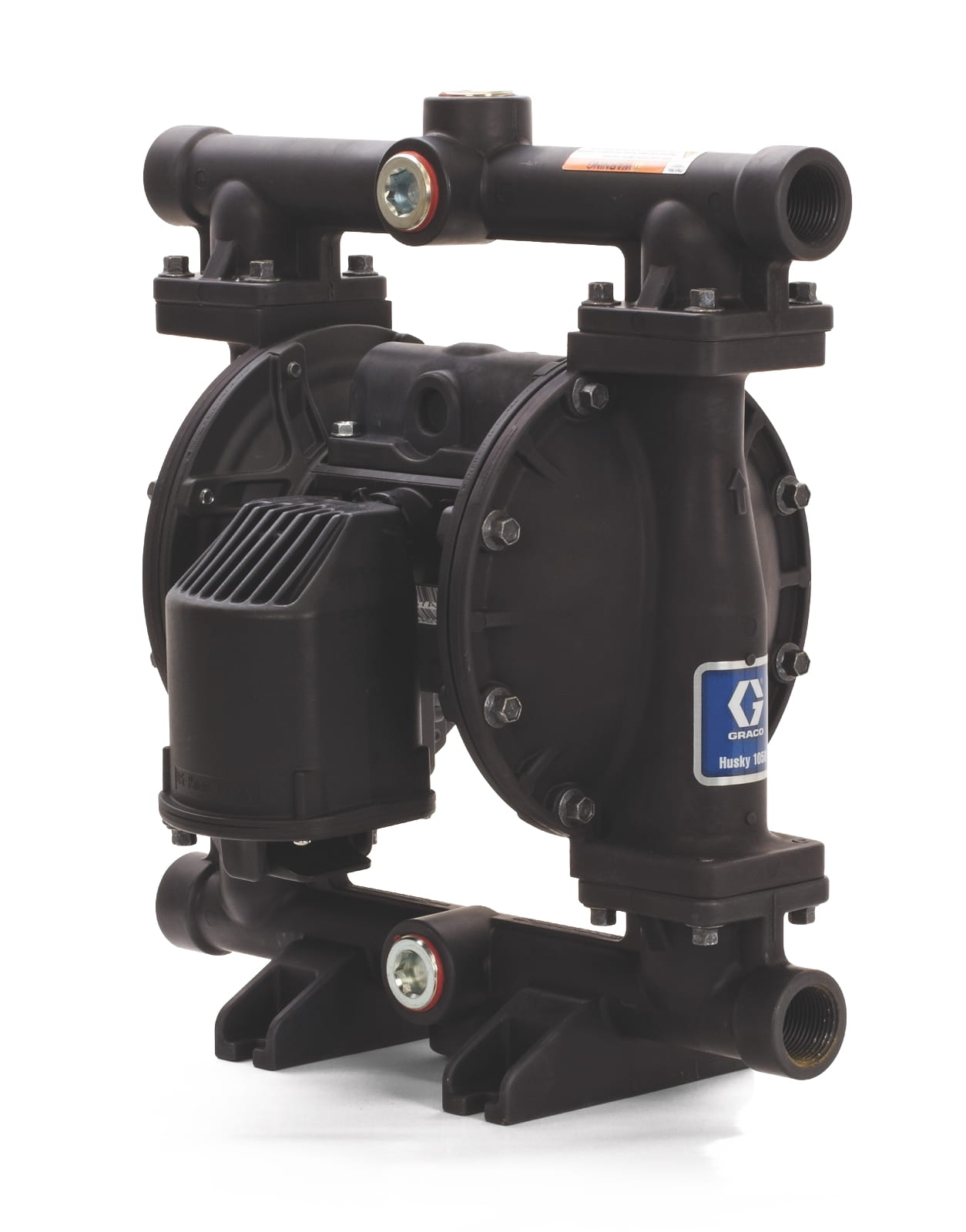

Husky 1050 Series Air-Operated Double-Diaphragm Fuel Transfer Pump, TPE/AC
€1,468.16*
% €1,677.90* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 1050 air-operated diaphragm pump with a low-pulsation, non-failing air valve that provides smooth and fast stroke changes. The one-piece centre section eliminates leakage and reduces maintenance requirements for Husky pumps compared to other diaphragm pumps.
- Extended diaphragm life – Up to 5 times longer service life reduces maintenance and downtime
- Modular air valve – provides non-stop operation with low pulsation for smooth, fast stroke changes
- One-piece centre housing – Air leakage is eliminated for more efficient operation.
- Four Bolt Body - Bolting evenly distributes gasket compression for leak-tight service
- Multiple ports – Multiple ports provide installation flexibility
- Optional Features - DataTrak™ (dry-running protection and material usage tracking), pulse output (option to count cycles)
- Spring-loaded, externally serviceable control valves for faster changeovers and reduced pulsation
- 30% more efficient than the market leader
- 20% higher material flow compared to Husky 1040
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Acetal |
| Compatible material: | fuel |
| Connection type: | With thread |
| Distributor O-ring material: | No |
| For use with: | Fuel transfer |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | aluminum |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | aluminum |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.35 |
| Maximum air pressure (bar): | 3.5 |
| Maximum air pressure (kPa): | 350 |
| Maximum air pressure (psi): | 50 |
| Maximum delivery rate (L/min): | 144 |
| Maximum material pressure (MPa): | 0.35 |
| Maximum material pressure (bar): | 3.5 |
| Maximum material pressure (kPa): | 350 |
| Maximum material pressure (psi): | 50 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane material: | TPE (Hytrel) |
| Model: | Husky |
| Seat material: | TPE (Hytrel) |
| Series: | 1050 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | UL |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | Aluminum, TPC-ET, Acetal, PTFE, Buna-N |
More information
- Product number: 1035227
- Manufacturer: Graco
- EAN: 00633955540019
- Weight: 12.5 kg
- Length: 380 mm
- Width: 210 mm
- Height: 440 mm
Technical details
Operating specifications
| UPC product | 633955540019 |
|---|---|
| Division | LED |
| Price Block | 2 62 |
| Country of origin | US |
| Unit | EA |
| Height | 44 CM |
| Length | 38 cm |
| Width | 21 cm |
| Volume | . 035 m³ |
| Shipping weight | 12.5 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Fluid outlet thread gender | Female |
| For use with | Fuel Transfer |
| Maximum Air Consumption (SCFM) | 25 |
| Maximum Air Pressure (bar) | 3. 5 |
| Maximum air pressure (kPa) | 350 |
| Maximum air pressure (psi) | 50 |
| Maximum cycle rate (CPM) | 2 80 |
| Maximum flow rate (L/min) | 1 44 |
| Maximum fluid pressure (bar) | 3. 5 |
| Maximum fluid pressure (kPa) | 350 |
| Maximum fluid pressure (psi) | 50 |
| Maximum solid size (cm) | 0. 3175 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3. 175 |
| Model | H usky |
| Overall height (in) | 15. 9 |
| Series | 1 0 50 |
| Maximum fluid pressure (MPa) | 0. 35 |
| Maximum air pressure (MPa) | 0. 35 |
