Manufacturer no.:
244680
Husky 1050 - Antifreeze and windscreen solvent feed sets with one inlet
€2,903.48*
% €3,226.09* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information

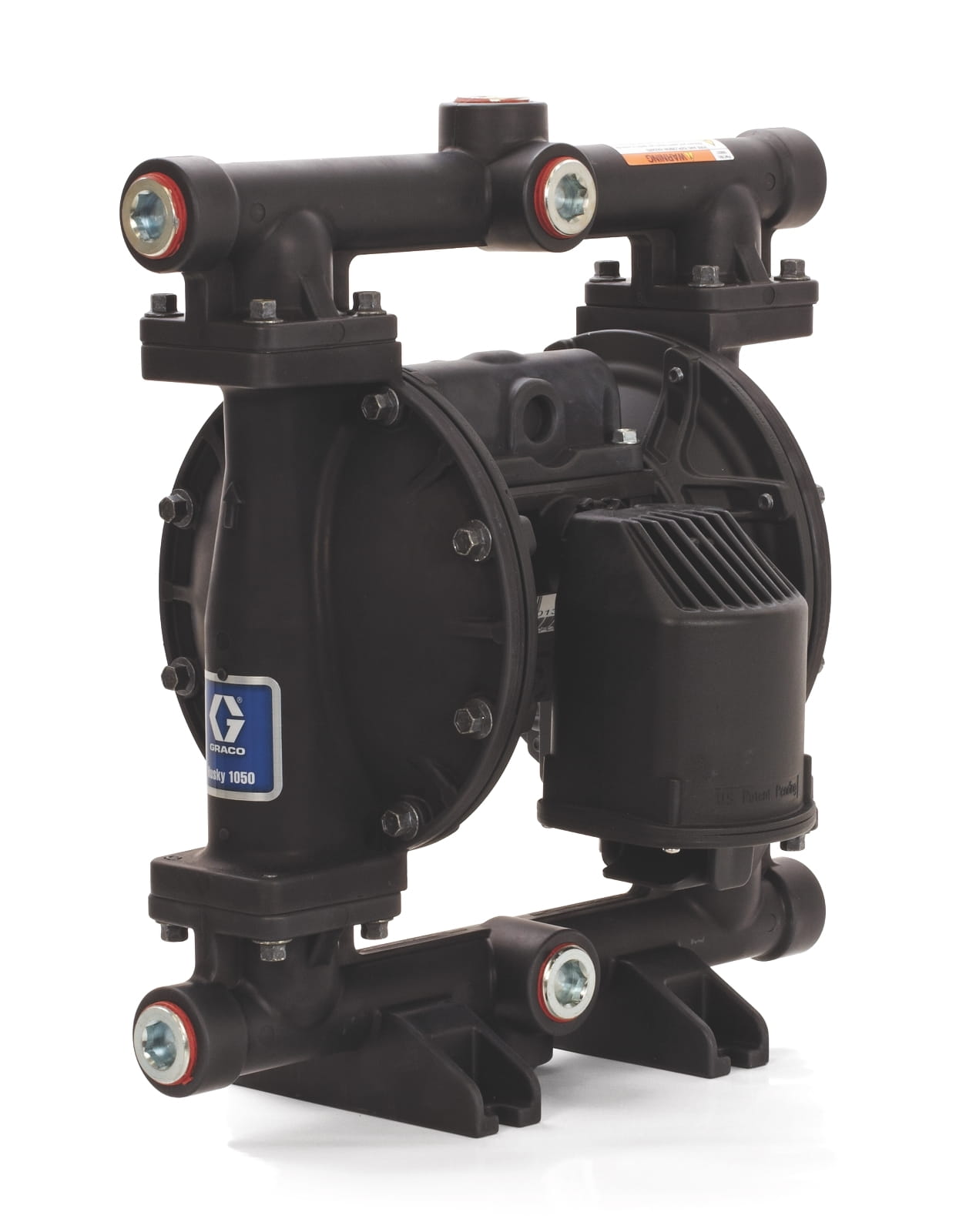

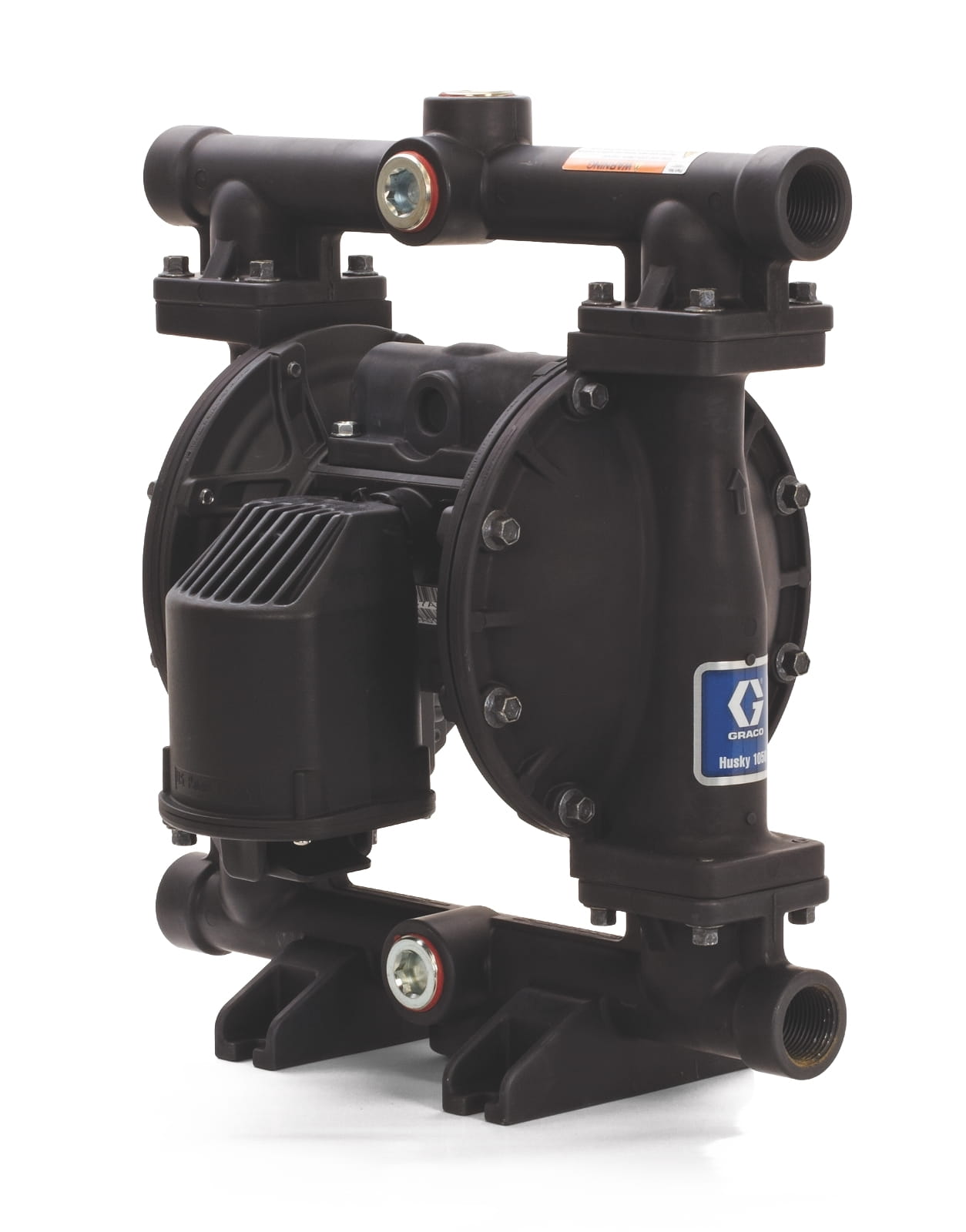

The Husky 1050 air-operated diaphragm pump with a low-pulsation, non-failing air valve that provides smooth and fast stroke changes. The one-piece centre section eliminates leakage and reduces maintenance on Husky pumps compared to other diaphragm pumps.
- Extended diaphragm life – Up to 5 times longer service life reduces maintenance and downtime
- Modular air valve – provides non-stop operation with low pulsation for smooth, fast stroke changes
- One-piece centre housing – Air leakage is eliminated for more efficient operation.
- Four Bolt Body - Bolting evenly distributes gasket compression for leak-tight service
- Multiple ports – Multiple ports provide installation flexibility
- Optional Features - DataTrak™ (dry-running protection and material usage tracking), pulse output (option to count cycles)
- Spring-loaded, externally serviceable control valves for faster changeovers and reduced pulsation
- 30% more efficient than the market leader
- 20% higher material flow compared to Husky 1040
| Application: | industry |
|---|---|
| Ball material: | Acetal |
| Compatible material: | Antifreeze, windshield washer fluid |
| For use with: | Antifreeze, windshield solvent |
| Gender of the inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | 1050 Air operated double diaphragm pump, air regulator, fluid connection hose, air connection hose, air shut-off valve, wall mounting bracket, suction kit, thermal relief kit |
| Inlet thread type: | NPT |
| Material: | Aluminum, Buna-N |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Material outlet thread type: | NPT |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 70 |
| Maximum air pressure (psi): | 100 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8.3 |
| Maximum material pressure (kPa): | 83 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane material: | Thermoplastic polyester elastomer |
| Series: | 1050 |
| Size of the material inlet opening (cm): | 2.5400 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Type: | Diaphragm pump system |
More information
- Product number: 1030484
- Manufacturer: Graco
- EAN: 00633955648050
- Weight: 27.775 kg
Technical details
Operating specifications
| UPC product | 633955648050 |
|---|---|
| Division | LED |
| Price Block | 003 |
| Country of Origin | US |
| Unit | EA |
Technical
| Fluid inlet size (cm) | 2. 5400 |
|---|---|
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Fluid outlet thread gender | Female |
| For use with | Anti-freeze, windscreen solvent |
| Includes | 1050 AODD pump, air regulator, fluid connect hose, air connect hose, air shut-off valve, wall mount bracket, suction kit, thermal relief kit |
| Inlet Thread Gender | Female |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 70 |
| Maximum air pressure (psi) | 100 |
| Maximum Cycle Rate (CPM) | 2 80 |
| Maximum fluid pressure (bar) | 8. 3 |
| Maximum fluid pressure (kPa) | 83 |
| Maximum fluid pressure (psi) | 120 |
| Maximum solid size (cm) | 0. 3175 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3. 175 |
| Series | 1 0 50 |
| Maximum fluid pressure (MPa) | 0. 8 |
| Model | H usky |
