Manufacturer no.: 647016

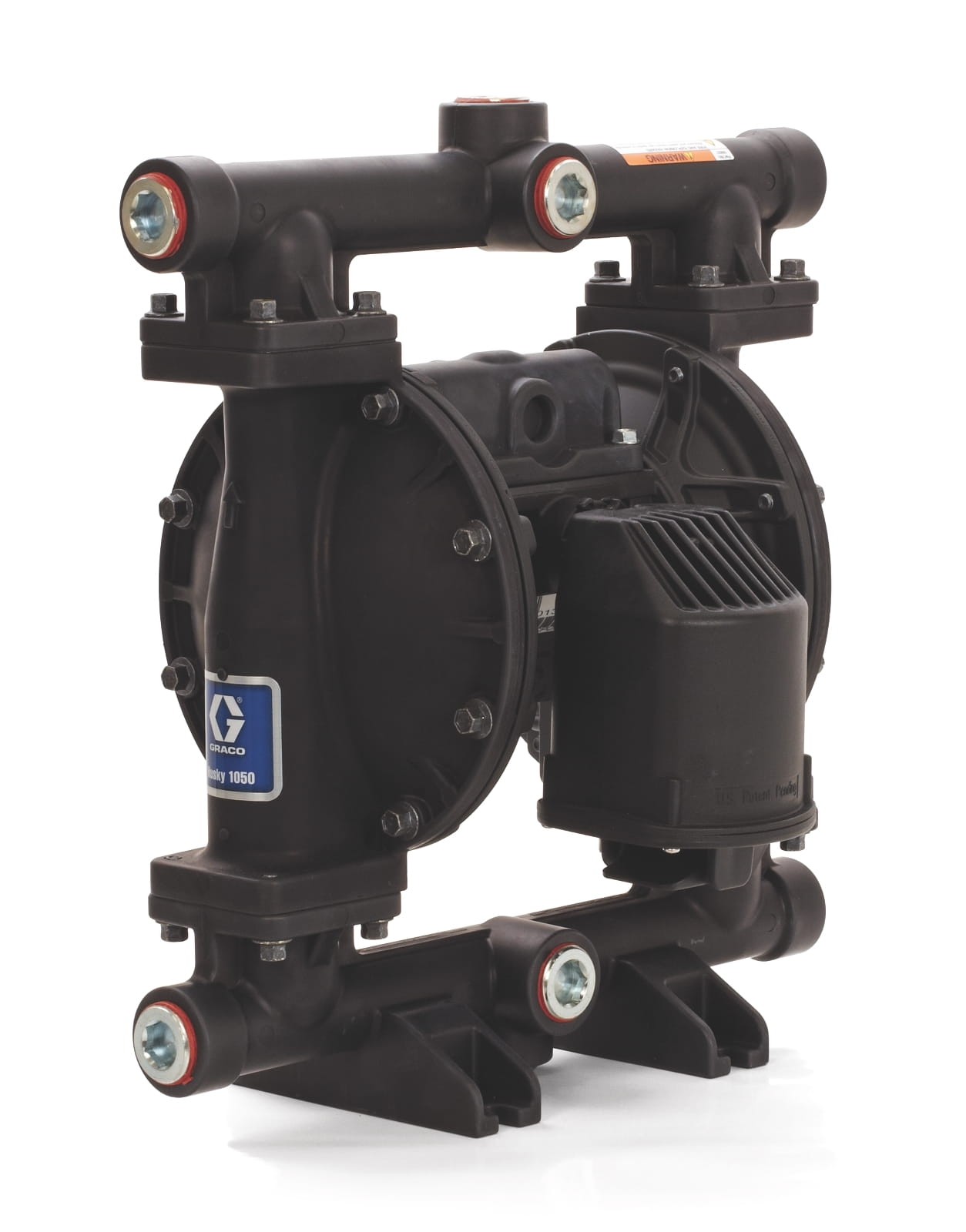

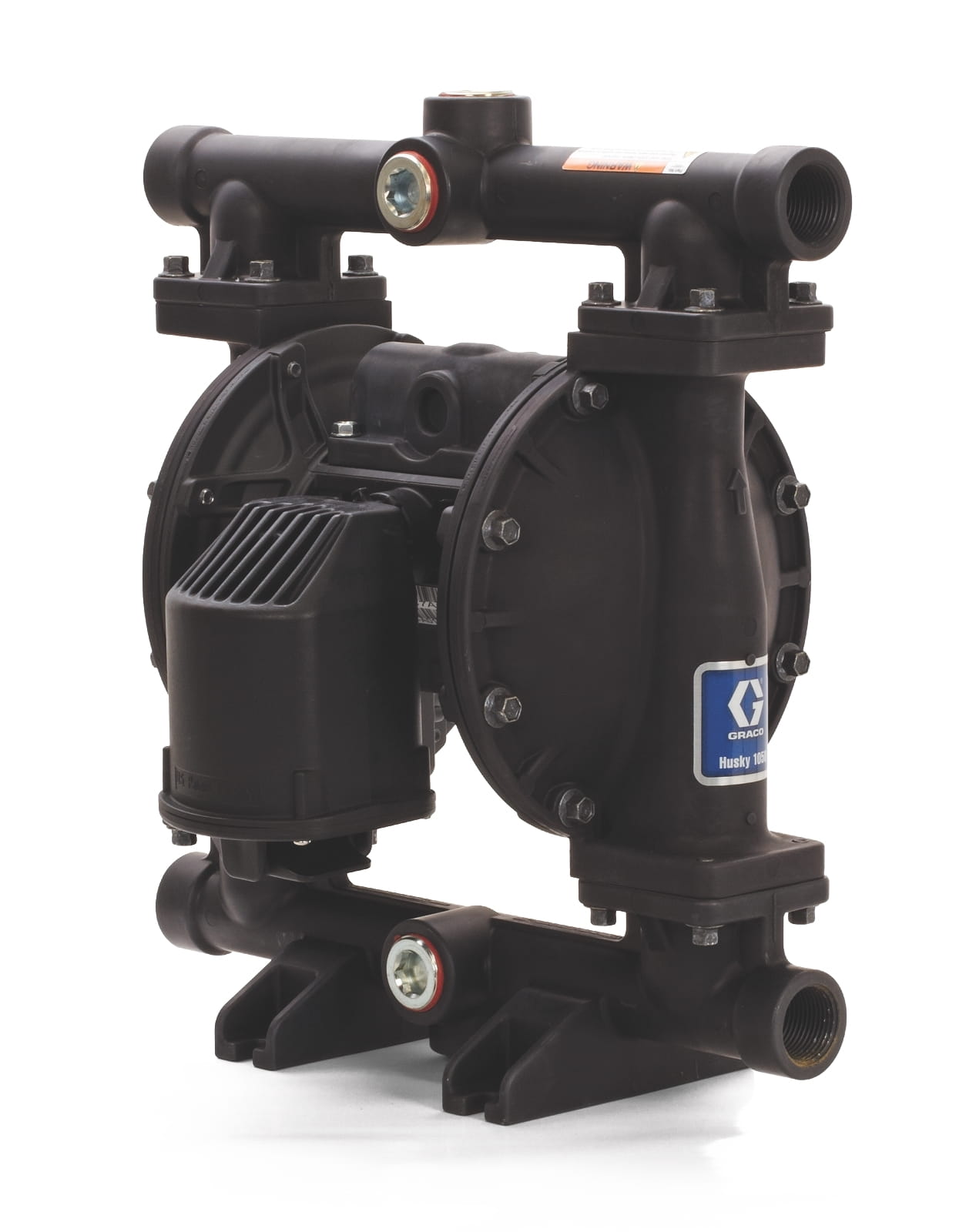

Husky 1050 Air operated double diaphragm feed pump - 1 inch AL/TPE for water, antifreeze and fuel delivery

€918.83*

% €1,267.35* (27.5% saved)

Prices include VAT plus shipping costs

€772.13*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Husky 1050 air operated diaphragm pump features a low pulsation, fail-safe air valve for smooth and quick changeovers. The one-piece centre section prevents leaks and reduces maintenance on Husky pumps compared to other diaphragm pumps.

Longer diaphragm life - Up to 5 times longer diaphragm life reduces maintenance and means less downtime
Modular air valve - Stall-free operation with low pulsation for smooth, fast stroke changes
One-piece centre housing - Air leaks are avoided and operation is more efficient as a result.
Four screw fitting - The screw fitting ensures even contact pressure of the seal and thus ensures leak-free operation
Multiple connections - Multiple connections provide installation flexibility
Optional features - DataTrak™ (dry run protection and material consumption tracking), pulse output (cycle counting capability)
Spring-loaded, externally serviceable pilot valves for faster changeovers and less pulsation
30% more efficient than the market leader
20% higher material flow compared to Husky 1040

Air inlet size (inches):	1/2
Air inlet thread type:	NPT
Application:	industry
Ball material:	Acetal
Compatible material:	Water, antifreeze, fuel
Connection type:	With thread
Distributor O-ring material:	No
For use with:	Water/antifreeze/fuel delivery
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Material:	aluminum
Material inlet thread type:	NPT
Material in the liquid housing:	aluminum
Material of the centre housing:	aluminum
Material outlet size (cm):	2.54
Material outlet size (mm):	25.4
Material outlet thread type:	NPT
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum delivery rate (L/min):	189
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum number of cycles (DH/min):	280
Maximum operating temperature (°C):	66
Maximum solids size (cm):	3,175
Maximum solids size (mm):	3,175
Membrane material:	TPE (Hytrel)
Model:	Husky
Seat material:	TPE (Hytrel)
Series:	1050
Size of the exhaust air opening (inches):	3/4
Size of the material inlet opening (cm):	2.54
Size of the material inlet opening (inches):	1
Size of the material inlet opening (mm):	25.4
Size of the material outlet opening (inches):	1
Standards met::	UL
Supply voltage:	Air
Thread of the exhaust air opening (inside/outside):	Internal thread
Thread of the exhaust air opening (type):	NPT
Type:	Pneumatic diaphragm pump
Wetted material:	Aluminum, TPE, Acetal

More information

Product number: 1033718
Manufacturer: Graco
EAN: 00633955134973
Weight: 10.005 kg
Length: 390 mm
Width: 220 mm
Height: 440 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955134973
Division	LED
Price Block	2 62
Country of origin	US
Unit	EA
Height	44 CM
Length	39 cm
Width	22 cm
Volume	. 038 m³
Shipping weight	10.01 kg
HTS code (GB)	8413508090
HTS code (EU)	8413508090

Technical

Air exhaust port size (in)	3/4
Air exhaust port thread gender	Female
Air inlet size (in)	1/2
Air inlet thread gender	Female
Fluid inlet size (cm)	2. 54
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4
Fluid inlet thread gender	Female
Fluid outlet size (cm)	2. 54
Fluid outlet size (mm)	25. 4
Fluid outlet thread gender	Female
For use with	Water / anti-freeze / fuel transfer
Maximum air consumption (SCFM)	25
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum Cycle Rate (CPM)	2 80
Maximum flow rate (L/min)	1 89
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	150
Maximum solid size (cm)	0. 3175
Maximum solid size (in)	0. 125
Maximum solid size (mm)	3. 175
Model	H usky
Overall height (in)	15. 9
Series	1 0 50
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
