Manufacturer no.: JS40L0

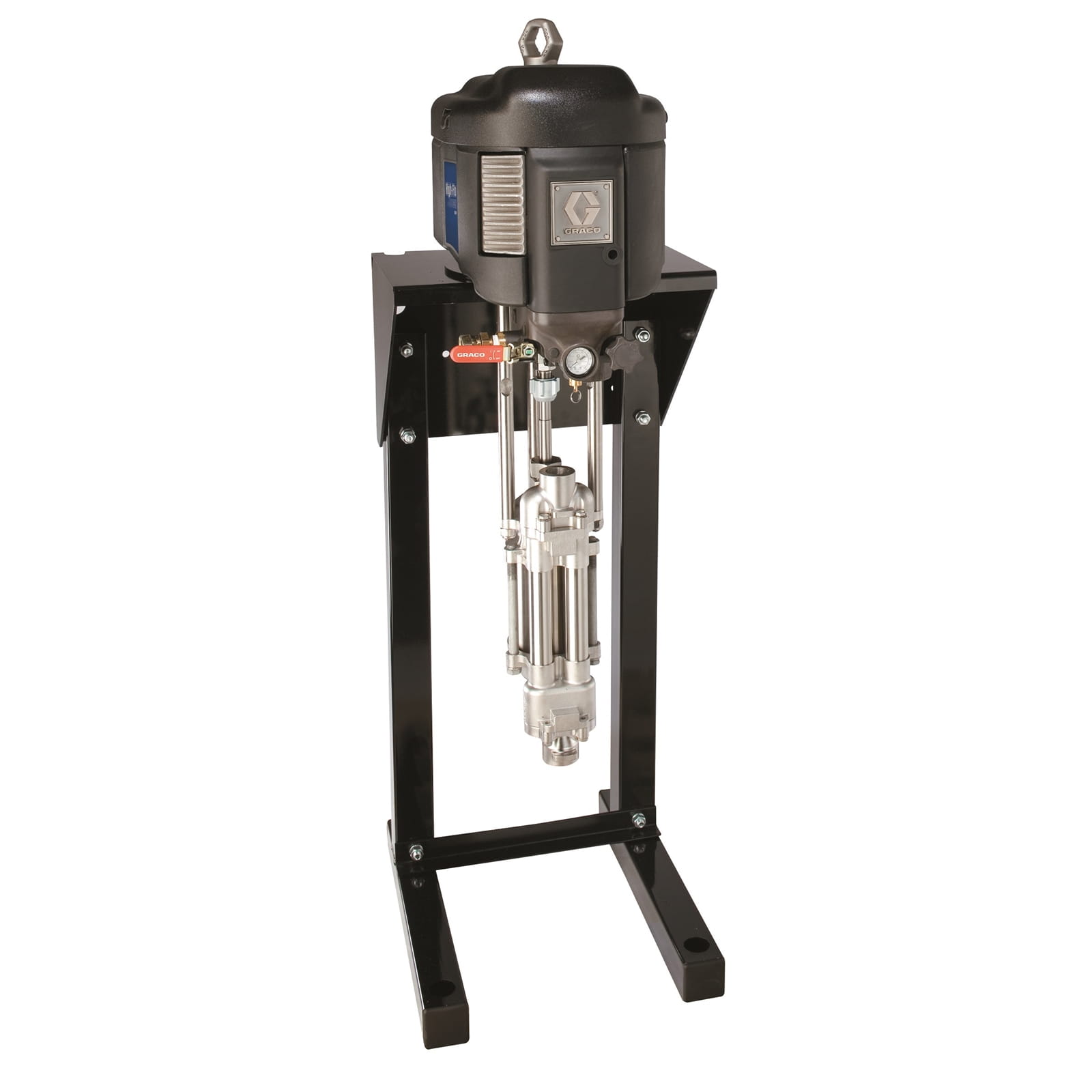

High-Flo 4-ball pump, stainless steel, 4:1, low-noise exhaust air system, bottom pump with open oil cup, Tri-Clamp fittings, Ultralife rod/cylinder

€11,672.59*

% €15,584.24* (25.1% saved)

Prices include VAT plus shipping costs

€9,808.90*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The pneumatic High-Flo 4-ball piston pump enables a high flow rate per cycle and minimises wear and maintenance requirements of the pump. Ideal for low pressure, high flow applications; intrinsically safe in hazardous areas.

Unlike many rotary pump technologies, slow up and down movements ensure that colour quality is not compromised
Robust casing that will not rust or dent
De-icing monitoring prevents the motor from stalling
The ceramic coating of the Ultralife series resists even the most aggressive materials, such as water-based paints

Pump type:	Kugel-Kolbenpumpe
Ratio:	4:1

More information

Product number: 1032044
Manufacturer: Graco
EAN: 00755652322825

Technical details

Specifications

Operating specifications

UPC product	755652322825
Division	IPD
Price Block	029
Country of Origin	US
Unit	EA
Height	52 CM
Length	153 cm
Width	48 cm
Volume	. 382 m³
Shipping weight	110 KG

Technical

Fluid outlet size (mm)	38. 1
Includes	Stainless steel pump, low noise exhaust, Tri-Clamp fittings, Ultralife rod, Ultralife cylinder
Maximum Air Inlet Pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	12
Maximum flow rate (L/min)	63. 97
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum working pressure (bar)	2 8
Maximum working pressure (kPa)	2 8 00
Maximum working pressure (psi)	400
Model	High-Flo
Portable	Non-portable
Series	4-Ball
Maximum working pressure (MPa)	2. 8
