Manufacturer no.: JS40L8

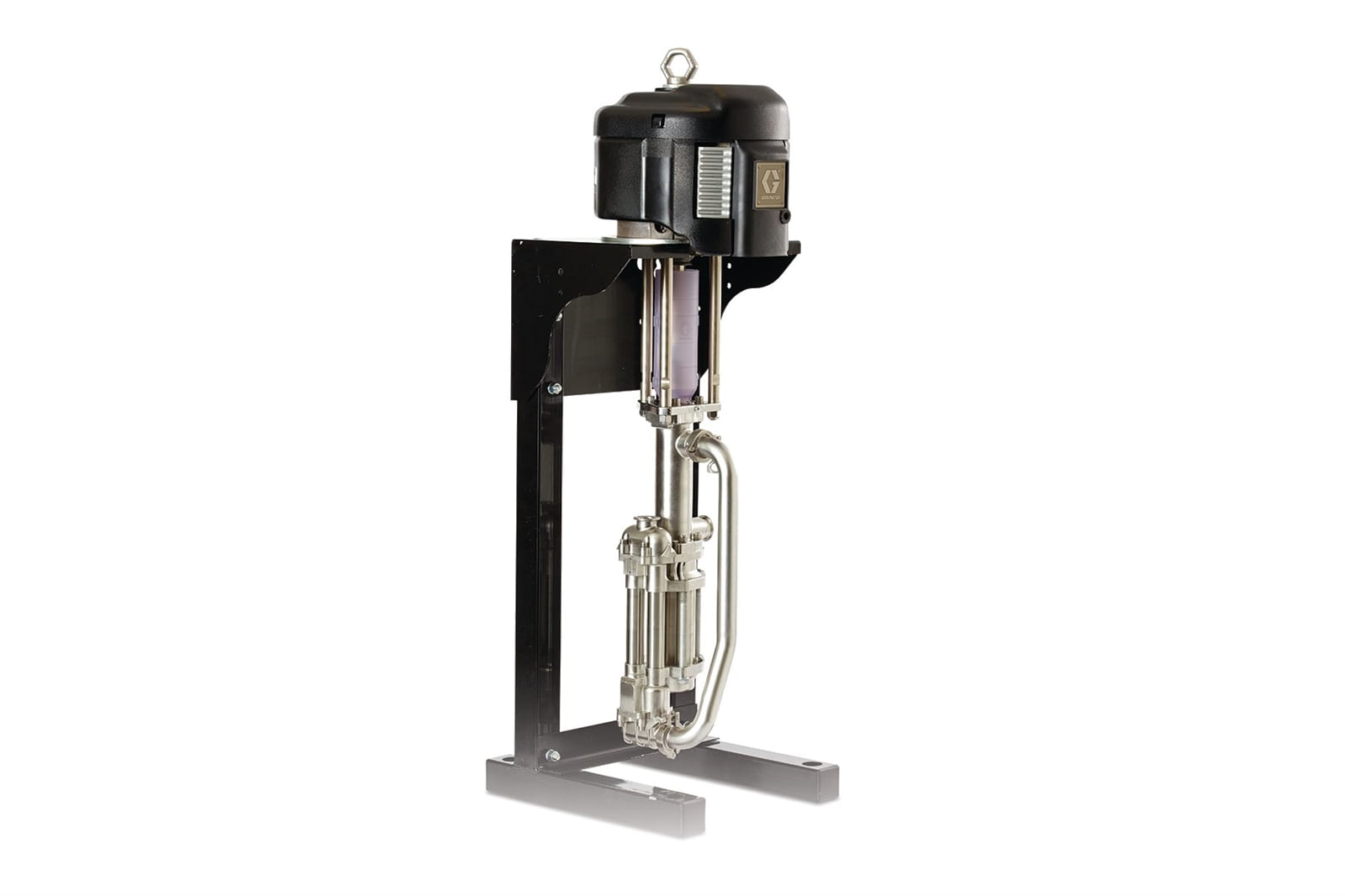

High-Flo 4-ball pump, stainless steel, 4:1, low-noise exhaust air system, bottom pump with closed oil cup, Tri-Clamp fittings, Ultralife rod/cylinder

€13,235.55*

% €16,289.91* (18.75% saved)

Prices include VAT plus shipping costs

€11,122.31*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The pneumatic High-Flo 4-ball piston pump enables a high flow rate per cycle and minimises wear and maintenance requirements of the pump. Ideal for low pressure, high flow applications; intrinsically safe in hazardous areas.

Unlike many rotary pump technologies, slow up and down movements ensure that colour quality is not compromised
The fully sealed fluid section can be used almost anywhere, even when handling hardeners and moisture-sensitive materials
The ceramic coating of the Ultralife series resists even the most aggressive materials, such as water-based paints
De-icing monitoring prevents the motor from stopping
Robust panelling that neither rusts nor dents

Application:	circulation
Compatible material:	Water Based, Solvent Based, High Solids, Xirallic, Metal, Top Coats, Stains, Lacquer, CARC
Includes:	Stainless steel pump, low-noise exhaust system, tri-clamp fittings, Ultralife rod, Ultralife cylinder
Material:	stainless steel
Material outlet size (cm):	3.81
Material outlet size (mm):	38.1
Material section type:	Sealed
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum continuous double stroke rate (DH/min):	20
Maximum delivery rate (L/min):	63.97
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	2.8
Maximum operating pressure (kPa):	2800
Maximum operating pressure (psi):	400
Maximum operating temperature (°C):	66
Model:	High Flo
Motor type:	Quiet NXT
Permissible operating pressure (bar):	28
Portable:	Not portable
Series:	4-Ball
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	4:5
Type:	Pneumatic piston pump
Wetted material:	stainless steel
