Manufacturer no.: JS30M8

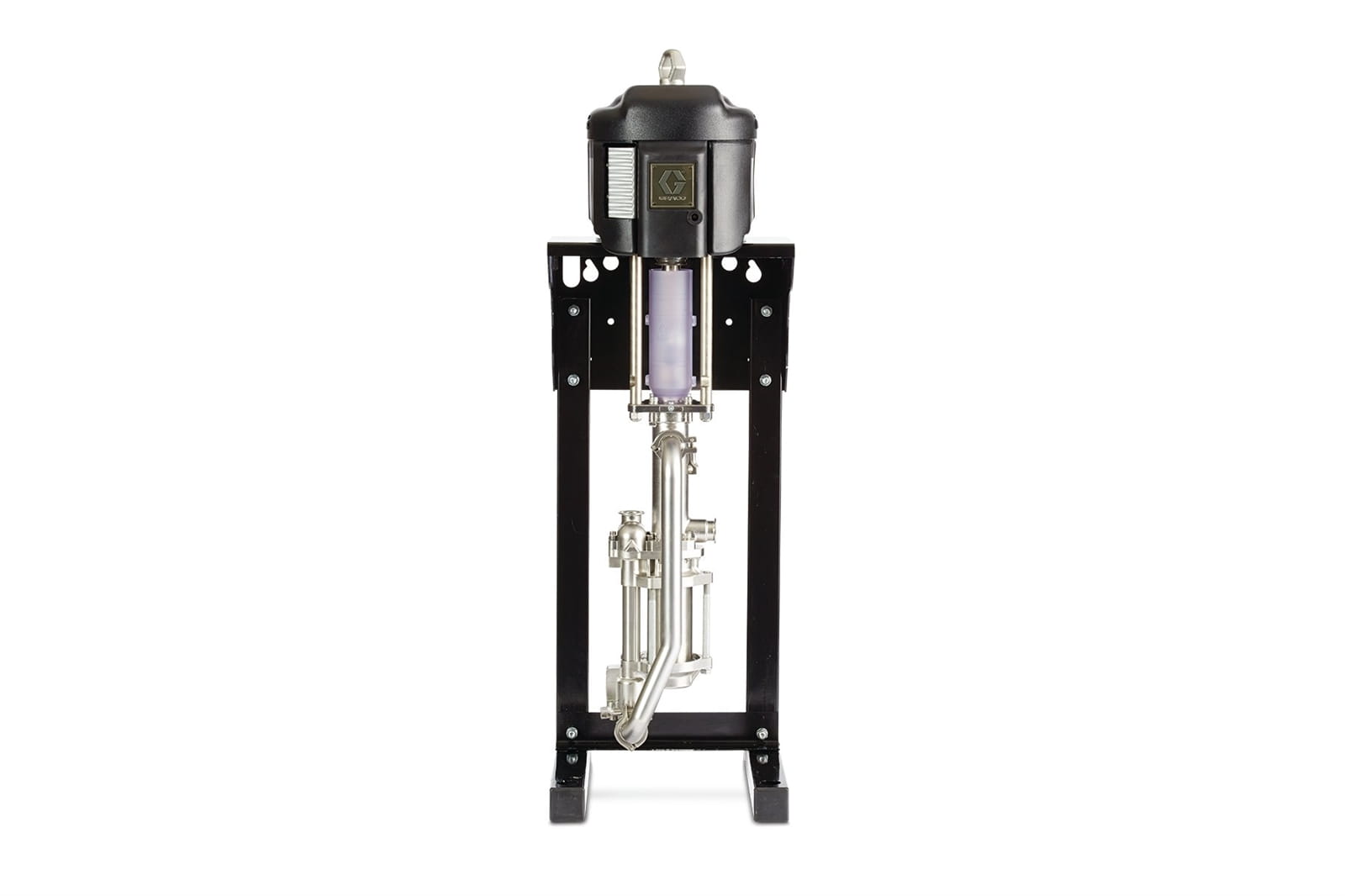

High-Flo 4-ball pump, stainless steel, 3:1, low-noise exhaust system, DataTrak, lower pump with closed oil cup, Tri-Clamp fittings, Ultralife rod/cylinder

€16,046.91*

% €20,058.64* (20% saved)

Prices include VAT plus shipping costs

€13,484.80*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The pneumatic High-Flo 4-ball piston pump enables a high flow rate per cycle and minimises wear and maintenance requirements of the pump. Ideal for low pressure, high flow applications; intrinsically safe in hazardous areas.

Unlike many rotary pump technologies, slow up and down movements ensure that colour quality is not compromised
The fully sealed fluid section can be used almost anywhere, even when handling hardeners and moisture-sensitive materials
The ceramic coating of the Ultralife series resists even the most aggressive materials, such as water-based paints
De-icing monitoring prevents the motor from stopping
Robust panelling that neither rusts nor dents
A DataTrak system monitors material consumption and protects the pump

Artikel Art:	Kugel-Kolbenpumpe
Verhältnis:	3:1

More information

Product number: 1034258
Manufacturer: Graco
EAN: 00755652323105
Weight: 65.77 kg

Technical details

Specifications

Operating specifications

UPC product	755652323105
Division	IPD
Price Block	029
Country of Origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	65.77 KG

Technical

Fluid outlet size (mm)	38. 1
Includes	Stainless steel pump, low noise exhaust, DataTrak monitor, Tri-Clamp fittings, Ultralife rod, Ultralife cylinder
Maximum air inlet pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	20
Maximum flow rate (L/min)	87. 82
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum working pressure (bar)	2 1
Maximum working pressure (kPa)	2 100
Maximum working pressure (psi)	300
Model	High-Flo
Portable	Non-portable
Series	4-Ball
Maximum working pressure (MPa)	2. 1
