Manufacturer no.:
25U570

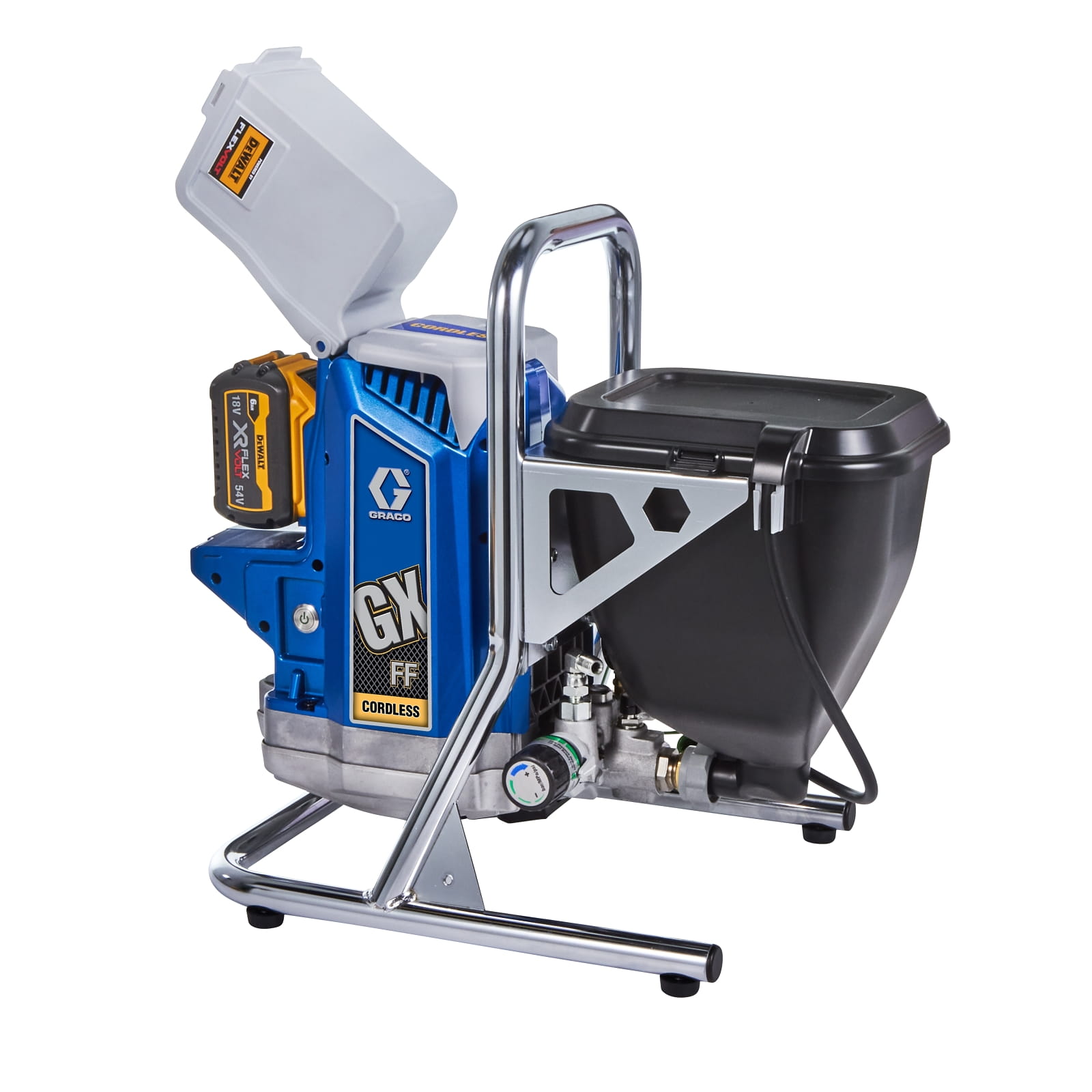

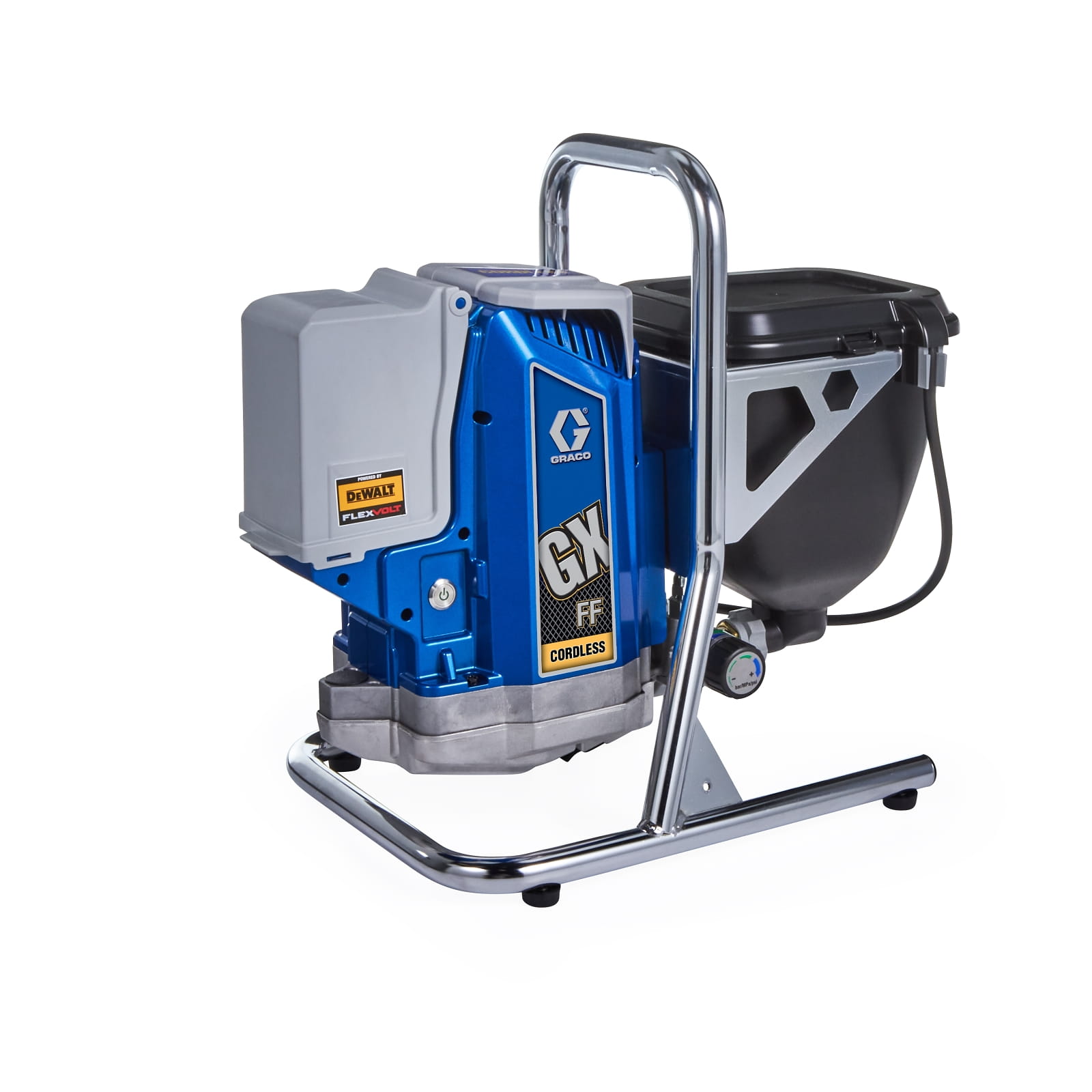

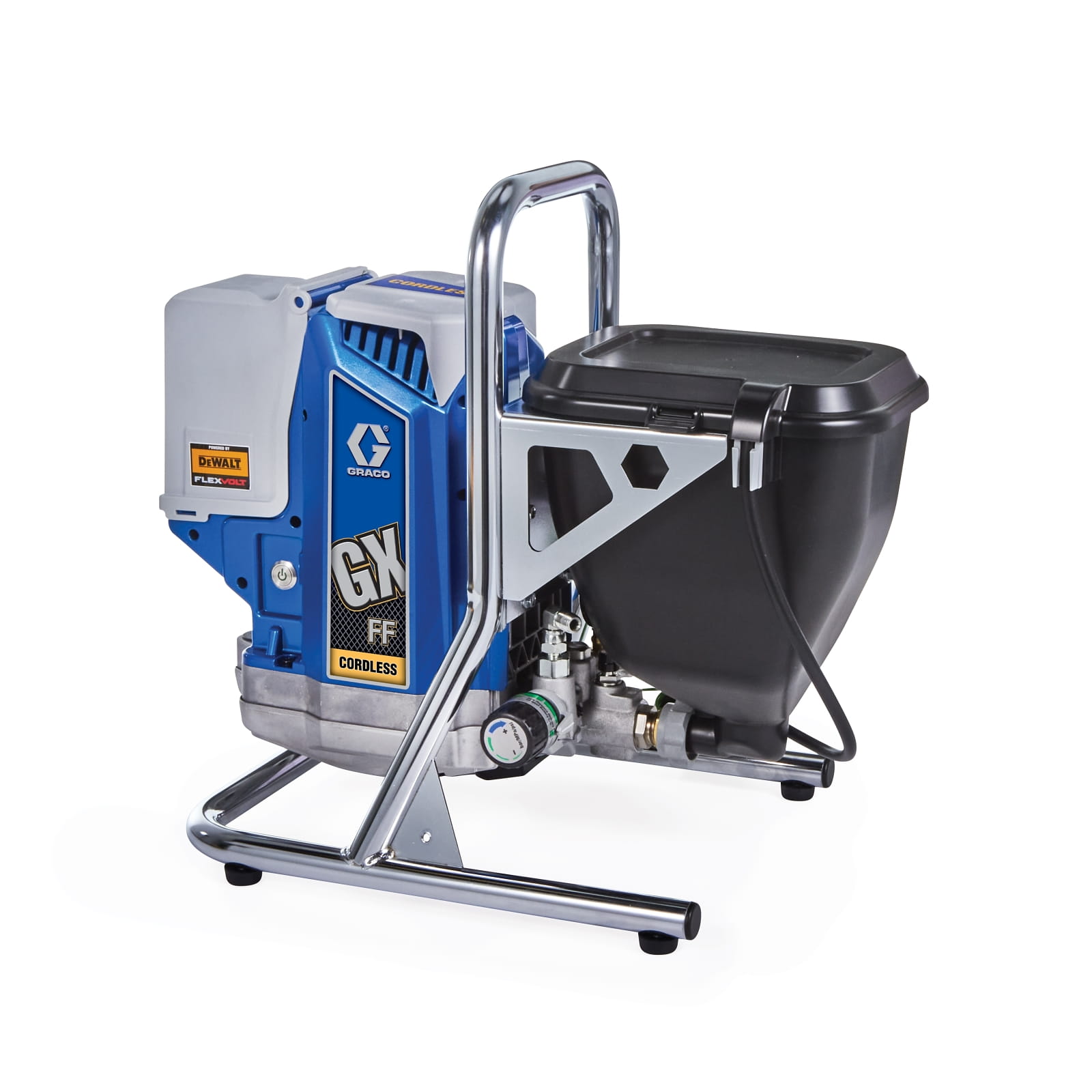

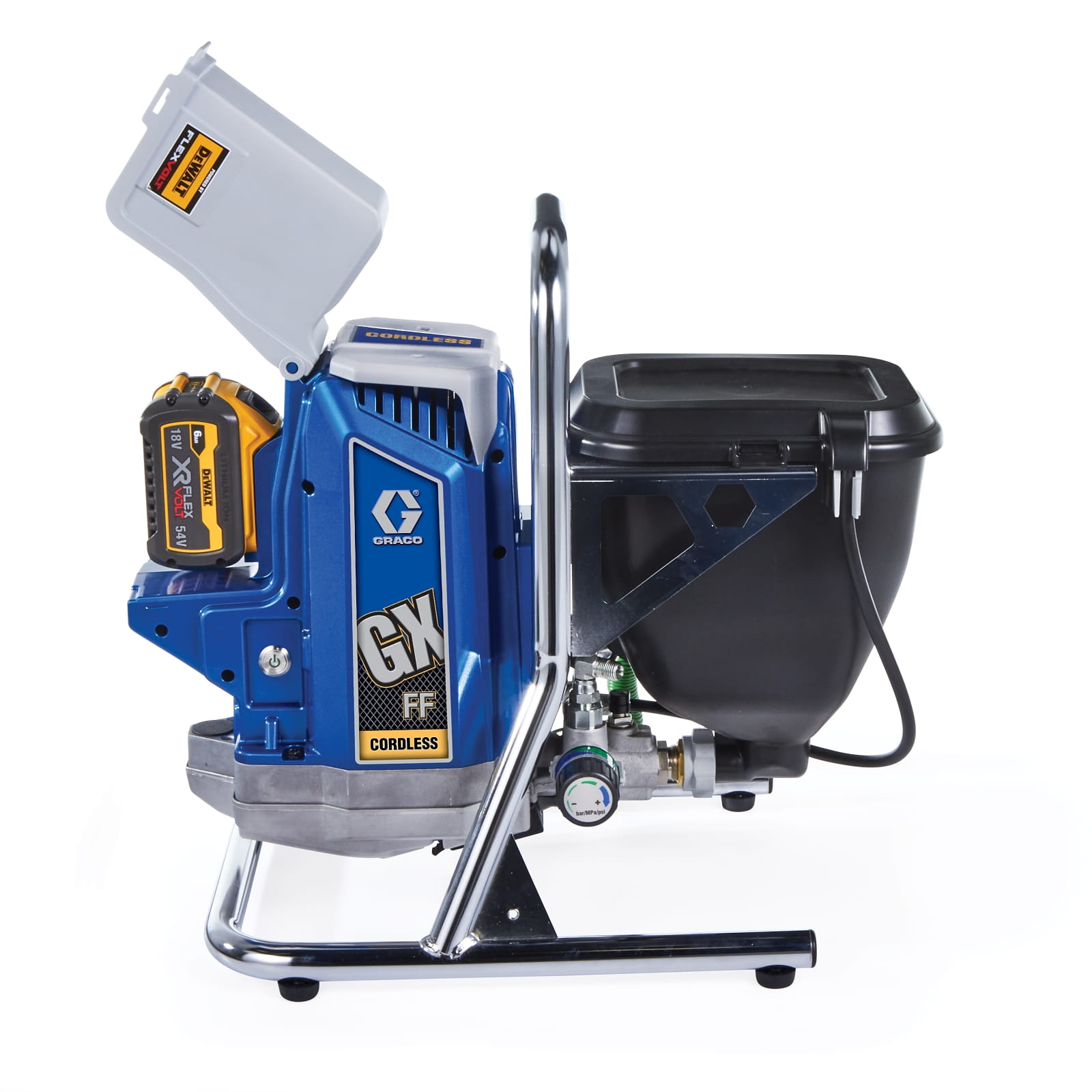

GX FF Cordless airless sprayer, 230V, UK
€2,474.01*
% €2,748.90* (10% saved)Prices include VAT plus shipping costs
€2,079.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The cordless GXFF is a battery-powered finisher designed for finishing jobs that require ultimate mobility and freedom. The unit is designed to deliver the performance of a corded GXFF sprayer without the need for power cords, outlets or generators. Experience the power and freedom to spray every job faster.
Enjoy the convenience of walking to any job, turning off the sprayer and starting to spray, regardless of whether there is power or not. With the convenient Contractor PC Compact gun, you can spray effortlessly even in hard-to-reach areas
ULTIMATE POWER AND PROVEN PERFORMANCE
Powered by DEWALT®- High capacity 6ah FlexVolt batteries - spray up to 23 litres to touchdown
- Comes complete with two batteries and a fast charger with fan cooling- Allows you to spray fine finish projects all day long
BRUSHLESS DC MOTOR
- Powerful brushless DC motor ensures longer battery life
- The lightweight, compact design provides even more mobility
PERFECT AIRLESS FINISH
RAC X™ fine finish at low pressure (FFLP) Switchtip™- Perfect airless finish
- Very easy pattern overlap
- Up to 2 times longer nozzle life than standard nozzles
SPRAY EASILY IN HARD TO ACCESS AREAS
Contractor PC Compact™ gun- The smallest and lightest gun on the market
- 50 % lighter trigger
- With the ProConnect cartridge, you can convert the gun in seconds
- EASY MAINTENANCE AND LONG SERVICE LIFE
ProX Power piston pump with ProXChange- Low dead zone pressure ensures the finest finish
- Exceptional durability and long-lasting piston pump
- Exclusive, lifetime-lubricated wiper pad for maintenance-free operation
- ModModular pump components for easy maintenance
- Quick and easy pump replacement on site without tools
- Eliminate labour costs and downtime
- FINISH WORK FASTER
Extremely mobile- Lighter than any competitor system
- Ergonomic handle makes transport easy
- Lid prevents splashes and spills when carrying
- EASY MATERIAL HANDLING
5.7 litre material container
- Ideal for spraying small quantities of material
- Faster cleaning with smooth inner surface - solvent resistant
- Never struggle with a drain pipe again - the drain pipe hook keeps the drain pipe in place
| Battery capacity (Ah): | 6 |
|---|---|
| Battery chemistry: | Lithium ion |
| Battery voltage (V): | 54 |
| Compatible material: | Stains, varnishes, enamels, solvent-based paints |
| Compatible replacement pump: | 24Y472 |
| Convertible: | Not convertible |
| Filter mesh size: | 100 |
| Frame configuration: | container |
| Frequency (Hz): | 50 |
| Gun included: | 1 |
| Hose diameter (inch): | 3/16 |
| Hose inlet diameter (cm): | 47,625 |
| Hose inlet diameter (inch): | 3/16 |
| Hose inlet diameter (mm): | 4.7625 |
| Inner diameter of material hose (inch): | 3/16 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 1.4 |
| Maximum hose length (m): | 7.5 |
| Maximum nozzle size (inch): | 19 |
| Maximum nozzle size 1 gun (inch): | 19 |
| Maximum operating pressure (MPa): | 20.7 |
| Maximum operating pressure (kPa): | 20700 |
| Maximum operating pressure (kg/cm²): | 210.9 |
| Maximum operating pressure (psi): | 3000 |
| Maximum operating temperature (°C): | 46 |
| Maximum sound pressure level (dB(A)): | 83 |
| Minimum operating temperature (°C): | 4 |
| Model: | GX |
| Motor type: | Brushless, DC |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3000 |
| Permissible operating pressure (bar): | 207 |
| Phases: | 1 |
| Pump mounting type: | ProXchange |
| Pump rod type: | Normal steel |
| Pump type: | ProX piston pump |
| Region Plug type: | UK region (plug type G) |
| Series: | FF Cordless |
| Size of the material outlet opening (inches): | 1/4 |
| Spray gun type: | Contractor PC Compact |
| Spraying technology: | Airless |
| Supply voltage: | Battery operated |
| Total height (cm): | 49.8 |
| Total height (mm): | 4,978,400 |
| Total length (cm): | 51.3 |
| Total length (mm): | 513.08 |
| Total width (cm): | 34.3 |
| Total width (mm): | 3,429,000 |
| Type: | Airless sprayer |
| Weight (kg): | 14.7 |
| Wetted material: | Stainless steel, brass, leather, UHMWPE, carbide, nylon, aluminum, PVC, polypropylene, fluoroelastomer |
More information
- Product number: 1038118
- Manufacturer: Graco
Technical details
Operating specifications
| UPC product | 7 6 9946273724 |
|---|---|
| Division | CED |
| Price Block | 2 31 |
| Country of Origin | US |
| Unit | EA |
| Height | 53 CM |
| Length | 65 cm |
| Width | 35 cm |
| Volume | . 121 m³ |
| Shipping weight | 20 KG |
Technical
| Compatible replacement pump | 24Y4 72 |
|---|---|
| Convertible | Non - convertible |
| Engine size (HP) | 0. 500 |
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Hopper |
| Hose inlet diameter (cm) | 0. 47625 |
| Hose inlet diameter (in) | 3/16 |
| Hose inlet diameter (mm) | 4. 7625 |

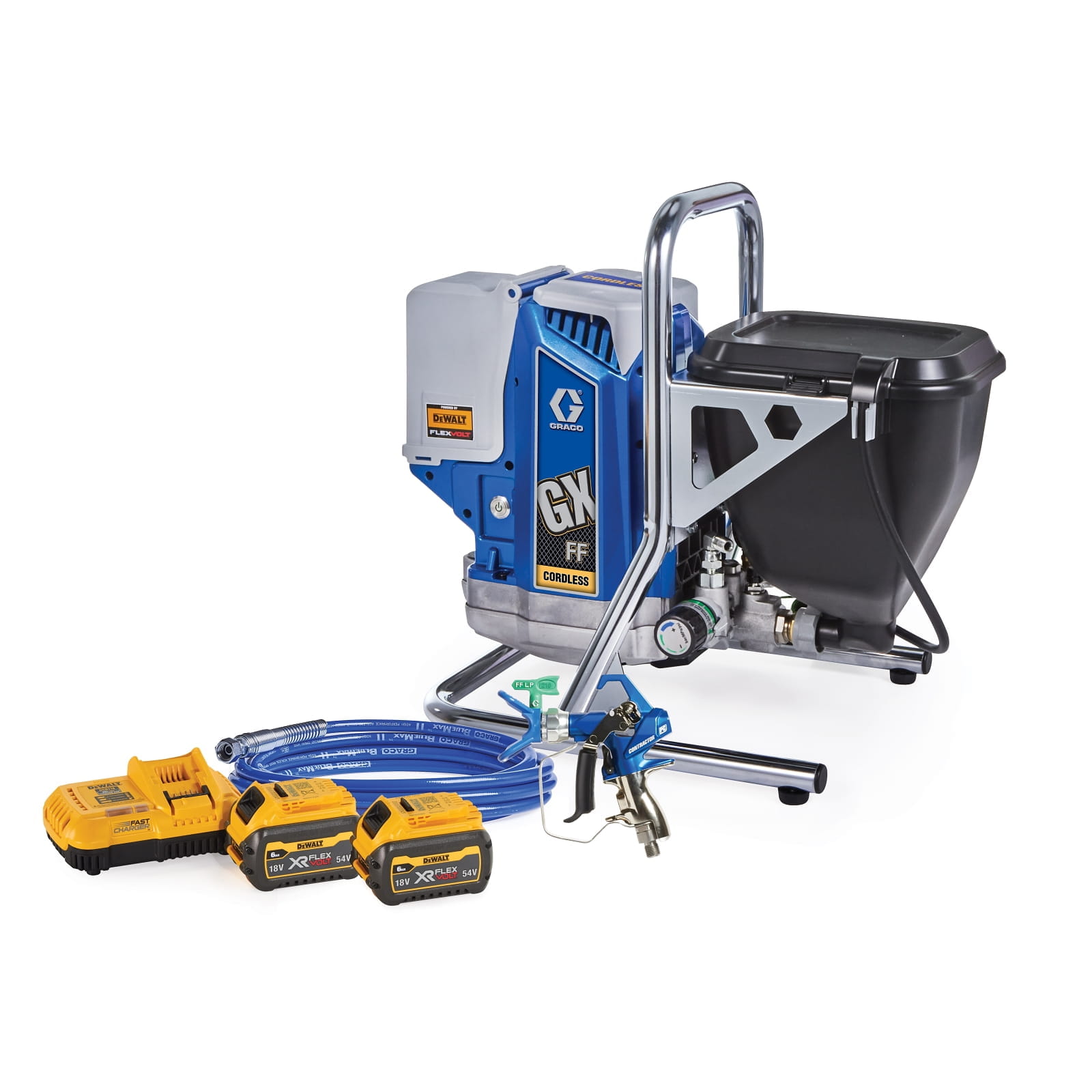

| Includes | Contractor PC Compact Gun, 100-mesh compact gun filter, RAC X FFLP 210 spray tip, RAC X Guard, 1/4 in x 15 m Duraflex hose, 2 - DEWALT 18V/54V MAX FLEXVOLT 6ah lithium-ion batteries, DEWALT fan-cooled fast charger |
| Maximum flow rate (L/min) | 1. 4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Hose Length (m) | 7. 5 |
| Maximum sound pressure level (dB(A)) | 83 |
| Maximum tip size (in) | 0. 019 |
| Maximum tip size gun 1 (in) | 0. 019 |
| Maximum working pressure (psi) | 3000 |
| Maximum working pressure (kPa) | 2 0 700 |
| Maximum working pressure (MPa) | 20. 7 |
| Overall Width (mm) | 342. 9000 |
| Model | GX |
| Maximum working pressure (bar) | 2 07 |
| Overall Height (cm) | 49. 8 |
| Overall Height (in) | 19. 6 |
| Weight (kg) | 14. 7 |
| Overall height (mm) | 497. 8400 |
| Overall length (cm) | 51. 3 |
| Overall width (in) | 13. 5 |
| Overall Length (in) | 20. 2 |
| Series | FF Cordless |
| Overall Length (mm) | 513. 08 |
| Overall width (cm) | 34. 3 |
| Battery capacity (Ah) | 6 |
| Battery Chemistry | Lithium-ion |
| Battery voltage (V) | 54 |
| Maximum working pressure (kg/cm²) | 210. 9 |
| Hose diameter (in) | 3/16 |
| Fluid hose inside diameter (in) | 3/16 |
| Outlet paint filter | 60 mesh stainless steel screen |
| Frequency (Hz) | 50 |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon steel |
| Filter mesh size | 100 |
| Maximum operating temperature (°C) | 46 |
| Maximum operating temperature (°F) | 115 |
| Minimum operating temperature (°C) | 4 |
| Minimum operating temperature (°F) | 40 |
| region_plug_type | UK region (Type G plug ) |
