Manufacturer no.:
19D526
Graco - ULTRA SPRAYER, 490 XT, ULTRA, HI-BOY, CEE - PAA ST Max - 19D526
€4,962.30*
% €6,616.40* (25% saved)Prices include VAT plus shipping costs
€4,170.00*
Price excl. VAT
Also interesting
Product information

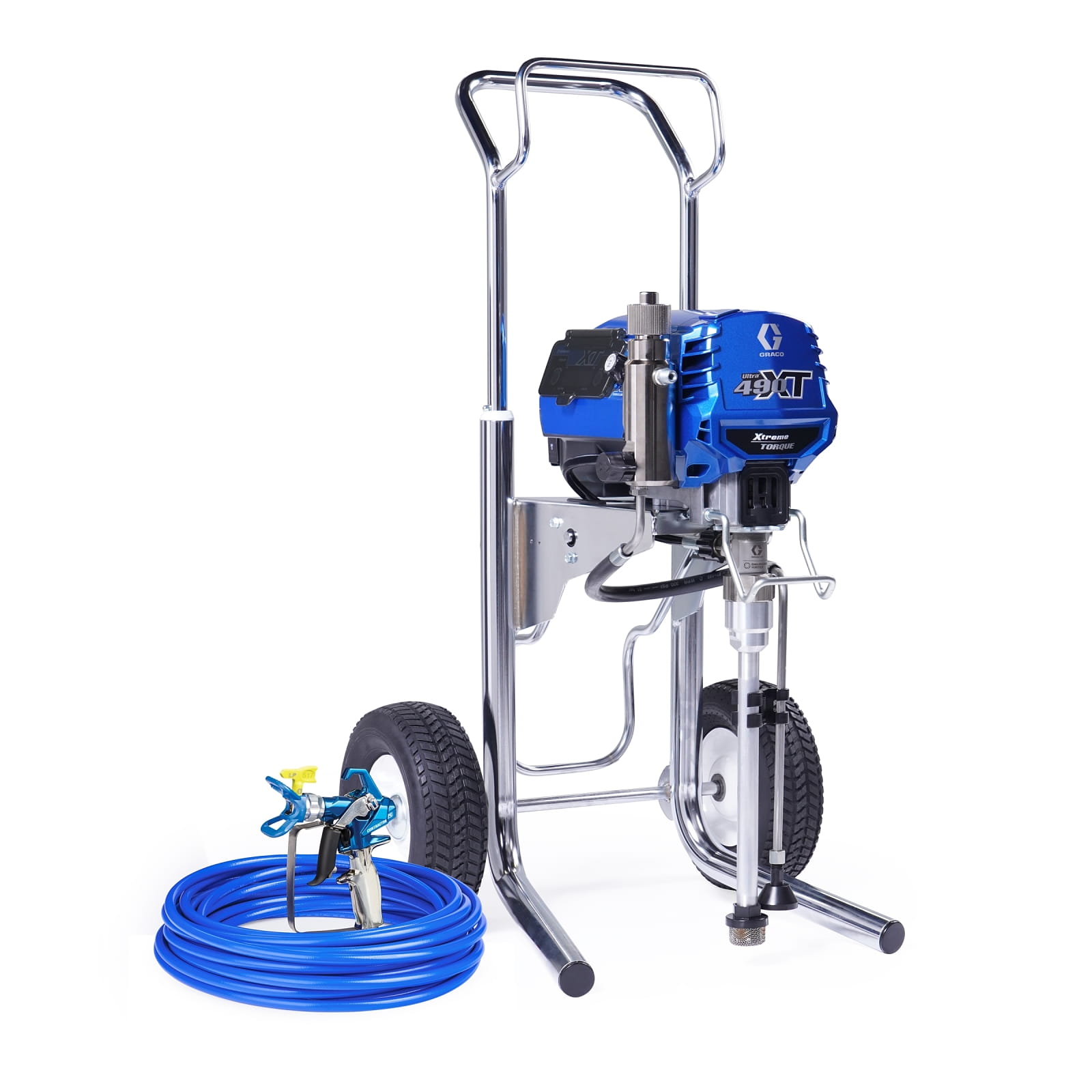

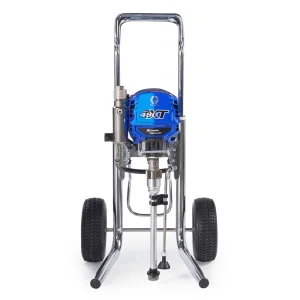

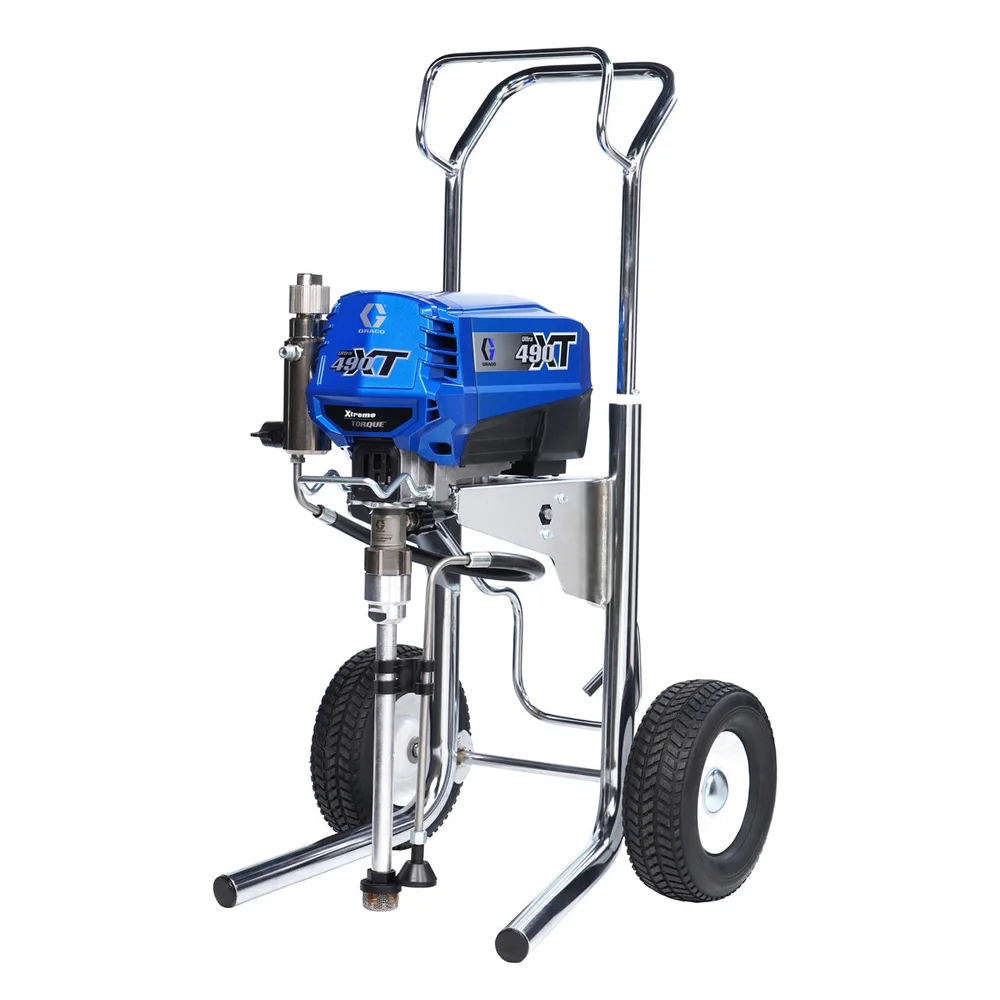

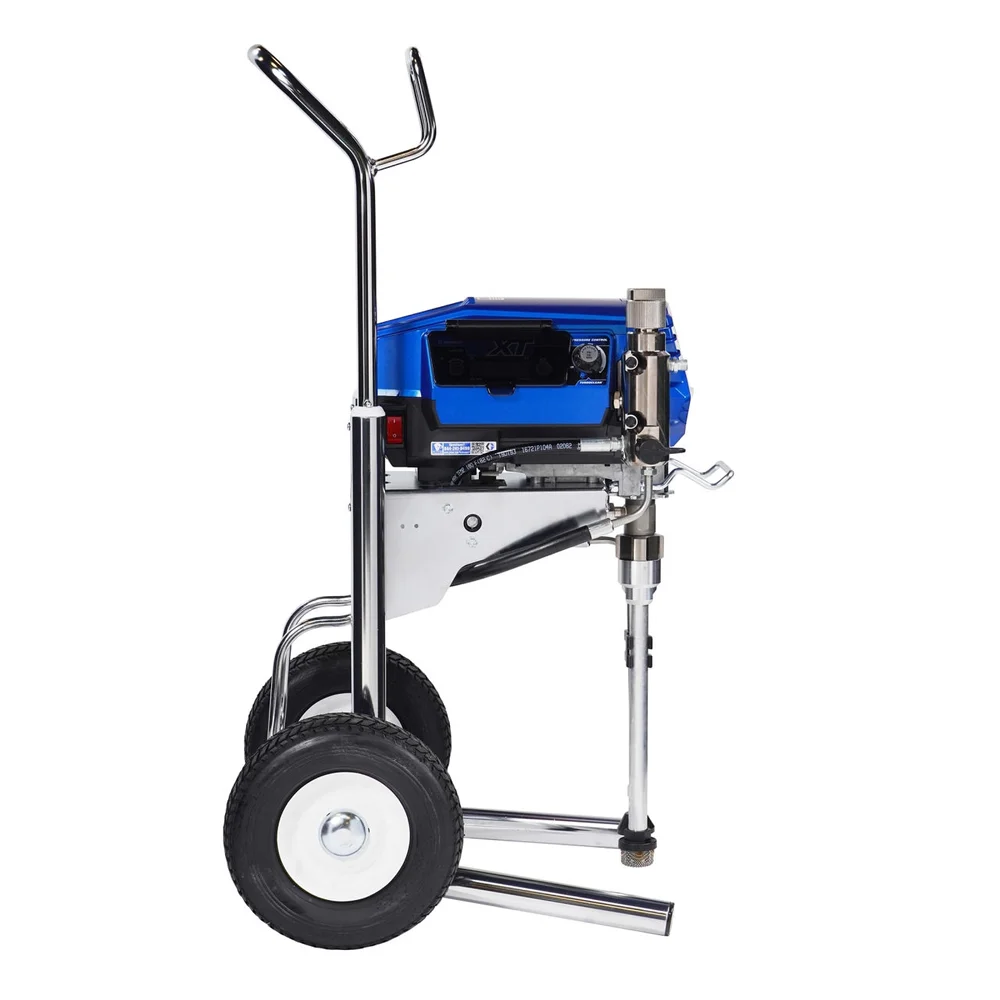

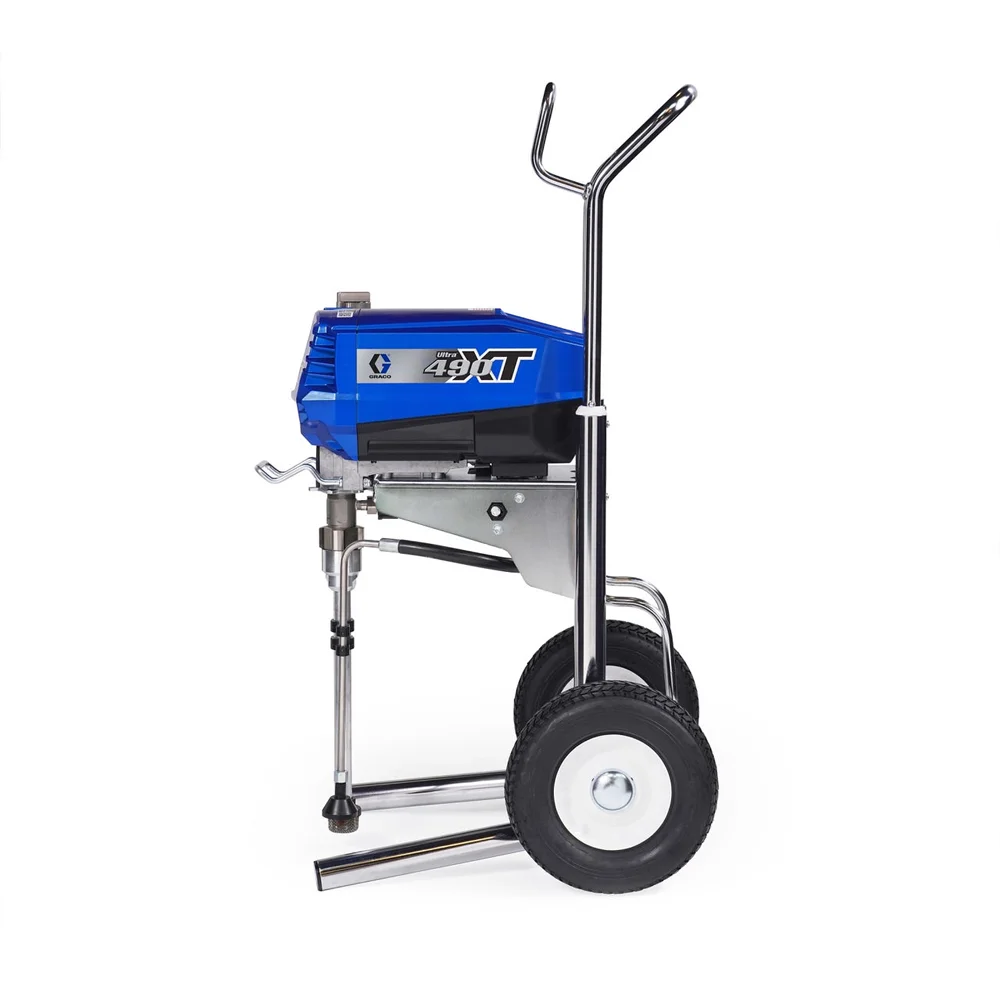

Graco Ultra 490 XT Ultra Hi-Boy – Powerful Electric Airless Sprayer
The Graco Ultra 490 XT Ultra Hi-Boy is a professional, electrically powered airless sprayer, designed for high productivity and maximum reliability in daily use. It is ideal for medium to larger coating projects in trade, industry, and on construction sites.
The powerful Xtreme Torque motor combined with Rapid-Response pressure control ensures a smooth, finely tuned spray pattern with consistent pressure. Its robust construction guarantees a long service life even under intensive use.
- Xtreme Torque motor – powerful & durable
- Rapid-Response pressure control – precise regulation
- Flow rate up to approx. 2.6 l/min – high surface productivity
- Endurance Vortex pump – extended service life
- Hi-Boy configuration – ergonomic working height
Details & Information
Product Features
- Electric airless sprayer with Hi-Boy frame
- 1.3 HP Xtreme Torque motor
- Digital Rapid-Response pressure control
- Endurance Vortex pump for consistent performance
- LED display for operating information
- TurboClean system for fast cleaning
- WatchDog pump protection for low material levels
Practical benefit: High spraying performance with stable pressure control –
ideal for efficient coating work on medium to large surfaces.
Variants Overview
The Ultra XT series includes different models with varying flow rates and equipment options – available either as a stand unit or in Hi-Boy configuration.
| Model | Type | Flow Rate |
|---|---|---|
| Ultra 490 XT Hi-Boy | Electric airless unit | Up to approx. 2.6 l/min |
| Ultra 495 XT Hi-Boy | Enhanced performance | Up to approx. 3.0 l/min |
Note: The selection of the appropriate model depends on
material type, project size, and required output.
Setup & Commissioning
- Check power supply (230 V)
- Position suction hose correctly in the material
- Select the appropriate tip size
- Adjust pressure according to the application
- Clean the unit thoroughly after use
Tip: The correct tip selection and optimal pressure setting
ensure an even spray pattern with minimal material loss.
Intended Use / Applications
- Facade and interior wall coatings
- Wood and furniture surfaces
- Concrete and plaster surfaces
- Renovation and refurbishment projects
Product Brochure & Resources
For details on features, technical data, and accessories, please refer to the official Ultra 490 brochure.
More information
- Product number: 2117922
- Manufacturer: Graco
- EAN: 769946346428
- Weight: 38.56 kg
- Length: 6.2 mm
- Width: 5.5 mm
- Height: 8.3 mm
Technical details
Betriebsspezifikationen
| UPC Produkt | 769946346428 |
|---|---|
| Division | CED |
| Price Block | 017 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 83 CM |
| Länge | 62 CM |
| Breite | 55 CM |
| Volumen | .283 M3 |
| Shipping Weight | 38.56 KG |
Technische Daten
| Frame Configuration | Hi-Boy |
|---|---|
| Maximum Flow Rate (L/min) | 2.6 |
| Maximum Tip Size (in) | .025 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Working Pressure (bar) | 3 |
| Model | Ultra |
| Maximum Working Pressure (bar) | 227 |
| Minimum Working Pressure (psi) | 50 |
| Weight (kg) | 30 |
| Series | 490 XT |
Further manufacturer information
3A6285.pdf |3A6285M, Manual, Contractor PC Spray Guns, Operation, Parts, Repair, English |Englisch |Revision LATEST
3A6285.pdf |3A6295M, prirunik, pitolji za rasprivanje Contractor PC, upotreba, dijelovi, popravak, hrvatski |Kroatisch |Revision LATEST
3A6285.pdf |3A6302M, kasutusjuhend, pihustuspstolid Contractor PC, t, osad, remont, eesti |Estnisch |Revision LATEST
3A6285.pdf |3A6289M, Manual, Pistolas de pulverizacin Contractor PC, Funcionamiento, piezas, reparacin, espaol |Spanisch |Revision LATEST
3A6285.pdf |3A6318M, Handbuch, Contractor PC Spritzpistolen, Bedienung, Teile, Reparatur, Deutsch |Deutsch |Revision LATEST
3A6285.pdf |3A7499M, Manual, Contractor PC Spray Guns, Pengoperasian, Bagian-bagian, Perbaikan, Bahasa Indonesia |Hindi |Revision LATEST
3A6285.pdf |3A6291M, Handleiding, Contractor PC-spuitpistolen, Bediening, Onderdelen, Reparatie, Nederland |Niederlndisch |Revision LATEST
3A6285.pdf |3A6309M, Prironik, prilne pitole Contractor PC, delovanje, deli, popravilo, slovenina |Slowenisch |Revision LATEST
3A6285.pdf |3A6293M, Klavuz, Contractor PC Pskrtme Tabancalar, altrma, Paralar, Onarm, Trke |Trkisch |Revision LATEST
3A6285.pdf |3A6297M, hndbog, Contractor PC-sprjtepistoler, betjening, dele, reparation, dansk |Dnisch |Revision LATEST
3A6285.pdf |3A6308M, Prruka, striekacie pitole Contractor PC, prevdzka, diely, oprava, slovenina |Slowakisch |Revision LATEST
3A6285.pdf |3A6296M, Manual, Pistolas de pintura Contractor PC, Funcionamento, Peas, Reparao, Portugus |Portugiesisch |Revision LATEST
3A6285.pdf |3A6310M, manual, pistoale de pulverizare PC cu contractor, funcionare, piese, reparaii, romn |Rumnisch |Revision LATEST
3A6285.pdf |3A6290M, manuel, pistolets pulvrisateurs Contractor PC, fonctionnement, pices, rparation, franais |Franzsisch |Revision LATEST
3A6285.pdf |3A6298M, Kyttopas, Contractor PC-ruiskupistoolit, kytt, osat, korjaus, suomi |Finnisch |Revision LATEST
3A6285.pdf |3A6306M, kziknyv, Contractor PC szrpisztolyok, mkdse, rszei, javtsa, magyar |Ungarisch |Revision LATEST
3A6285.pdf |3A6303M, rokasgrmata, Contractor PC izsmidzinanas pistoles, ekspluatcija, detaas, remonts, latviski |Lettisch |Revision LATEST
3A6285.pdf |3A6304M, vadovas, Contractor PC purktuvai, naudojimas, dalys, remontas, lietuvi k. |Litauisch |Revision LATEST
3A6285.pdf |3A6305M, Instrukcja obsugi, pistolety natryskowe Contractor PC, eksploatacja, czci, naprawa, polski |Polnisch |Revision LATEST
3A6285.pdf |3A6300L, hndbok, Contractor PC sprytepistoler, bruk, deler, reparasjon, norsk |Norwegisch |Revision LATEST
3A6285.pdf |3A6307M, pruka, profesionln stkac pistole PC, obsluha, sousti, oprava, esky |Tschechisch |Revision LATEST
3A6285.pdf |3A6292M, Manuale, Pistole a spruzzo Contractor PC, Funzionamento, Parti, Riparazione, Italiano |Italienisch |Revision LATEST
3A6285.pdf |3A6299M, handbok, Contractor PC-sprutpistoler, drift, reservdelar, reparation, svenska |Schwedisch |Revision LATEST
3A9095.pdf |3A9145D, prironik, delovanje, deli, elektrini brezzrani prilniki 490 XT, 495 XT, 595 XT in 650 XT, slovenina |Slowenisch |Revision D
3A9095.pdf |3A9132D, Klavuz, altrma, Paralar, 490 XT, 495 XT, 595 XT ve 650 XT Elektrikli Havasz Pskrtme Makineleri, Trke |Trkisch |Revision D
3A9095.pdf |3A9138D, kasutusjuhend, osad, elektrilised alarhuga toimivad pihustid 490 XT, 495 XT, 595 XT ja 650 XT, tlge inglise keelest eesti keelde |Estnisch |Revision D
3A9095.pdf |3A9155D, manuel, fonctionnement, pices, pulvrisateurs lectriques airless 490 XT, 495 XT, 595 XT ET 650 XT, franais |Franzsisch |Revision D
3A9095.pdf |3A9142D, pruka, obsluha, sousti, elektrick bezvzduchov stkac zazen 490 XT, 495 XT, 595 XT, a 650 XT, etina |Tschechisch |Revision D
3A9095.pdf |3A9148D, Manuale, Funzionamento, Parti, Spruzzatori airless elettrici 490 XT, 495 XT, 595 XT e 650 XTU, Italiano |Italienisch |Revision D
3A9095.pdf |3A9095D, Manual, Operation, Parts, 490 XT, 495 XT, 595 XT, and 650 XT Electric Airless Sprayers, English |Englisch |Revision D
3A9095.pdf |3A9140D, Handleiding, Bediening, Onderdelen, Elektrische airless spuittoestellen 490 XT, 495 XT, 595 XT en 650 XT, Nederlands |Niederlndisch |Revision D
3A9095.pdf |3A9143D, hndbog, betjening, dele, 490 XT, 495 XT, 595 XT og 650 XT elektriske, luftlse sprjter, dansk |Dnisch |Revision D
3A9095.pdf |3A9150D, handbok, drift, delar, 490 XT, 495 XT, 595 XT och 650 XT elektriska airless-sprutor, svenska |Schwedisch |Revision D
3A9095.pdf |3A9149D, Handbuch, Betrieb, Teile, elektrische Airless-Spritzgerte 490 XT, 495 XT, 595 XT, und 650 XT, Deutsch |Deutsch |Revision D
