Manufacturer no.:
17H810

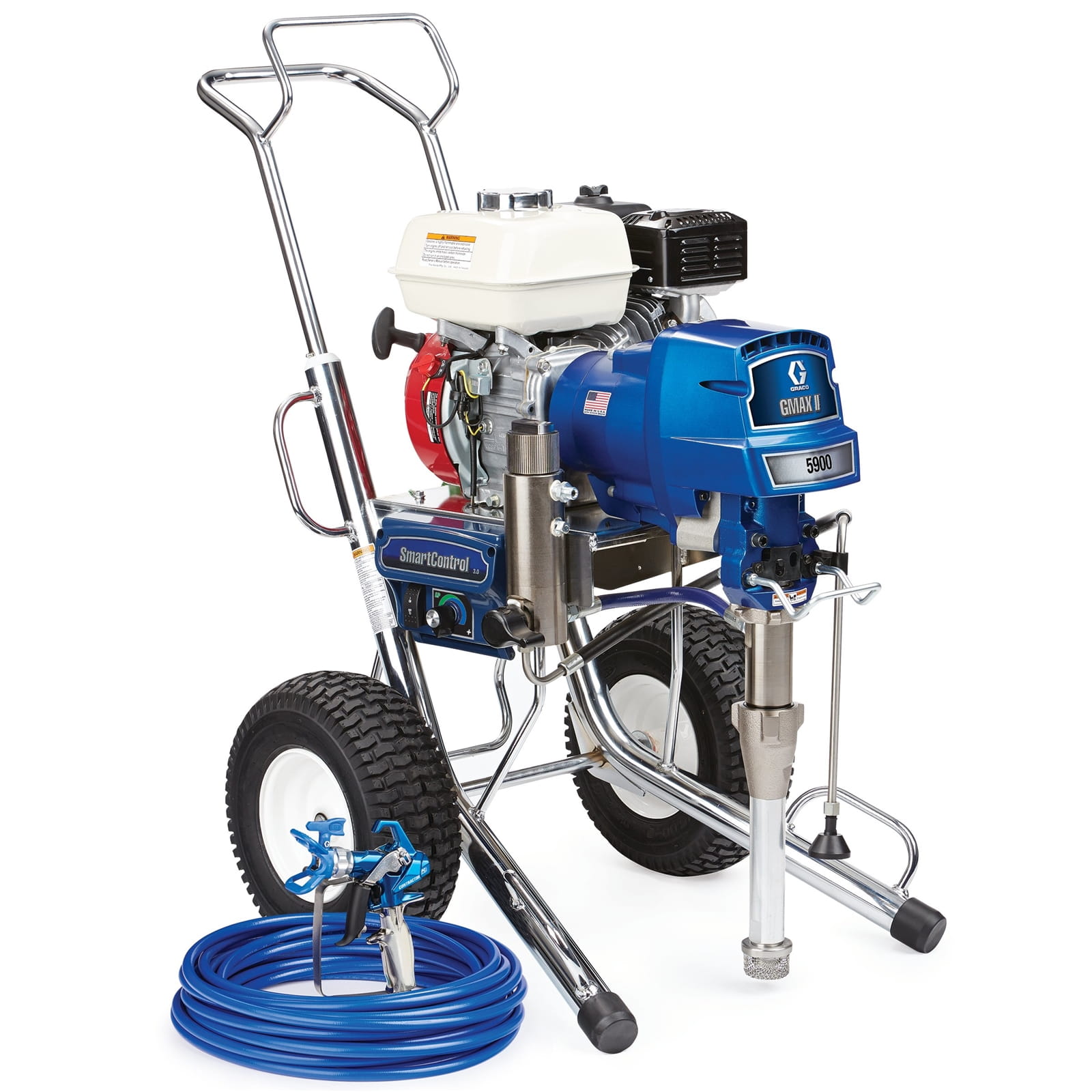

GMAX II 5900 petrol-driven airless sprayer of the Standard Series, Hi-Boy
€9,619.58*
% €14,575.12* (34% saved)Ready for shipping in 5-8 days
Also interesting
Product information
With a 160 cm³ Honda engine and a delivery rate of up to 61 l/min (1.6 gallons per minute), the GMAX II 5900 is the industry standard for professionals who want to spray a variety of materials in residential, commercial and industrial construction.
Always reliable: The Graco GMAX standard series of gas-powered airless paint sprayers offers unrivalled durability and performance and can easily handle a wide range of nozzle sizes, longer hose lengths and heavier coatings.
- Endurance Chromex piston pump
- The most dependable pump
- Lasts 2x longer than the next leading brand
- The new QuikPak cartridge system lets you replace the pump in minutes.
- The QuikChange pump design allows you to easily change the pump while you work.
- Faster cleaning with the QuikAccess inlet foot valve.
- SmartControl 3.0
- Constant spray fan and pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead zone at any pressure
- Advantage Precision Drive
- The longest-lasting drive
- Hardened steel gears run extra-quiet
- Easy Out pump filter
- Easy maintenance and less clogging
- Exclusive inside-out filtration process is uninterrupted, ensuring a high-quality finish
- Vertical design for less clutter
- Sturdy suction valve
- Maintenance-free design withstands high-pressure emptying
- Sturdy chassis construction
- Robust and easy to handle
- Thick chrome-plated steel and pneumatic tyres for tough jobsite conditions
- Retractable handle doubles as hose storage
- Honda® engine
- Reliable, powerful and easy to start
- Low oil level warning shuts off engine to prevent damage if oil level gets too low
- User favourite
- Contractor PC spray gun
- High spraying comfort and control – all day long
- Lightest spray gun in its class
- Up to 50% lower trigger force
- E-Z Fit Adjustable trigger length.
- Complete gun conversion in seconds with ProConnect cartridge
- Robust suction valve
- Maintenance-free high-pressure dump function
| Compatible material: | Primers, stains, acrylic paints, enamels, latex, interior paint, exterior paint |
|---|---|
| Convertible: | Not convertible |
| Features: | Endurance Pump, SmartControl 3.0, Honda Motor, Advantage Drive, Easy Out Filter, WatchDog, Contractor PC Gun |
| Filter mesh size: | 60 |
| Frame configuration: | Hi boy |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Hose reel type: | Hose holder |
| Includes: | All devices are delivered complete and ready to spray: |
| Inlet colour screen: | 8 mesh stainless steel strainer |
| Inner diameter of material hose (inch): | 1/4 |
| Material inlet thread type: | UN-2A |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 6.06 |
| Maximum hose length (m): | 45 |
| Maximum nozzle size (inch): | 43 |
| Maximum nozzle size 1 gun (inch): | 43 |
| Maximum nozzle size 2 guns (inch): | 33 |
| Maximum nozzle size 3 guns (inch): | 23 |
| Maximum operating pressure (MPa): | 22.8 |
| Maximum operating pressure (kPa): | 22700 |
| Maximum operating pressure (kg/cm²): | 22.7 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 96 |
| Model: | GMAX II |
| Nominal power (cm³): | 200 |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3300 |
| Permissible operating pressure (bar): | 227 |
| Pressure control type: | SmartControl 3.0 |
| Pump mounting type: | QuikChange |
| Pump rod type: | Chromex |
| Pump sleeve material: | Hard chrome plated |
| Pump type: | Endurance |
| Rated power (W): | 4847 |
| Rated power (kW): | 4.85 |
| Series: | 5900 |
| Size of the material inlet opening (inches): | 1-5/16 |
| Size of the material inlet opening (mm): | 33.34 |
| Size of the material outlet opening (inches): | 3/8 |
| Spray gun type: | Contractor PC Pro pistol |
| Spraying technology: | Airless |
| Supply voltage: | petrol |
| Total height (cm): | 102.9 |
| Total height (mm): | 10,287,000 |
| Total length (cm): | 95.8 |
| Total length (mm): | 957.58 |
| Total width (cm): | 62 |
| Total width (mm): | 6,197,600 |
| Type: | Airless sprayer |
| Weight (kg): | 62.7 |
| Wetted material: | Galvanized Carbon Steel, Nickel Plated Carbon Steel, PTFE, Nylon, Polyurethane, UHMW, Fluoroelastomer, Acetal, Leather, Aluminum, Tungsten Carbide, Stainless Steel, Chrome Plating |
More information
- Product number: 1031957
- Manufacturer: Graco
- EAN: 00755652869610
- Weight: 83 kg
- Length: 930 mm
- Width: 690 mm
- Height: 1030 mm
Technical details
Operating specifications
| UPC product | 755652869610 |
|---|---|
| Division | CED |
| Price Block | 2 47 |
| Country of Origin | US |
| Unit | EA |
| Height | 103 CM |
| Length | 93 CM |
| Width | 69 cm |
| Volume | . 661 m³ |
| Shipping weight | 83 KG |
Technical
| Convertible | Non - convertible |
|---|---|
| Engine Brand | Honda |
| Engine size (HP) | 6. 5 |
| Fluid inlet size (in) | 1 -5/16 |
| Fluid inlet size (mm) | 33. 34 |
| Fluid outlet size (mm) | 9. 525 |
| Frame Configuration | Hi-Boy |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Hose reel type | Hose rack |
| Maximum flow rate (L/min) | 6. 06 |
| Maximum Hose Length (ft) | 1 5 0 |
| Maximum Hose Length (m) | 45 |
| Maximum sound pressure level (dB(A)) | 96 |
| Maximum tip size (in) | 0. 043 |
| Maximum tip size gun 1 (in) | 0. 043 |
| Maximum working pressure (psi) | 3 3 00 |
| Maximum working pressure (kPa) | 2 2 700 |
| Power Rating (HP) | 6. 5 |
| Power rating (kW) | 4. 85 |
| Power rating (W) | 4 8 47 |
| Maximum working pressure (MPa) | 22. 8 |
| Pressure control type | SmartControl 3. 0 |
| Overall Width (mm) | 619. 7600 |
| Model | GMAX II |
| Maximum working pressure (bar) | 2 27 |
| Overall Height (cm) | 102. 9 |
| Overall height (in) | 40. 5 |
| Weight (kg) | 62. 7 |
| Overall height (mm) | 1028. 7000 |
| Overall length (cm) | 95. 8 |
| Overall width (in) | 24. 4 |
| Overall Length (in) | 37. 7 |
| Series | 5 9 00 |
| Overall Length (mm) | 957. 58 |
| Overall width (cm) | 62 |
| Maximum working pressure (kg/cm²) | 22. 7 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Outlet Paint Filter | 60 mesh stainless steel screen |
| Pump Mount Type | QuickChange |
| Pump Rod Type | Chrom ex |
| Number of Guns | 1 |
| Filter mesh size | 60 |
| Maximum tip size gun 2 (in) | 0. 033 |
| Recommended annual usage | Up to 1,000 gallons per week |
| Maximum tip size gun 3 (in) | 0. 023 |
| Power Rating (cc) | 2 00 |
