Manufacturer no.:
220667

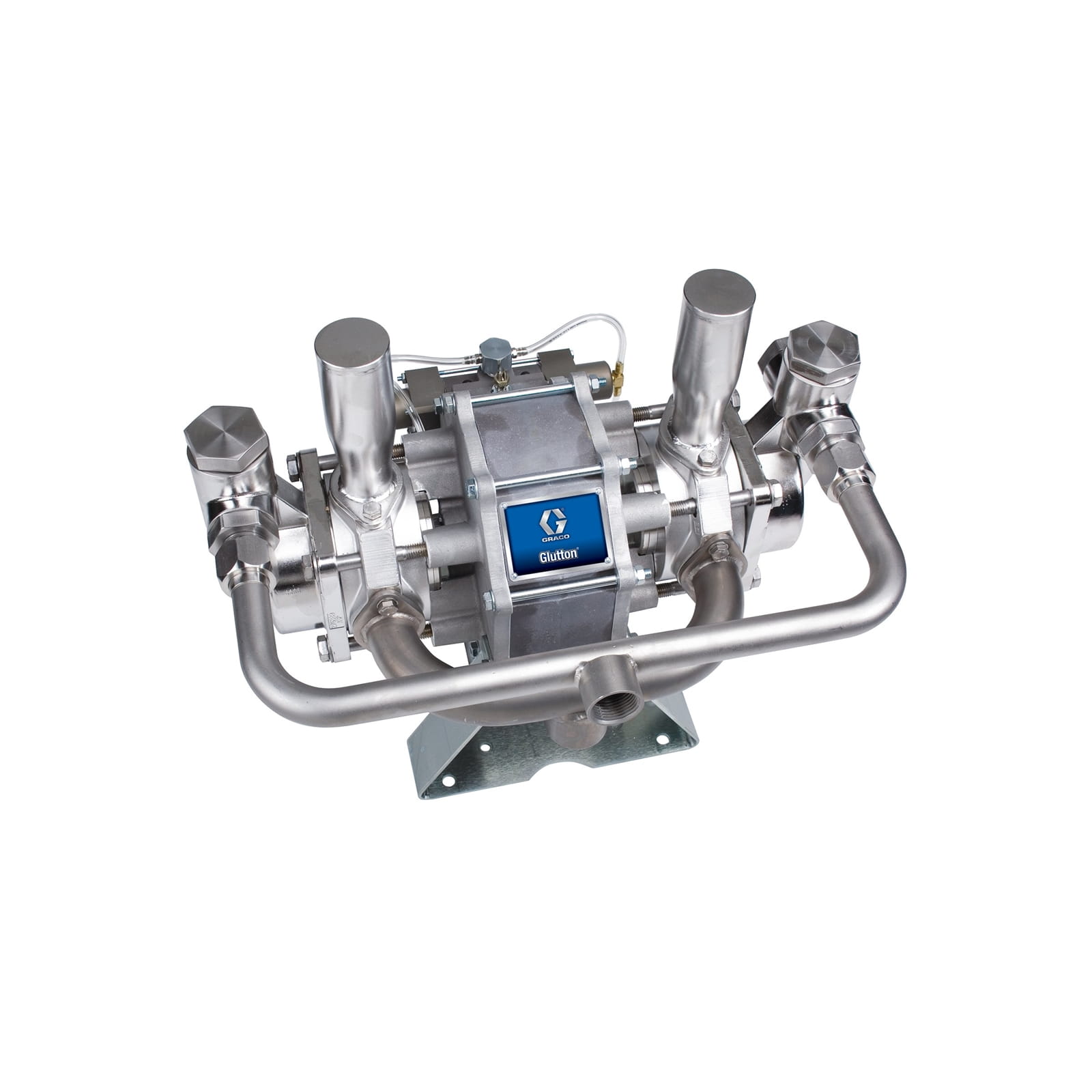

Glutton 12:1 bellows pump, stainless steel, UHMWPE seals
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1031683
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
Glutton plunger pumps are ideal for air-assisted and airless spray applications. They feature a bellows seal that virtually eliminates air or moisture ingress, thus protecting the coating material from contamination. They offer the following gear ratios, among others: 4:1, 12:1 and 25:1.
- Bellows seals are designed for low maintenance by keeping the seals out of the ambient air and eliminating the need for throat seals, which makes them highly reliable with moisture-sensitive materials.
- Designed for a wide range of application materials, including abrasive materials
- Reversible outlet manifold simplifies installation
- Vertical ball valves for even ball wear and longer service life
| Item type: | Balgpumpe, Kolbenpumpe |
|---|---|
| Ratio: | 12:1 |
| Seal type: | UHMWPE |
More information
- Product number: 1031683
- Manufacturer: Graco
- EAN: 00633955041394
- Weight: 40.77 kg
- Length: 590 mm
- Width: 440 mm
- Height: 460 mm
Technical details
Operating specifications
| UPC product | 633955041394 |
|---|---|
| Division | IPD |
| Price Block | 0 77 |
| Country of Origin | US |
| Unit | EA |
| Height | 46 CM |
| Length | 59 cm |
| Width | 44 cm |
| Volume | . 119 m³ |
| Shipping weight | 40.77 kg |
Technical
| Air inlet size (in) | 0. 5 |
|---|---|
| Air inlet size (mm) | 12. 7 |
| Air inlet thread gender | Female |
| Fluid outlet size (mm) | 25. 4 |
| Fluid outlet thread gender | Female |
| Maximum air inlet pressure (bar) | 6. 9 |
| Maximum air inlet pressure (kPa) | 690 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum continuous cycle rate (CPM) | 60 |
| Maximum flow rate (L/min) | 7. 57 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 150 |
| Maximum working pressure (bar) | 83 |
| Maximum working pressure (kPa) | 8300 |
| Maximum working pressure (psi) | 1 2 00 |
| Model | Gl utton |
| Portable | Non-portable |
| Series | Bell ows |
| Maximum working pressure (MPa) | 8. 3 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 307843ab , Glutton Druckluft-Pumpen (Deutsch)
- 307843ab , Glutton Druckluft-Pumpen (Français)
- 307843ab , Glutton Druckluft-Pumpen (Italiano)
- 307843ab , Glutton Druckluft-Pumpen (Español)
- 307843ab , Glutton Druckluft-Pumpen (Svenska)
- 307843ab , Glutton Druckluft-Pumpen (English)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (Deutsch)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (Français)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (Italiano)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (Español)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (Svenska)
- 310564D Glutton Circulation Packages, Wall Mount and Floor Stand (English)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (Deutsch)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (Français)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (Italiano)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (Español)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (Svenska)
- 406817C, Manual, Glutton Pump Repair Kits, Parts and Accessories, English (English)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (Deutsch)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (Français)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (Italiano)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (Español)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (Svenska)
- 3A5801C, Manual, Air Valve Conversion Kits 17W667 and 17W668 for Glutton Pumps, Instructions, English (English)
CAD Drawings
Verkaufsliteratur
- 344834DE Faltenbalg-Pumpen (Deutsch)
- 344834DE Faltenbalg-Pumpen (English (UK))
- 344834DE Faltenbalg-Pumpen (Italiano)
- 344834DE Faltenbalg-Pumpen (Nederlands)
- 344834DE Faltenbalg-Pumpen (Français)
- 344834DE Faltenbalg-Pumpen (Svenska)
- 344834DE Faltenbalg-Pumpen (Türkçe)
- 344834DE Faltenbalg-Pumpen (Español)
- 344834DE Faltenbalg-Pumpen (русский)
- 344834DE Faltenbalg-Pumpen (Polski)
Zertifizierungen
