Manufacturer no.:
26A814

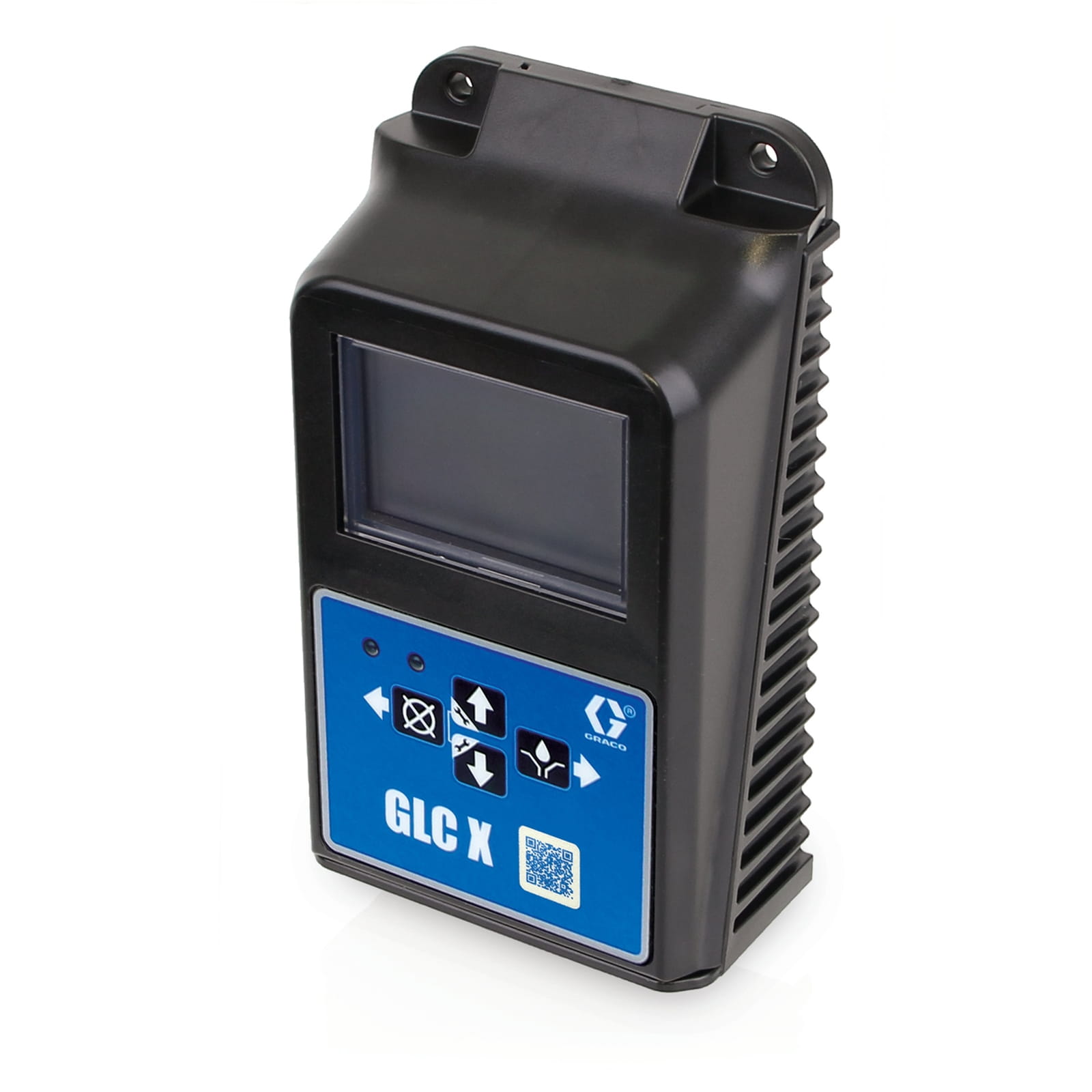

GLC X control unit
€886.92*
% €946.05* (6.25% saved)Prices include VAT plus shipping costs
€745.31*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The new powerful, easy-to-use Graco GLC X automatic lubrication controller captures more information in more ways, so operators, technicians and managers can make faster, smarter decisions that lead to more productivity.
- Indoor and outdoor mountable (IP69K) - Designed to withstand all elements, including high-pressure cleaning and unfavourable weather conditions in the harshest and dirtiest locations.
- Easy-to-read LED screen - Soft, amber LED illumination that allows text codes, faults and other data to be clearly seen in any ambient light without distracting operators.
- Real-time system reports - Program and view a wide range of customisable functions - including lubrication intervals, pressure limits, lubricant levels and more.
- Smart Device and Mobile App - Use the Auto Lube™ app to monitor lubrication performance, configure settings, view history and share key diagnostics with others.
- Universal compatibility - One controller for all your lubrication systems simplifies training and inventory
- Active Residual Current Protection - 9-30 VDC, 10 amp continuous power supply protects grease pumps from overcurrent and the entire system from dropouts, electrical shorts and voltage spikes.
| Application: | Machines in manufacturing plants, off-road vehicles, road vehicles |
|---|---|
| Auxiliary alarm, max. switching voltage (VDC): | 9-30 |
| Counting rate (pulses/sec at 50 % duty cycle): | 5 |
| Intrusion evaluation: | IP69K |
| Low level alarm, max. switching voltage (VDC): | 30 |
| Lubricant level input: | Input 1: 10V |
| Machine cycle control input: | Input 4 |
| Max. Switching current (A), low level alarm: | 10 |
| Max. Switching current (A) Auxiliary alarm: | 10 |
| Max. Switching current pump control (A): | 10 |
| Maximum number of system cycles: | 100 |
| Maximum operating temperature (°C): | 70 |
| Maximum permissible storage temperature (°C): | 70 |
| Maximum programme time (min): | 99 |
| Maximum programme time (sec): | 5999 |
| Maximum voltage (V): | 30 |
| Maximum voltage (V dc): | 30 |
| Minimum monitoring time (h): | 0 |
| Minimum monitoring time (min): | 1 |
| Minimum monitoring time (sec): | 0 |
| Minimum monitoring time (strokes): | 1 |
| Minimum number of system cycles: | 1 |
| Minimum operating temperature (°C): | -30 |
| Minimum programme time (h): | 0 |
| Minimum programme time (min): | 0 |
| Minimum programme time (sec): | 10 |
| Minimum programme time (strokes): | 1 |
| Minimum storage temperature (°C): | -30 |
| Minimum voltage (V): | 9 |
| Minimum voltage (V dc): | 9 |
| Model: | GLC |
| Number of pieces: | 1 |
| Power consumption (A): | 15 |
| Power consumption (W): | 450 |
| Pump control, max. switching voltage (VDC): | 30 |
| Pump control voltage (VDC): | 9-30 |
| Series: | X |
| Supply voltage: | Electric |
| Total depth (cm): | 5 |
| Total height (cm): | 16.9 |
| Total height (mm): | 169 |
| Total width (cm): | 9.2 |
| Total width (mm): | 92 |
| Type: | Control unit |
| Voltage auxiliary alarm: | 9-30VDC |
| Weight (kg): | 319 |
More information
- Product number: 1034388
- Manufacturer: Graco
- EAN: 00755652951780
- Weight: 0.544 kg
- Length: 200 mm
- Width: 125 mm
- Height: 240 mm
Technical details
Operating specifications
| UPC product | 755652951780 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 24 CM |
| Length | 20 CM |
| Width | 12.5 cm |
| Volume | . 006 m³ |
| Shipping weight | . 54 KG |
| HTS code (GB) | 8537109899 |
| HTS code (EU) | 8537109899 |
Technical
| Amperage (A) | 15 |
|---|---|
| Number of pieces | 1 |
| Series | X |
| Intrusion Rating | IP 6 9K |
| Minimum operating temperature (°C) | -30 |
| Minimum operating temperature (°F) | -22 |
| Maximum operating temperature (°C) | 70 |
| Maximum operating temperature (°F) | 158 |
| Maximum voltage (V DC) | 30 |
| Maximum Voltage (V) | 30 |
| Minimum voltage (V DC) | 9 |
| Minimum voltage (V) | 9 |
| Minimum ambient temperature (°F) | -22 |
| Minimum storage temperature (°C) | -30 |
| Minimum storage temperature (°F) | -22 |
| Maximum storage temperature (°C) | 70 |
| Maximum storage temperature (°F) | 158 |
| Weight (kg) | 3 19 |
| Power consumption (W) | 4 5 0 |
| Overall depth (cm) | 5 |
| Overall depth (in) | 1. 98 |
| Overall height (cm) | 16. 9 |
| Overall Height (in) | 6. 66 |
| Overall height (mm) | 169 |
| Overall width (cm) | 9. 2 |
| Overall width (in) | 3. 62 |
| Overall width (mm) | 92 |
| Current consumption (A) | 15 |
| Count Rate (counts/sec @ 50% duty cycle) | 5 |
| Maximum programme time (min) | 99 |
| Maximum program time (sec) | 5 9 99 |
| Minimum programme time (hours) | 0 |
| Minimum programme time (min) | 0 |
| Minimum programme time (sec) | 10 |
| Minimum programme time (strokes) | 1 |
| Minimum monitor time (hours) | 0 |
| Minimum monitor time (min) | 1 |
| Minimum monitor time (sec) | 0 |
| Minimum monitor time (strokes) | 1 |
| Maximum System Cycle Count | 100 |
| Minimum system cycle count | 1 |
| Auxiliary alarm max. switching current (A) | 10 |
| Auxiliary alarm max switching voltage (VDC) | 9-30 |
| Auxiliary alarm voltage | 9-30 VDC |
| Low Level Alarm Max Switching Current (A) | 10 |
| Low Level Alarm Max Switching Voltage (VDC) | 30 |
| Pump control max switching current (A) | 10 |
| Pump control max switching voltage (VDC) | 30 |
| Pump control voltage (VDC) | 9-30 |
| Machine Count Control Input | Input 4 |
| Lubrication level input | Input 1: 10V |
| Control mode | Timer, Pressure, Cycle |
| Model | GLC |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (Deutsch)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (Français)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (Español)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (Português)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (русский)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (中文)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (한국어)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (日本語)
- 3A7329C, Handbuch, GLC X Schmiersteuerung, Anweisungen (English)
