Manufacturer no.:
24N468

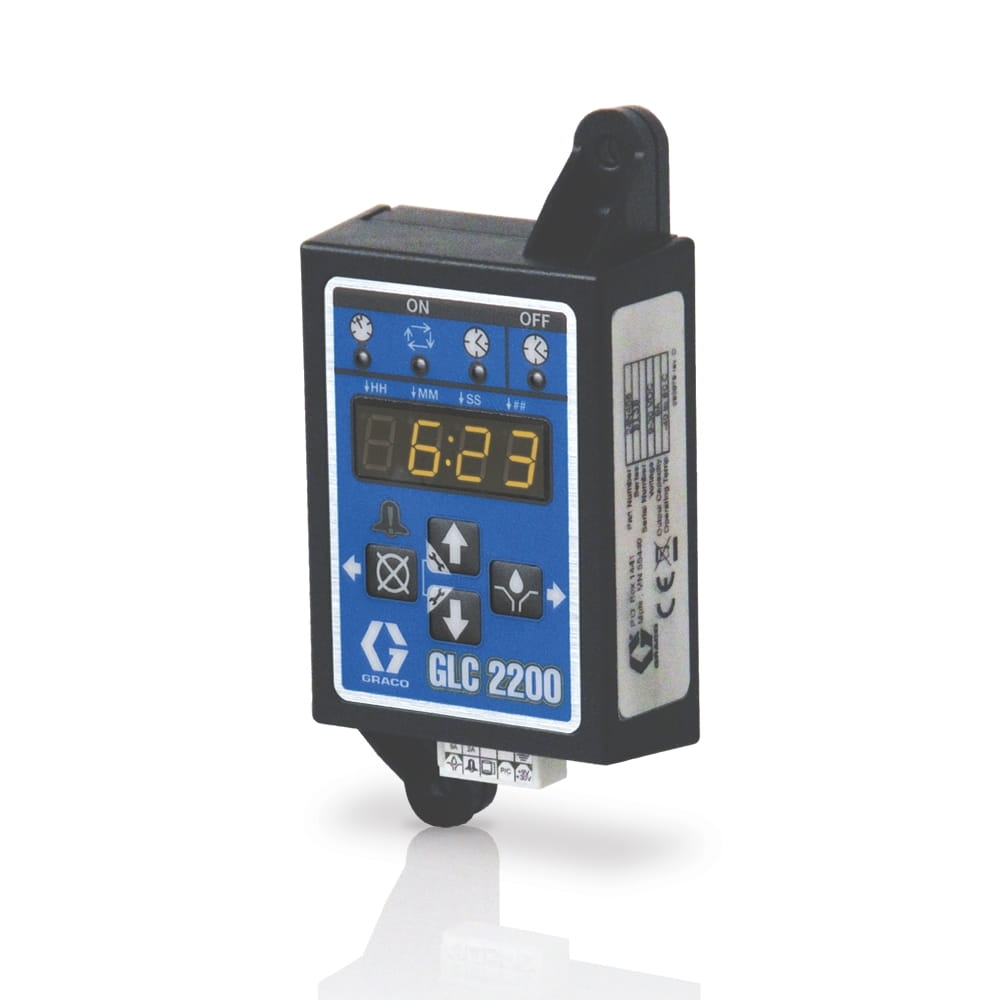

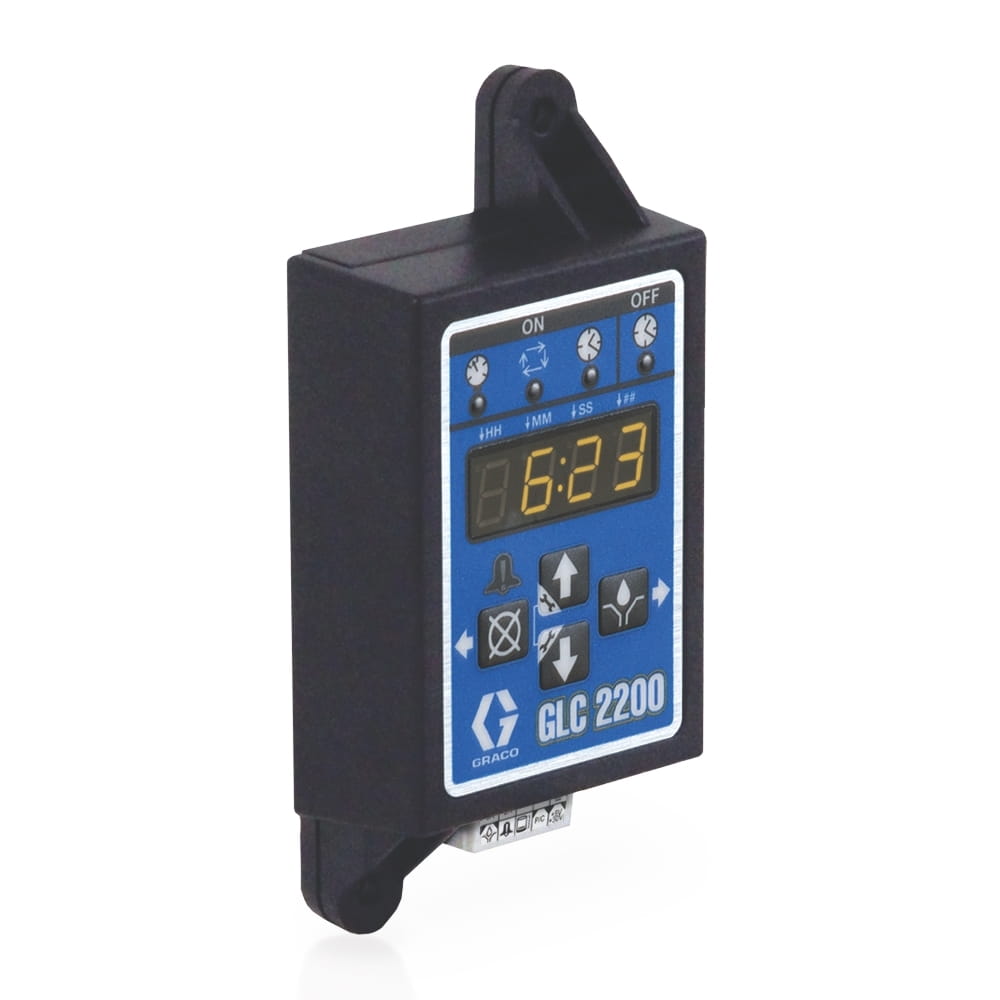

GLC 2200 series control unit
€327.73*
% €364.14* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
You spend a lot of money on your appliances. The GLC 2200 control unit protects components. It warns you in good time of incorrect lubrication results and insufficient lubrication. One less thing to worry about, because you know that your investment is well protected.
Installation in the cab to control automatic lubrication systems
- Easy installation without opening the control unit
- LEDs show system activity at a glance
- Easy-to-read digital display for simple programming and monitoring of systems
- Visual and audible alarm in the driver's cab. The operator is warned immediately if there is a critical system status. A remote alarm can also be set up to inform maintenance personnel
- Simple push buttons with symbols make programming easier
- A wiring harness with colour coding, connection strands and easy-to-understand circuit diagrams ensures efficient installations
| Application: | Machines in manufacturing plants, off-road vehicles |
|---|---|
| For use with: | Automatic lubrication systems |
| Intrusion evaluation: | IP54 |
| Maximum operating temperature (°C): | 80 |
| Maximum permissible storage temperature (°C): | 80 |
| Maximum voltage (V dc): | 30 |
| Minimum operating temperature (°C): | -40 |
| Minimum storage temperature (°C): | -40 |
| Model: | GLC |
| Power consumption (W): | 1 |
| Series: | 2200 |
| Supply voltage: | DC motor |
| Type: | Lubrication regulator |
More information
- Product number: 1030965
- Manufacturer: Graco
- EAN: 00633955299320
- Weight: 0.1 kg
- Length: 150 mm
- Width: 130 mm
- Height: 90 mm
Technical details
Operating specifications
| UPC product | 633955299320 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
| Height | 9 CM |
| Length | 15 cm |
| Width | 13 cm |
| Volume | . 002 m³ |
| Shipping weight | . 32 kg |
| HTS code (GB) | 8537109899 |
| HTS code (EU) | 8537109899 |
Technical
| Amperage (A) | 7, 9 |
|---|---|
| For use with | Automatic lubrication systems |
| Series | 2 200 |
| Intrusion Rating | IP54 |
| Minimum operating temperature (°C) | -40 |
| Minimum operating temperature (°F) | -40 |
| Maximum operating temperature (°C) | 80 |
| Maximum operating temperature (°F) | 1 76 |
| Maximum voltage (V DC) | 30 |
| Minimum storage temperature (°C) | - 40 |
| Minimum storage temperature (°F) | -40 |
| Maximum storage temperature (°C) | 80 |
| Maximum storage temperature (°C) | 1 76 |
| Power consumption (W) | 1 |
| Model | GLC |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332211F GLC 2200 Lubrication Controller, Instructions (Deutsch)
- 332211F GLC 2200 Lubrication Controller, Instructions (русский)
- 332211F GLC 2200 Lubrication Controller, Instructions (Español)
- 332211F GLC 2200 Lubrication Controller, Instructions (Français)
- 332211F GLC 2200 Lubrication Controller, Instructions (中文)
- 332211F GLC 2200 Lubrication Controller, Instructions (Polski)
- 332211F GLC 2200 Lubrication Controller, Instructions (English)
Verkaufsliteratur
