Manufacturer no.:
24W805

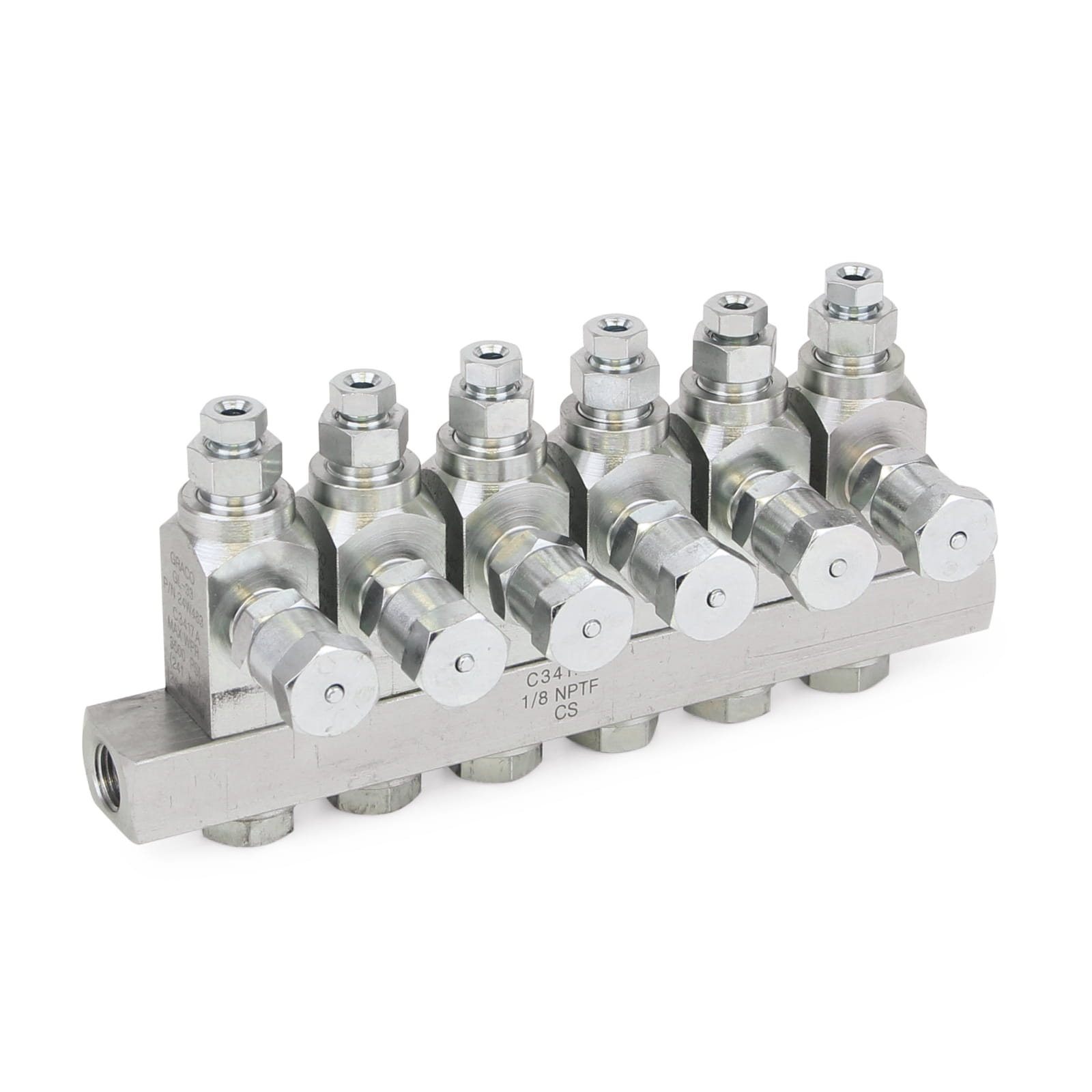

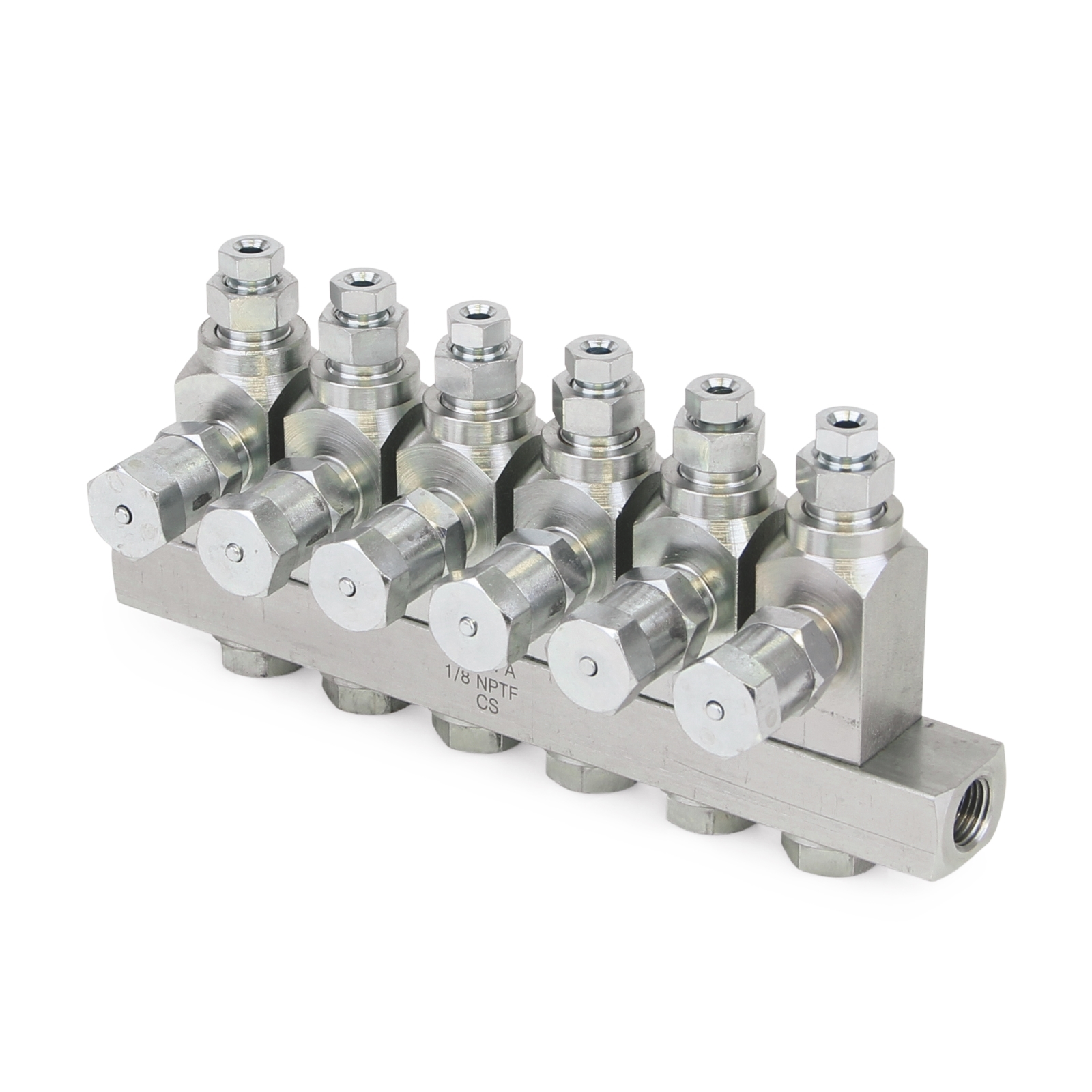

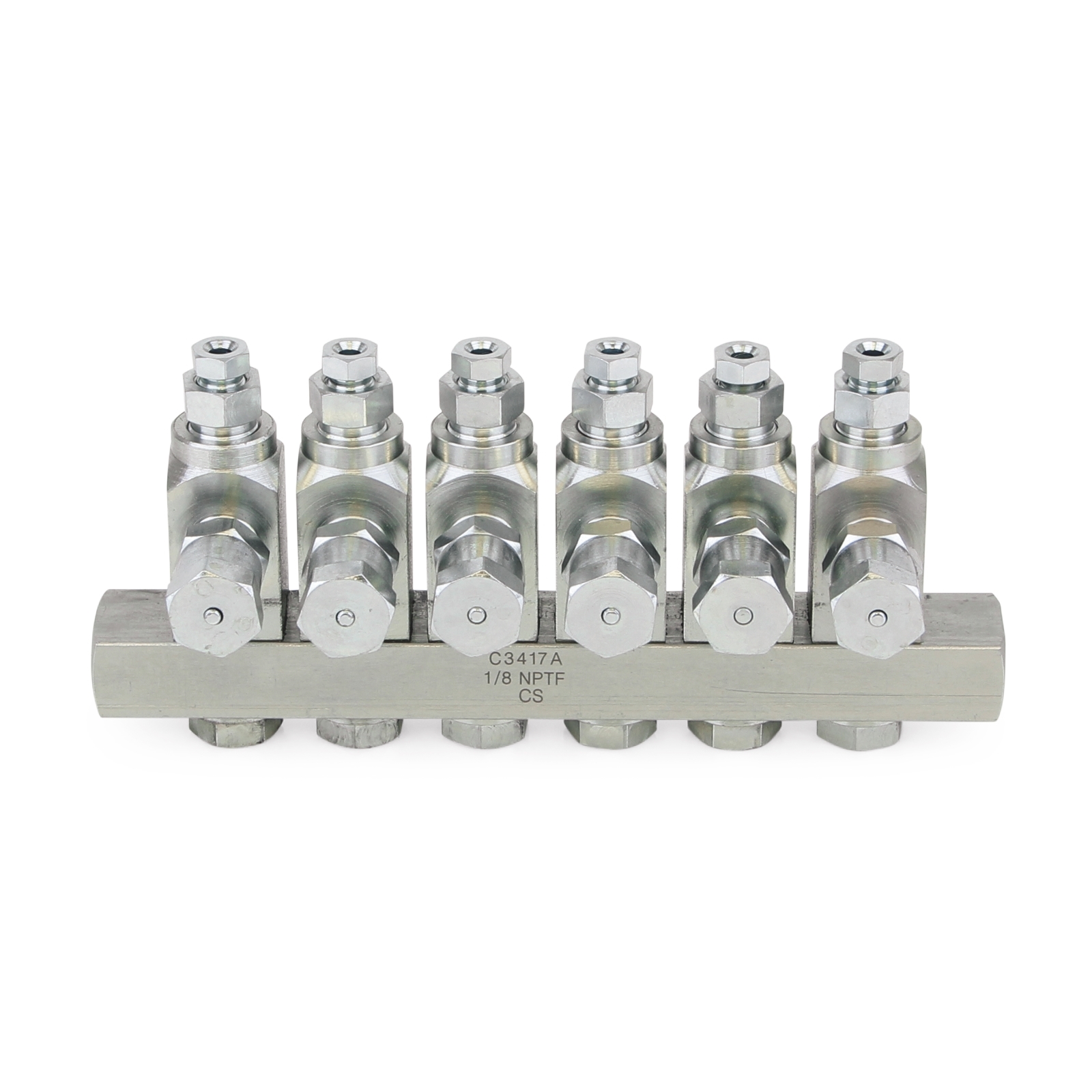

GL-42™ Oil injection, carbon steel, manifold with 6 inlet manifolds, 1/8 NPT x 1/8
€417.69*
Ready for shipping in 5-8 Werktage
Also interesting
Product information
Choose Graco's robust and durable injection distributors: they lubricate automatically, avoid downtime and reduce maintenance costs. The GL-42 grease injection systems from Graco are clearly designed and quick to install. They allow you to add and remove lubrication points without redesigning the lubrication system.
Accurate, reliable lubrication of every lubrication point on your machine
- Outlet fittings available in seven sizes
- Practical indicator pin mounted at the front point
- Exceptional durability due to one-piece manufactured housing
- Seals designed for long service life for smooth operation
- Precision engineered components for reliable operation even under the most demanding conditions
- Adjustable output volume from 0.02 - 0.05 cm³ (0.001 - 0.003 in³ )
- Operating pressure between 52-69 bar (750-1000 psi) for optimum performance with low viscosity lubricants (No. 10 weight minimum)
- Available in two versions either as stand-alone metering valves and replacement metering valves for manifold-based systems to customise the metering valves to your applications
| Adjustable: | Adjustable |
|---|---|
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | oil |
| Cycle display: | Indicator pen |
| Diffuser size (cm): | 3,175 |
| Gender of the inlet thread: | Internal thread |
| Inlet size (cm): | 3,175 |
| Inlet size (inch): | 1/8 |
| Inlet size (mm): | 3,175 |
| Inlet thread type: | NPT |
| Material: | Normal steel |
| Maximum operating pressure (MPa): | 6.9 |
| Maximum operating pressure (kPa): | 6890 |
| Maximum operating pressure (psi): | 1000 |
| Minimum operating pressure (MPa): | 5.3 |
| Minimum operating pressure (bar): | 53 |
| Minimum operating pressure (kPa): | 5300 |
| Minimum operating pressure (psi): | 750 |
| Model: | GL-42 |
| Outlet size (inch): | 1/8 |
| Outlet size (mm): | 3,175 |
| Permissible operating pressure (bar): | 68.9 |
| SAE grade: | 10 |
| Type: | Oil injection |
More information
- Product number: 1039734
- Manufacturer: Graco
- EAN: 00755652003489
- Weight: 0.68 kg
- Length: 150 mm
- Width: 60 mm
- Height: 60 mm
