Manufacturer no.:
24W607

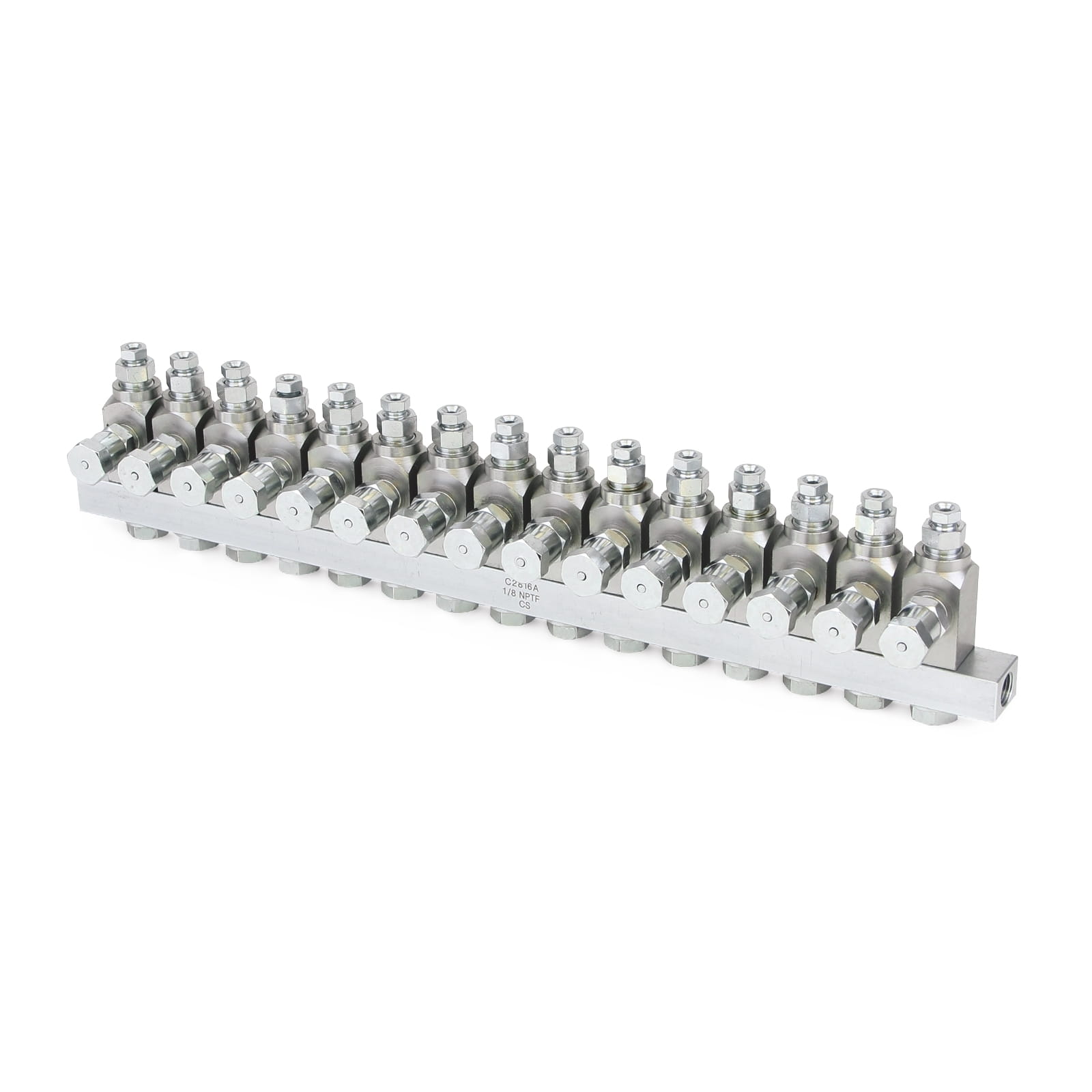

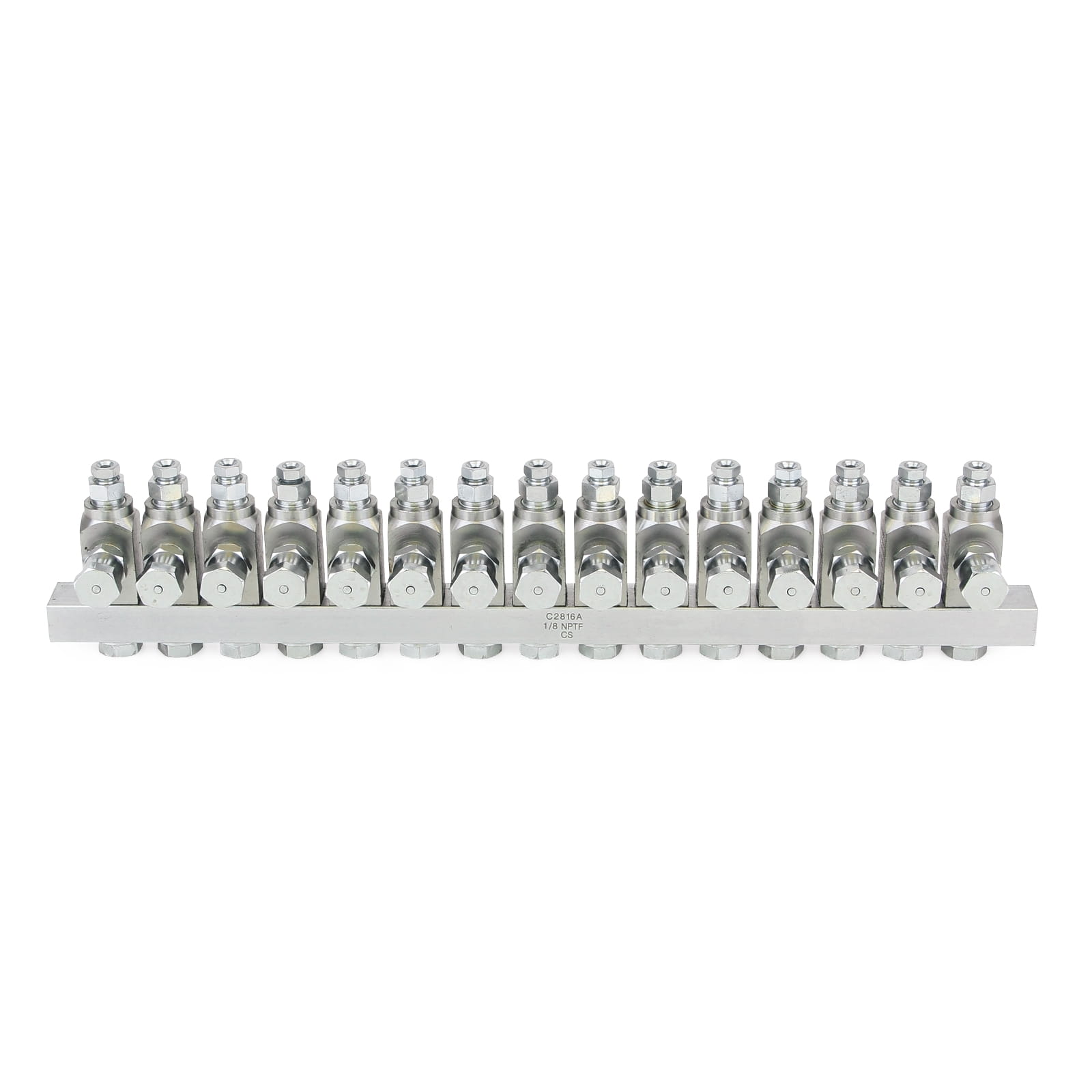

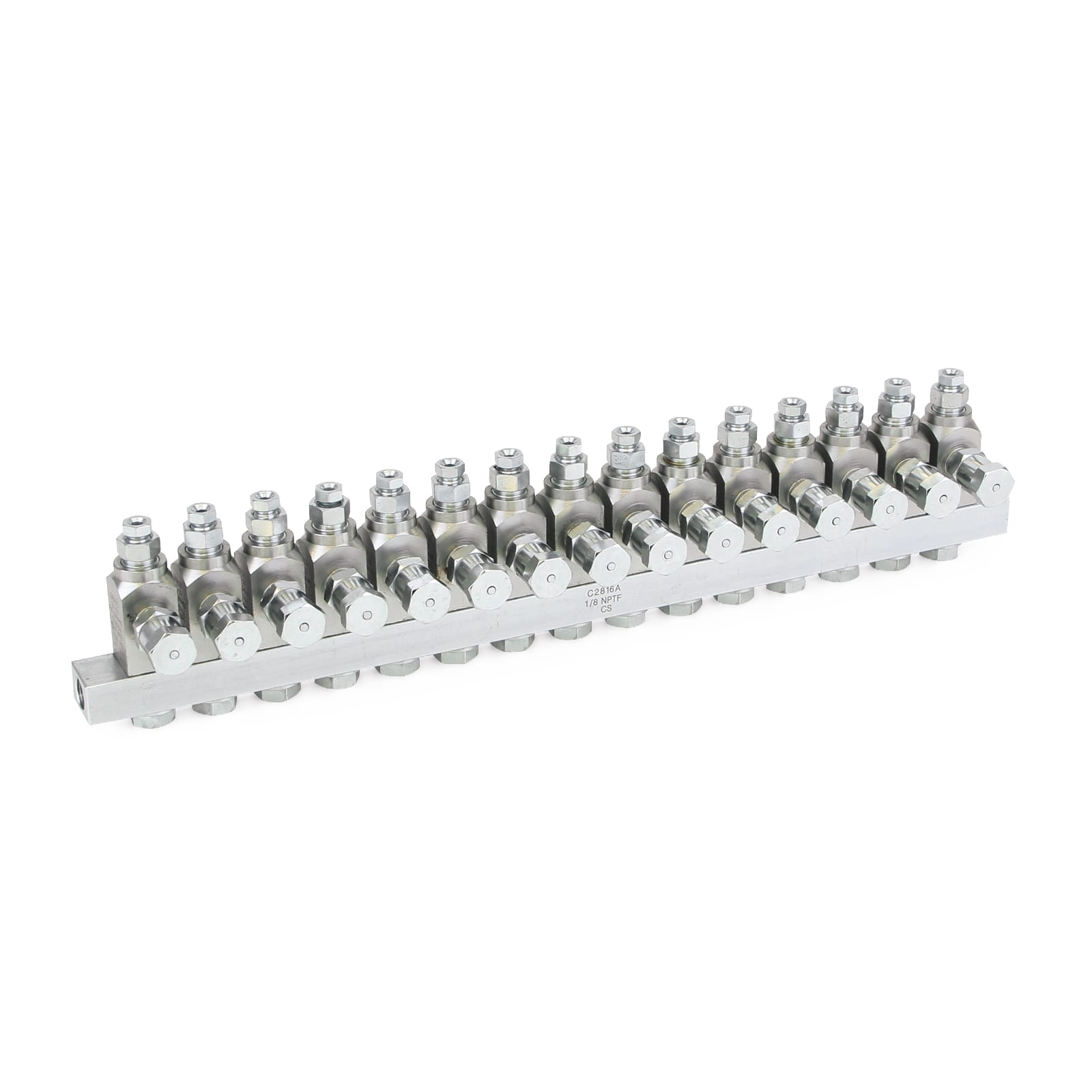

GL-33™ grease inlet manifold, stainless steel, manifold with 15 inlet manifolds, 1/8 NPT x 1/8
€1,932.56*
Ready for shipping in 5-8 days
Also interesting
Product information
Choose Graco's durable and long-lasting single-line distributors: they automatically lubricate, avoid downtime and reduce maintenance costs. Graco GL-33 grease injection systems are designed for ease of use and quick assembly. They allow you to add and remove lubrication points without redesigning the lubrication system.
Accurate, reliable lubrication of every point on your machine
- Seven outlet fitting sizes available
- Convenient sight glass fitted at the point of discharge
- Exceptional durability due to one-piece housing
- Long-life seals for smooth operation
- Precision-engineered components for reliable operation in even the most demanding conditions
- Adjustable discharge volume of 0.02 - 0.05 cm³ (0.001 - 0.003 in³ )
- 83-241 bar (1200-3500 psi) operating pressure for optimal performance with lubricant up to NLGI #2
- Available in two versions, either as stand-alone meter-in valves or as replacement meter-in valves for manifold-based systems, to tailor the meter-in valves to your applications.
| Adjustable: | Adjustable |
|---|---|
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | Fat |
| Cycle display: | Indicator pen |
| Diffuser size (cm): | 3,175 |
| Gender of the inlet thread: | Internal thread |
| Inlet size (cm): | 3,175 |
| Inlet size (inch): | 1/8 |
| Inlet size (mm): | 3,175 |
| Inlet thread type: | NPT |
| Material: | stainless steel |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Minimum operating pressure (MPa): | 8.4 |
| Minimum operating pressure (bar): | 84 |
| Minimum operating pressure (kPa): | 8400 |
| Minimum operating pressure (psi): | 1200 |
| Model: | GL-33 |
| Outlet size (inch): | 1/8 |
| Outlet size (mm): | 3,175 |
| Outlet thread type: | NPT |
| Permissible operating pressure (bar): | 241 |
| Type: | Grease injection system |
More information
- Product number: 1030066
- Manufacturer: Graco
- EAN: 00755652003434
- Weight: 1.855 kg
Technical details
Operating specifications
| UPC product | 755652003434 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of Origin | CN |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 1 .86 KG |
Technical
| Adjustable | Adjustable |
|---|---|
| Inlet size (cm) | 0. 3175 |
| Inlet size (in) | 1/8 |
| Inlet size (mm) | 3. 175 |
| Inlet thread gender | Female |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Minimum working pressure (bar) | 84 |
| Minimum working pressure (kPa) | 8400 |
| Minimum working pressure (psi) | 1 2 00 |
| Outlet Size (cm) | 0. 3175 |
| Outlet Size (in) | 1/8 |
| Outlet size (mm) | 3. 175 |
| Maximum working pressure (MPa) | 24. 1 |
| Minimum working pressure (MPa) | 8. 4 |
| Model | GL -33 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Deutsch)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (English)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Italiano)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (русский)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Français)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Español)
Verkaufsliteratur
