Manufacturer no.:
24W606

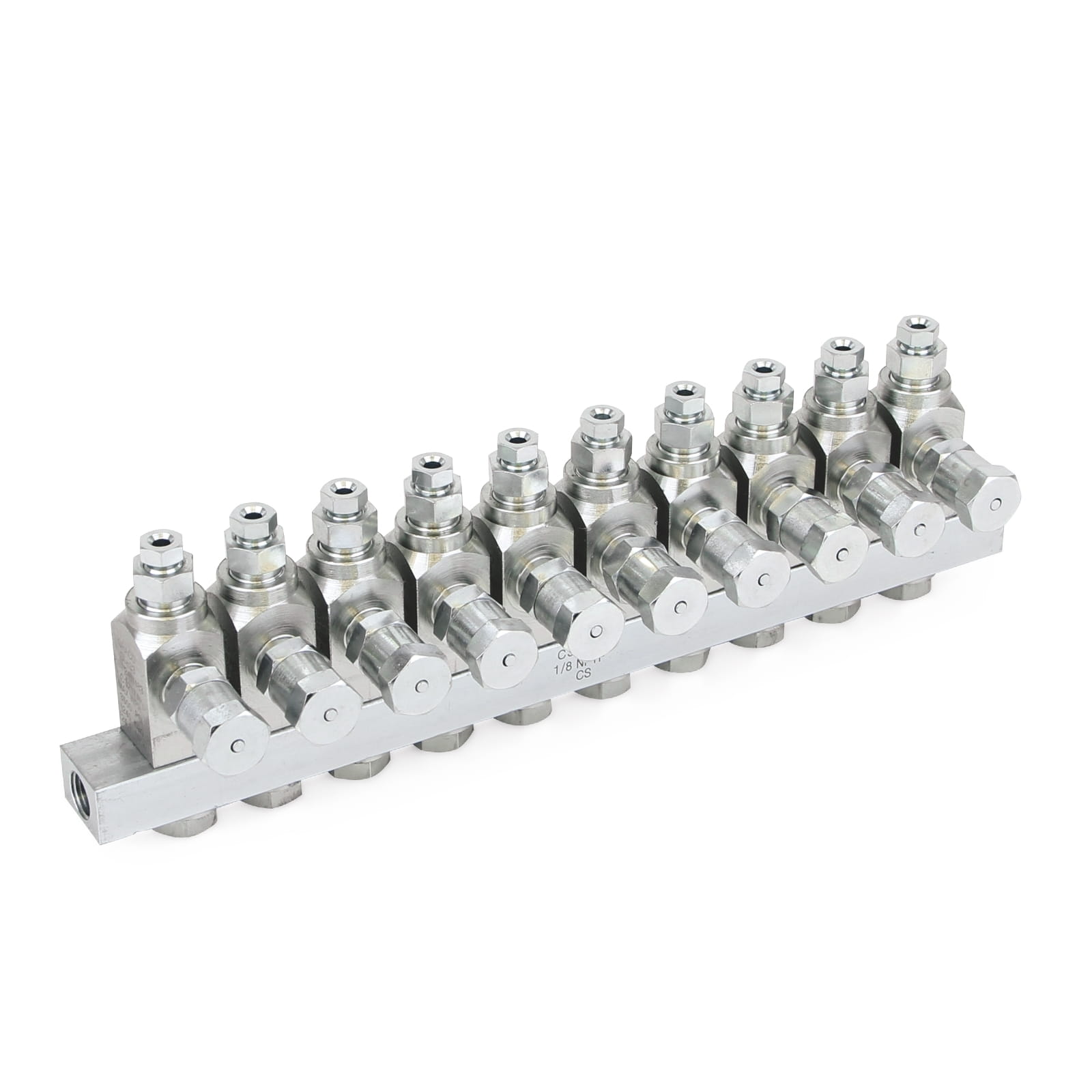

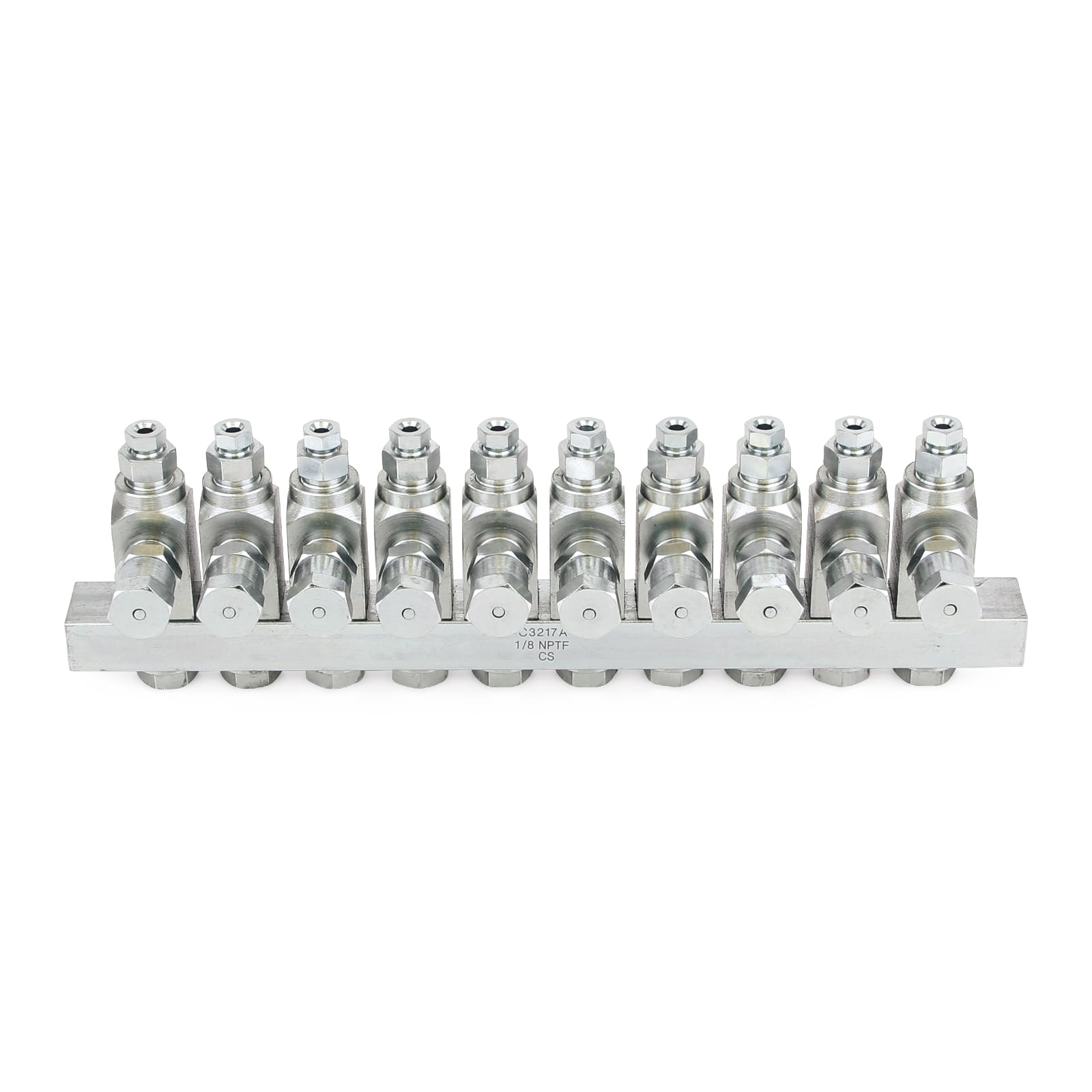

GL-33™ Grease inlet manifold, stainless steel, manifold with 10 inlet manifolds, 1/8 NPT x 1/8
€1,241.29*
% €1,379.21* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Choose Graco's robust and durable injection manifolds: they lubricate automatically, avoid downtime and reduce maintenance costs. The GL-33 grease injection systems from Graco are clearly designed and quick to install. They allow you to add and remove lubrication points without redesigning the lubrication system.
Accurate, reliable lubrication of every lubrication point on your machine
- Outlet fittings available in seven sizes
- Practical indicator pin mounted at the front point
- Exceptional durability due to one-piece manufactured housing
- Seals designed for long service life for smooth operation
- Precision engineered components for reliable operation even under the most demanding conditions
- Adjustable output volume from 0.02 - 0.05 cm³ (0.001 - 0.003 in³ )
- Operating pressure between 83-241 bar (1200-3500 psi) for optimum performance with lubricant up to grade NLGI \No. 2
- Available in two versions either as stand-alone metering valves and replacement metering valves for manifold-based systems for customised adaptation of the metering valves to your applications
| Adjustable: | Adjustable |
|---|---|
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | Fat |
| Cycle display: | Indicator pen |
| Diffuser size (cm): | 3,175 |
| Gender of the inlet thread: | Internal thread |
| Inlet size (cm): | 3,175 |
| Inlet size (inch): | 1/8 |
| Inlet size (mm): | 3,175 |
| Inlet thread type: | NPT |
| Material: | stainless steel |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Minimum operating pressure (MPa): | 8.4 |
| Minimum operating pressure (bar): | 84 |
| Minimum operating pressure (kPa): | 8400 |
| Minimum operating pressure (psi): | 1200 |
| Model: | GL-33 |
| Outlet size (inch): | 1/8 |
| Outlet size (mm): | 3,175 |
| Outlet thread type: | NPT |
| Permissible operating pressure (bar): | 241 |
| Type: | Grease injection system |
More information
- Product number: 1032376
- Manufacturer: Graco
- EAN: 00755652003427
Technical details
Operating specifications
| UPC product | 755 6 52003427 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of Origin | CN |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Adjustable | Adjustable |
|---|---|
| Inlet size (cm) | 0. 3175 |
| Inlet size (in) | 1/8 |
| Inlet size (mm) | 3. 175 |
| Inlet thread gender | Female |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Minimum working pressure (bar) | 84 |
| Minimum working pressure (kPa) | 8400 |
| Minimum working pressure (psi) | 1 2 00 |
| Outlet Size (cm) | 0. 3175 |
| Outlet Size (in) | 1/8 |
| Outlet size (mm) | 3. 175 |
| Maximum working pressure (MPa) | 24. 1 |
| Minimum working pressure (MPa) | 8. 4 |
| Model | GL -33 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Deutsch)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (English)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Italiano)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (русский)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Français)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Español)
