Manufacturer no.:
24X303

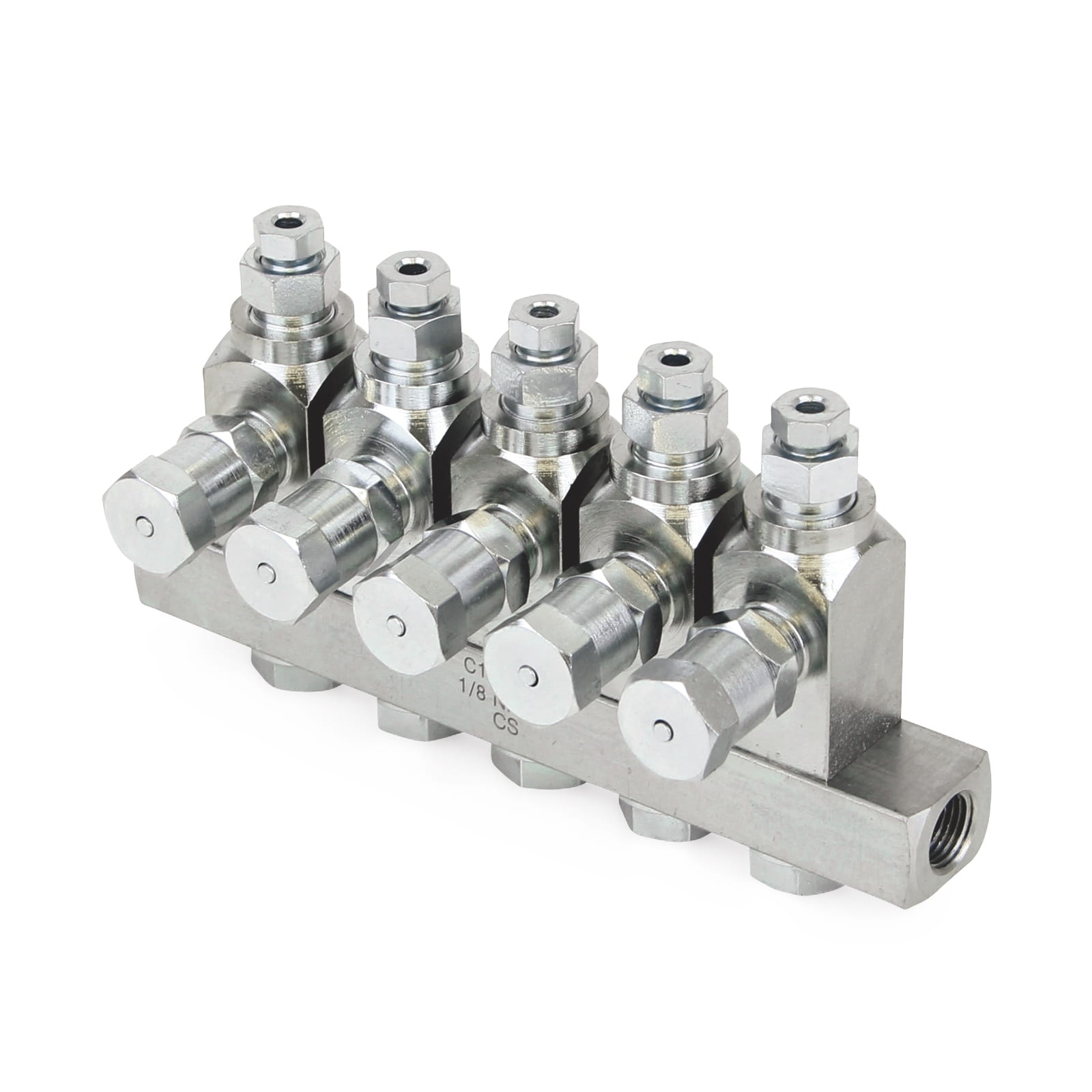

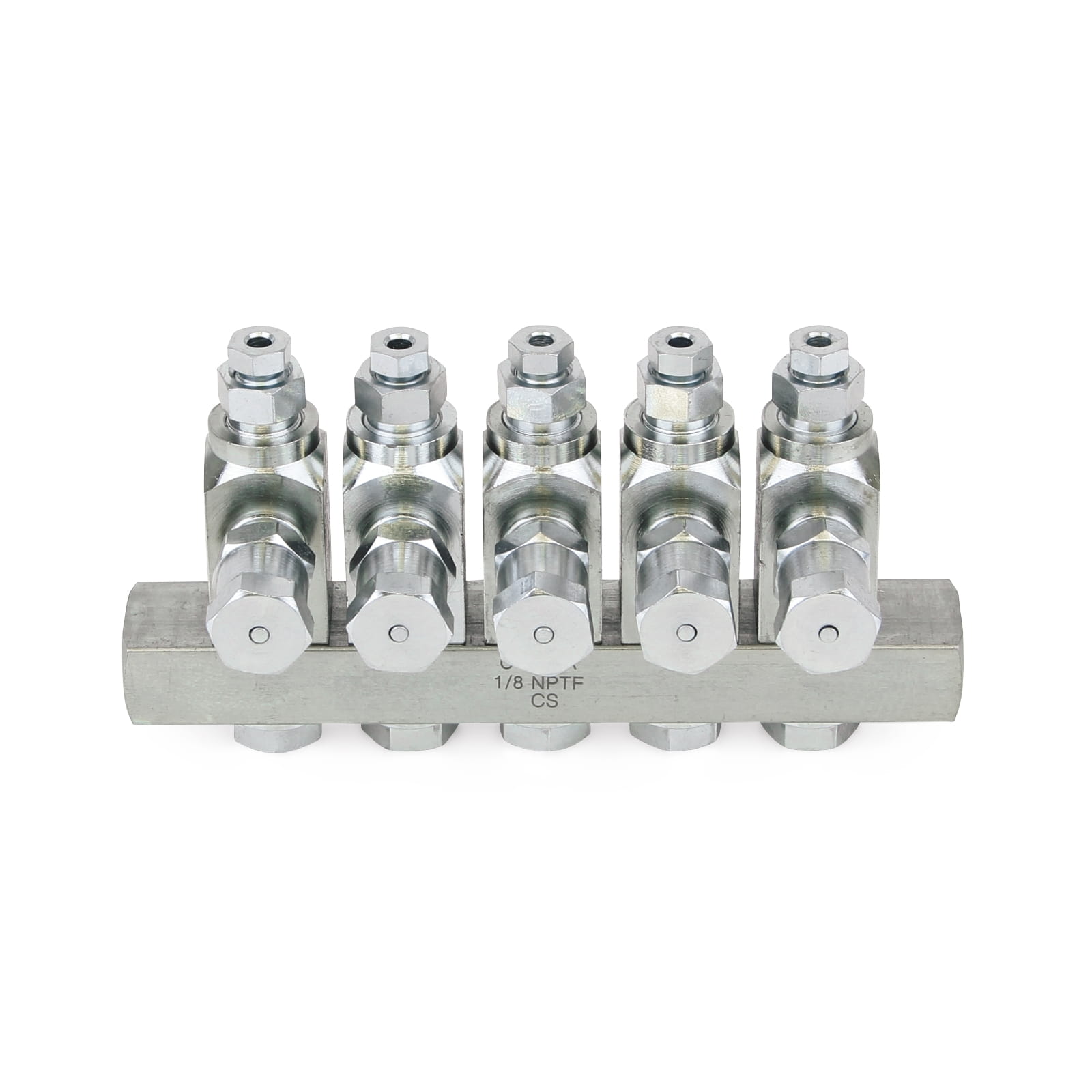

GL-33™ grease injection system, carbon steel, 5-inlet manifold, 1/8" BSPP x 6 mm
€402.74*
% €429.59* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Choose Graco's durable and long-lasting single-line distributors: they automatically lubricate, avoid downtime and reduce maintenance costs. Graco GL-33 grease injection systems are clearly designed and quickly assembled. They allow you to add and remove lubrication points without redesigning the lubrication system.
Accurate, reliable lubrication of every point on your machine
- Seven outlet fitting sizes available
- Convenient sight glass fitted at the point of discharge
- Exceptional durability due to one-piece housing
- Long-life seals for smooth operation
- Precision-engineered components for reliable operation in even the most demanding conditions
- Adjustable discharge volume of 0.02 - 0.05 cm³ (0.001 - 0.003 in³ )
- 83-241 bar (1200-3500 psi) operating pressure for optimal performance with lubricant up to NLGI #2
- Available in two versions, either as stand-alone meter-in valves or as replacement meter-in valves for manifold-based systems, to tailor the meter-in valves to your applications.
| Adjustable: | Adjustable |
|---|---|
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | Fat |
| Cycle display: | Indicator pen |
| Diffuser size (cm): | 0.6 |
| Inlet size (cm): | 3,175 |
| Inlet size (inch): | 1/8 |
| Inlet size (mm): | 3,175 |
| Inlet thread type: | BSPP(I) |
| Material: | Normal steel |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Minimum operating pressure (MPa): | 8.4 |
| Minimum operating pressure (bar): | 84 |
| Minimum operating pressure (kPa): | 8400 |
| Minimum operating pressure (psi): | 1200 |
| Model: | GL-33 |
| Outlet size (inch): | 236 |
| Outlet size (mm): | 6 |
| Permissible operating pressure (bar): | 241 |
| Type: | Grease injection system |
More information
- Product number: 1037972
- Manufacturer: Graco
- EAN: 00755652039044
- Weight: 0.503 kg
- Length: 180 mm
- Width: 80 mm
- Height: 80 mm
Technical details
Operating specifications
| UPC product | 755652039044 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of Origin | CN |
| Unit | EA |
| Height | 8 CM |
| Length | 18 cm |
| Width | 8 cm |
| Volume | . 001 M3 |
| Shipping weight | . 5 KG |
Technical
| Adjustable | Adjustable |
|---|---|
| Inlet size (cm) | 0. 3175 |
| Inlet size (in) | 1/8 |
| Inlet size (mm) | 3. 175 |
| Maximum NLGI grade | #2 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Minimum working pressure (bar) | 84 |
| Minimum working pressure (kPa) | 8400 |
| Minimum working pressure (psi) | 1 2 00 |
| Outlet Size (cm) | 0. 6 |
| Outlet size (in) | 0. 236 |
| Outlet size (mm) | 6 |
| Maximum working pressure (MPa) | 24. 1 |
| Minimum working pressure (MPa) | 8. 4 |
| Model | GL -33 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Deutsch)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (English)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Italiano)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (русский)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Français)
- 334646F, Handbuch, Dosierventile Gl-33 (Fett) und GL-42 (Öl), Montage, Betrieb (Español)
Verkaufsliteratur
