Manufacturer no.:
24X816

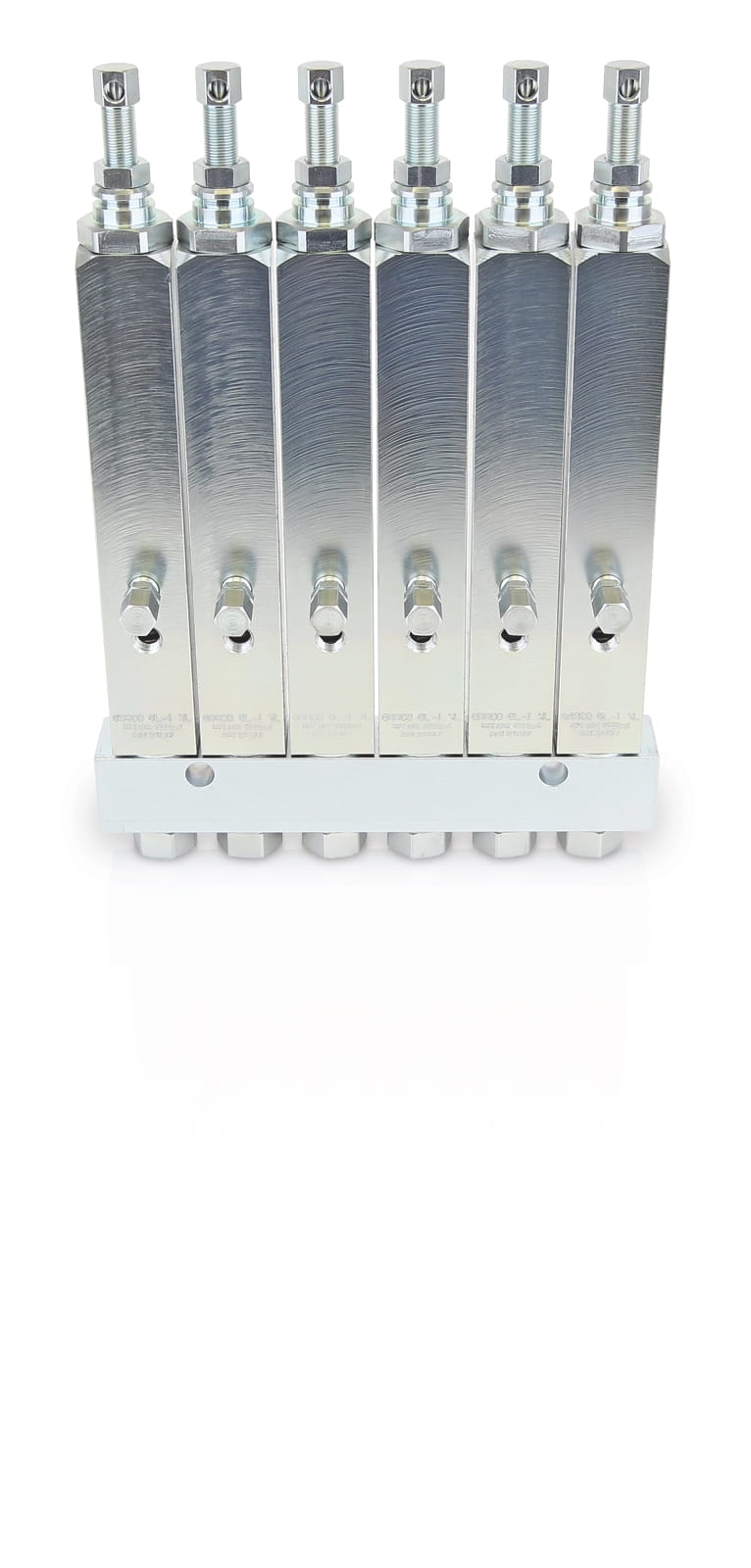

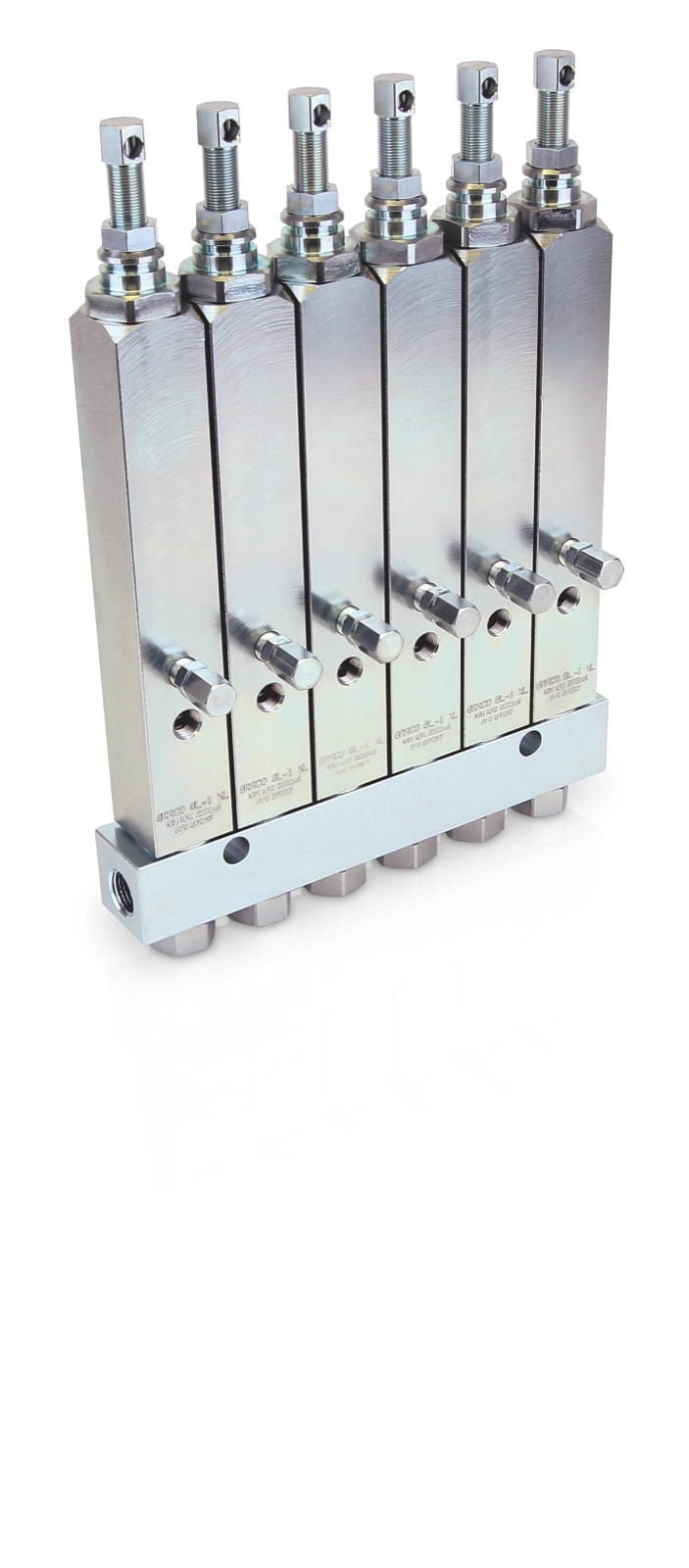

GL-1™ XL grease injection system, six points
€2,051.56*
Ready for shipping in 5-8 days
Also interesting
Product information
Customise your system with adjustable GL-1 grease injection systems. Designed to meet the requirements of any lubrication point, these systems provide years of reliable operation in the harshest operating environments.
High delivery rates at high pressures for demanding applications
- The GL-1 XL inlet manifolds are supplied as stand-alone and replacement inlet manifolds for manifold systems for easy customisation for a variety of applications
- Includes an adjustable hex nut for easy outlet adjustment
- No lubricant leakage due to no vent holes and fully enclosed press fittings
- Convenient cycle indicator pin attached to the top allows injectors to be checked for proper operation at a glance
- Robust, one-piece uni-body construction for the toughest environments
| Adjustable: | Adjustable |
|---|---|

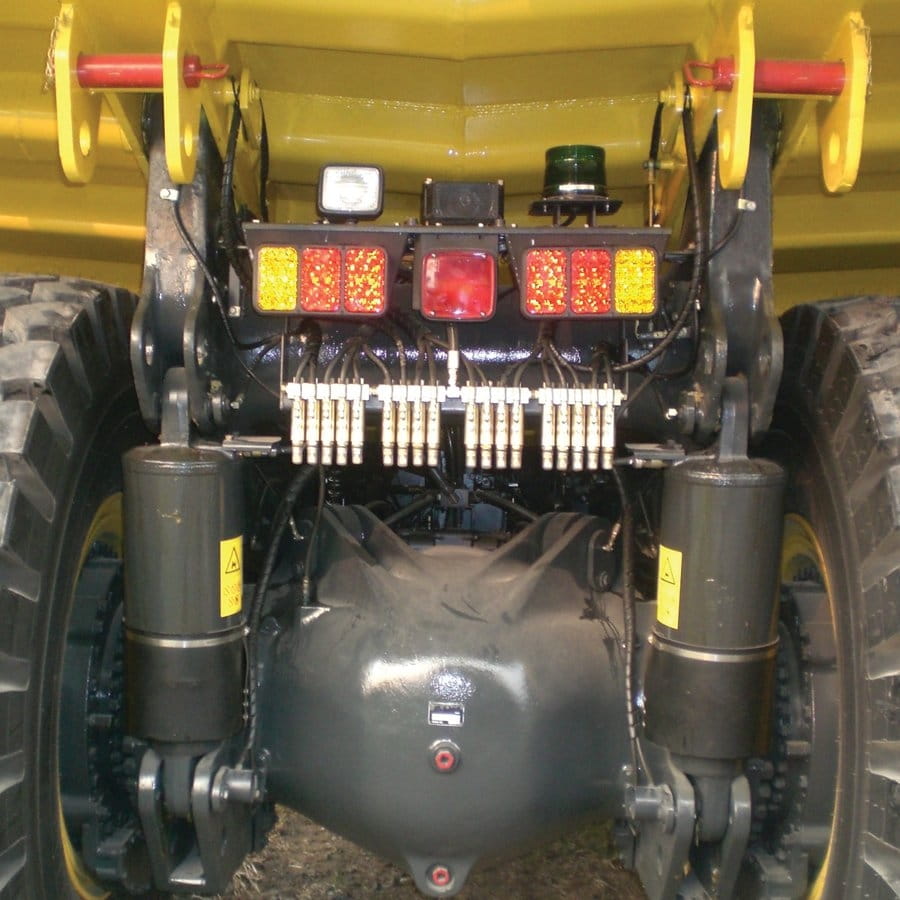

| Application: | Machines in manufacturing plants, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | Fat |
| Cycle display: | Visually |
| Diffuser size (cm): | 9,525 |
| Distributor outlet size (inches): | 0.13 |
| For use with: | Automatic multi-line lubrication systems |
| Inlet size (cm): | 9,525 |
| Inlet size (inch): | 3/8 |
| Inlet size (mm): | 9,525 |
| Inlet thread type: | NPT |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 41.4 |
| Maximum operating pressure (kPa): | 41400 |
| Maximum operating pressure (psi): | 6000 |
| Maximum reset pressure (psi): | 1000 |
| Minimum operating pressure (psi): | 1850 |
| Model: | GL-1 |
| Outlet size (inch): | 3/8 |
| Outlet size (mm): | 9,525 |
| Outlet thread type: | NPT |
| Permissible operating pressure (bar): | 414 |
| Series: | XL |
| Size of the distributor outlet (cm): | 0.33 |
| Size of the distributor outlet (mm): | 3.3 |
| Type: | Grease injection system |
| Type of distributor outlet thread: | NPT |
| Wetted material: | Mild steel, stainless steel, fluoroelastomer, UHMWPE |
More information
- Product number: 1038621
- Manufacturer: Graco
- EAN: 00755652276616
- Weight: 9.525 kg
- Length: 330 mm
- Width: 200 mm
- Height: 100 mm
Technical details
Operating specifications
| UPC product | 7 55652276616 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
| Height | 10 CM |
| Length | 33 CM |
| Width | 20 cm |
| Volume | . 007 m³ |
| Shipping weight | 9 .53 KG |
Technical
| Adjustable | Adjustable |
|---|---|
| For use with | Single Line Parallel Automatic Lubrication Systems |
| Inlet size (cm) | 0. 9525 |
| Inlet size (in) | 3/8 |
| Inlet size (mm) | 9. 525 |
| Maximum NLGI grade | #2 |
| Maximum output volume (in³) | 0. 315 |
| Maximum working pressure (bar) | 4 14 |
| Maximum working pressure (kPa) | 4 1 400 |
| Maximum working pressure (psi) | 6000 |
| Minimum output volume (in³) | 0. 035 |
| Outlet Size (cm) | 0. 9525 |
| Outlet size (in) | 3/8 |
| Outlet size (mm) | 9. 525 |
| Maximum operating pressure (psi) | 6000 |
| Minimum operating pressure (psi) | 1 8 50 |
| Maximum reset pressure (psi) | 1 0 00 |
| Dispense outlet size (cm) | 0. 33 |
| Dispense outlet size (mm) | 3. 3 |
| Dispense outlet size (in) | 0. 13 |
| Dispense outlet thread type | NPT |
| Maximum working pressure (MPa) | 41. 4 |
| Series | XL |
| Model | GL-1 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 335023L, GL-1 X, GL-1 XL Injectors, Manual, English (English)
- 335023L, GL-1 X, GL-1 XL Injectors, Manual, English (русский)
- 335023L, GL-1 X, GL-1 XL Injectors, Manual, English (Español)
- 335023L, GL-1 X, GL-1 XL Injectors, Manual, English (Français)
- 335023L, GL-1 X, GL-1 XL Injectors, Manual, English (Português)
Verkaufsliteratur
