Manufacturer no.:
96G149

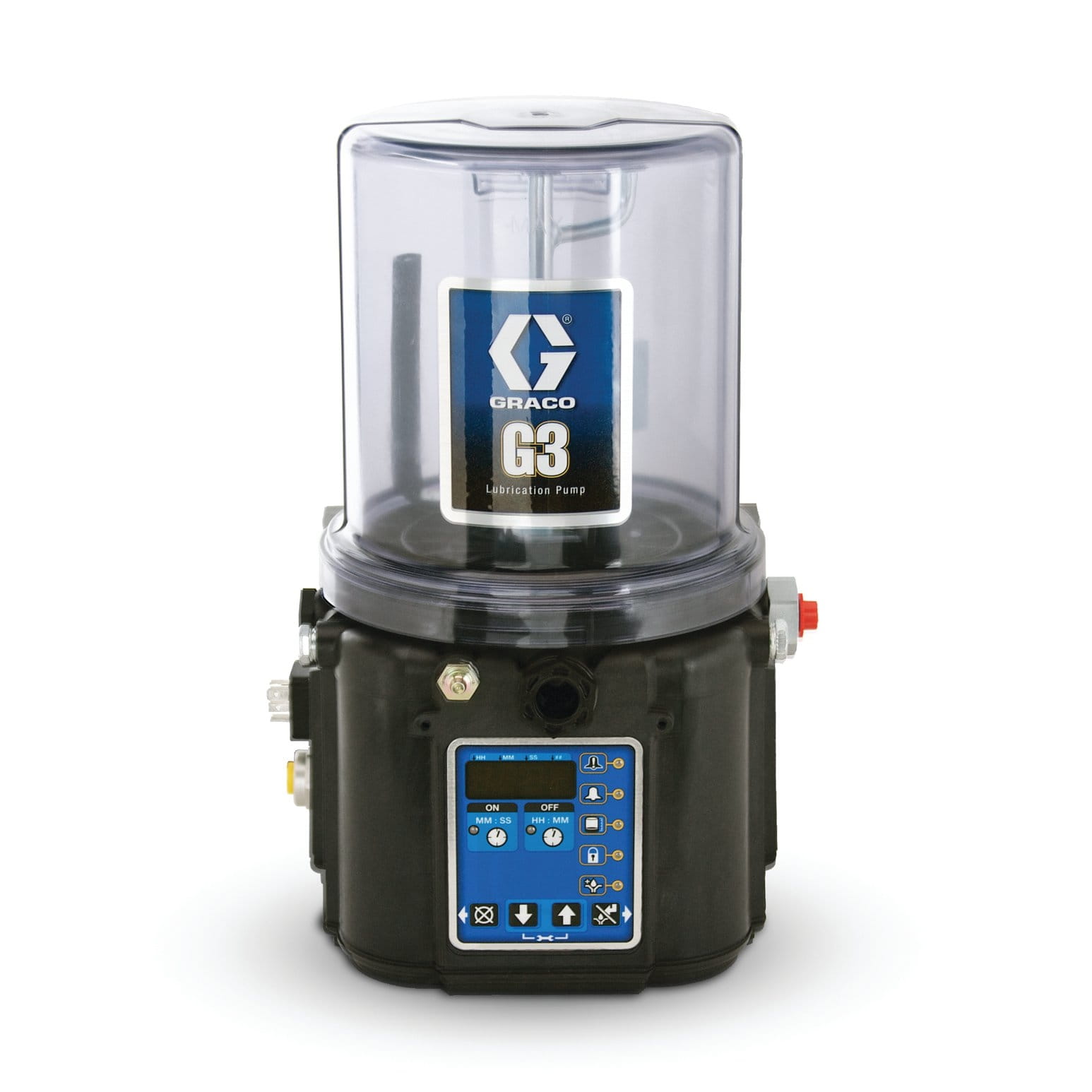

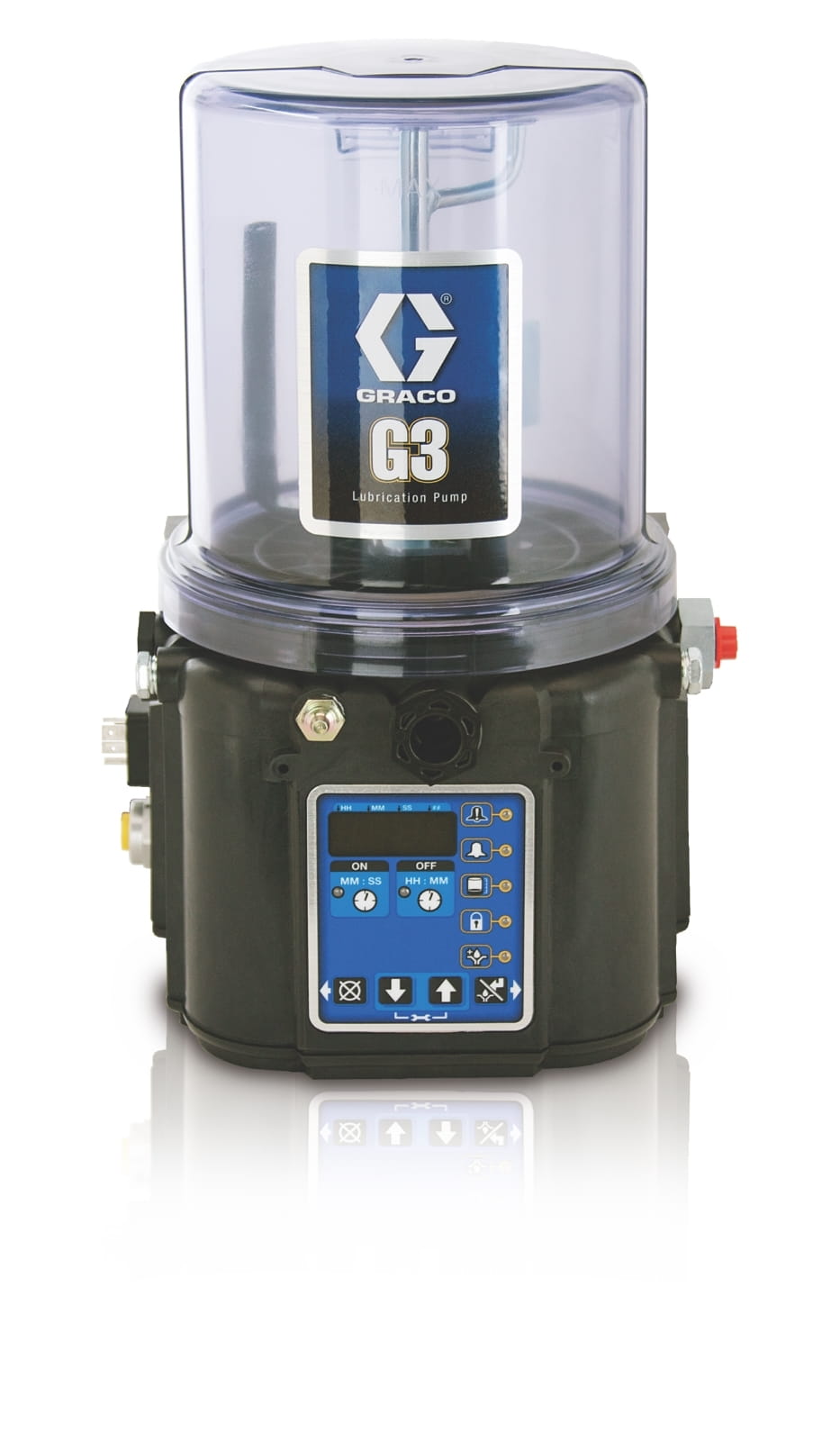

G3™ Pro grease lubricator, 24 VDC, 4 litres, low level with monitoring, 5-pole CPC
€1,636.49*
% €1,818.32* (10% saved)Prices include VAT plus shipping costs
€1,375.20*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
A longer service life, lower operating costs and higher productivity with the Graco G3! The G3 Pro has a flexible design and works with progressive and single-line systems. An affordable pump for a wide range of markets and applications. It comes standard with one adjustable pumping element and space for two more. The ultimate in flexibility – high quality and tailored to your application.
- Built-in control to adjust the pump run and pause times
- Low level indicator with pre-warning and shutdown.
- Push button to manually operate the pump (remote control option available).
- Password-protected settings
- Prelube function to perform an initial lubrication cycle when the machine starts up.
| Alarm relay, maximum inductive operating voltage (VDC): | 220 |
|---|---|
| Application: | On-road vehicles, off-road vehicles |
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Contact power low level (W): | 10 |
| Control options: | Per |
| Current load (A), low level: | 1.2 |
| Energy type: | Electric |
| For use with: | Single-line systems, progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Wiper arm, low level |
| Inductive maximum operating current, alarm relay (A): | 1.5 |
| Inductive maximum permissible load, alarm relay: | 10 ?A;10m VDC |
| Inductive maximum rated load, alarm relay (A): | 1 |
| Inductive maximum switching capacity, alarm relay: | 25VA;30W |
| Input, maximum switch-off current (mA): | 1.5 |
| Input, response time (ms): | 60 |
| Input cycle rate (Hz): | 8 |
| Input impedance: | 1.1 |
| Input load current (mA at 24 VDC): | 22 |
| Low level switching capacity (VDC): | 200 |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum filling inlet pressure (bar): | 344.7 |
| Maximum filling inlet pressure (kPa): | 34470 |
| Maximum filling inlet pressure (psi): | 5000 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum rated residual voltage (V): | 4 |
| Maximum running time (min): | 30 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | G3 |
| Number of machine cycle counting sensor inputs: | 1 |
| Number of pressure and cycle sensor inputs: | 3 |
| Number of pump elements: | Up to 3 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | 5-wire CPC |
| Relief valve, output voltage (VDC): | 24 |
| Relief valve maximum operating current (A): | 2 |
| Relief valve maximum operating power (W): | 48 |
| Required input switch type: | Normally open |
| Reservoir size (L): | 4 |
| Resistive maximum operating current, alarm relay (A): | 3 |
| Resistive maximum rated load, alarm relay (A): | 2 |
| Resistive maximum switching capacity, alarm relay: | 50VA;60W |
| Sensor input voltage (VDC): | 24 |
| Series: | Per |
| Size of the material outlet opening (inches): | 0.25 |
| Switching current (A), low level: | 0.5 |
| Total depth (cm): | 25.4 |
| Total depth (mm): | 254 |
| Total height (cm): | 36.8 |
| Total height (mm): | 368 |
| Total width (cm): | 23.5 |
| Total width (mm): | 235 |
| Type: | Electric piston pump |
| Voltage (V): | 24VDC |
| Voltage (V dc): | 24 |
| Weight (kg): | 6 |
| Wetted material: | Nylon, Trogamid T5004-060, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
More information
- Product number: 1033078
- Manufacturer: Graco
- EAN: 00633955595354
- Weight: 7.701 kg
- Length: 310 mm
- Width: 270 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 633955595354 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 31 cm |
| Width | 27 cm |
| Volume | . 033 m³ |
| Shipping weight | 7 .36 KG |
Technical
| Fluid outlet size (mm) | 6. 3500 |
|---|---|
| Fluid outlet thread gender | Female |
| For use with | Injector-based systems, series progressive systems |
| Includes | Wiper Arm, Low Level |
| Maximum NLGI grade | #2 |
| Maximum working pressure (bar) | 351. 6 |
| Maximum working pressure (kPa) | 3 5160 |
| Maximum working pressure (psi) | 5 1 00 |
| Model | G3 |
| Reservoir Size (gal) | 1. 06 |
| Series | Pro |
| Voltage (V DC) | 2 4 |
| Alarm relay inductive maximum operating current (A) | 1. 5 |
| Alarm relay inductive maximum operating voltage (VDC) | 220 |
| Alarm relay inductive maximum switching capacity | 25 VA; 30 W |
| Alarm relay inductive minimum permissible load | 10 ?A;10m VDC |
| Alarm relay inductive rated load (A) | 1 |
| Alarm relay resistive maximum operating current (A) | 3 |
| Alarm relay resistive maximum switching capacity | 50 VA; 60 W |
| Alarm relay resistive rated load (A) | 2 |
| Control Options | Per |
| Input Cycle Rate (Hz) | 8 |
| Input Impedance | 1. 1 |
| Input load current (mA @ 24 VDC) | 2 2 |
| Input Maximum Off Current (mA) | 1. 5 |
| Input Maximum Residual Voltage (V) | 4 |
| Input required switch type | Normally Open |
| Input Response Time (ms) | 60 |
| Input sensor voltage (VDC) | 2 4 |
| IP Rating | IP 6 9K |
| Low Level Carry Current (A) | 1. 2 |
| Low Level Contact Rating (W) | 10 |
| Low Level Switch Rating (VDC) | 2 00 |
| Low level switching current (A) | 0. 5 |
| Maximum fill inlet pressure (bar) | 344. 7 |
| Maximum fill inlet pressure (kPa) | 3 4 470 |
| Maximum fill inlet pressure (psi) | 5 0 00 |
| Maximum run time (min) | 30 |
| Maximum voltage (V DC) | 32 |
| Minimum voltage (V DC) | 18 |
| Number of machine count sensor inputs | 1 |
| Number of pressure and cycle sensor inputs | 3 |
| Number of pump elements | Up to 3 |
| Overall depth (cm) | 25. 4 |
| Overall depth (in) | 10 |
| Overall depth (mm) | 2 54 |
| Overall height (cm) | 36. 8 |
| Overall height (in) | 14. 5 |
| Overall height (mm) | 368 |
| Overall width (cm) | 23. 5 |
| Overall width (in) | 9. 25 |
| Overall width (mm) | 2 35 |
| Pump Output with 0 Spacers (cu in/min) | 0. 25 |
| Pump output with 1 spacer (cu in/min) | 0. 18 |
| Pump output with 2 spacers (cu in/min) | 0. 12 |
| Vent valve maximum operating current (A) | 2 |
| Vent valve maximum operating power (W) | 48 |
| Vent valve output voltage (VDC) | 2 4 |
| Weight (kg) | 6 |
| Maximum working pressure (MPa) | 35. 1 |
