Manufacturer no.:
94G024

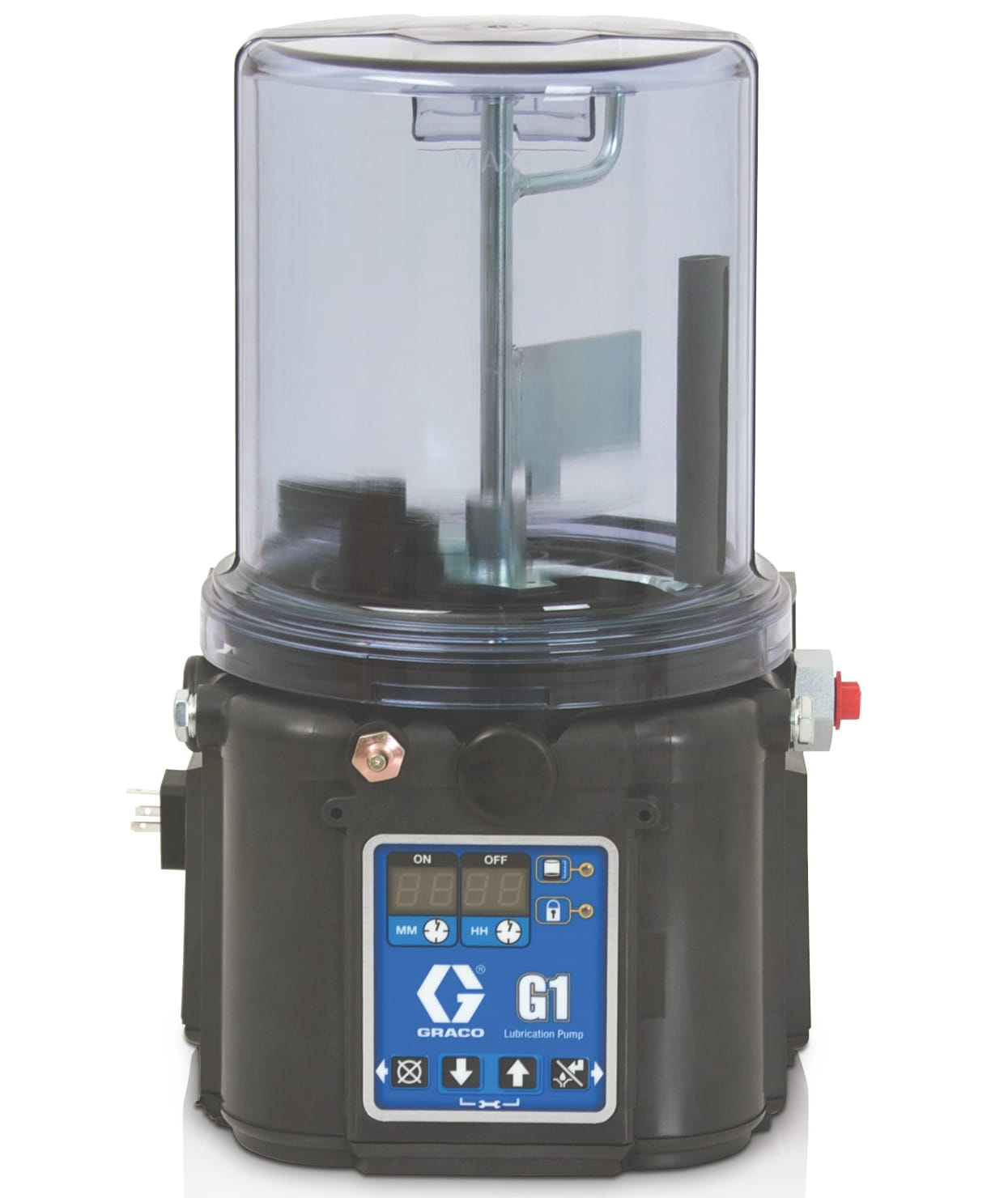

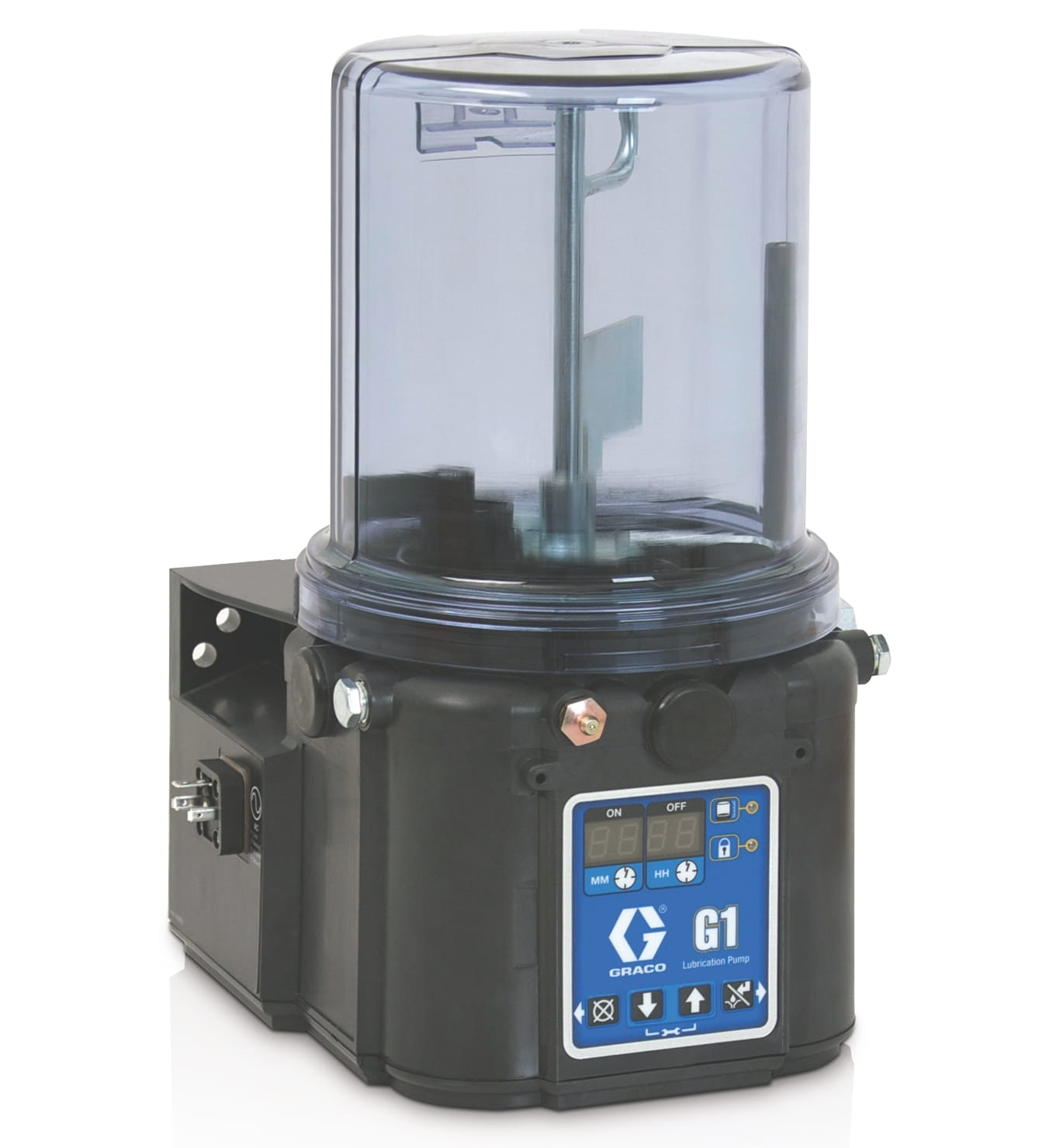

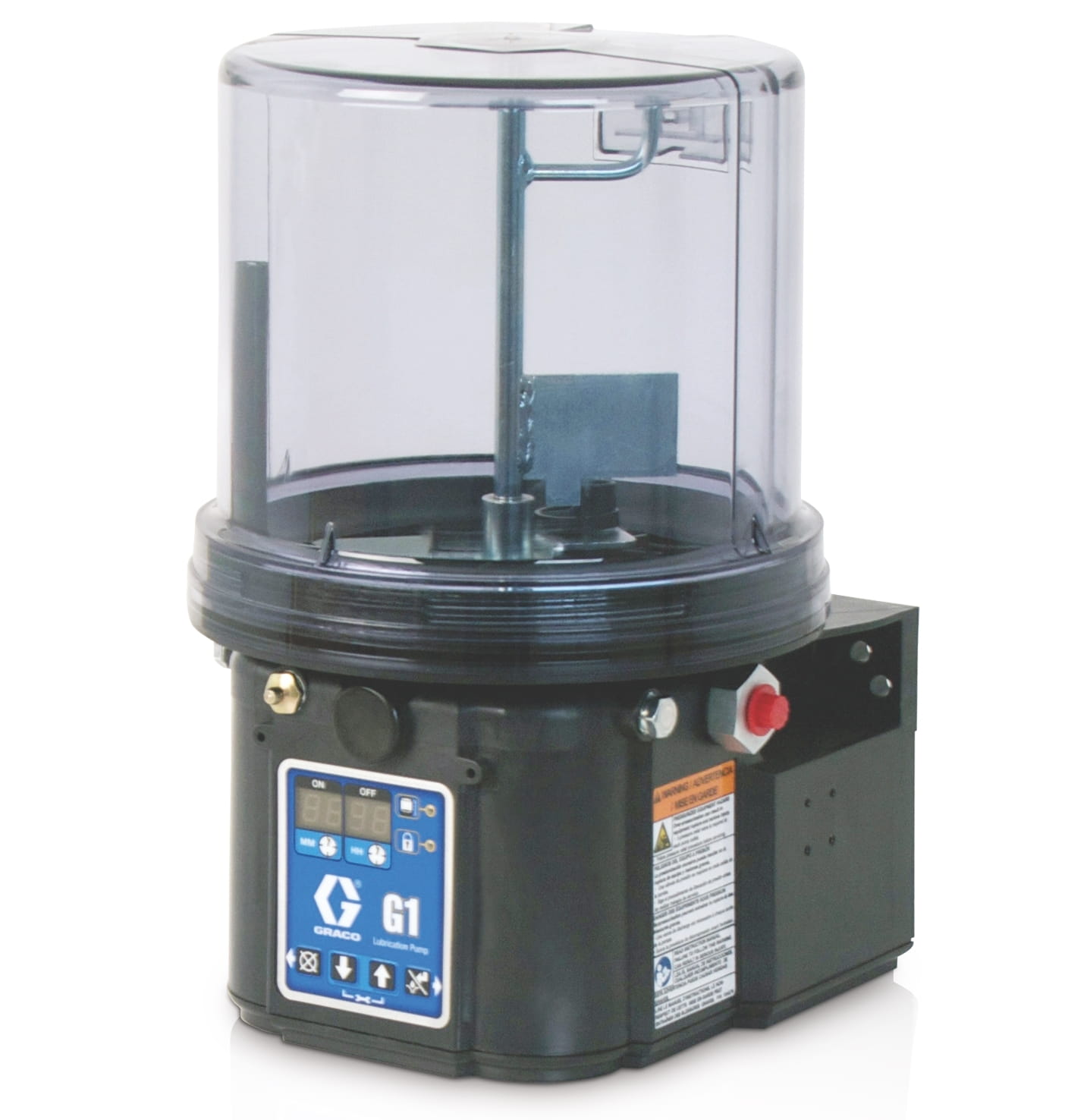

G1™ Plus grease lubricator, 24 VDC, 2 litres, DIN, scraper
€1,041.01*
% €1,156.68* (10% saved)Prices include VAT plus shipping costs
€874.80*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Simple solution. Convincing results. Use the user-friendly Graco G1 pump when you need a reliable, simple alternative to manual lubrication. Use your equipment intelligently and get more productivity out of it thanks to the G1 series of lubricant pumps.
Automatic lubrication for progressive and measuring systems
- The G1 Plus is equipped with a timer that controls on/off operations and can be optionally equipped with a level indicator so that the pump automatically switches off when the container is empty. The manual operating mode can be used for on-demand lubrication, optionally by remote control.
- 2 litre reservoir
- Connect to 24 VDC
- Built-in versatility - Available with an agitator and scraper arm to prevent the lubricant from separating. Optional follower plate to keep the lubricant horizontal even at large installation angles.
- High-performance pump – The G1 features a pump element that reliably delivers lubricant when it is needed.
- Continuous material flow - Using the latest material dynamics, specially shaped inlet channels for lubricant in the pump prevent the formation of zones where the grease remains for longer and could thus separate.
- Designed for a long service life – The decoupled drive minimises the stress on the motor and pump element.
| Application: | On-road vehicles, off-road vehicles |
|---|---|
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Control options: | Plus |
| Energy type: | Electric |
| For use with: | Progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Wiper arm |
| Material outlet size (cm): | 6,350 |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum running time (min): | 30 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | G1 |
| Number of pump elements: | 1 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | DIN |
| Reservoir size (L): | 2 |
| Series: | Plus |
| Size of the material outlet opening (inches): | 0.25 |
| Total depth (cm): | 9/22 |
| Total depth (mm): | 229 |
| Total height (cm): | 33.7 |
| Total height (mm): | 337 |
| Total width (cm): | 20.3 |
| Total width (mm): | 203 |
| Type: | Electric piston pump |
| Voltage (V): | 24VDC |
| Voltage (V dc): | 24 |
| Weight (kg): | 6 |
| Wetted material: | Nylon, Amorphous Polyamide, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
More information
- Product number: 1034224
- Manufacturer: Graco
- EAN: 00633955032569
- Weight: 5.663 kg
- Length: 310 mm
- Width: 270 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 633955032569 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 31 cm |
| Width | 27 cm |
| Volume | . 033 m³ |
| Shipping weight | 5 .66 KG |
Technical
| Fluid outlet size (mm) | 6. 3500 |
|---|---|
| Fluid outlet thread gender | Female |
| For use with | Series Progressive Metering Systems |
| Includes | Wiper Arm |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 351. 6 |
| Maximum working pressure (kPa) | 3 5160 |
| Maximum working pressure (psi) | 5 1 00 |
| Model | G 1 |
| Reservoir Size (gal) | 0. 528 |
| Series | Plus |
| Voltage (V DC) | 2 4 |
| Control options | Plus |
| IP rating | IP 6 9K |
| Maximum flow rate (ci/min) | 0. 25 |
| Maximum run time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum voltage (V DC) | 18 |
| Number of pump elements | 1 |
| Overall depth (cm) | 22. 9 |
| Overall Depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall height (cm) | 33. 7 |
| Overall height (in) | 13. 25 |
| Overall height (mm) | 337 |
| Overall width (cm) | 20. 3 |
| Overall width (in) | 8 |
| Overall width (mm) | 203 |
| Weight (kg) | 6 |
| Maximum working pressure (MPa) | 35. 1 |
