Manufacturer no.:
94G015

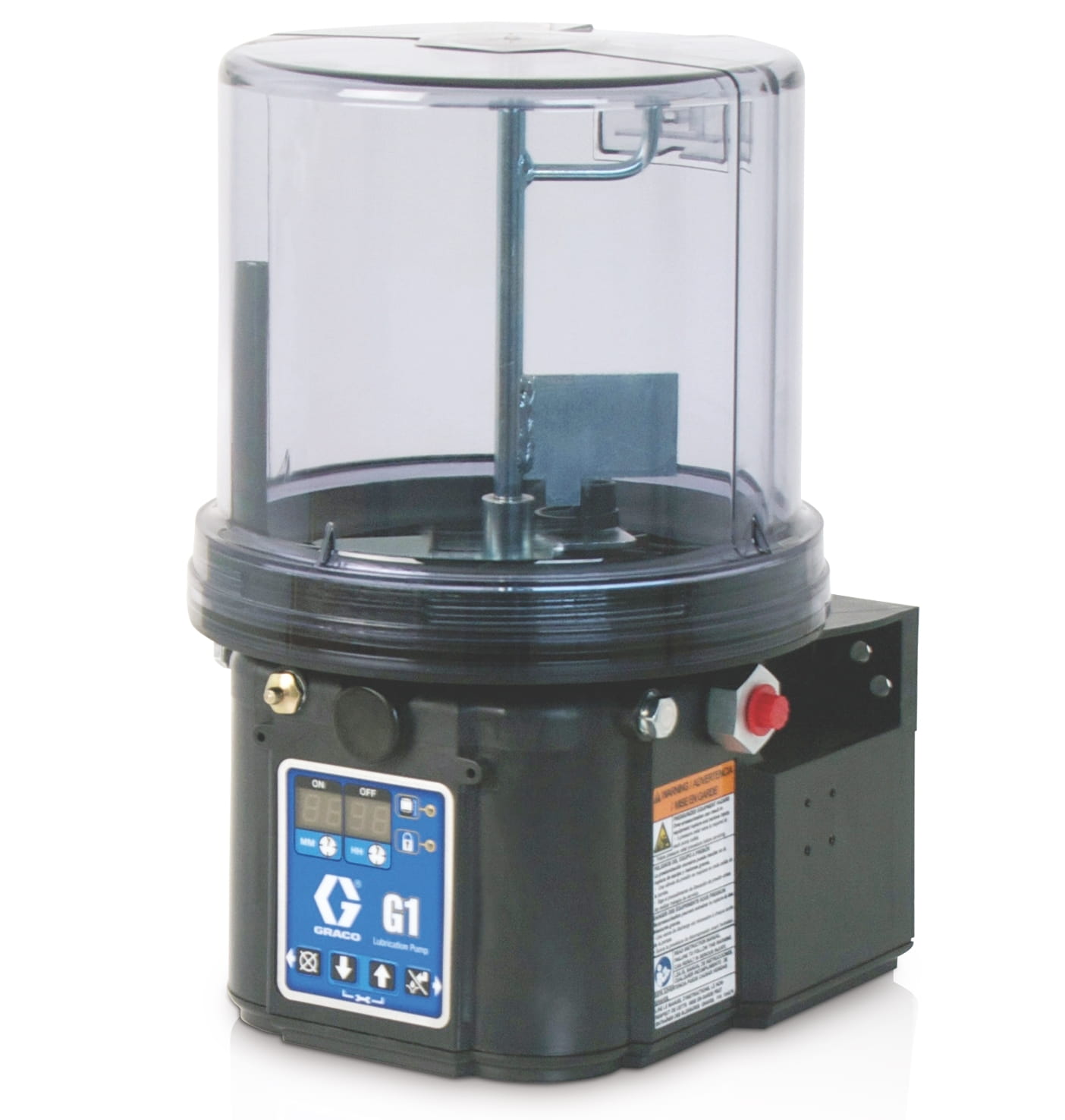

G1™ Plus grease lubricant pump, 24 VDC, 2 litres, CPC, wiper, low level
€1,272.35*
% €1,413.72* (10% saved)Prices include VAT plus shipping costs
€1,069.20*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Simple solution. Convincing results. Use the user-friendly Graco G1 pump when you need a reliable, simple alternative to manual lubrication. Use your equipment intelligently and get more productivity out of it thanks to the G1 series lubricant pumps.
Automatic lubrication for progressive metering systems
- The G1 Plus is equipped with a timer that controls on/off operations and can optionally be fitted with a level indicator so that the pump switches off automatically when the reservoir is empty. The manual operating mode can be used for demand-orientated lubrication processes, optionally also by remote control.
- 2 litre container
- Connect to 24 VDC
- Integrated versatility - Available with agitator blade and scraper arm to prevent the lubricant from segregating. Optionally with follower plate so that the lubricant always remains level, even at large installation angles.
- Powerful pump - The G1 has a pump element that reliably delivers lubricant when it is needed.
- Continuous material flow - Using the latest material dynamics, specially shaped lubricant inlet channels in the pump prevent the formation of zones in which the grease stands for longer and could therefore segregate.
- Designed for a long service life - The decoupled drive minimises stress on the motor and pump element.
| Application: | On-road vehicles, off-road vehicles |
|---|---|
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Control options: | Plus |
| Energy type: | Electric |
| For use with: | Progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Wiper arm, low level |
| Material outlet size (cm): | 6,350 |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum running time (min): | 30 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | G1 |
| Number of pump elements: | 1 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | 5-wire CPC |
| Reservoir size (L): | 2 |
| Series: | Plus |
| Size of the material outlet opening (inches): | 0.25 |
| Total depth (cm): | 9/22 |
| Total depth (mm): | 229 |
| Total height (cm): | 33.7 |
| Total height (mm): | 337 |
| Total width (cm): | 20.3 |
| Total width (mm): | 203 |
| Type: | Electric piston pump |
| Voltage (V): | 24VDC |
| Voltage (V dc): | 24 |
| Weight (kg): | 6 |
| Wetted material: | Nylon, Amorphous Polyamide, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE |
More information
- Product number: 1030178
- Manufacturer: Graco
- EAN: 00633955031319
- Weight: 5.889 kg
- Length: 310 mm
- Width: 270 mm
- Height: 410 mm
Technical details
Operating specifications
| UPC product | 6 3 3955031319 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
| Height | 41 CM |
| Length | 31 cm |
| Width | 27 cm |
| Volume | . 034 m³ |
| Shipping weight | 5 .89 KG |
Technical
| Fluid outlet size (mm) | 6. 3500 |
|---|---|
| Fluid outlet thread gender | Female |
| For use with | Series Progressive Metering Systems |
| Includes | Wiper Arm, Low Level |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 351. 6 |
| Maximum working pressure (kPa) | 3 5160 |
| Maximum working pressure (psi) | 5 1 00 |
| Model | G 1 |
| Reservoir Size (gal) | 0. 528 |
| Series | Plus |
| Voltage (V dc) | 2 4 |
| Control options | Plus |
| IP rating | IP 6 9K |
| Maximum flow rate (ci/min) | 0. 25 |
| Maximum run time (min) | 30 |
| Maximum Voltage (V dc) | 32 |
| Minimum voltage (V DC) | 18 |
| Number of pump elements | 1 |
| Overall depth (cm) | 22. 9 |
| Overall depth (in) | 9 |
| Overall Depth (mm) | 229 |
| Overall height (cm) | 33. 7 |
| Overall height (in) | 13. 25 |
| Overall height (mm) | 337 |
| Overall Width (cm) | 20. 3 |
| Overall width (in) | 8 |
| Overall width (mm) | 203 |
| Weight (kg) | 6 |
| Maximum working pressure (MPa) | 35. 1 |
