Manufacturer no.:
25R821

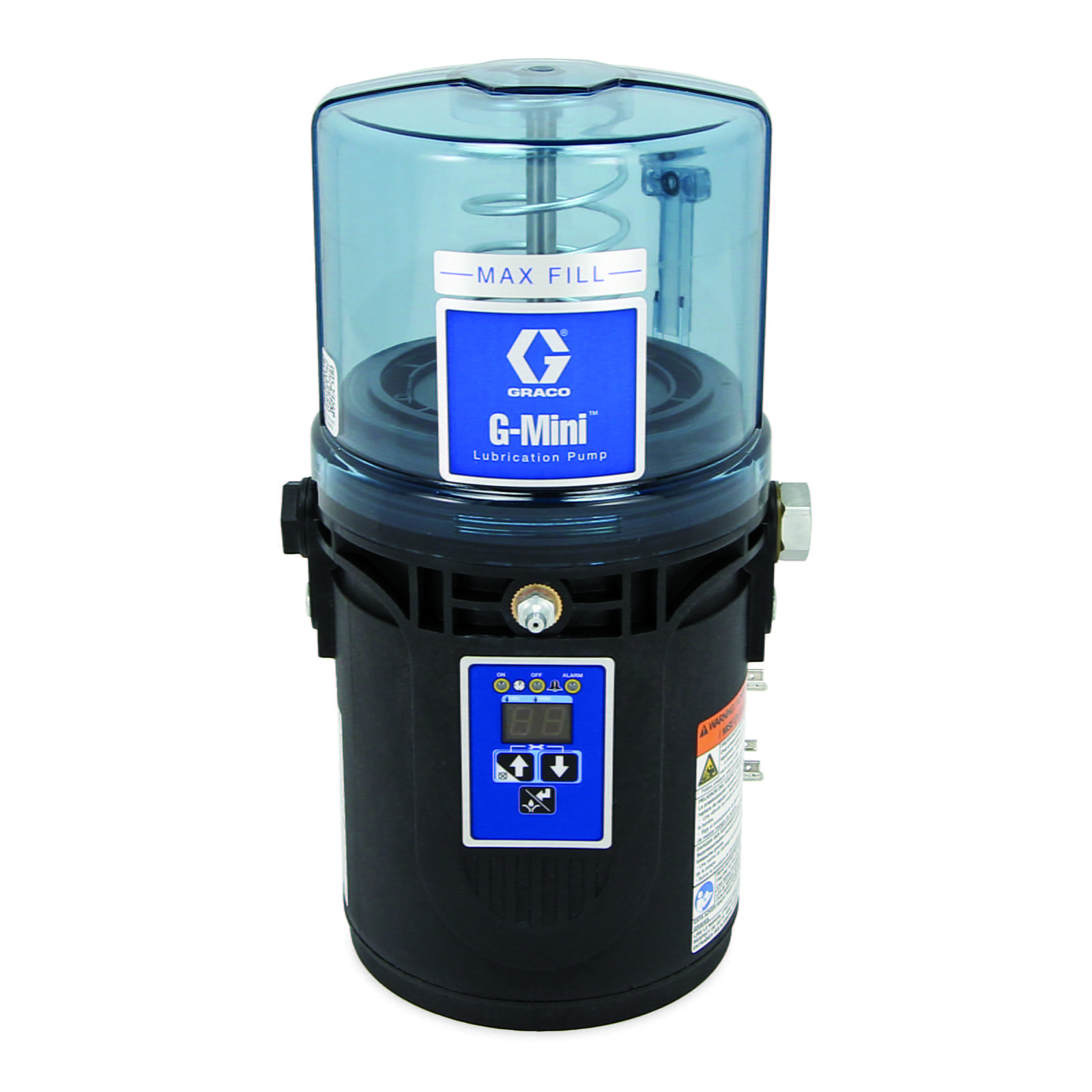

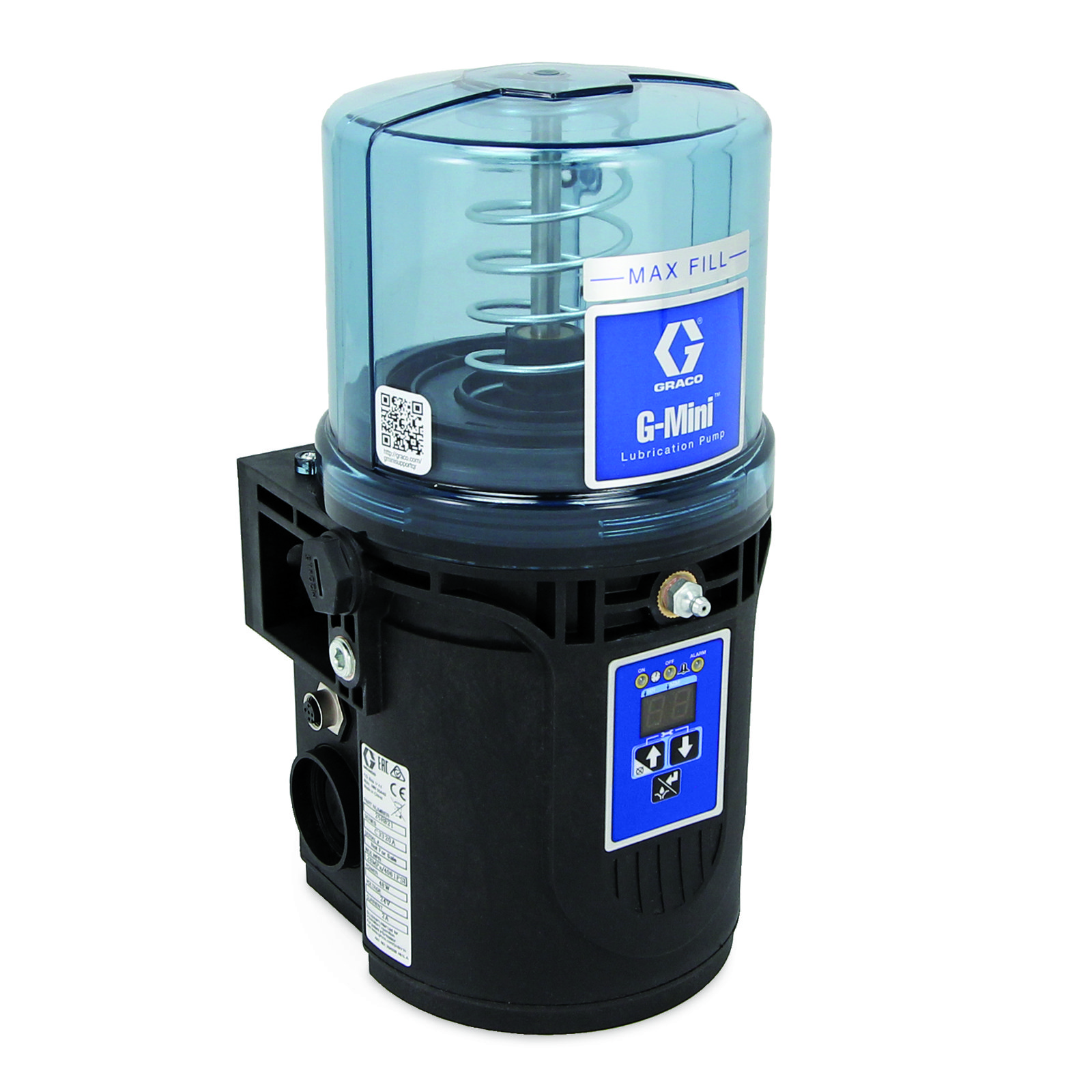

G-Mini® Grease Lubricator with Controller, 24 VDC, 1 litre
€866.44*
% €962.71* (10% saved)Prices include VAT plus shipping costs
€728.10*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Get the most out of your space, budget and machines. The new, fully equipped G-Mini ensures reliable lubrication in a small footprint, making it suitable for more machine types. Use the G-Mini to simplify routine maintenance, extend life cycles and optimise uptime. The pump is robust and resilient, meeting the constant daily challenges of large and small jobs. On top of that, the best thing is the moderate price, which increases your productivity and profitability.
- Sequential plate and agitator – This unique combination prevents oil separation and at the same time ensures that the "loading chamber" of the pump element is always full.
- M12 input – M12 cycle or proximity switch input, standard on all pumps with control.
- 5-core DIN power cable – the multi-function cable powers the pump, connects to a remote run button and provides low level alerts or cycle fault outputs.
- 1 litre lubricant reservoir available
- One pump element – 3 cm3/min (0.18 in3/min), 280 bar (4100 psi)
- Easily programmable controller can be used for time-based and cycle-based systems and provides a low-level warning.
- Rugged design – Engineered to withstand the harshest environments; IP69K rating.
| Application: | Off-road vehicles, road vehicles, industry, wind power |
|---|---|
| Authorisations: | CE, EAC |
| Compatible dosing system: | Progressive system |
| Compatible material: | Fat |
| Control options: | Internal control |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Material inlet type: | Grease nipple for filling the lubricant container |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum operating pressure (psi): | 4061 |
| Maximum operating temperature (°C): | 70 |
| Maximum voltage (V dc): | 32 |
| Minimum operating temperature (°C): | -15 |
| Minimum voltage (V dc): | 18 |
| Model: | G Mini |
| Number of pump elements: | Up to 2 |
| Number of sensor inputs: | 1 |
| Permissible operating pressure (bar): | 280 |
| Power connection type: | DIN |
| Reservoir size (L): | 1 |
| Size of the material outlet opening (inches): | 1/4 |
| Type: | Electric piston pump |
| Voltage (V dc): | 24 |
| Wetted material: | Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Amorphous Polyamide, Nylon |
More information
- Product number: 1035006
- Manufacturer: Graco
- EAN: 00769946074925
- Weight: 5.216 kg
- Length: 300 mm
- Width: 300 mm
- Height: 380 mm
Technical details
Operating specifications
| UPC product | 7 6 9946074925 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | CN |
| Unit | EA |
| Height | 38 CM |
| Length | 30 cm |
| Width | 30 cm |
| Volume | . 034 m³ |
| Shipping weight | 5 .22 KG |
Technical
| Fluid inlet type | Zerk fitting to fill reservoir |
|---|---|
| Fluid outlet thread gender | Female |
| Maximum NLGI grade | #2 |
| Maximum operating temperature (°C) | 70 |
| Maximum operating temperature (°F) | 158 |
| Maximum working pressure (bar) | 2 80 |
| Maximum working pressure (psi) | 4061 |
| Minimum operating temperature (°C) | -15 |
| Minimum operating temperature (°F) | 5 |
| Model | G - Mini |
| Voltage (V dc) | 2 4 |
| Control options | Internal controller |
| IP Rating | IP 6 9K |
| Maximum flow rate (ci/min) | 3 |
| Maximum Voltage (V dc) | 32 |
| Minimum voltage (V DC) | 18 |
| Number of pump elements | Up to 2 |
| Number of sensor inputs | 1 |
| Overall depth (in) | 6. 57 |
| Overall height (in) | 12. 2 |
| Overall Width (in) | 6. 97 |
| Approvals | CE, EAC |
