Manufacturer no.:
237526

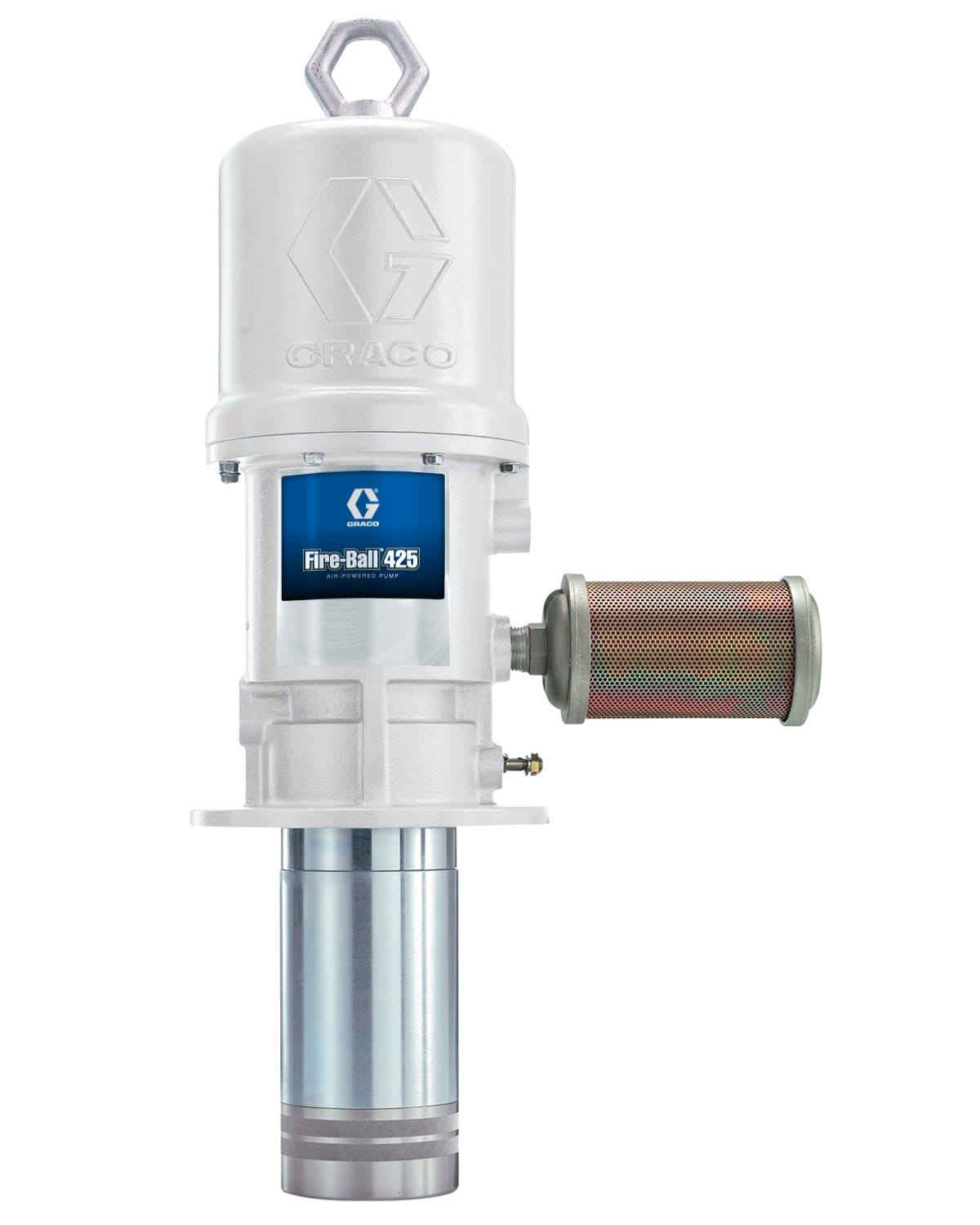

Fire-Ball® oil pump, 425 series, universal size 3:1
€4,532.71*
% €5,578.72* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
With a large 4.25" (107.9 mm) air motor that delivers the power you need for long pipe and larger volume dispensing, the Fire-Ball 425 offers field-proven durability on many types of materials and exceptional cost savings that are hard to beat!
The Fire-Ball 425 is the pump of choice for your most demanding, high-volume applications – an ideal choice for applications such as fleet and manufacturing equipment maintenance where multiple dispensing operations are performed in succession.
- Rugged – Unsurpassed rugged air motor housing made of extremely strong cast aluminium
- Fewer repairs – Fewer moving parts in the air motor assembly means less downtime and lower repair costs
- Extended seal life – In-line pump design with aligned air motor and fluid pistons maximises seal life
- Less downtime – Graco's unique manufacturing process ensures that piston rods are virtually wear-resistant
- Excellent sealing – plastic poppet valves provide a tight seal even in environments with contaminated "dirty" air, and ensure a long service life with little maintenance
- Reduced icing – large air inlet ensures efficient use of compressed air for continuous pump operation without icing
- Corrosion resistant – corrosion resistance and long service life of important components through salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 0.5 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | oil |
| Double strokes per gallon: | 6 |
| Effective area of the air motor (inches): | 4.25 |
| Energy type: | Pneumatic |
| For use with: | Mineral and synthetic oils (engine, transmission and ATF) |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material inlet thread type: | NPT |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum air supply pressure (bar): | 12.41 |
| Maximum air supply pressure (kPa): | 1241 |
| Maximum continuous double stroke rate (DH/min): | 66 |
| Maximum inlet air pressure (psi): | 180 |
| Maximum intermittent double stroke rate (CPM): | 66 |
| Maximum operating pressure (MPa): | 3.7 |
| Maximum operating pressure (kPa): | 3700 |
| Maximum operating pressure (psi): | 540 |
| Model: | Fire Ball |
| Noise pressure level, (dB(A)): | 82 |
| Permissible operating pressure (bar): | 37 |
| Series: | 425 |
| Size of the air inlet (mm): | 12.7 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 3/4 |
| Transmission ratio of the pump: | 3:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 2.0884 |
| Wetted material: | Steel, polyurethane, aluminum, nitrile |
More information
- Product number: 1031180
- Manufacturer: Graco
- EAN: 00633955320086
- Weight: 23.2 kg
- Length: 880 mm
- Width: 250 mm
- Height: 270 mm
Technical details
Operating specifications
| UPC product | 6 3 3955320086 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 27 CM |
| Length | 88 CM |
| Width | 25 cm |
| Volume | 0. 059 m³ |
| Shipping weight | 23.2 KG |
Technical
| Air inlet size (in) | 0. 5 |
|---|---|
| Air inlet size (mm) | 12. 7 |
| Air inlet thread gender | Female |
| Air motor effective diameter (in) | 4. 25 |
| Cycles per gallon | 6 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| For use with | Petroleum- and synthetic-based oils (motor, gear and ATF ) |
| Maximum air inlet pressure (bar) | 12. 41 |
| Maximum air inlet pressure (kPa) | 1 2 41 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum continuous cycle rate (CPM) | 66 |
| Maximum intermittent cycle rate (CPM) | 66 |
| Maximum working pressure (bar) | 37 |
| Maximum working pressure (kPa) | 3700 |
| Maximum working pressure (psi) | 540 |
| Model | Fire -Ball |
| Series | 425 |
| Sound pressure level (dB(A)) | 82 |
| Weight (kg) | 2. 0884 |
| Maximum working pressure (MPa) | 3. 7 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 308485d , President 3:1-Pumpe (Deutsch)
- 308485d , President 3:1-Pumpe (Français)
- 308485d , President 3:1-Pumpe (English)
- 308485d , President 3:1-Pumpe (русский)
CAD Drawings
Verkaufsliteratur
