Manufacturer no.:
203876

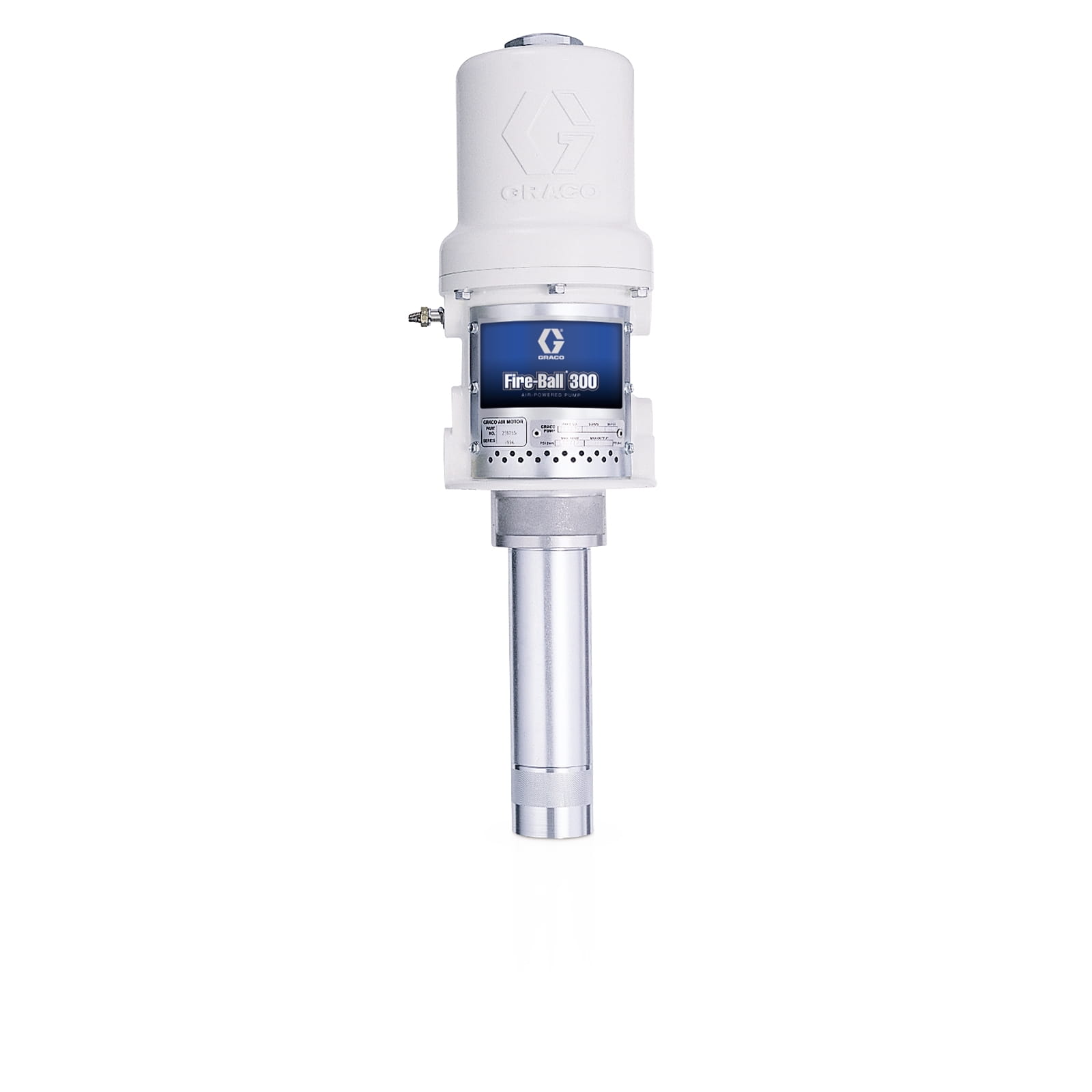

Fire-Ball® oil pump, 300 series, universal size 5:1
€2,076.55*
Ready for shipping in 5-8 days
Also interesting
Product information
With decades in the industry, the Fire-Ball's reputation is unrivalled. Built with fewer moving parts to withstand the test of time, our flagship product is designed to keep customers productive with more uptime. The long-lasting pumps are known for their durability, and even the pumps built decades ago are still working efficiently.
Install the Fire-Ball 300 5:1 in oil delivery systems with high pressure and medium volume, such as those found at car dealerships, quick lube centres and service garages.
- Reliable flow – A 76.2 mm (3") differential air motor and the double-acting pump design ensure reliable material flow and accurate dosing.
- Rugged – Unsurpassed rugged air motor housing made of extremely strong cast aluminium
- Fewer repairs – Fewer moving parts in the air motor assembly means less downtime and lower repair costs
- Extended seal life – In-line pump design with aligned air motor and fluid pistons maximises seal life
- Less downtime – Graco's unique manufacturing process ensures that piston rods are virtually wear-resistant
- Excellent sealing – plastic poppet valves provide a tight seal even in environments with contaminated "dirty" air, and ensure a long service life with little maintenance
- Reduced icing – large air inlet ensures efficient use of compressed air for continuous pump operation without icing
- Corrosion resistant – corrosion resistance and long service life of important components through salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Artikel Art: | Ölpumpe |
|---|---|
| Verhältnis: | 5:1 |
More information
- Product number: 1035632
- Manufacturer: Graco
- EAN: 00633955201682
- Weight: 7 kg
- Length: 720 mm
- Width: 260 mm
- Height: 260 mm
Technical details
Operating specifications
| UPC product | 633955201682 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 26 CM |
| Length | 72 cm |
| Width | 26 cm |
| Volume | . 049 m³ |
| Shipping weight | 8 .86 KG |
Technical
| Air inlet size (in) | 3/8 |
|---|---|
| Air inlet size (mm) | 9. 525 |
| Air inlet thread gender | Female |
| Air motor effective diameter (in) | 3 |
| Cycles per gallon | 30 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (mm) | 12. 7 |
| Fluid outlet thread gender | Female |
| For use with | Petroleum- and synthetic-based oils (motor, gear and ATF ) |
| Maximum air consumption (SCFM) | 25 |
| Maximum air inlet pressure (bar) | 12. 41 |
| Maximum air inlet pressure (kPa) | 1 2 41 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum continuous cycle rate (CPM) | 70 |
| Maximum intermittent cycle rate (CPM) | 70 |
| Maximum working pressure (bar) | 62 |
| Maximum working pressure (kPa) | 6200 |
| Maximum working pressure (psi) | 900 |
| Model | Fire -Ball |
| Series | 300 |
| Sound pressure level (dB(A)) | 77. 8 |
| Weight (kg) | 0. 7718 |
| Maximum working pressure (MPa) | 6. 2 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 306518aa , Fire-Ball 300 5:1-Pumpen (Deutsch)
- 306518aa , Fire-Ball 300 5:1-Pumpen (Français)
- 306518aa , Fire-Ball 300 5:1-Pumpen (Italiano)
- 306518aa , Fire-Ball 300 5:1-Pumpen (Español)
- 306518aa , Fire-Ball 300 5:1-Pumpen (English)
- 306518aa , Fire-Ball 300 5:1-Pumpen (Suomi)
- 306518aa , Fire-Ball 300 5:1-Pumpen (русский)
CAD Drawings
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
