Manufacturer no.:
244628
Fire-Ball® 425 Series oil pump, universal size, 6:1 - Wall-mounted complete unit
€6,314.14*
Ready for shipping in 5-8 days
Also interesting
Product information
The Fire-Ball 425 is equipped with a 107.9 mm (4.25") air motor that delivers the power you need for long pipework and dosing larger quantities. An ideal choice for applications where multiple dosing operations take place simultaneously.
The Fire-Ball 425 pump is the first choice for your most demanding high-volume applications
- Robust casting - Unsurpassed robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Excellent sealing - Plastic disc valves provide a positive seal even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Longer seal life - The inline pump design with aligned air motor pistons and material pistons ensures maximum seal life
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | oil |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |

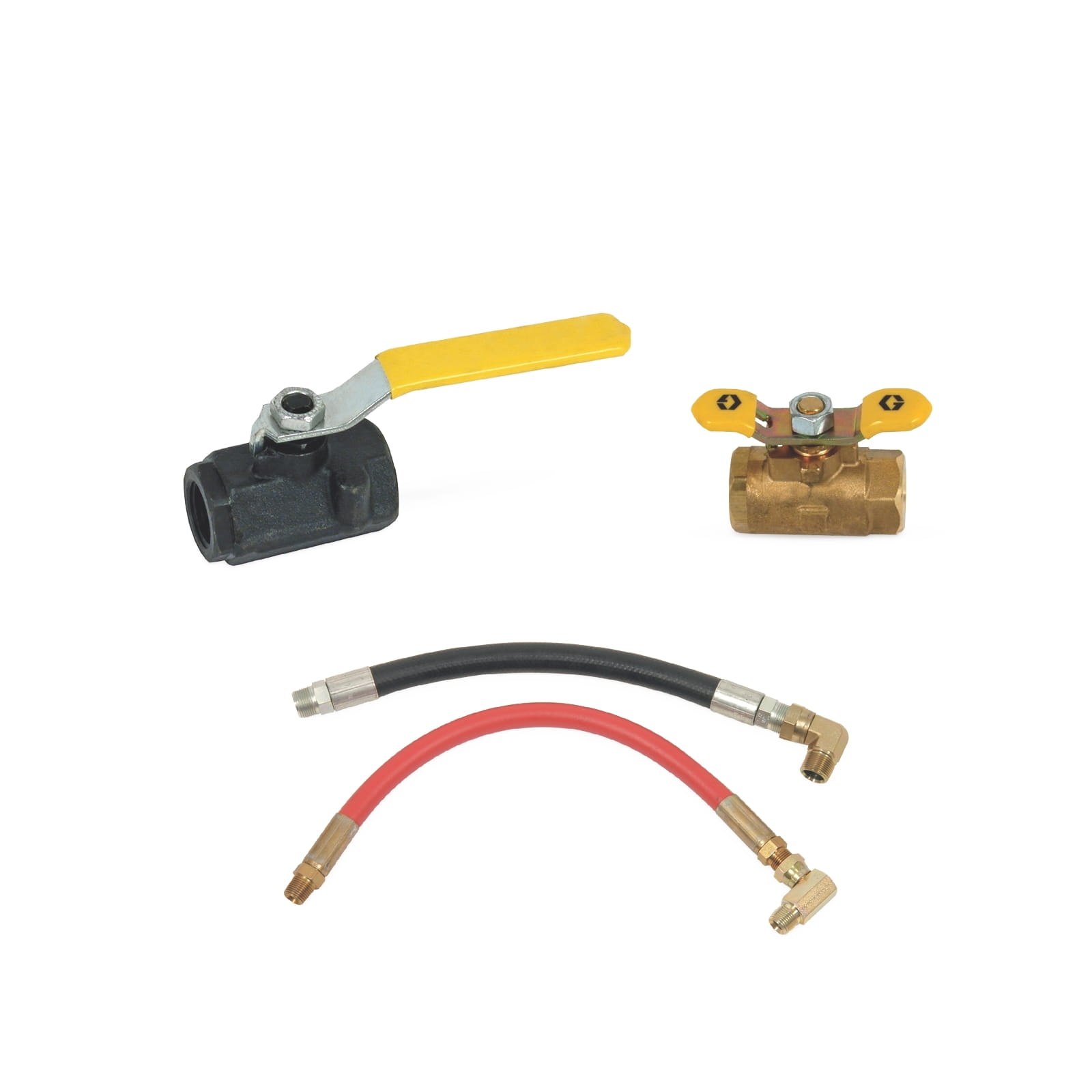

| Includes: | Fire-Ball 425 6:1 pump, filter regulator, hose and fitting set, air shut-off valve, fluid shut-off, wall mount |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 1.27 |
| Material outlet size (mm): | 12.7 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 7.6 |
| Maximum operating pressure (kPa): | 7600 |
| Maximum operating pressure (psi): | 1100 |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Mounting position: | Wall mounting |
| Permissible operating air pressure (psi): | 180 |
| Permissible operating overpressure (psi): | 1100 |
| Permissible operating pressure (bar): | 76 |
| Series: | 425 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1/2 |
| Transmission ratio of the pump: | 6:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, polyurethane, aluminum, nitrile |
More information
- Product number: 1033312
- Manufacturer: Graco
- EAN: 00633955644830
- Weight: 30.409 kg
Technical details
Operating specifications
| UPC product | 633955644830 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit | EA |
Technical
| Fluid inlet size (cm) | 3. 81 |
|---|---|
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 27 |
| Fluid outlet size (mm) | 12. 7 |
| Fluid outlet thread gender | Female |
| Includes | Fire-Ball 425 6:1 pump, filter regulator, hose and fitting kit, air shut-off valve, fluid shut-off, wall mount bracket |
| Maximum working pressure (bar) | 76 |
| Maximum working pressure (kPa) | 7600 |
| Maximum working pressure (psi) | 1100 |
| Series | 425 |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Maximum Air Working Pressure (psi) | 180 |
| Maximum flow rate (gpm @ 80 cpm) | 6. 6 |
| Pump Weight (lb) | 35 |
| Maximum Working Pressure (MPa) | 7. 6 |
| Model | Fire -Ball |
