Manufacturer no.: 225006

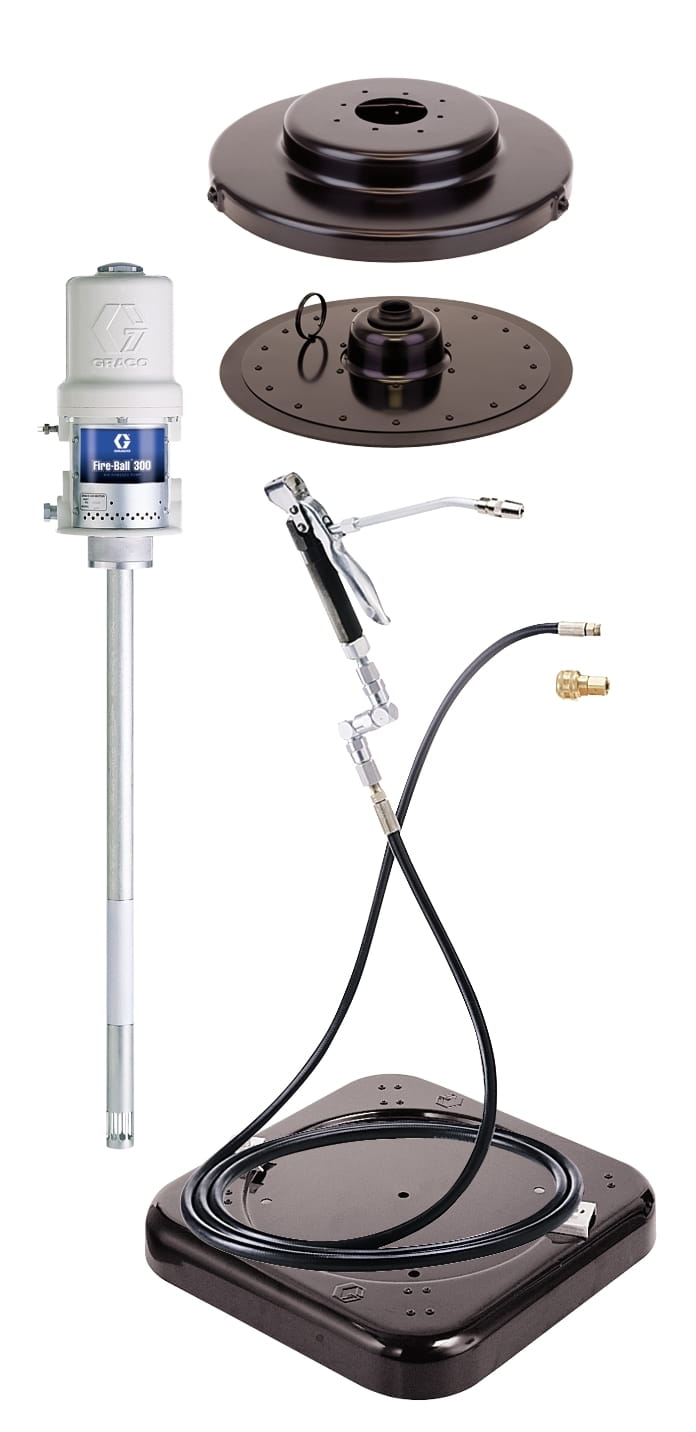

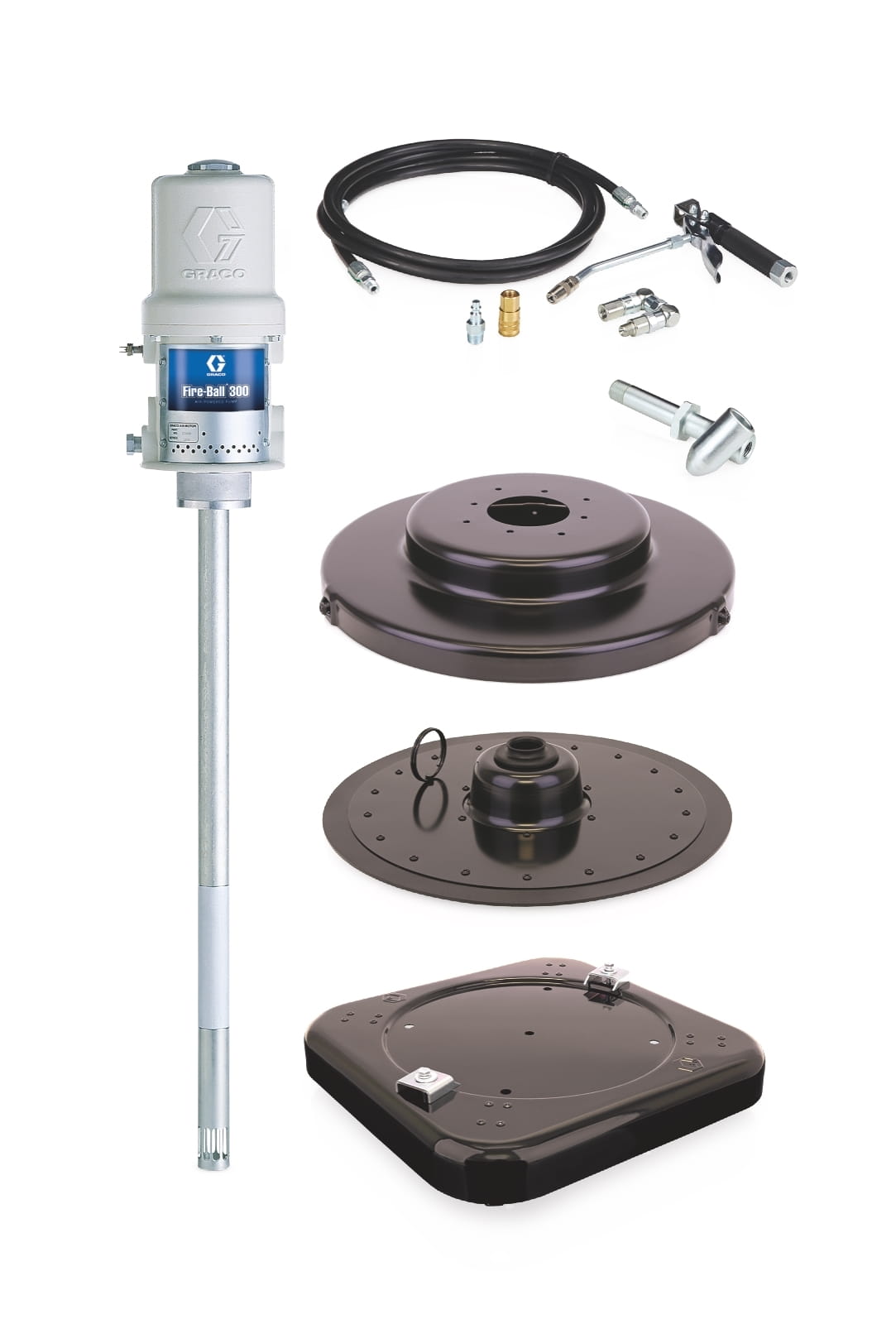

Fire-Ball® 300 series portable grease pump system, 50:1, 54 kg (120 lb), with roller base

€4,065.34*

Prices include VAT plus shipping costs

€3,416.25*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

As a decades-long mainstay in the industry, the Fire-Ball's reputation is unrivalled. Built with fewer moving parts to withstand the ravages of time, our flagship pump is designed to keep customers more productive due to longer uptime. The durable pumps are known for their longevity and even the pumps built decades ago are still working efficiently.

Install the Fire-Ball 300 50:1 in grease metering applications.

Reliable flow - A 76.2 mm (3") differential air motor and double-acting pump design ensure reliable material flow and accurate metering.
Robust - Unrivalled robust air motor housing made from extremely strong cast aluminium
Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
Longer seal life - Inline pump design with aligned air motor pistons and material pistons maximises seal life
Less downtime - Graco's unique manufacturing process ensures virtually wear-resistant piston rods
Excellent sealing - Plastic disc valves seal positively even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
Less icing - The large air inlet guarantees efficient utilisation of compressed air for continuous pump operation without icing
Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium

Air inlet size (inches):	375
Air inlet thread type:	NPT
Application:	industry
Compatible material:	Fat
Energy type:	Pneumatic
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Includes:	Fireball 300 50:1 pump, transportable by truck, dosing set, cover, follower plate
Material inlet thread type:	NPT
Material inlet type:	Slotted
Material outlet size (cm):	635
Material outlet size (mm):	6.35
Material outlet thread type:	NPT
Maximum operating air pressure:	140
Maximum operating pressure (MPa):	35
Maximum operating pressure (kPa):	35000
Maximum operating pressure (psi):	5000
Model:	Fire Ball
Motor type:	Pneumatic
Permissible operating pressure (bar):	350
Series:	300
Size of the material outlet opening (inches):	1/4
Transmission ratio of the pump:	50:1
Type:	Piston pump system
Wetted material:	Steel, Delrin, Buna-N, polyurethane
