Manufacturer no.:
240881

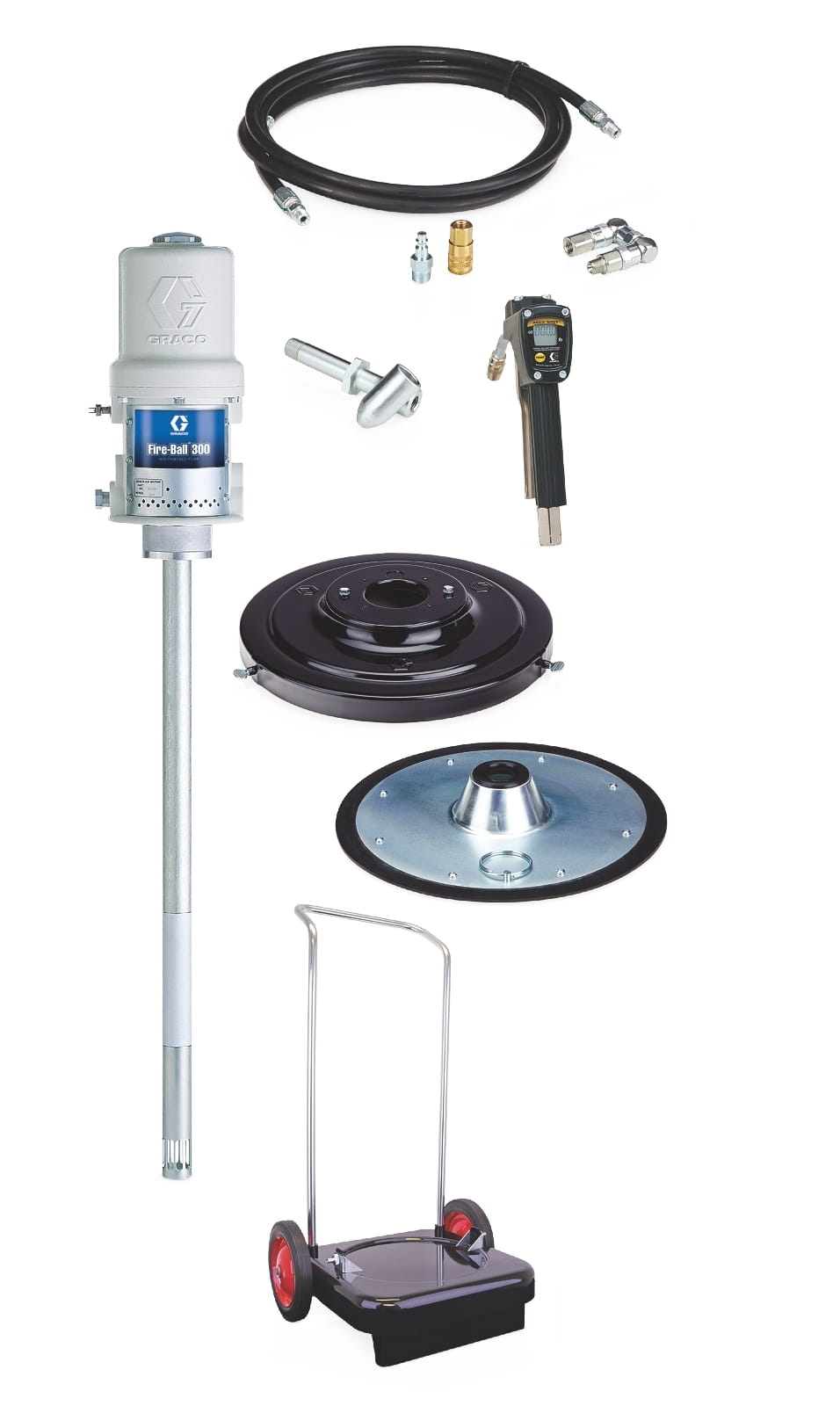

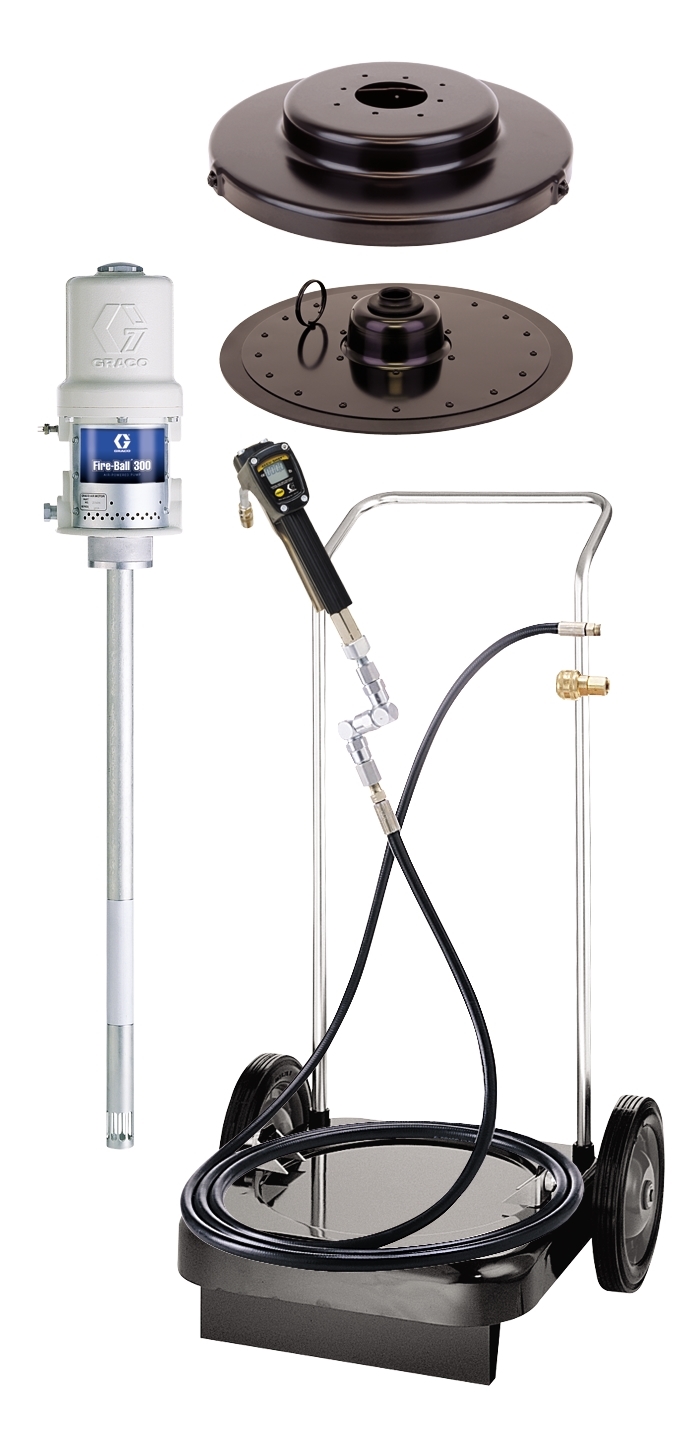

Fire-Ball® 300 series grease pump, 50:1, 54 kg (120 lb) - with portable CE complete unit with 2-wheel chassis
€4,012.68*
Ready for shipping in 5-8 Werktage
Also interesting
Product information
As a decades-long mainstay in the industry, the Fire-Ball's reputation is unrivalled. Built with fewer moving parts to withstand the ravages of time, our flagship pump is designed to keep customers more productive due to longer uptime. The durable pumps are known for their longevity and even the pumps built decades ago are still working efficiently.
Install the Fire-Ball 300 50:1 in grease metering applications.
- Reliable flow - A 76.2 mm (3") differential air motor and double-acting pump design ensure reliable material flow and accurate metering.
- Robust - Unrivalled robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Longer seal life - Inline pump design with aligned air motor pistons and material pistons maximises seal life
- Less downtime - Graco's unique manufacturing process ensures virtually wear-resistant piston rods
- Excellent sealing - Plastic disc valves seal positively even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Less icing - The large air inlet guarantees efficient utilisation of compressed air for continuous pump operation without icing
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 375 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | Fireball 300 50:1 pump, truck transportable, dosing kit, cover, follower plate, CE installation kit |
| Material inlet thread type: | NPT |
| Material inlet type: | Slotted |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPT |
| Maximum operating air pressure: | 140 |
| Maximum operating pressure (MPa): | 35 |
| Maximum operating pressure (kPa): | 35000 |
| Maximum operating pressure (psi): | 5000 |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Permissible operating pressure (bar): | 350 |
| Series: | 300 |
| Size of the material outlet opening (inches): | 1/4 |
| Transmission ratio of the pump: | 50:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, Delrin, Buna-N, polyurethane |
More information
- Product number: 1037603
- Manufacturer: Graco
- EAN: 00633955857919
- Weight: 35.1 kg
