Manufacturer no.:
241037
Fire-Ball® 300 Series 50:1 181 kg (400 lb) grease pump - lubrication vehicle CE complete unit
€3,665.20*
Ready for shipping in 5-8 days
Also interesting
Product information
As a decades-long mainstay in the industry, the reputation of the Fire-Ball is unrivalled. Built with fewer moving parts to withstand the test of time, our flagship product is designed to keep customers productive with more uptime. The durable pumps are known for their longevity, and even the pumps built decades ago are still working efficiently.
Install the Fire-Ball 300 50:1 in grease-dosing applications.
- Reliable flow – A 76.2 mm (3") differential air motor and double-acting pump design provide reliable material flow and accurate dosing.
- Rugged – Unsurpassed rugged air motor housing made of extremely strong cast aluminium
- Fewer repairs – Fewer moving parts in the air motor assembly means less downtime and lower repair costs
- Extended seal life – In-line pump design with aligned air motor and fluid pistons maximises seal life
- Less downtime – Graco's unique manufacturing process ensures that piston rods are virtually wear-resistant
- Excellent sealing – plastic poppet valves provide a tight seal even in environments with contaminated "dirty" air, and ensure a long service life with little maintenance
- Reduced icing – large air inlet ensures efficient use of compressed air for continuous pump operation without icing
- Corrosion resistant – corrosion resistance and long service life of important components through salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 3/8 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |

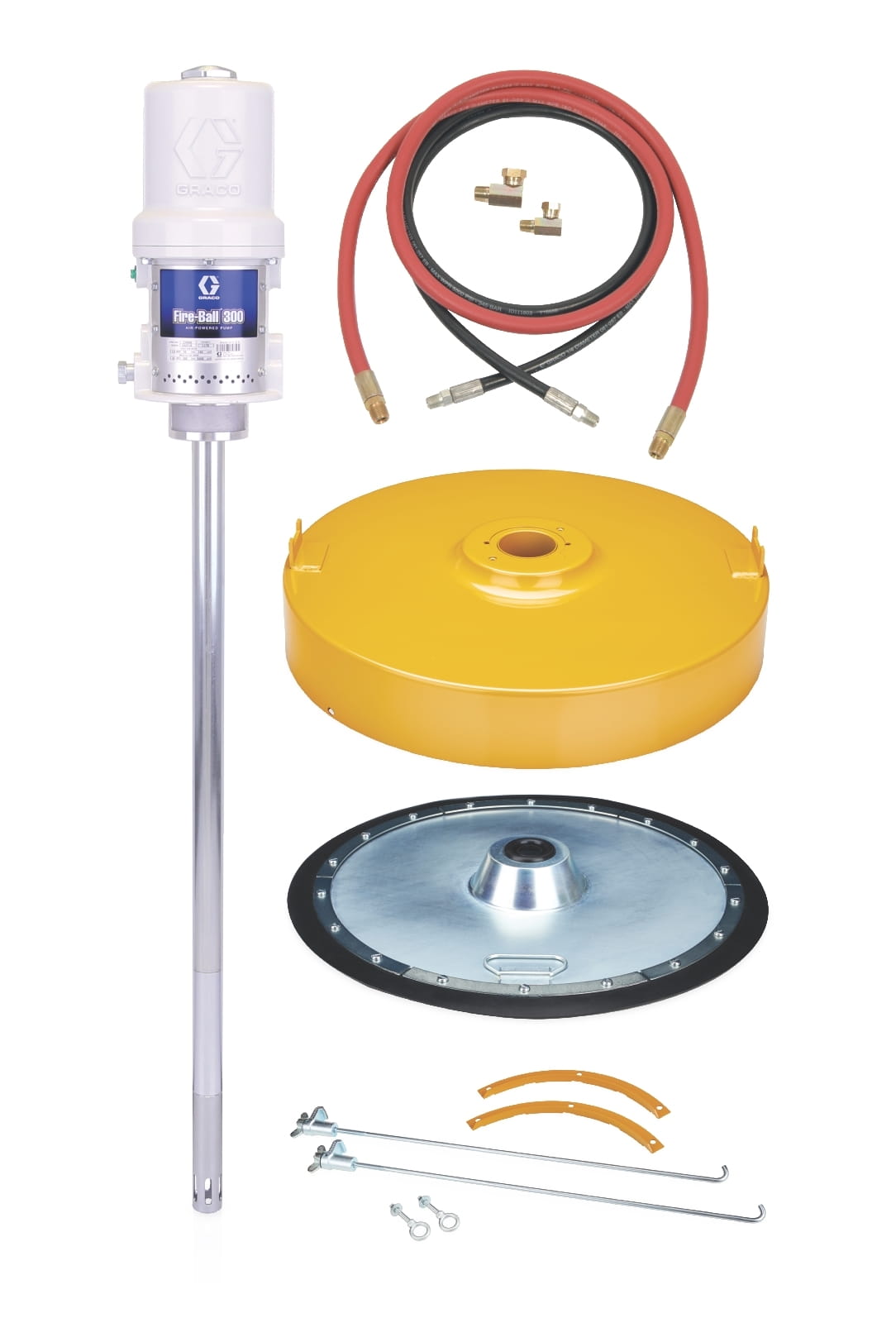

| Includes: | Fireball 300 50:1 pump, hose and fitting set, cover, follower plate, hold-down set |
| Material inlet thread type: | NPT |
| Material inlet type: | Slotted |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 35 |
| Maximum operating pressure (kPa): | 35000 |
| Maximum operating pressure (kg/cm²): | 351.5 |
| Maximum operating pressure (psi): | 5000 |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Permissible operating air pressure (psi): | 140 |
| Permissible operating pressure (bar): | 350 |
| Series: | 300 |
| Size of the material outlet opening (inches): | 1/4 |
| Transmission ratio of the pump: | 50:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, Delrin, Buna-N, polyurethane |
More information
- Product number: 1032922
- Manufacturer: Graco
- EAN: 00633955662094
- Weight: 34.655 kg
Technical details
Operating specifications
| UPC product | 633955662094 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of Origin | US |
| Unit of measurement | EA |
Technical
| Fluid inlet thread gender | Female |
|---|---|
| Fluid outlet size (cm) | 0. 635 |
| Fluid outlet size (mm) | 6. 35 |
| Fluid outlet thread gender | Female |
| Includes | Fireball 300 50:1 pump, hose and fitting kit, cover, follow plate, hold-down kit |
| Maximum working pressure (bar) | 350 |
| Maximum working pressure (kg/cm²) | 351. 5 |
| Maximum working pressure (kPa) | 3 5 000 |
| Maximum working pressure (psi) | 5 0 00 |
| Series | 300 |
| Air inlet size (in) | 3/ |
| Air inlet thread gender | Female |
| Fluid inlet type | Slotted |
| Maximum Air Working Pressure (psi) | 1 4 0 |
| Pump Weight (lb) | 2 2 |
| Maximum Working Pressure (MPa) | 35 |
| Model | Fire -Ball |
| Container Size (lb) | 400 |
