Manufacturer no.: 206699

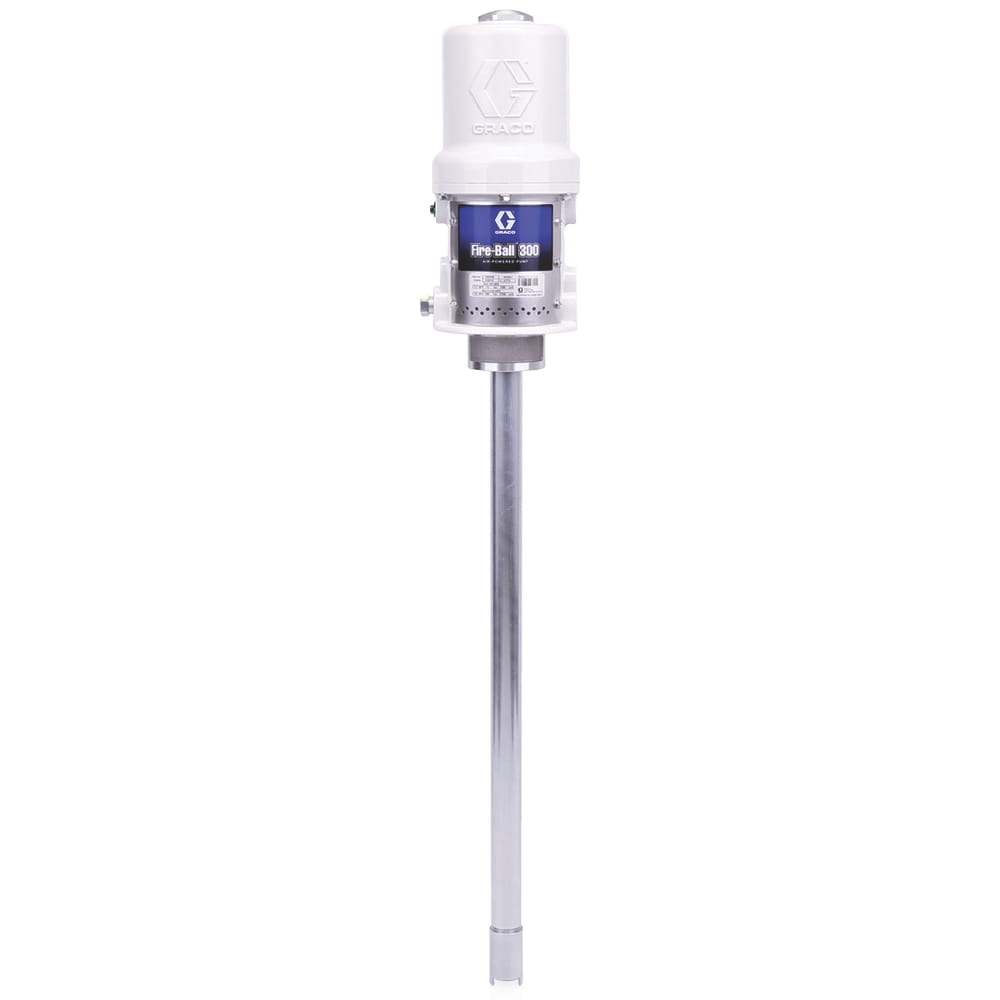

Fire-Ball® 300 Series 15:1 55 kg (120 lb). Grease pump

€2,667.98*

Prices include VAT plus shipping costs

€2,242.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

As a decades-long mainstay in the industry, the reputation of the Fire-Ball is unrivalled. Built with fewer moving parts to withstand the test of time, our flagship is designed to keep customers more productive with increased uptime. The long-lasting pumps are known for their durability, and even those built decades ago are still working efficiently.

Install the Fire-Ball 300 15:1 in high-pressure, medium-volume underbody coating and rust protection applications at vehicle dealerships, quick-lube centres and service workshops.

Reliable flow – A 76.2 mm (3") differential air motor and the double-action pump design ensure reliable material flow and accurate dosing.
Rugged – Unsurpassed rugged air motor housing made of extremely strong cast aluminium
Fewer repairs – Fewer moving parts in the air motor assembly means less downtime and lower repair costs
Extended seal life – In-line pump design with aligned air motor and fluid pistons maximises seal life
Less downtime – Graco's unique manufacturing process ensures that piston rods are virtually wear-resistant
Excellent sealing – plastic poppet valves provide a tight seal even in environments with contaminated "dirty" air, and ensure a long service life with little maintenance
Reduced icing – large air inlet ensures efficient use of compressed air for continuous pump operation without icing
Corrosion resistant – corrosion resistance and long service life of important components through salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium

Item type:	Fettpumpe
Ratio:	15:1

More information

Product number: 1033492
Manufacturer: Graco
EAN: 00633955380462
Weight: 9.95 kg
Length: 1100 mm
Width: 300 mm
Height: 300 mm

Technical details

Specifications

Operating specifications

UPC product	633955380462
Division	LED
Price Block	2 4 0
Country of origin	US
Unit	EA
Height	30 CM
Length	110 CM
Width	30 cm
Volume	. 099 m³
Shipping weight	9 .95 KG

Technical

Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Air Motor Effective Diameter (in)	3
Cycles per gallon	90
Fluid inlet size (in)	1
Fluid inlet size (mm)	25. 4
Fluid inlet thread gender	Female
Fluid outlet size (mm)	6. 35
Fluid outlet thread gender	Female
For use with	Gre ase
Maximum Air Consumption (SCFM)	14
Maximum air inlet pressure (bar)	12. 41
Maximum air inlet pressure (kPa)	1 2 41
Maximum air inlet pressure (psi)	180
Maximum continuous cycle rate (CPM)	66
Maximum flow rate (L/min)	2. 65
Maximum working pressure (bar)	1 86
Maximum working pressure (kPa)	18 6 00
Maximum working pressure (psi)	2 7 00
Model	Fire -Ball
Series	300
Sound pressure level (dB(A))	77. 8
Weight (kg)	0. 9988
Maximum working pressure (MPa)	18. 6
