Manufacturer no.:
17C320

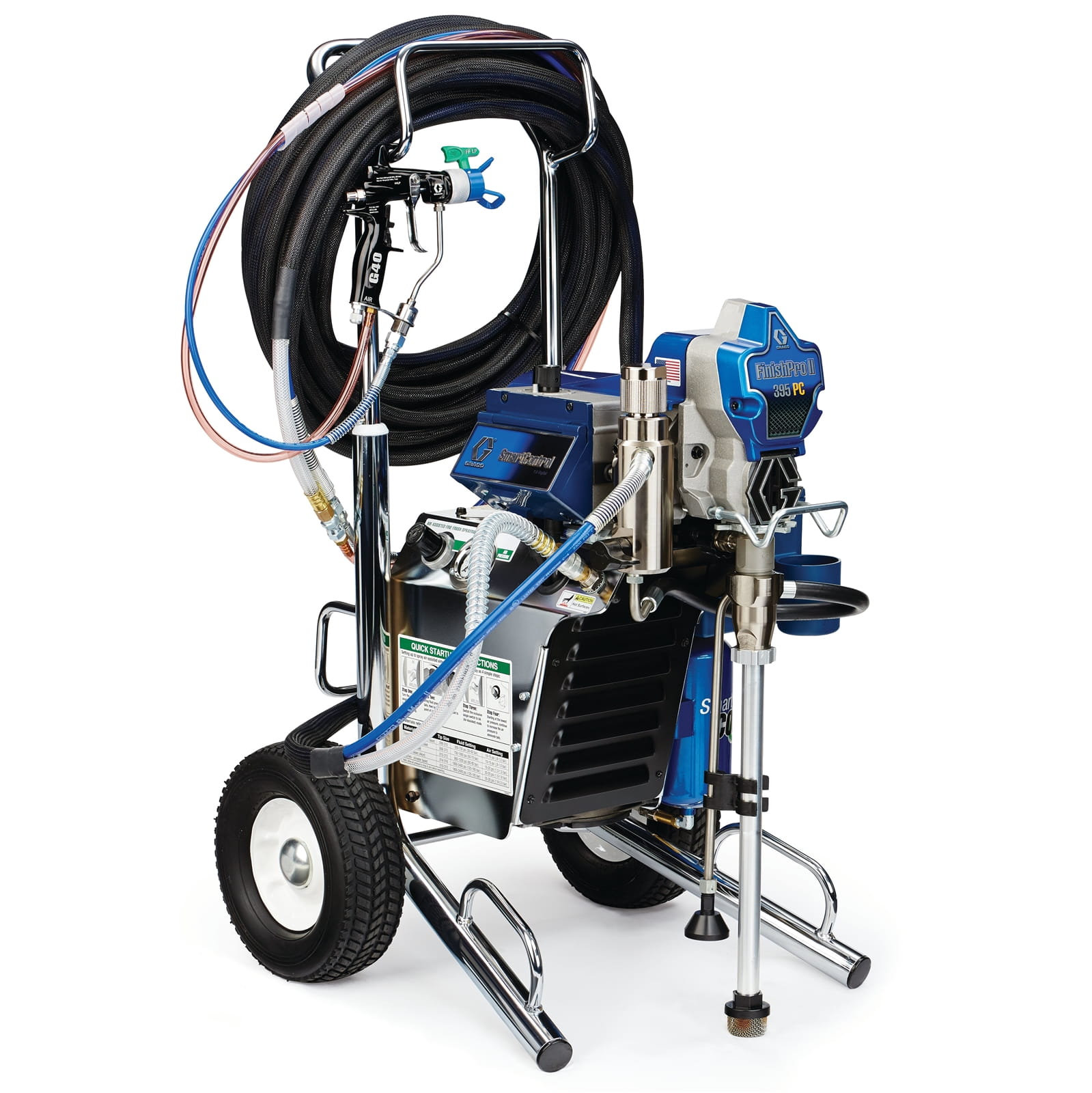

FinishPro II 395 PC Pro electric, air-assisted airless sprayer, 110V, UK
€6,742.84*
% €8,990.45* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The FinishPro™ II 395 PC is Graco's premium solution for fine spray applications, with features that turn a good sprayer into a great sprayer. It provides a high-quality finish at a high production rate and can be used on even the most challenging materials.
Features and performance that quickly deliver a quality finish
- SmartControl 1.0 with digital display
- Excellent spray performance
- Consistent fan pattern with no pressure fluctuation at any spray pressure
- Accurate spray pressure reading thanks to digital display
- SmartComp
- compressor is activated by the gun trigger – compressor only starts when spraying begins
- Less noise on the construction site, thus less fatigue
- Automatic shut-off prevents excess moisture from entering the system and extends the service life of the compressor.
- Immediate, lag-free air supply to the spray gun when the trigger is pulled
- Shutdown of the compressor 5 seconds after releasing the trigger thanks to SmartComp
- Extended compressor service life
- Chromex Endurance Pump
- The most reliable pump on the market, with a runtime that is twice as long as that of the top competitors' products on the market
- Long-lasting V-Max Blue packings, Chromex piston rod and hardened stainless steel cylinder
- QuikAccess inlet valve for quick cleaning and removal of dirt
- ProConnect
- Quick and easy pump replacement system on site
- Quick changeover at the work site in just 3 steps
- Pinless design eliminates the risk of losing parts during replacement
- Integrated high-performance air compressor
- Optimal for on-site spray finishing
- 3.2 cfm at 35 psi (2.4 bar) – plenty of air to break up the heaviest materials
- Unique pressure relief for quiet operation
- Cooling coils reduce air temperature for longer life of vital components and safer operator handling
- Precision-made RAC X FF LP SwitchTip
- Reduces overspray and extends pump life
- Sprays at a lower pressure with less overspray
- Pre-atomiser design produces a perfect airless finish
- Finer atomisation and soft edges for easier over-spraying
- Reduces preparation and cleanup time
- Includes solvent seal for hot solvents
- G40 spray gun
- A high-quality air-assisted industrial spray gun for excellent finishing results
- Integrated air valve for better handling
- With RAC X nozzle protection
- Conversion kit for flat nozzles included
- Super-Flex hose set
- Flexibility for working in confined spaces – so you can focus on the job, not the tool!
- Extremely light in the hand, preventing fatigue.
- Maximum flexibility through direct connection to the gun
- The Flex Wrap hose skin offers protection against paint build-up and extends the hose's service life.
- Two sprayers in one
- Switch between air-assisted and airless operation depending on the application.
- Simple, colour-coded labels allow for easy identification of airless and air-assisted airless modes with a single dial.
- Self-contained & portable
- One plug powers the entire unit, simplifying operation in the field.
| Compatible material: | Primer, stains, acrylic paints, enamel paints, latex |
|---|---|
| Convertible: | Not convertible |
| Frame configuration: | Hi boy |
| Gun included: | 1 |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.4 |
| Includes: | G40 Gun, Flex Hose Kit, Fluid Hose, Fluid Whip End, Air Hose, Air Whip End, RAC X FFT210 SwitchTip, RAC |
| Material outlet size (cm): | 635 |
| Material outlet size (mm): | 6.35 |
| Maximum delivery rate (L/min): | 1.8 |
| Maximum hose length (cm): | 1524 |
| Maximum hose length (m): | 15 |
| Maximum hose length (mm): | 15240 |
| Maximum nozzle size (cm): | 5,842 |
| Maximum nozzle size (inch): | 21 |
| Maximum nozzle size (mm): | 5,842 |
| Maximum operating pressure (MPa): | 22.8 |
| Maximum operating pressure (kPa): | 19300 |
| Maximum operating pressure (psi): | 2800 |
| Maximum sound pressure level (dB(A)): | 79 |
| Minimum generator output (W): | 4000 |
| Model: | FinishPro II |
| Motor size (kW): | 0.65 |
| Motor type: | TEFC brush DC |
| Number of guns: | 1 |
| Permissible operating pressure (bar): | 193 |
| Phases: | 1 |
| Pressure control type: | SmartControl 1.0 |
| Product type: | Complete spraying device |
| Pump mounting type: | ProConnect |
| Pump type: | Endurance |
| Rated power (W): | 746 |
| Rated power (kW): | 0.75 |
| Region Plug type: | UK region (plug type G) |
| Series: | 395 pcs |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1/4 |
| Spraying technology: | Airless with air atomization |
| Supply voltage: | Electric |
| Total height (cm): | 102.8 |
| Total height (mm): | 10,287,000 |
| Total length (cm): | 82.5 |
| Total length (mm): | 825.5 |
| Total width (cm): | 53.3 |
| Total width (mm): | 5,334,000 |
| Type: | Air Assisted Airless Sprayers |
| Voltage (V): | 110 |
| Weight (kg): | 49.9 |
| Wetted material: | Stainless Steel, PTFE, Leather, Nylon, Galvanized Carbon Steel, Nickel Plated Carbon Steel, Tungsten Carbide, Chrome Plating, UHMWPE, Acetal, Polyethylene, Fluoroelastomer, Aluminum, Urethane |
More information
- Product number: 1037831
- Manufacturer: Graco
- EAN: 00755652036807
- Weight: 60 kg
- Length: 580 mm
- Width: 670 mm
- Height: 780 mm
Technical details
Operating specifications
| UPC product | 7 55652036807 |
|---|---|
| Division | CED |
| Price Block | 1 34 |
| Country of origin | US |
| Unit | EA |
| Height | 78 CM |
| Length | 58 cm |
| Width | 67 cm |
| Volume | . 303 m³ |
| Shipping weight | 60 KG |
Technical
| Convertible | Non - convertible |
|---|---|
| Engine size (HP) | 0. 875 |
| Engine size (kW) | 0. 65 |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid outlet size (cm) | 0. 635 |
| Fluid outlet size (mm) | 6. 35 |
| Frame Configuration | Hi-Boy |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 4 |
| Includes | G40 gun, flex hose set, fluid hose, fluid whip hose, air hose, air whip hose, RAC X FFT210 SwitchTip, RAC X LTX517 SwitchTip, Precision Cut Fine Finish Flat Tip Kit, AAM309 flat tip, 100 mesh gun filter |
| Maximum flow rate (L/min) | 1. 8 |
| Maximum Hose Length (cm) | 1 5 24 |
| Maximum hose length (ft) | 50 |
| Maximum trouser length (m) | 15 |
| Maximum hose length (mm) | 1 5 240 |
| Maximum sound pressure level (dB(A)) | 79 |
| Maximum tip size (cm) | 0. 05842 |
| Maximum tip size (in) | 0. 021 |
| Maximum tip size (mm) | 0. 5842 |
| Maximum working pressure (bar) | 1 93 |
| Maximum working pressure (kPa) | 19 3 00 |
| Maximum working pressure (psi) | 2 8 00 |
| Minimum generator power (W) | 4 0 00 |
| Model | FinishPro II |
| Number of guns | 1 |
| Power rating (HP) | 1 |
| Power rating (kW) | 0. 75 |
| Power rating (W) | 7 4 6 |
| Pressure control type | SmartControl 1. 0 |
| Pump Mount Type | ProConnect |
| Series | 395 PC |
| Weight (kg) | 49. 9 |
| Maximum working pressure (MPa) | 22. 8 |
| Product type | Spray Package |
| Overall Width (mm) | 533. 4000 |
| Overall height (cm) | 102. 8 |
| Overall Height (in) | 40. 5 |
| Overall height (mm) | 1028. 7000 |
| Overall Length (cm) | 82. 5 |
| Overall width (in) | 2 1 |
| Overall Length (in) | 32. 5 |
| Overall Length (mm) | 825. 5 |
| Overall Width (cm) | 53. 3 |
| UK region (Type G plug) | UK region (Type G plug ) |
