Manufacturer no.:
FFLP616

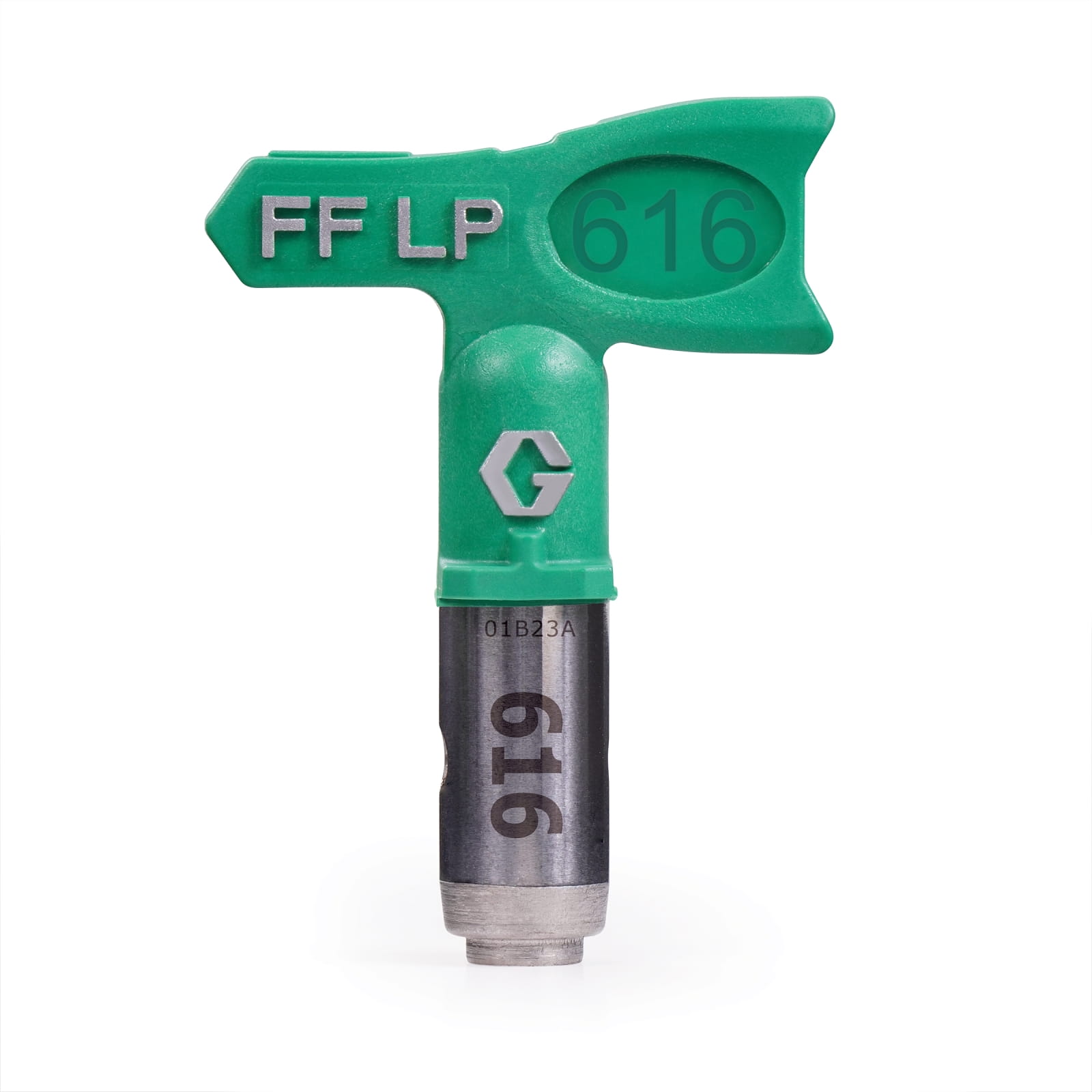

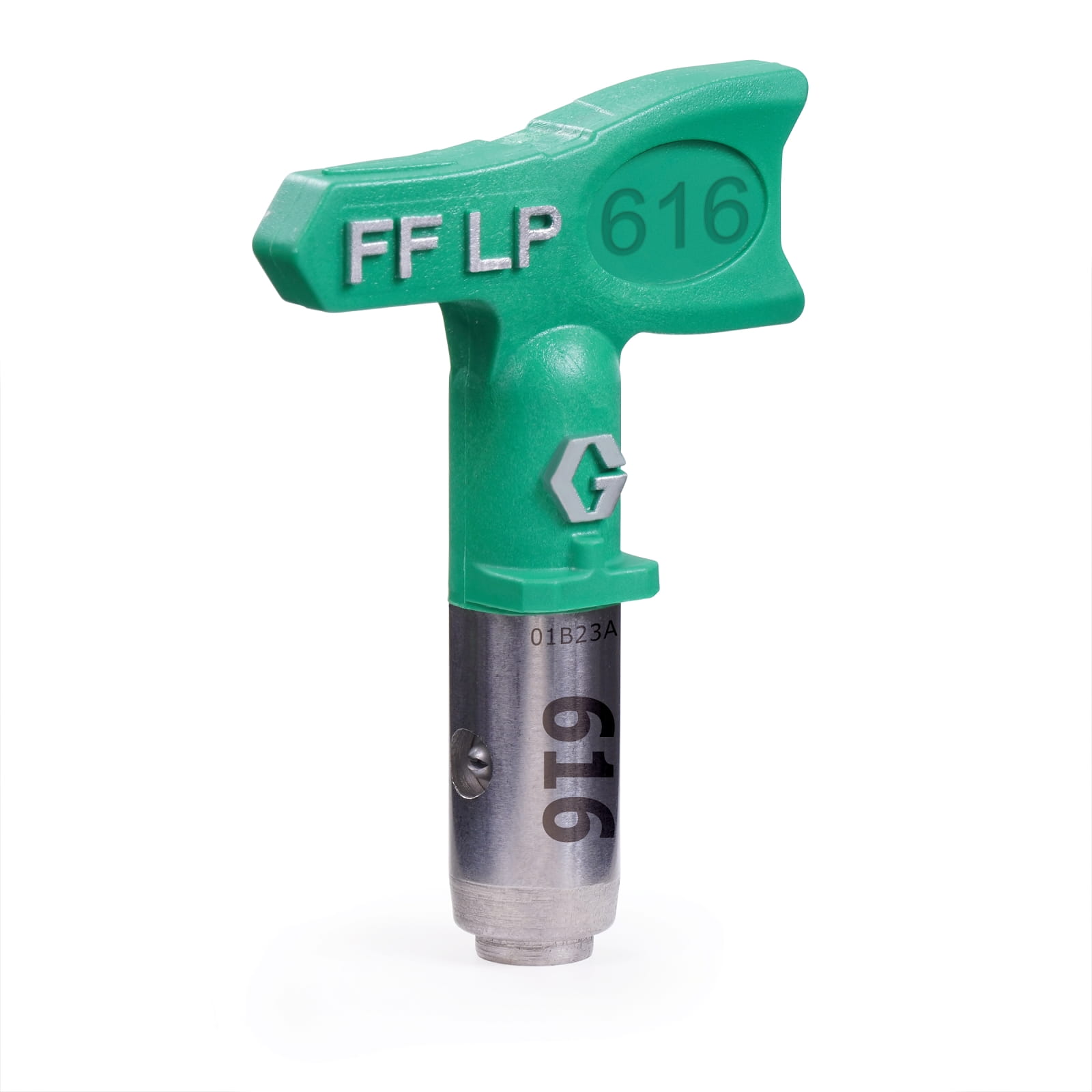

Fine finish at low pressure RAC X FF LP SwitchTip, 616
| Number | Unit price |
|---|---|
| Until 3 |
€49.03*
€122.57*
(60% saved)
|
| Away 4 |
€46.58*
€122.57*
(62% saved)
|
Ready for shipping in 5-8 days
Also interesting
Product information
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 616 Fine Finish Low Pressure (FF LP) RAC X SwitchTip. This fine finish nozzle produces a 12-14 inch spray pattern and has a 0.016" orifice. Simply reverse the SwitchTip to easily clear clogs.
For fine-finish applications
- Less preparation and cleanup time
- Less mess with less overspray
- Get the paint where you want it
- Easy pattern overlap
- Softer spray
- Easy application of any material to any surface
- Consistent finish quality
- Longer service life
- Half pressure atomisation doubles the nozzle life
- Reduced sprayer maintenance – up to twice the lifespan
- SmartTip Technology
- Exclusive internal nozzle geometry
- Reduces the energy needed to atomise paints, stains and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Best nozzle on the market
- Suitable for any airless sprayer
- The most durable spray pattern
- High-quality finish with even spray pattern
- Easy-to-read tip size
- Large raised numbers are always legible, even when covered in paint
- Superior nozzle design
- The locking tab ensures that the nozzle stays securely in the nozzle guard.
- The nozzle locks in the spray position or in the reverse position.
- OneSeal nozzle seal installs without tools
- A solvent seal is available for use with extremely hot solvents
| Compatible material: | Primer, stain, varnish, water-based paint, enamels, latex, solvent-based paints |
|---|---|
| For use with: | RAC X HandTite nozzle guard |
| Material: | Tungsten carbide |
| Maximum operating pressure (kPa): | 28000 |
| Maximum operating pressure (psi): | 4050 |
| Maximum spray width (cm): | 30 |
| Maximum spray width (inches): | 12 |
| Maximum spray width (mm): | 356 |
| Minimum spray width (mm): | 305 |
| Model: | RAC X |
| Nozzle type: | Airless |
| Permissible operating pressure (bar): | 280 |
| Series: | FF LP SwitchTip |
| Size of the material opening (inches): | 0.016 |
| Spray pattern: | Impeller |
| Spray pattern size (mm): | 304.8 to 355.6 |
| Type: | spray nozzle |
More information
- Product number: 1033653
- Manufacturer: Graco
- EAN: 00755652394518
- Weight: 0.04 kg
- Length: 140 mm
- Width: 70 mm
- Height: 25 mm
Technical details
Betriebsspezifikationen
| UPC Produkt | 755652394518 |
|---|---|
| Division | CED |
| Price Block | 101 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 2.5 CM |
| Länge | 14 CM |
| Breite | 7 CM |
| Volumen | 0 M3 |
| Shipping Weight | .04 KG |
Technische Daten
| Orifice Diameter (in) | 0.016 |
|---|---|
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (psi) | 4050 |
| Maximum Working Pressure (bar) | 280 |
| For Use With | RAC X HandTite Tip Guard |
| Maximum Fan Width (in) | 12 |
| Maximum Fan Width (mm) | 356 |
| Tip Type | Airless |
| Pattern Size (in) | 12 to 14 |
| Maximum Fan Width (cm) | 30 |
| Minimum Fan Width (in) | 12 |
| Minimum Fan Width (mm) | 305 |
| Pattern Size (mm) | 304.8 to 355.6 |
| Model | RAC X |
| Series | FF LP SwitchTip |
