Manufacturer no.: FFLP510

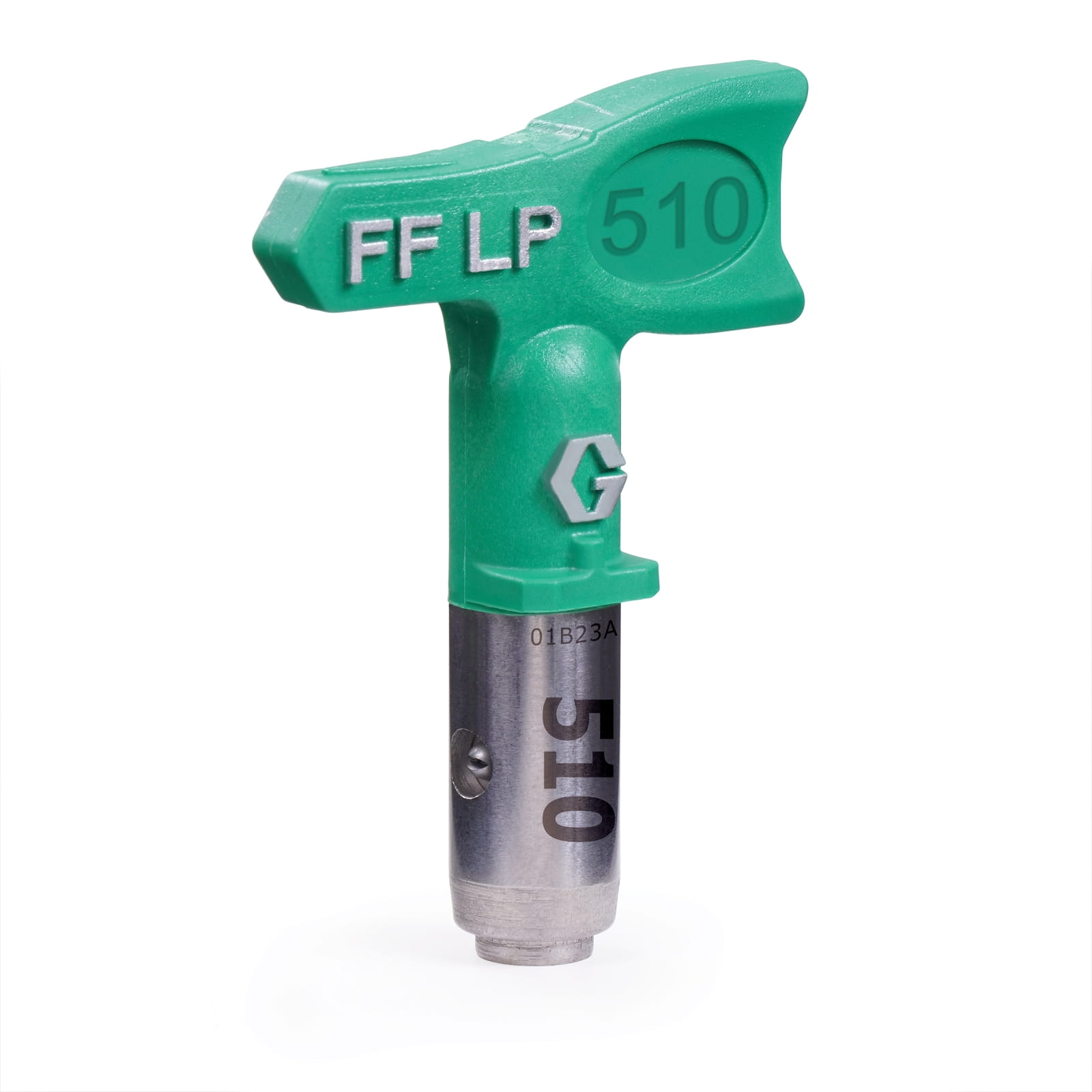

Fine finish at low pressure RAC X FF LP SwitchTip, 510

€53.94*

% €116.62* (53.75% saved)

Prices include VAT plus shipping costs

€45.33*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Worldwide Shipping
Also interesting
Product information

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 510 Fine Finish at Low Pressure (FF LP) RAC X SwitchTip. This fine finish nozzle produces a 10 to 12 inch spray pattern and has a 0.010" orifice, ideal for thinner materials. Simply invert the SwitchTip to easily clear clogs.

For fine finish applications

  • Reduced preparation and cleaning time
    • Less mess with less overspray
    • Get the colour where you want it
  • Easy pattern overlap
    • Smoother spray pattern
    • Easy application of any material to any surface
    • Consistent finish quality
  • Longer life
    • Atomising at half pressure doubles the life of the nozzle
    • Reduced sprayer maintenance - up to twice the service life
  • SmartTip technology
    • Exclusive internal nozzle geometry
    • Reduces the energy required to atomise paint, stains and other materials
    • Delivers a better finish with less pressure
    • Works with SmartControl on selected Graco sprayers
  • Best nozzle on the market
    • Suitable for any airless sprayer
    • The most durable spray pattern
    • High quality finish with consistent spray pattern
  • Easily recognisable nozzle size
    • The large raised nozzle size numbers are always legible - even when covered in paint
  • Superior nozzle design
    • The locking tab ensures that the nozzle remains securely in the nozzle guard.
    • The nozzle locks in the spray position or in the reverse position.
    • The OneSeal nozzle seal can be fitted without tools
    • A solvent seal is available for use with extremely hot solvents
Compatible material: Primer, stain, varnish, water-based paint, enamels, latex, solvent-based paints
For use with: RAC X HandTite nozzle guard
Material: Tungsten carbide
Maximum delivery rate (L/min): 0.42
Maximum operating pressure (kPa): 28000
Maximum operating pressure (psi): 4050
Maximum spray width (cm): 25
Maximum spray width (inches): 10
Maximum spray width (mm): 305
Minimum spray width (mm): 254
Model: RAC X
Nozzle type: Airless
Permissible operating pressure (bar): 280
Series: FF LP SwitchTip
Size of the material opening (inches): 0.01
Spray pattern: Impeller
Spray pattern size (mm): 254 to 304.8
Type: spray nozzle
More information
  • Product number: 1035914
  • Manufacturer: Graco
  • EAN: 00755652394464
  • Weight: 0.029 kg
  • Length: 140 mm
  • Width: 70 mm
  • Height: 30 mm

Technical details

Operating specifications
UPC product 755652394464
Division CED
Price Block 1 01
Country of origin US
Unit EA
Height 3 CM
Length 14 cm
Width 7 cm
Volume 0 m3
Shipping weight . 03 KG
Technical
Orifice diameter (in) 0. 010
Maximum working pressure (kPa) 2 8 000
Maximum working pressure (psi) 4 050
Maximum working pressure (bar) 2 80
For use with RAC X HandTite Tip Guard
Maximum Fan Width (in) 10
Maximum fan width (mm) 305
Tip Type Air less
Pattern size (in) 10 to 12
Maximum fan width (cm) 25
Maximum flow rate (L/min) 0. 42
Minimum fan width (in) 10
Minimum fan width (mm) 2 54
Pattern Size (mm) 254 to 304. 8
Model RAC X
Series FF LP SwitchTip
