Manufacturer no.: CM7C5A

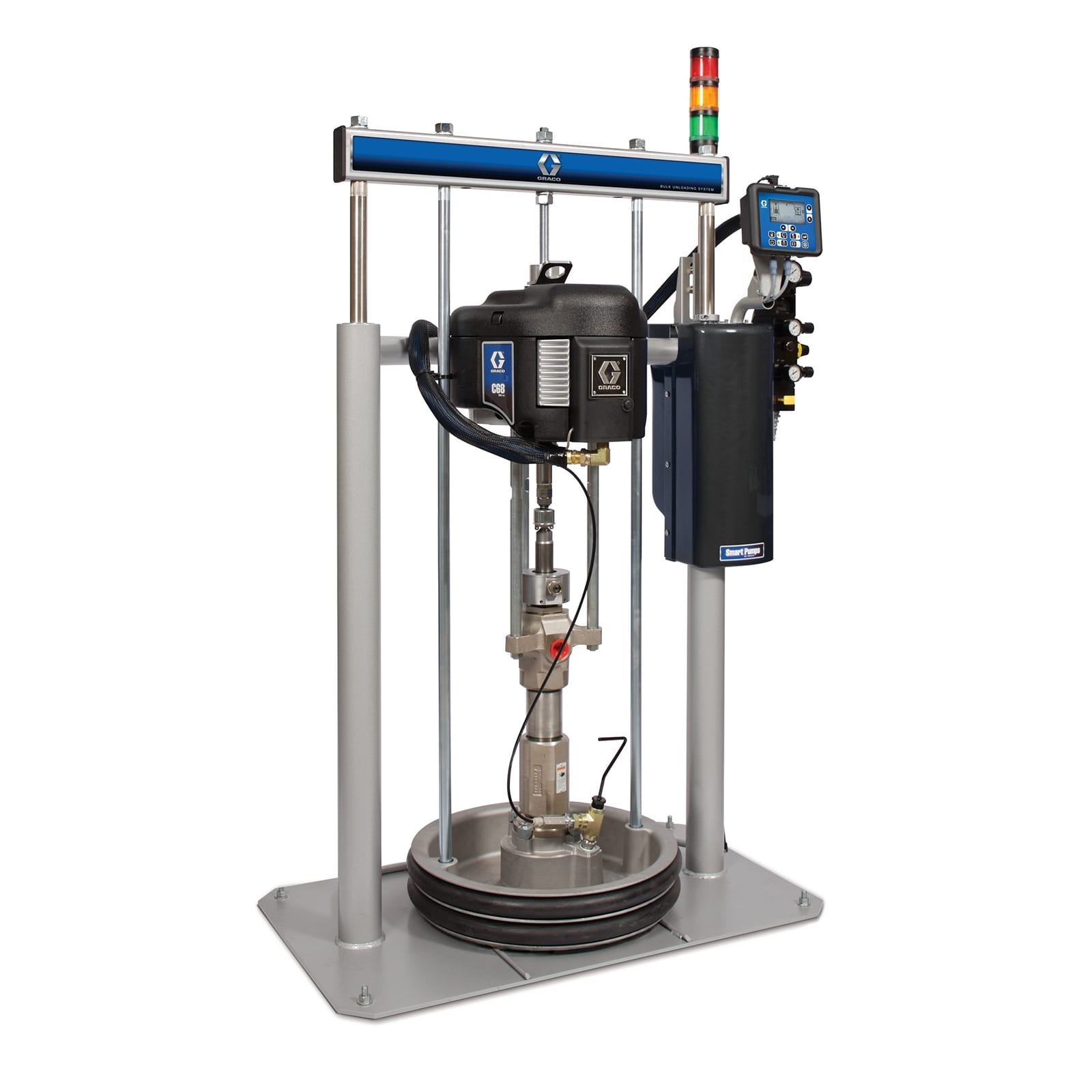

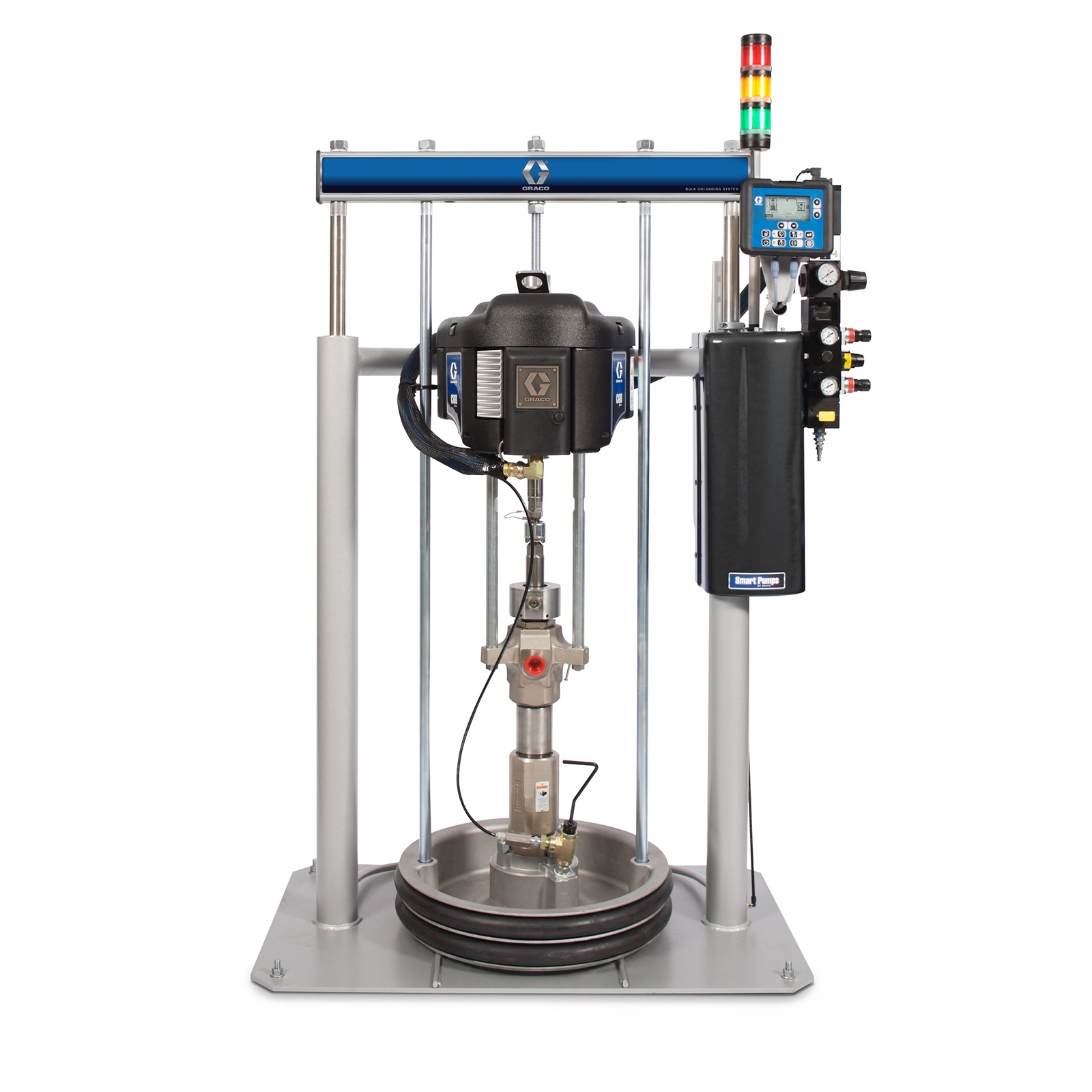

Feeder, Check-Mate, 20:1, S/S, Severe Duty, 3" D200 Ram, Integrated Air Controls, 200L AL-Plate, Double Scraper with O-Ring

€13,401.85*

% €16,494.59* (18.75% saved)

Prices include VAT plus shipping costs

€11,262.06*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeding systems reliably deliver single-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to the measuring and dosing systems.

Bulk unloader for ambient temperature sealants, adhesives and other medium- to high-viscosity materials

For large drums up to 200 litres (55 gallons)
Graco D200 - For high-volume applications on the manufacturing plant floor
The industry's first controllers that give you instant, critical information at your fingertips
Quick placement of drums or pails
Plate scrapers can be replaced in seconds
Quick-connect, turnbuckle mounting and cartridge packings allow pump service without removing the pump from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	barrel
Control console material:	n.a.
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	3.4
Maximum height (cm):	259.9
Maximum height (m):	2.6
Maximum height (mm):	2599
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	137.9
Maximum material pressure (kPa):	13790
Maximum material pressure (psi):	2000
Maximum operating pressure (MPa):	13.8
Maximum operating pressure (kPa):	13800
Maximum operating pressure (psi):	2000
Maximum operating temperature (°C):	49
Minimum height (cm):	164.6
Minimum height (m):	1.65
Minimum height (mm):	1646
Model:	Check Mate
Permissible operating pressure (bar):	138
Pump type:	Suction piston
Series:	D200
Total depth (cm):	63.5
Total depth (mm):	635
Total width (cm):	106.7
Total width (mm):	1067
Transmission ratio of the pump:	20:1
Type:	Feeding device
Wetted material:	Stainless Steel, Acetal, PTFE, UHMWPE, Carbon Filled PTFE, Electroless Nickel Plating, Chrome Plating, MaxLife Plating, Nitrile Rubber, Leather, Polyurethane, Mild Steel, Galvanized, PTFE Coated Nitrile, Polyethylene
