Manufacturer no.:
LC1020

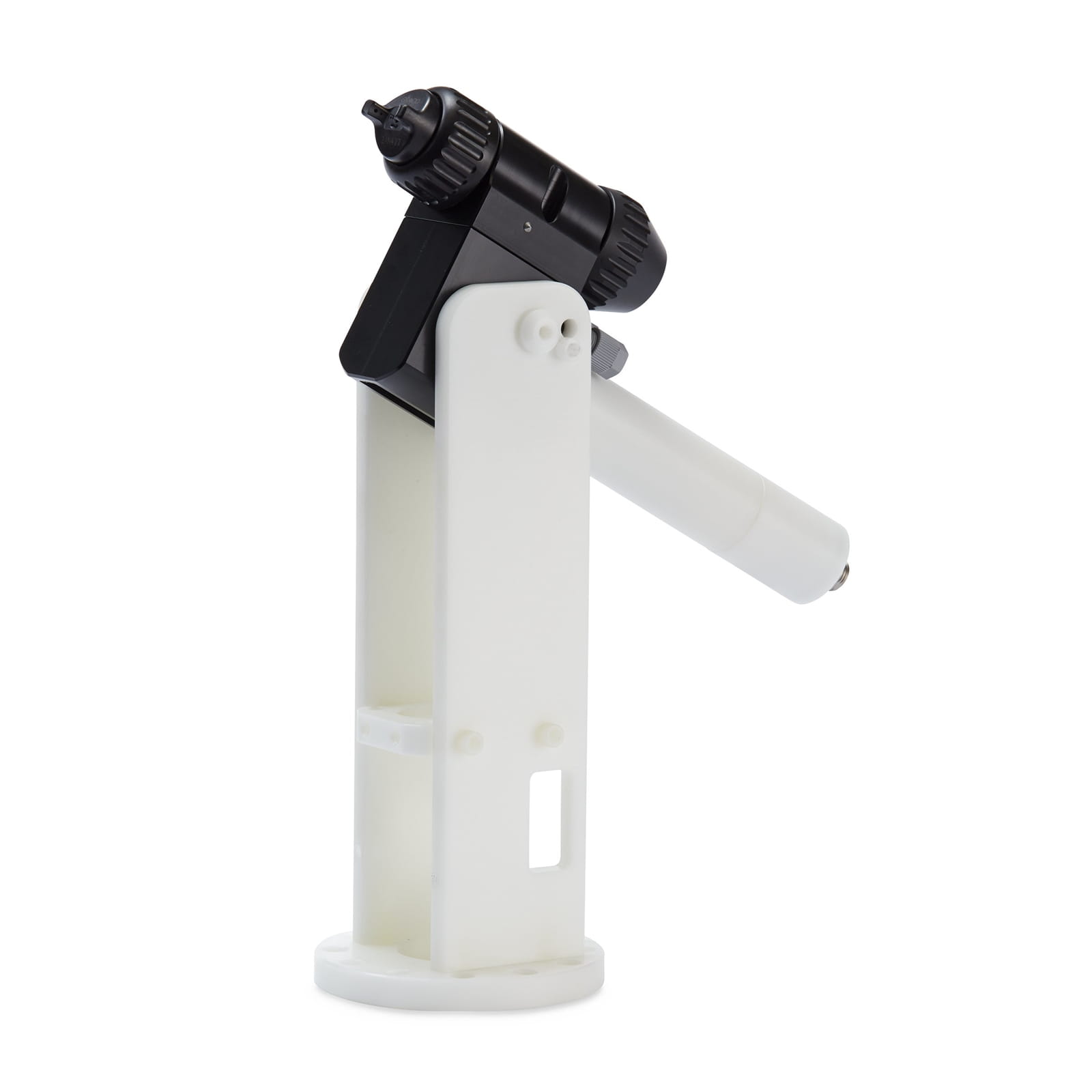

Electrostatic air spray gun Pro Xpc automatic, rear mounting block for solvent-based materials, 100 kV
€5,881.86*
% €8,911.91* (34% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The PLC-controllable Pro Xpc Auto technology is particularly safe and robust and has been developed for efficient system integration. A performance certificate is included in the scope of delivery. The system has 250 user-adjustable presets and maintenance intervals that can be controlled from a PLC or control panel. This increases flexibility for the customer, who can now mould a wide variety of different shapes and sizes.
- Ideally suited for robot-assisted workflows: weight and size are designed to optimise the capacity of robots
- Optimise your processes with the Switch-Box for even more spraying flexibility
- A worthwhile investment in equipment safety, with components to minimise risk
- Maximise profits with patent-pending loading stations - for particularly high application efficiency with lower material consumption
- System integration with nozzle tips, mountable on robot movement systems or brackets
| Air inlet size (inches): | 1/4 |
|---|---|
| Application: | Electrostatics, Solvent Based |
| Applicator type: | Automatically |
| Coating type: | Solvent based |
| Compatible colour type: | Solvent based |
| Distributor type: | Rear |
| For use with: | Pro Xpc Car Control Module |
| Gun activation: | Automatically |
| Gun type: | Electrostatics |
| Gun weight (g): | 545 |
| Gun weight (kg): | 0.545 |
| Gun weight (oz): | 19.22 |
| Maximum colour resistance (megohm/cm): | Infinite |
| Maximum material pressure (MPa): | 0.7 |
| Maximum material pressure (bar): | 7 |
| Maximum material pressure (kPa): | 700 |
| Maximum material pressure (psi): | 100 |
| Maximum material temperature (°C): | 48 |
| Minimum colour resistance (megohm/cm): | 1 |
| Model: | Per Xpc |
| Nozzle size (cm): | 0.15 |
| Nozzle size (mm): | 1.5 |
| Series: | car |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material inlet opening (inches): | 1/4 |
| Spraying technology: | Electrostatics |
| Technology type: | Air spraying |
| Total length (cm): | 14.48 |
| Total length (mm): | 144.8 |
| Type: | Electrostatic gun |
| Voltage (kV): | 100 |
More information
- Product number: 1032847
- Manufacturer: Graco
- EAN: 00755652278498
- Weight: 3 kg
- Length: 420 mm
- Width: 290 mm
- Height: 130 mm
Technical details
Operating specifications
| UPC product | 755652278498 |
|---|---|
| Division | IPD |
| Price Block | 063 |
| Country of Origin | US |
| Unit | EA |
| Height | 13 CM |
| Length | 42 cm |
| Width | 29 cm |
| Volume | . 016 m³ |
| Shipping weight | 3 kg |
Technical
| Air inlet size (cm) | 0. 635 |
|---|---|
| Air inlet size (in) | 1/4 |
| Air inlet size (mm) | 6. 35 |
| For use with | Pro Xpc Auto Control Module |
| Gun Weight (g) | 5 45 |
| Gun Weight (kg) | 0. 545 |
| Gun Weight (lb) | 1. 2 |
| Gun weight (oz) | 19. 22 |
| Maximum fluid pressure (bar) | 7 |
| Maximum fluid pressure (kPa) | 700 |
| Maximum fluid pressure (psi) | 100 |
| Maximum fluid temperature (°C) | 48 |
| Maximum fluid temperature (°F) | 120 |
| Model | Pro Xpc |
| Overall Length (cm) | 14. 48 |
| Overall Length (in) | 5. 7 |
| Overall Length (mm) | 144. 8 |
| Series | Car |
| Technology Type | Air Spray |
| Maximum fluid pressure (MPa) | 0. 7 |
| Fluid inlet size (in) | 1/4 |
| Manifold type | R ear |
| Maximum paint resistivity (megohm/cm) | Infinity |
| Minimum paint resistivity (megohms/cm) | 1 |
| Nozzle Size (cm) | 0. 15 |
| Nozzle size (in) | 0. 055 |
| Nozzle size (mm) | 1. 5 |
| Voltage (kV) | 100 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Deutsch)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Français)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Español)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Nederlands)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Italiano)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (Dansk)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (English)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (中文)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (한국어)
- 3A3249N, Handbuch, Automatische elektrostatische Luftspritzpistole Pro Xpc, Anleitung-Teile (日本語)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Deutsch)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Français)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Español)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Nederlands)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Italiano)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (Dansk)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (English)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (中文)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (한국어)
- 3A3254L, Handbuch, Pro Xpc Auto Controller, Anleitung (日本語)
Verkaufsliteratur
- 345084-ENEU Graco Pro Xpc Auto (Deutsch)
- 345084-ENEU Graco Pro Xpc Auto (Español)
- 345084-ENEU Graco Pro Xpc Auto (Français)
- 345084-ENEU Graco Pro Xpc Auto (Italiano)
- 345084-ENEU Graco Pro Xpc Auto (Nederlands)
- 345084-ENEU Graco Pro Xpc Auto (Türkçe)
- 345084-ENEU Graco Pro Xpc Auto (English (UK))
- 345084-ENEU Graco Pro Xpc Auto (русский)
Zertifizierungen
