Manufacturer no.:
25T471

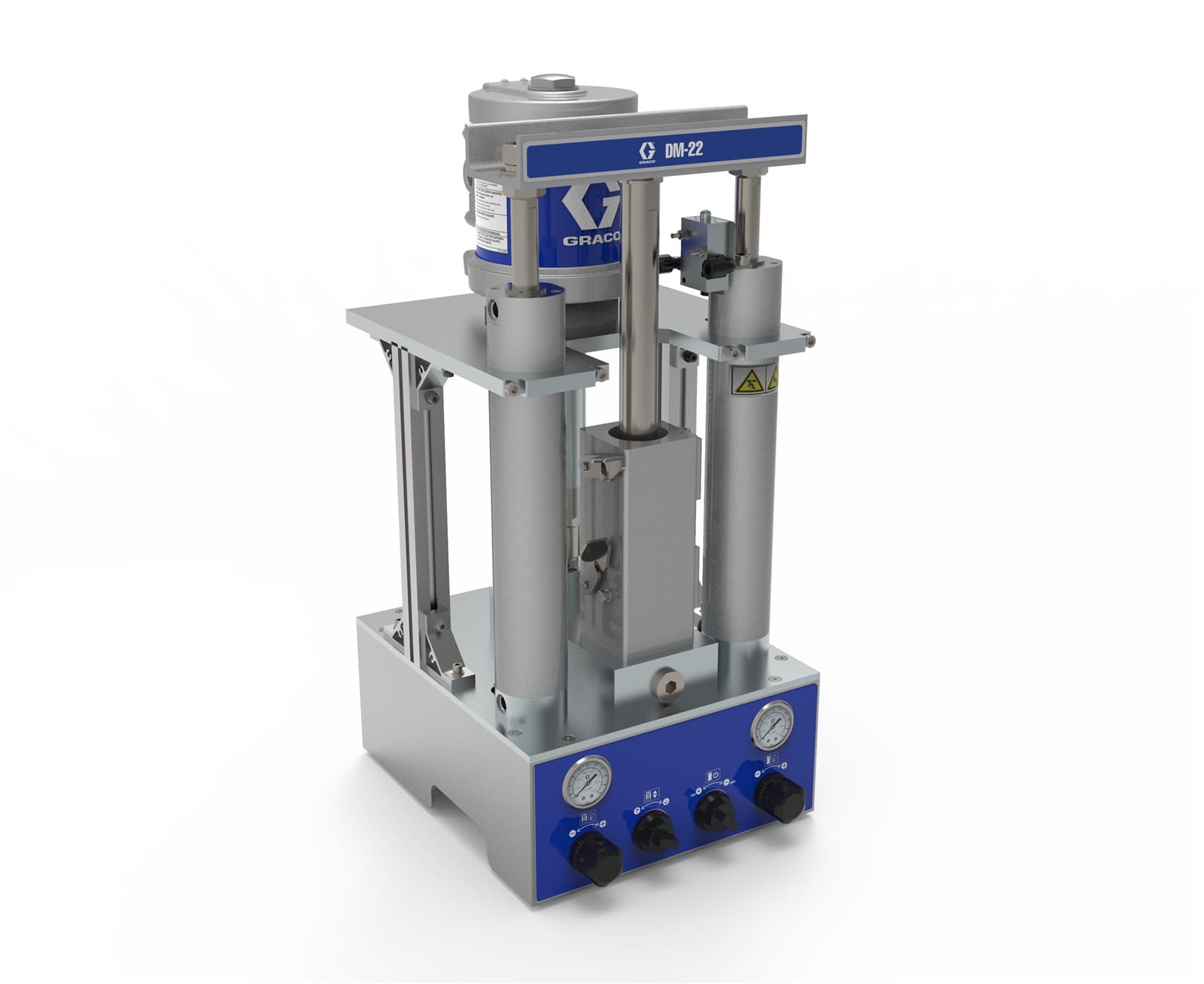

DynaMite feed pump for 300 cm³ cartridges
€11,038.15*
% €15,330.77* (28% saved)Prices include VAT plus shipping costs
€9,275.76*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's DynaMite feed pumps are the ideal solution when it comes to precise and continuous material feed from small 300 cc cartridges.
Graco's DynaMite feed pumps are the ideal solution when it comes to precise and continuous material feed from small containers - from 300 cc cartridges to 1 gallon buckets. Extended product life cycle even in high performance applications with highly viscous and abrasive materials. With a minimum weight of 28 kg, the mini extruders are designed to reduce the footprint and allow more flexibility.
Features and benefits:
- Graco's proven Merkur motor guarantees a compact and lightweight design
- Longer product life cycle thanks to DLC coating and improved lid and plunger design
- Simple and user-friendly control panel
Typical industries:
- Automotive electronics
- Telecommunications electronics
- Consumer electronics
Typical processed materials
- Thermally conductive pastes
- silicone
- colourants
- grease
- ink
- Adhesives
| Air inlet size (inches): | 314,961 |
|---|---|
| Ambient/hot-melting/hot-melting: | Not heated |
| Control options: | standard |
| Diameter of the push rods (mm): | 45 |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | No |
| Gender of the material outlet thread: | Internal thread |
| Material container volume (litres): | 0.3 |
| Material outlet thread type: | NPT |
| Maximum air supply pressure (bar): | 6.9 |
| Maximum air supply pressure (kPa): | 700 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum material pressure (MPa): | 140 |
| Maximum material pressure (bar): | 140 |
| Maximum material pressure (psi): | 0 |
| Maximum operating pressure (MPa): | 15.2 |
| Maximum operating pressure (psi): | 2200 |
| Maximum operating temperature (°C): | 60 |
| Model: | DynaMite |
| Noise pressure level, (dB(A)): | 77.9 |
| Number of scrapers: | Single ring |
| Permissible operating pressure (bar): | 152 |
| Pump type: | Pistons |
| Sealing material: | Tivar Ceram-P |
| Series: | 22 |
| Size of the material outlet opening (inches): | 1/4 |
| Type: | Feeding device |
| Weight (kg): | 34 |
| Wetted material: | 304 stainless steel, PTFE, fluoroelastomer, PEEK |
More information
- Product number: 1032448
- Manufacturer: Graco
- EAN: 00769946148220
- Weight: 49.895 kg
- Length: 450 mm
- Width: 420 mm
- Height: 800 mm
Technical details
Operating specifications
| UPC product | 769946148220 |
|---|---|
| Division | IPD |
| Price Block | 2 22 |
| Country of Origin | US |
| Unit of measurement | EA |
| Height | 80 CM |
| Length | 45 CM |
| Width | 42 cm |
| Volume | . 151 m³ |
| Shipping weight | 49.9 KG |
Technical
| Ambient/Warm Melt/Hot Melt | Ambi ent |
|---|---|
| Material container volume (gal) | 0. 079 |
| Material container volume (l) | 0. 3 |
| Maximum air inlet pressure (bar) | 6. 9 |
| Maximum air inlet pressure (kPa) | 700 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum fluid pressure (bar) | 1 4 0 |
| Maximum fluid pressure (MPa) | 1 4 0 |
| Maximum fluid pressure (psi) | 0 |
| Maximum operating temperature (°C) | 60 |
| Maximum operating temperature (°F) | 1 4 0 |
| Maximum working pressure (bar) | 1 52 |
| Maximum working pressure (MPa) | 15. 2 |
| Maximum working pressure (psi) | 2 200 |
| Model | D yna Mite |
| Series | 2 2 |
| Weight (kg) | 34 |
| Air inlet size (in) | 0. 314961 |
| Air inlet thread gender | None |
| Control Options | Standard |
| Fluid outlet thread gender | Female |
| Number of Wipers | Single Ring |
| Sound pressure level (dB(A)) | 77. 9 |
| Ram post diameter (mm) | 45 |
