Manufacturer no.:
77X402

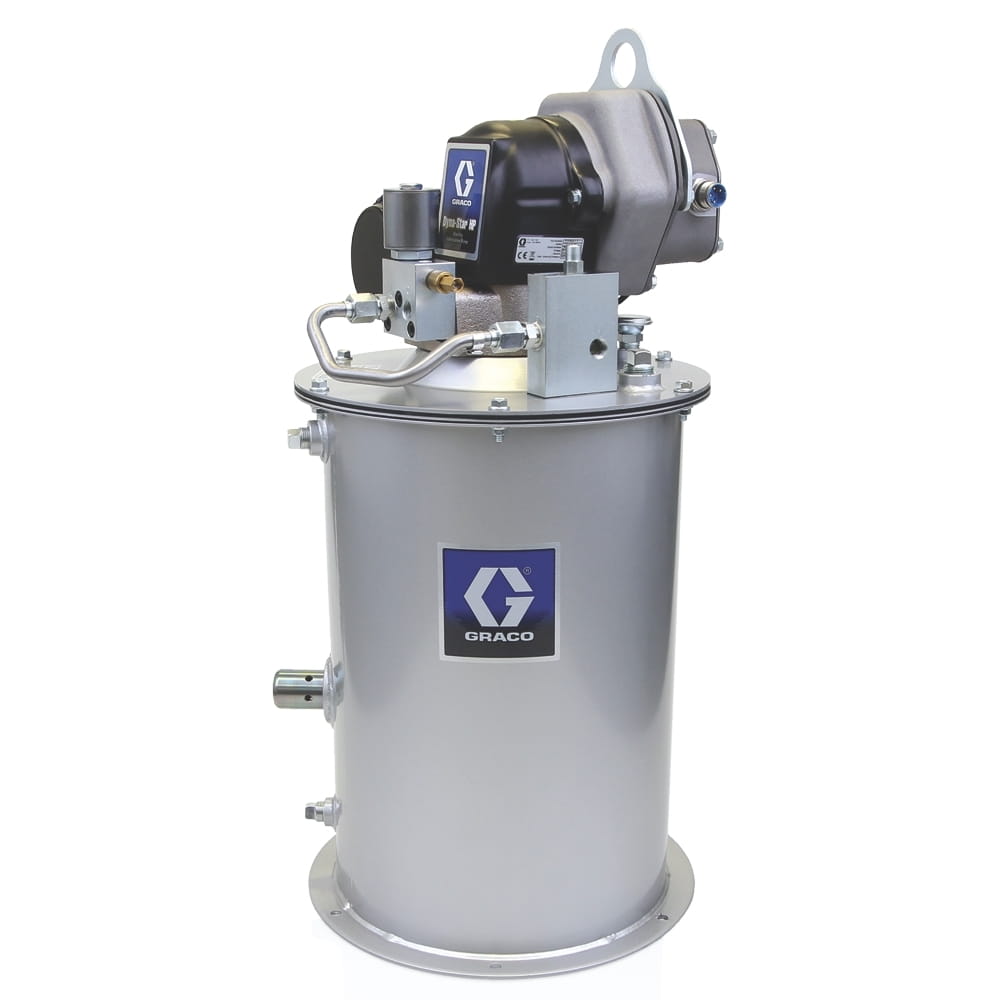

Dyna-Star® HP electric lubrication pump module - 27 kg (60 lb). CONTAINER
€10,796.75*
% €11,996.39* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Heavy-duty machinery and equipment in the mining industry require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco ensures the ongoing lubrication of important components and keeps them operational without costly material downtime.
Electric pumps for heavy-duty automatic lubrication and transfer systems.
- Graco Advantage Drive™ - heavy duty gear drive - lubricated for life
- Pipe-in-pipe venting and fill path - instant conversion of a drum system to a single-line manifold system
- Motor control - speed and AMP control
- Cold weather performance (-40 ºC)
- More efficient seal replacement
| Application: | Machines in manufacturing plants, off-road vehicles |
|---|---|
| Compatible material: | oil and fat |
| Energy type: | Electric |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Permissible operating pressure (bar): | 241 |
| Type: | Electric piston pump |
More information
- Product number: 1034638
- Manufacturer: Graco
- EAN: 00755652680321
- Weight: 58.513 kg
- Length: 1030 mm
- Width: 690 mm
- Height: 430 mm
Technical details
Operating specifications
| UPC product | 755652680321 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Unit | EA |
| Height | 43 CM |
| Length | 103 cm |
| Width | 69 cm |
| Volume | . 306 m³ |
| Shipping weight | 58.51 kg |
Technical
| Maximum working pressure (bar) | 2 41 |
|---|---|
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Maximum working pressure (MPa) | 24. 1 |
