Manufacturer no.: 77X202

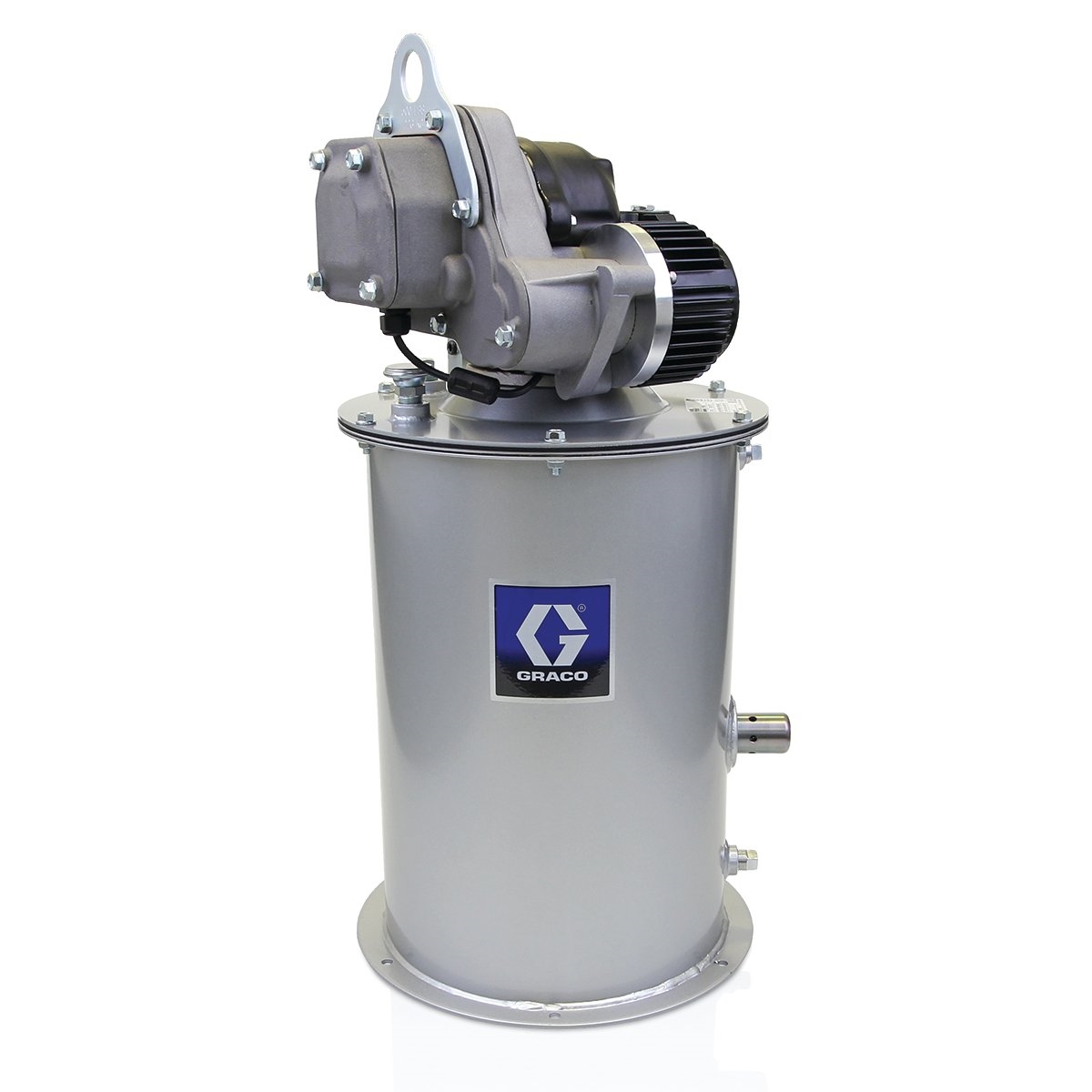

Dyna-Star® 24 VDC electric inlet manifold module with pump, pipe-in-pipe, low level relief valve, cover, tank, automatic fill stop for 27 kg (60 lb). CONTAINER

€12,467.51*

% €13,852.79* (10% saved)

Prices include VAT plus shipping costs

€10,476.90*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Heavy-duty machinery and equipment in the mining industry require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco ensures the ongoing lubrication of important components and keeps them operational without costly material downtime.

Electric pumps for heavy-duty automatic lubrication and transfer systems.

Auto-fill shutdown - mechanical shutdown of the filling pump for safe and efficient refilling
Graco Advantage Drive™ - heavy duty gear drive - lubricated for life

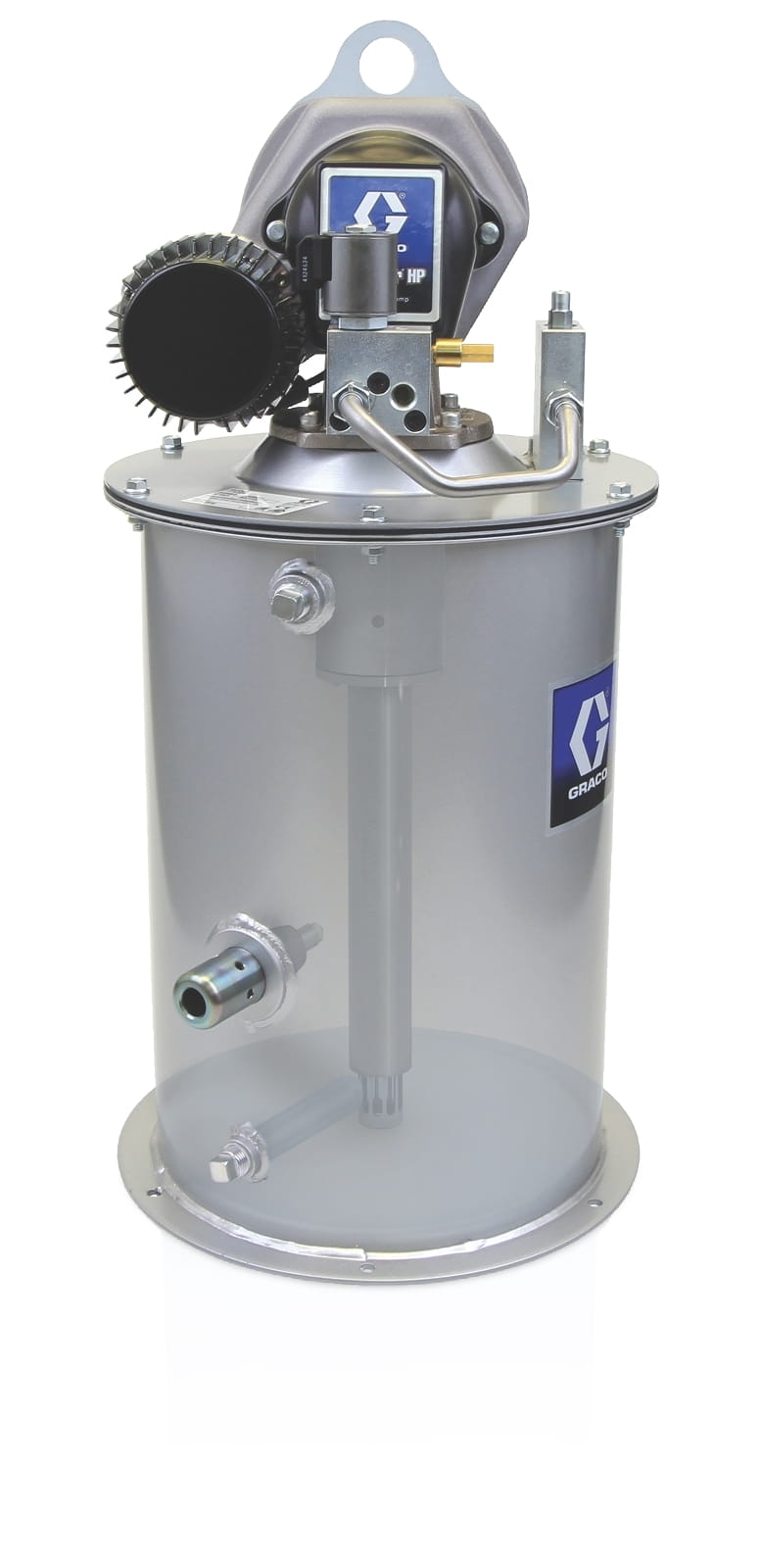

Pipe-in-pipe venting and filling path - instant conversion of a drum system into a single-line manifold system

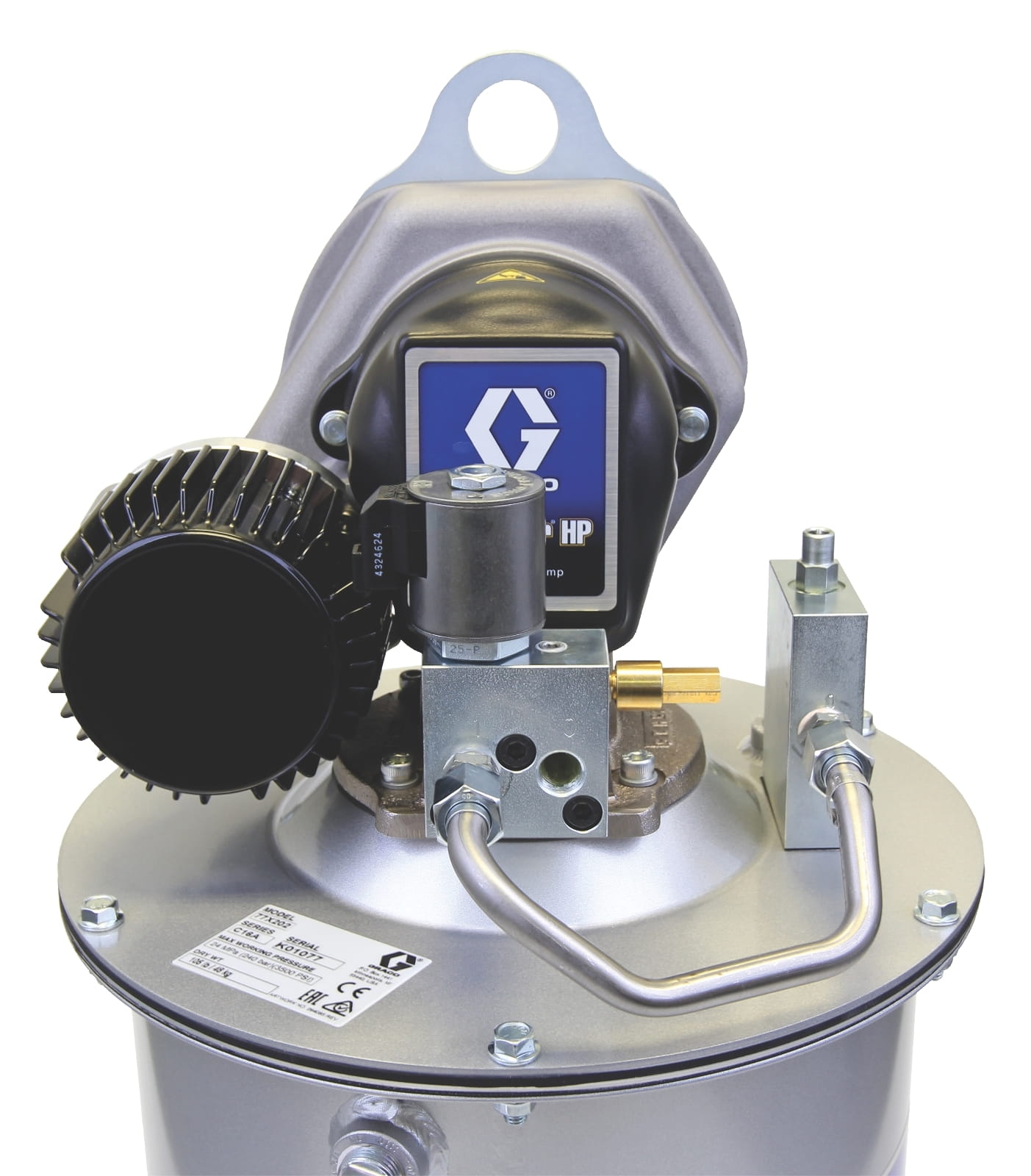

Relief valve attached directly to the pump - no more brackets or additional hoses and pipes
Motor control - speed and AMP control
Capable even in cold weather (-40 ºC)
More efficient seal replacement
The remote filling unit with ventilation (with built-in pressure gauge) allows the filler opening to be positioned at any desired location

Application:	Machines in manufacturing plants, off-road vehicles
Compatible dosing system:	Multi-line system
Compatible material:	Fat
Energy type:	Pneumatic
Gender of the material outlet thread:	Internal thread
IP dimensioning:	IP69K
Includes:	HP Pump 24 VDC, Single Line Manifold Module with Pump, Tube-in-Tube, Relief Valve, Auto Fill Stop, Low Level, 60 lb Container.
Material outlet size (mm):	9.5250
Material outlet thread type:	NPT
Maximum filling inlet pressure (bar):	344.7
Maximum filling inlet pressure (kPa):	34470
Maximum filling inlet pressure (psi):	5000
Maximum operating pressure (MPa):	24.1
Maximum operating pressure (kPa):	24100
Maximum operating pressure (psi):	3500
Minimum cST degree (cST):	40
Model:	Dyna Star
Permissible operating pressure (bar):	241
Power connection type:	M23
Size of the material outlet opening (inches):	0.375
Total depth (cm):	41
Total depth (mm):	410
Total height (cm):	77.5
Total height (mm):	775
Total width (cm):	36.8
Total width (mm):	368
Type:	Electric piston pump
Voltage (V dc):	24
Weight (kg):	47.6

More information

Product number: 1031231
Manufacturer: Graco
EAN: 00755652364115
Weight: 60.781 kg
Length: 440 mm
Width: 1040 mm
Height: 700 mm

Technical details

Specifications

Operating specifications

UPC product	755652364115
Division	LED
Price Block	128
Country of origin	US
Unit	EA
Height	70 CM
Length	44 CM
Width	104 cm
Volume	. 32 m³
Shipping weight	60.78 KG

Technical

Fluid outlet size (mm)	9. 5250
Fluid outlet thread gender	Female
Includes	HP pump 24 VDC, injector module with pump, tube-in-tube, vent valve, auto-fill shut-off, low level, 60 lb reservoir
Maximum working pressure (bar)	2 41
Maximum working pressure (kPa)	2 4 100
Maximum working pressure (psi)	3 5 00
Model	Dyna-Star
Voltage (V dc)	2 4
IP rating	IP 6 9K
Maximum fill inlet pressure (bar)	344. 7
Maximum fill inlet pressure (kPa)	3 4 470
Maximum fill inlet pressure (psi)	5 0 00
Minimum cST Grade (cST)	40
Overall Depth (cm)	41
Overall depth (in)	16. 13
Overall depth (mm)	410
Overall height (cm)	77. 5
Overall height (in)	30. 5
Overall height (mm)	775
Overall Width (cm)	36. 8
Overall width (in)	14. 5
Overall width (mm)	368
Weight (kg)	47. 6
Maximum working pressure (MPa)	24. 1
