Manufacturer no.: P32LCD

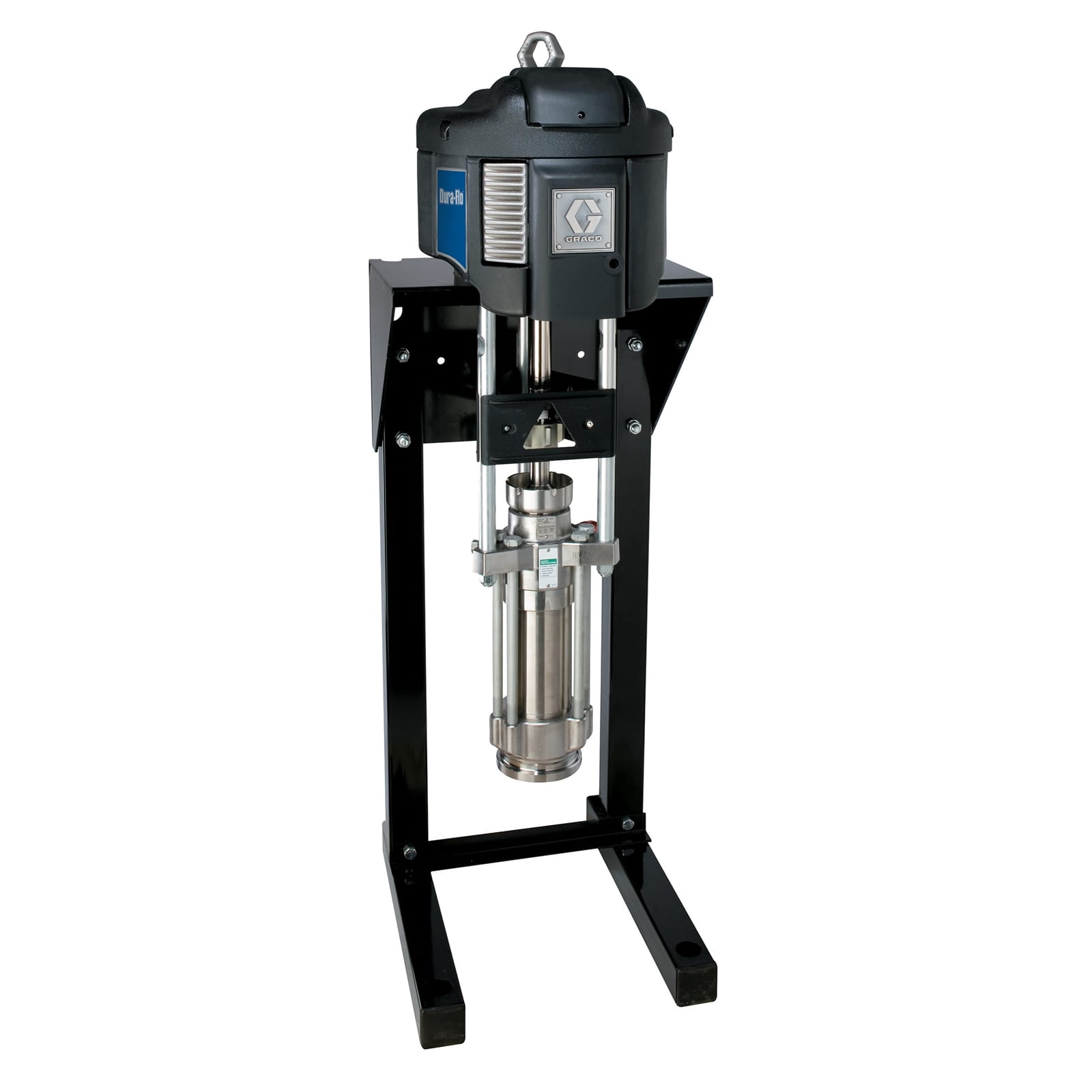

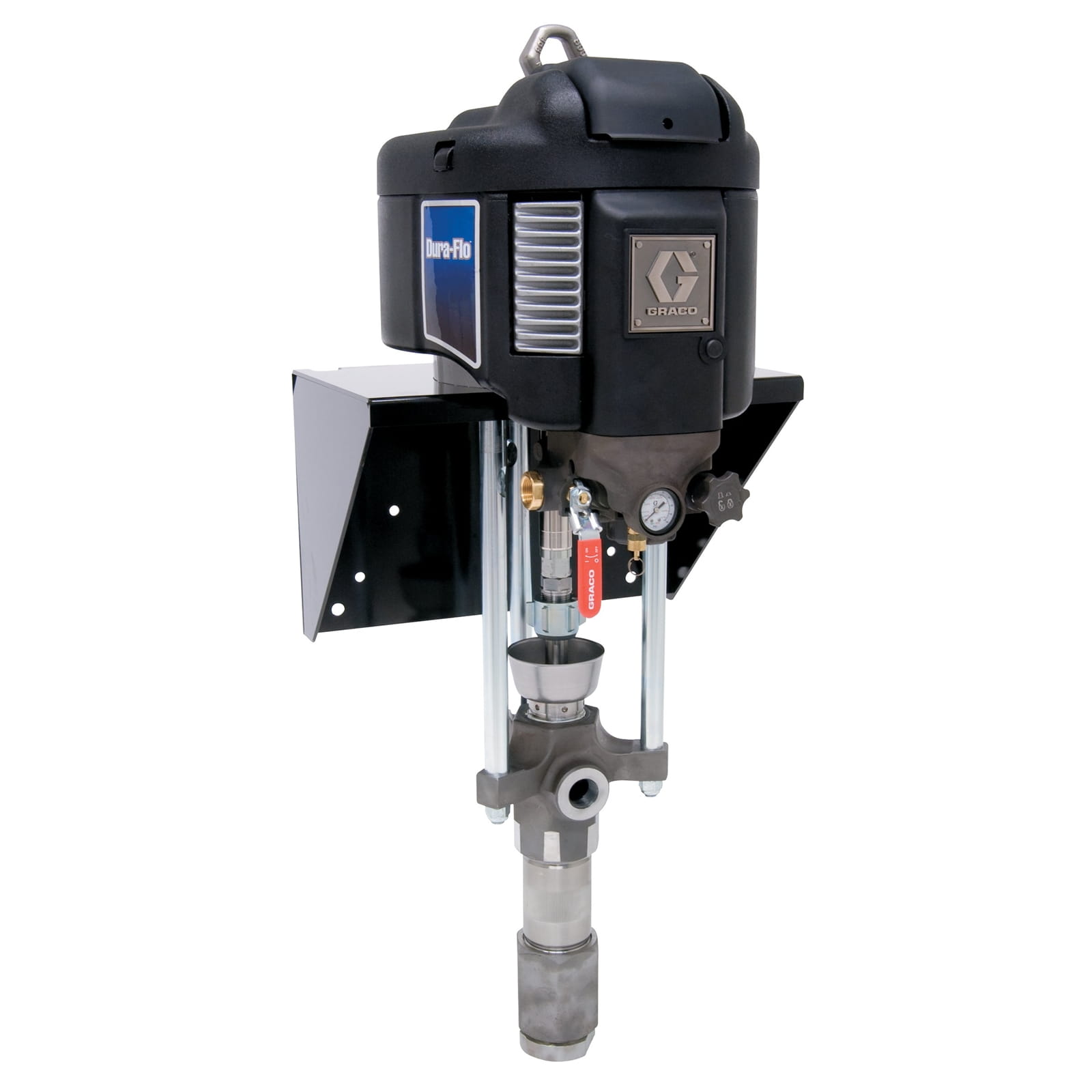

Dura-Flo NXT 2-ball piston pump, 32:1, low-noise exhaust air motor, carbon steel, 3 PTFE and 2 leather seals

€11,459.40*

% €14,103.88* (18.75% saved)

Prices include VAT plus shipping costs

€9,629.75*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

Graco NXT Technology Dura-Flo Pumps provide consistent, easy-to-regulate fluid delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can cover an even higher pressure range without sacrificing flow.

Positive displacement design with 2-ball pistons provides consistent and easy-to-regulate dispensing
High pump pressure and flow to handle a wide range of paints and coatings
Improved serviceability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Air inlet size (inches):	7,506
Application:	supply
Assembly:	Wall or free-standing installation
Compatible material:	Solvent-based, High Solids, Xirallic, CARC, Metal, Stain, Lacquer
Gender of the material outlet thread:	Internal thread
Includes:	Carbon steel pump, low noise exhaust motor, 3 PTFE and 2 leather seals
Material:	Normal steel
Material outlet size (cm):	3.81
Material outlet size (mm):	38.1
Material outlet thread type:	NPT
Material section type:	2-ball
Maximum air supply pressure (bar):	6.9
Maximum air supply pressure (kPa):	690
Maximum continuous double stroke rate (DH/min):	60
Maximum delivery rate (L/min):	12/26
Maximum inlet air pressure (psi):	100
Maximum operating pressure (MPa):	16.4
Maximum operating pressure (kPa):	16400
Maximum operating pressure (psi):	2380
Maximum operating temperature (°C):	66
Model:	Dura Flo
Motor type:	Quiet NXT
Permissible operating pressure (bar):	164
Portable:	Not portable
Sealing material:	PTFE, leather
Series:	2-Ball
Size of the air inlet (cm):	1,905
Size of the air inlet (mm):	19.05
Size of the material outlet opening (inches):	1-1/2
Transmission ratio of the pump:	32:1
Type:	Pneumatic piston pump
Wetted material:	Normal steel
