Manufacturer no.:
279010

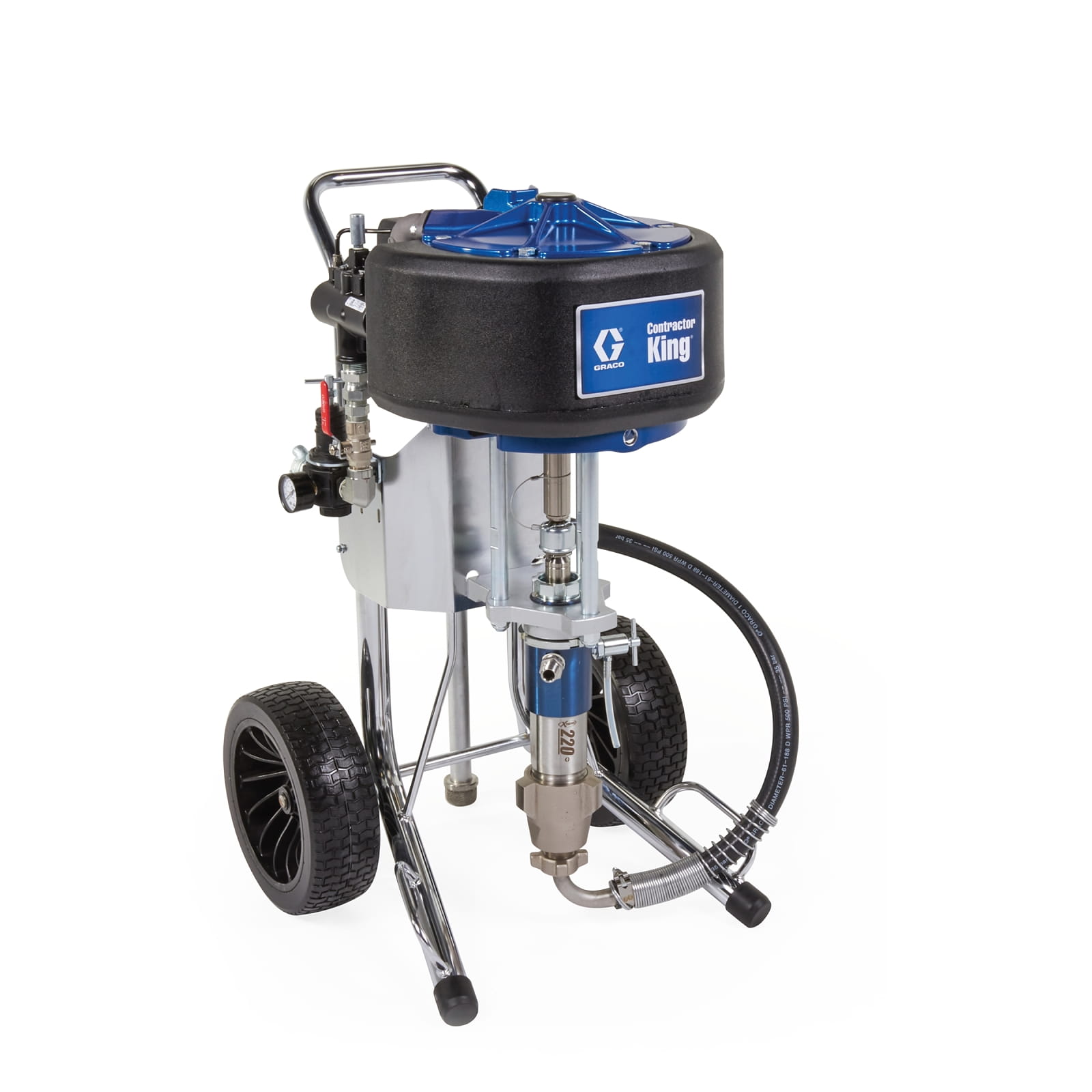

Contractor King 60:1, air-driven airless sprayer, single
€8,104.26*
% €9,004.73* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Introducing the newest member of the King family, the Contractor King 60:1! This affordable line of air-powered sprayers is designed for one-person portability and high performance, and is the perfect addition to any construction fleet.
The Contractor King is available in many hose and gun configurations. These units feature a "necessity only" design, allowing the user to customise the sprayer by adding only the necessary accessories. Perfect for high-volume, high-pressure applications using waterproofing, fire-resistant and other protective coatings, these proven, durable sprayers provide the ultimate in convenience and value for any contractor.
Proven King quality
Anti-ice technology- Field-proven design prevents icing while spraying
- Durable construction of aluminium, steel and composite materials for years of service
- Guarantees an excellent finish without pulsation, even with multiple guns
- Simple design for easy maintenance
- Oversized orifices for maximum air flow
Easy to move and transport
- Almost 38 kg lighter than comparable models for easy one-person handling
- Chromed, welded steel frame for years of use
- Built-in lifting points for easy positioning in any location
- Puncture-proof tyres withstand on-site dirt and ensure maximum comfort
Easy maintenance
Proven design and performance- QuickChange Endurance pump for quick and easy removal and servicing of the pump at the workplace
- Chromex rod and stainless steel cylinder for maximum durability and performance
- Fleet-friendly design uses the same wearing parts as your other King sprayers
- Xtreme Seal UHMWPE and leather seals for the ultimate in durability with most materials
- QuickAccess inlet valve for easy access to the lower ball check valve
High Pressure Silver Plus HP Gun
- Rated performance up to 7,250 PSI (500 bar)
- Up to 35% lighter than other guns in its class
- Light trigger pull for all-day comfort
- Durable steel and aluminium design with oversized fluid passages for lower pressure drop
- The convenience of a single gun that works with all of your fleet equipment
| Appliance pressure ratio (motor/bottom pump): | 60:1 XL6500 engine/lower pump 220cc |
|---|---|
| Authorisation for hazardous areas: | Yes |
| Maximum operating pressure (psi): | 6000 |
| Model: | Contractor King |
| Package options: | Single (without hose/gun) |
| Pistol model: | No applicator |
| Product series: | Single |
| Pump type: | Endurance |
| Series: | 60:1 |
| Transmission ratio of the pump: | 60:1 (6000psi) |
| Type: | Airless sprayer |
More information
- Product number: 1036321
- Manufacturer: Graco
Technical details
Operating specifications
| UPC product | 7 6 9946273304 |
|---|---|
| Division | CED |
| Price Block | 054 |
| Country of origin | US |
| Unit | EA |
| Height | 115 CM |
| Length | 69 CM |
| Width | 84 cm |
| Volume | . 667 m³ |
| Shipping weight | 89 KG |
Technical
| Maximum working pressure (psi) | 6000 |
|---|---|
| Model | Contractor King |
| Series | 60: 1 |
| Gun model | No Applicator |
| Package Pressure Ratio (Motor/Lower) | 60:1 XL6500 motor/220cc lower |
| Product Series | Bare |
| Approved for hazardous locations | Yes |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Deutsch)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Svenska)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Español)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Polski)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (한국어)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (русский)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Norsk)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Dansk)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Français)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (日本語)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Italiano)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Türkçe)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (中文)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (Nederlands)
- 3A9170D, Handbuch, Contractor King Spritz-Komplettgeräte und Pumpen, Anleitung (English)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Deutsch)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Svenska)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Español)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Polski)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (한국어)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (русский)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Norsk)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Dansk)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Français)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (日本語)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Italiano)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Türkçe)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (中文)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (Nederlands)
- 3A9122A, Repair Manual, Contractor King Displacement Pumps, English (English)
