Manufacturer no.:
246081

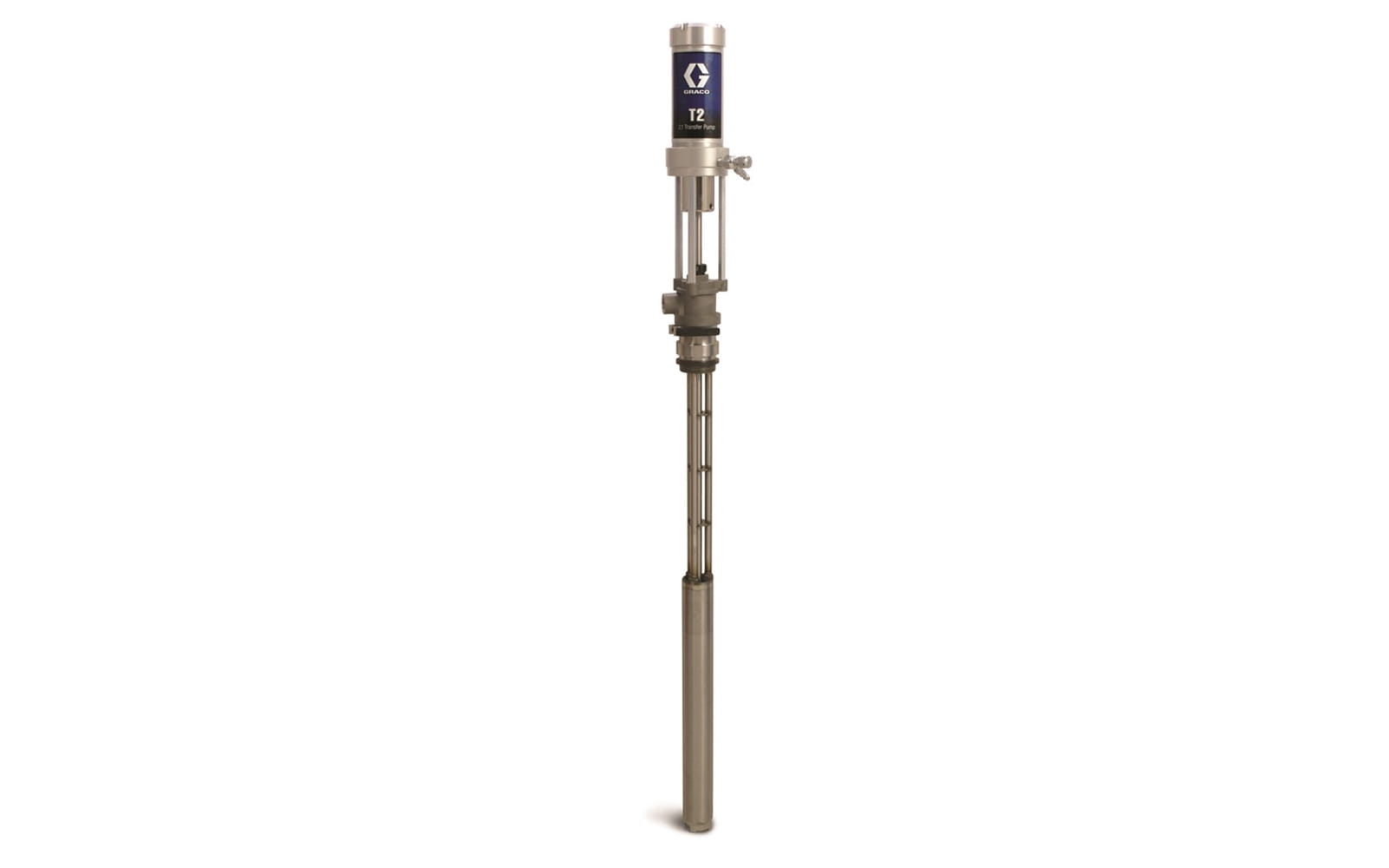

Complete T2 multi-component feed pump system
€6,252.26*
Ready for shipping in 5-8 days
Also interesting
Product information

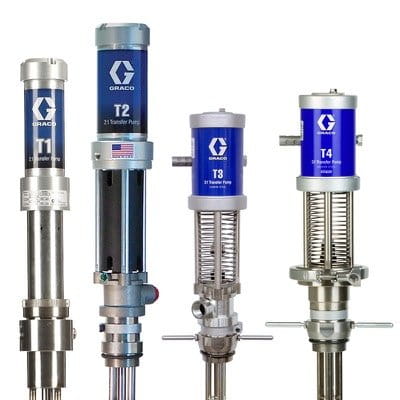

Graco's family of transfer pumps maintains its performance in any environment. Feed pumps are required to deliver the chemical to your Reactor sprayer or other equipment that requires material delivery. When choosing the ideal transfer pump, consider the material viscosity, the desired flow rate, the internal height of your body and the available air pressure.
Ideal for transporting A and B materials to reactor sprayers
- Provide consistent feed pressures and flow rates for reliable results
- Reduce pressure drop for higher viscosity materials at all ambient temperatures
- Designed and manufactured by the world leader in pump technology
- Pump with even longer service life - designed for durability with less maintenance
- Bunghole adapter with quick release for easy tank removal without obstructing hose connections
- Stainless steel wetted parts ensure corrosion resistance
- PTFE seals for better performance and less maintenance
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Polyurethane materials |
| Double strokes per gallon: | 15.9 |
| For use with: | HFR measuring systems |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | stainless steel |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum air inlet pressure (MPa): | 1.2 |
| Maximum air supply pressure (bar): | 12.5 |
| Maximum air supply pressure (kPa): | 1250 |
| Maximum delivery rate (L/min): | 19 |
| Maximum inlet air pressure (psi): | 180 |
| Maximum operating pressure (MPa): | 2.8 |
| Maximum operating pressure (kPa): | 2800 |
| Maximum operating pressure (psi): | 405 |
| Maximum operating temperature (°C): | 88 |
| Model: | T2 |
| Noise pressure level, (dB(A)): | 88.7 |
| Package options: | Air Supply & Supply trousers |
| Permissible operating pressure (bar): | 28 |
| Sealing material: | PTFE |
| Size of the air inlet (mm): | 6.35 |
| Size of the material outlet opening (inches): | 3/4 |
| Sound level, (dB(A)): | 96.8 |
| Transmission ratio of the pump: | 2.25:1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 9.5 |
| Wetted material: | stainless steel |
More information
- Product number: 1030533
- Manufacturer: Graco
- EAN: 00633955030930
- Weight: 34.35 kg
- Length: 30 mm
- Width: 30 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 633955030930 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Female |
| Cycles per gallon | 15. 9 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| For use with | HFR metering system |
| Maximum air inlet pressure (bar) | 12. 5 |
| Maximum air inlet pressure (kPa) | 1 2 50 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum flow rate (L/min) | 19 |
| Maximum operating temperature (°C) | 88 |
| Maximum operating temperature (°F) | 1 90 |
| Maximum working pressure (bar) | 2 8 |
| Maximum working pressure (kPa) | 2 8 00 |
| Maximum working pressure (psi) | 405 |
| Model | T2 |
| Sound pressure level (dB(A)) | 88. 7 |
| Weight (kg) | 9. 5 |
| Maximum working pressure (MPa) | 2. 8 |
| Maximum air inlet pressure (MPa) | 1. 2 |
