Manufacturer no.:
17K659

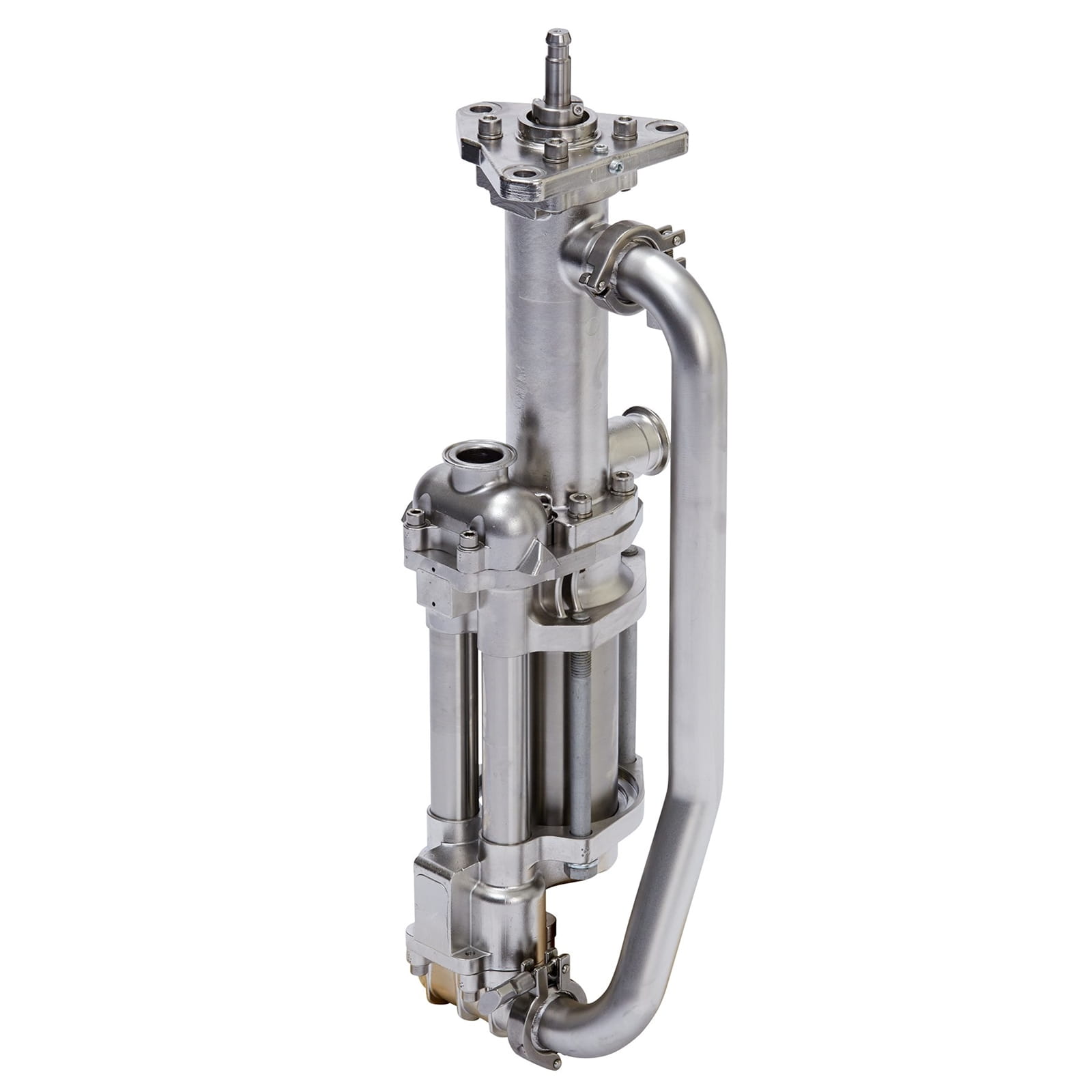

Closed 4-ball lower pump, 2000 cm³, stainless steel, Ultralife rod and cylinder, Tri-Clamp fittings
€9,671.13*
% €12,894.84* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's closed 4-ball underpumps require no routine maintenance and unexpected downtime is avoided. Due to the closed material section, no TSL fluid is required. In the event of a bellows failure, the pump will continue to run by design and maintenance scheduling is possible for the lower pump.
- The Ultralife coating on the lower pump rods provides a smoother finish, greater wear resistance and longer seal life across applications.
- The connection kits include connecting rods and adapters - everything needed to upgrade most older Graco circulation pumps to the latest technologies. For comprehensive information, please refer to manual 311876.
| Gender of the material inlet thread: | External thread |
|---|---|
| Gender of the material outlet thread: | External thread |
| Material inlet thread type: | Tri clamp |
| Material outlet thread type: | Tri clamp |
| Max. Pump speed (CPM): | 20 |
| Maximum operating pressure (psi): | 460 |
| Maximum output (cm³): | 40000 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1.5 |
| Size of the material outlet opening (inches): | 1.5 |
| Spray cycle rate (CPM): | 20 |
| Type: | lower pump |
| Wetted parts: | Stainless steel, PTFE, UHWMPE, tungsten carbide, fluoropolymer |
More information
- Product number: 1038473
- Manufacturer: Graco
- EAN: 00755652354420
- Weight: 31 kg
- Length: 900 mm
- Width: 330 mm
- Height: 360 mm
Technical details
Operating specifications
| UPC product | 755652354420 |
|---|---|
| Division | IPD |
| Price Block | 028 |
| Country of Origin | US |
| Unit | EA |
| Height | 36 CM |
| Length | 90 cm |
| Width | 33 cm |
| Volume | . 107 m³ |
| Shipping weight | 31 KG |
Technical
| Maximum pump speed (CPM) | 20 |
|---|---|
| Fluid inlet size (in) | 1. 5 |
| Fluid outlet thread gender | Male |
| Stroke Length (in) | 4. 75 |
| Fluid inlet size (cm) | 3. 81 |
| Fluid inlet thread gender | Male |
| Maximum operating temperature (°F) | 150 |
| Maximum output (cm³) | 4 0 000 |
| Maximum Working Pressure (psi) | 460 |
| Spraying cycle rate (CPM) | 20 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Deutsch)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (中文)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Français)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Español)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (日本語)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (한국어)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Português)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Nederlands)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (Italiano)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (русский)
- 3A4314L, Handbuch, Versiegelte 4-Kugel-Unterpumpen, Reparatur/Teile (English)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Deutsch)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (中文)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Français)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Español)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (日本語)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (한국어)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Português)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Nederlands)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (Italiano)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (русский)
- 311876R, Manual, 4-Ball Lower Retrofit Connection Kits, Instructions, Parts List, English (English)
Verkaufsliteratur
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Deutsch)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (English (UK))
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Español)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Français)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Italiano)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Nederlands)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Polski)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (русский)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Svenska)
- 345098DE Abgedichtete 4-Kugel-Unterpumpen (Türkçe)
