Manufacturer no.: 24B860

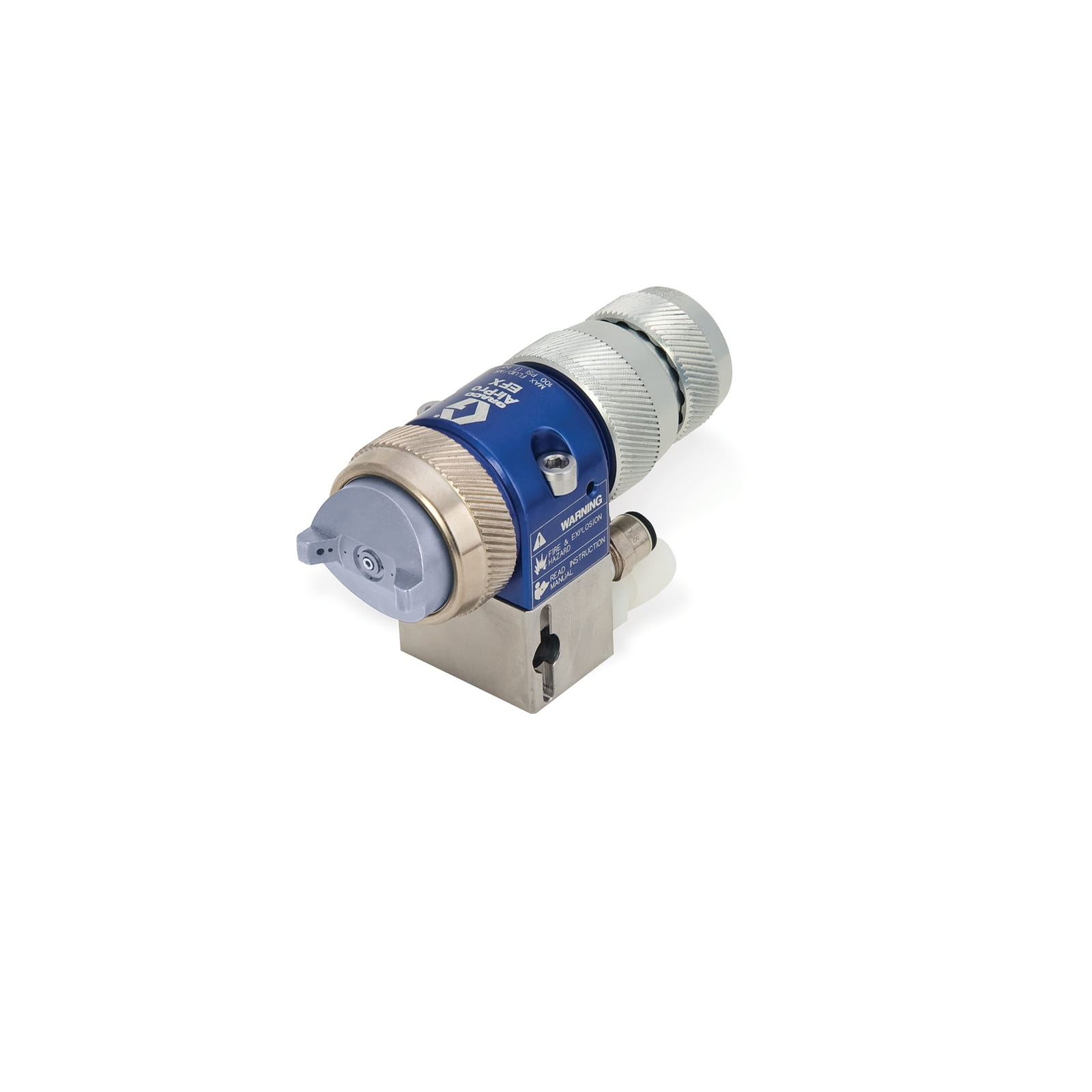

Air spray gun AirPro EFX Auto with manifold, conventional, 1.3 mm (0.051 in.) stainless steel nozzle, material adjustment knob with locking device

€1,053.15*

% €1,404.20* (25% saved)

Prices include VAT plus shipping costs

€885.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

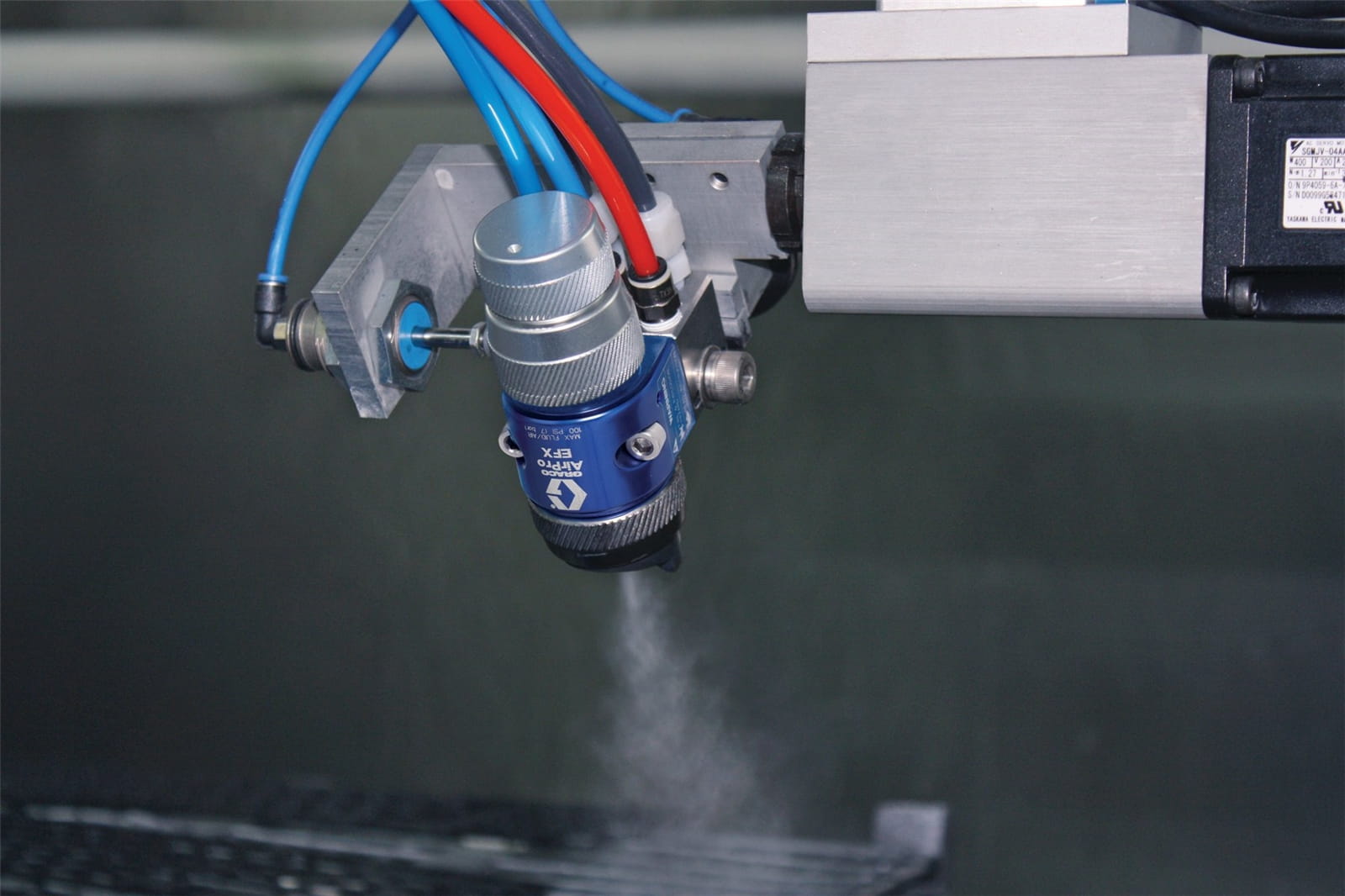

AirPro EFX automatic spray guns are among the lightest and most compact spray guns in their class. Without a built-in air shut-off mechanism, AirPro EFX offers greater reliability and more precise material flow. The small size and low weight make this gun perfect for stationary, moving and robotic applications.

Air caps and nozzles provide superior and precise spraying performance
Precise material adjustment with a micrometre telescopic knob
Highly wear-resistant components for abrasive materials
Excellent material flow rate stability and repeatability

Applicator type:	Automatically
Compatible material:	Ceramic industry, enamel paints, fast-set, high solids content, solvent-based, water-based
Component type:	Single component
Feed type:	Pressure feed
Gun activation:	Automatically
Gun type:	Conventional pistol
Gun weight (kg):	0.59
Housing material:	Plastics
Includes:	Air cap with pin, material adjustment knob, distributor, needle/nozzle set
Material adjustment knob:	Locking system
Maximum air inlet pressure (MPa):	0.7
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	700
Maximum delivery rate at PSI (oz/min):	11.8
Maximum inlet air pressure (psi):	100
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum material temperature (°C):	49
Minimum delivery rate at PSI (oz/min):	1.2
Model:	AirPro
Needle point material:	stainless steel
Nozzle opening size (inches):	51
Rinsing method:	Air
Series:	EFX
Size of the material opening (cm):	0.13
Size of the material opening (mm):	1.3
Spraying technology:	Air spraying
Spray pattern:	Around
Technology type:	conventional
Total height (cm):	2.6
Total height (mm):	25
Total length (cm):	10
Total length (mm):	104
Total width (cm):	3.8
Total width (mm):	25
Type:	spray gun
Vent type:	vent valve

More information

Product number: 1034726
Manufacturer: Graco
EAN: 00633955555143
Weight: 1.13 kg
Length: 240 mm
Width: 160 mm
Height: 90 mm

Technical details

Specifications

Operating specifications

UPC product	633955555143
Division	IPD
Price Block	0 53
Country of Origin	US
Unit	EA
Height	9 CM
Length	24 cm
Width	16 cm
Volume	. 003 m³
Shipping weight	1 .13 KG

Technical

Bleed type	B leeder
Component Type	Single Component
Feed Type	Pressure Feed
Fluid Orifice Size (cm)	0. 13
Fluid orifice size (mm)	1. 3
Gun Weight (kg)	0. 59
Gun weight (lb)	1. 3
Includes	Air cap with pin, fluid adjustment knob, manifold, needle/nozzle kit
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum flow rate @ PSI (oz/min)	11. 8
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Minimum flow rate @ PSI (oz/min)	1. 2
Model	Air Pro
Overall Height (cm)	2. 6
Overall height (in)	1
Overall height (mm)	25
Overall Length (cm)	10
Overall Length (in)	4. 1
Overall Length (mm)	104
Overall width (cm)	3. 8
Overall width (in)	1
Overall width (mm)	25
Purge Method	Air
Series	EFX
Technology Type	Conventional
Needle tip material	Stainless steel
Fluid adjustment knob	Indexing
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum air inlet pressure (MPa)	0. 7
