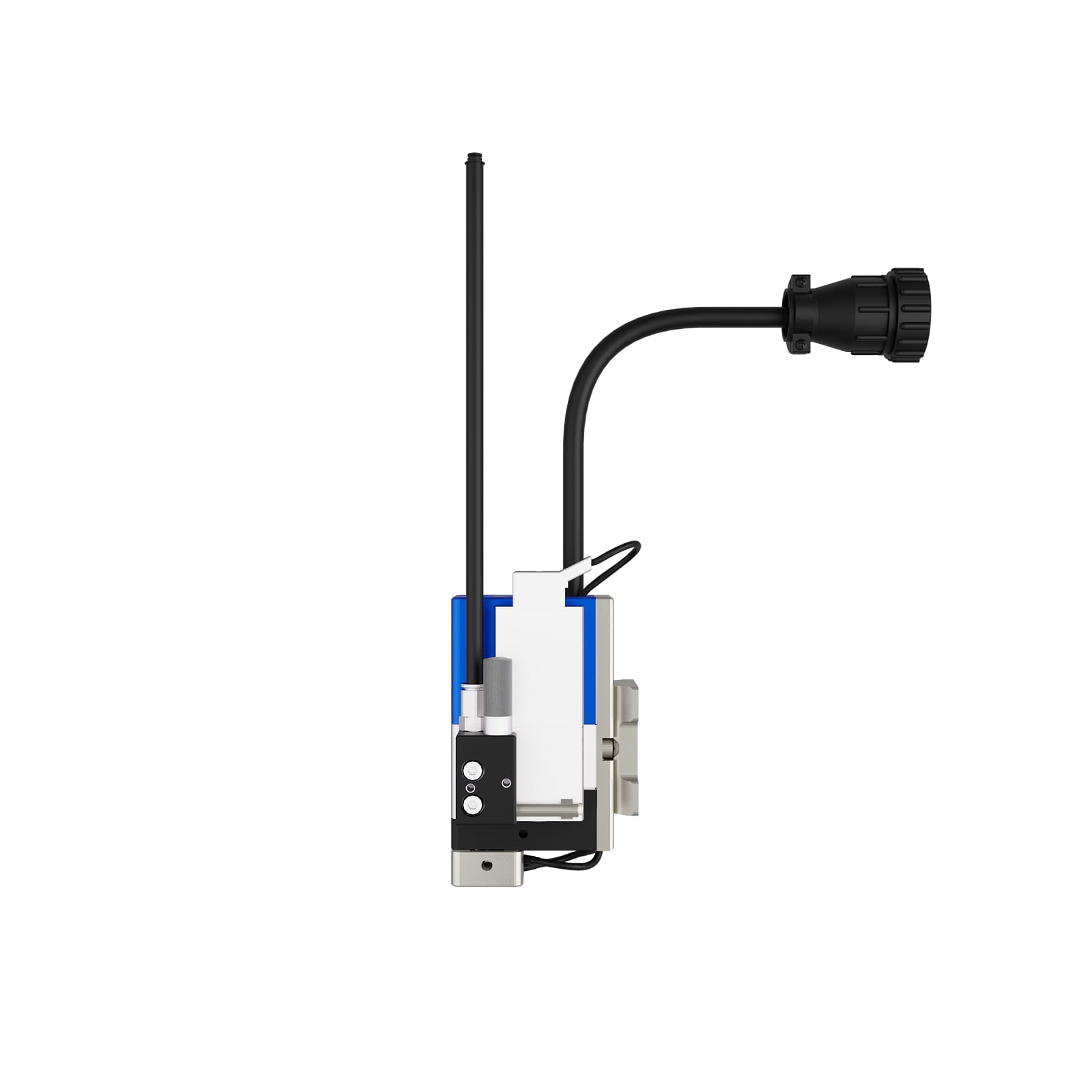

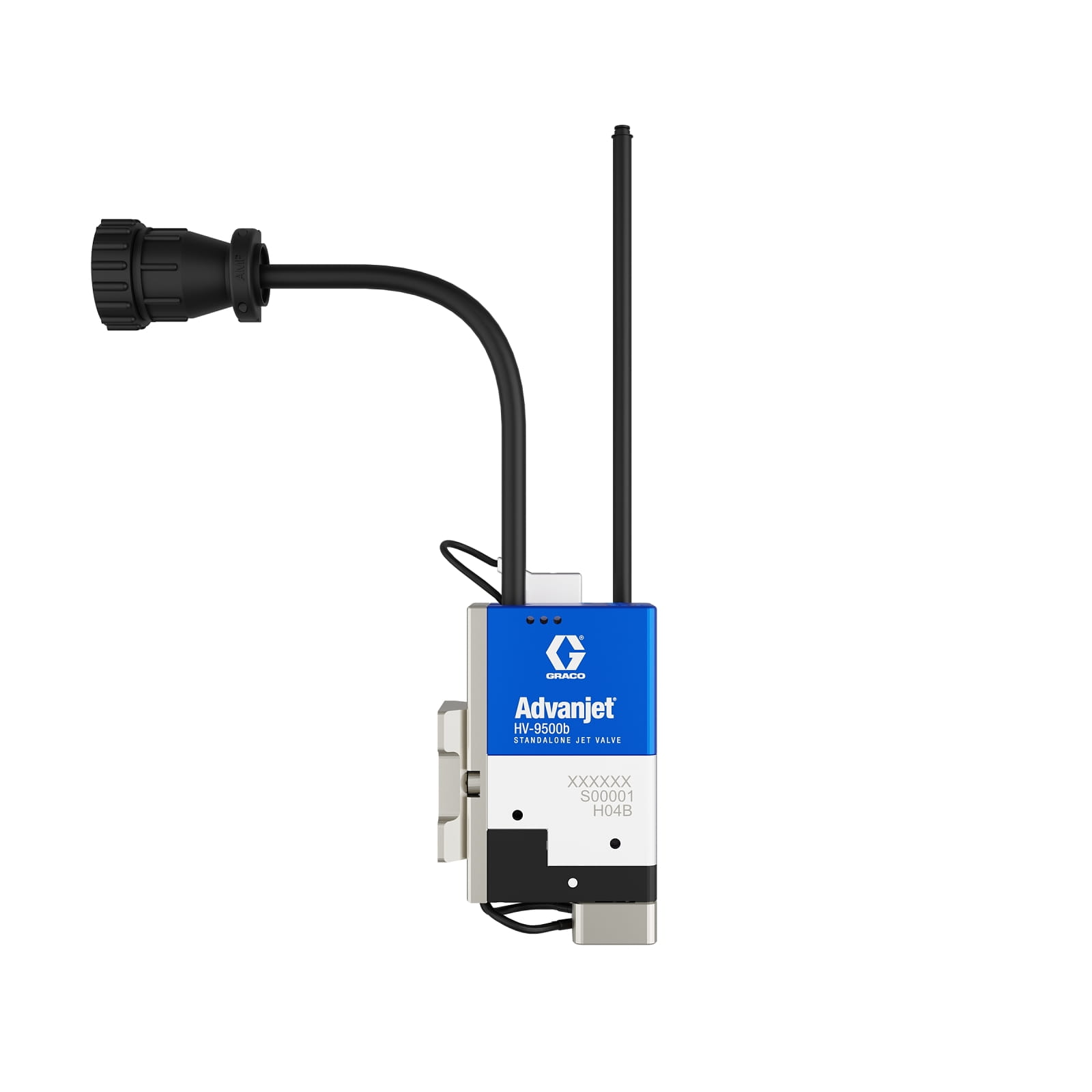

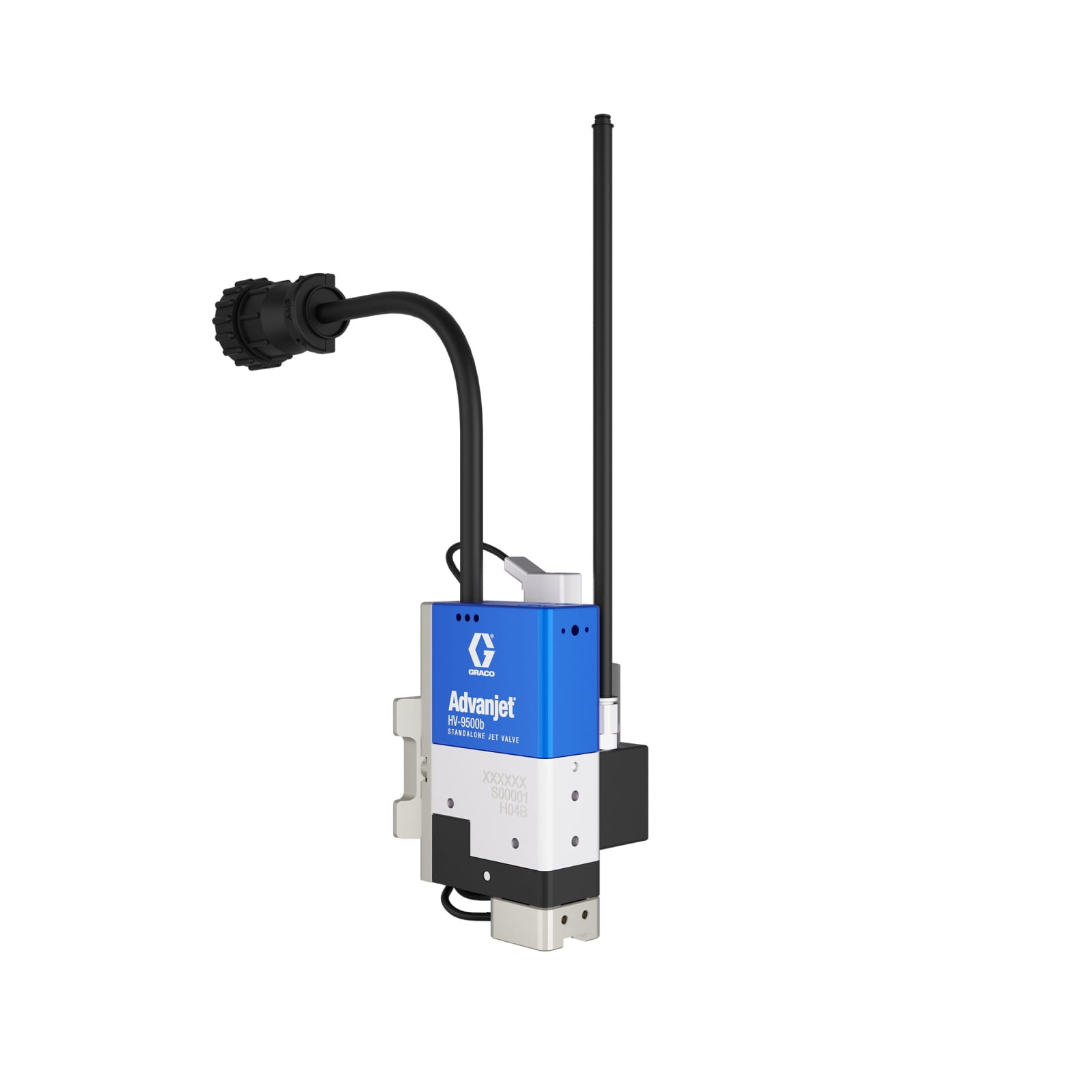

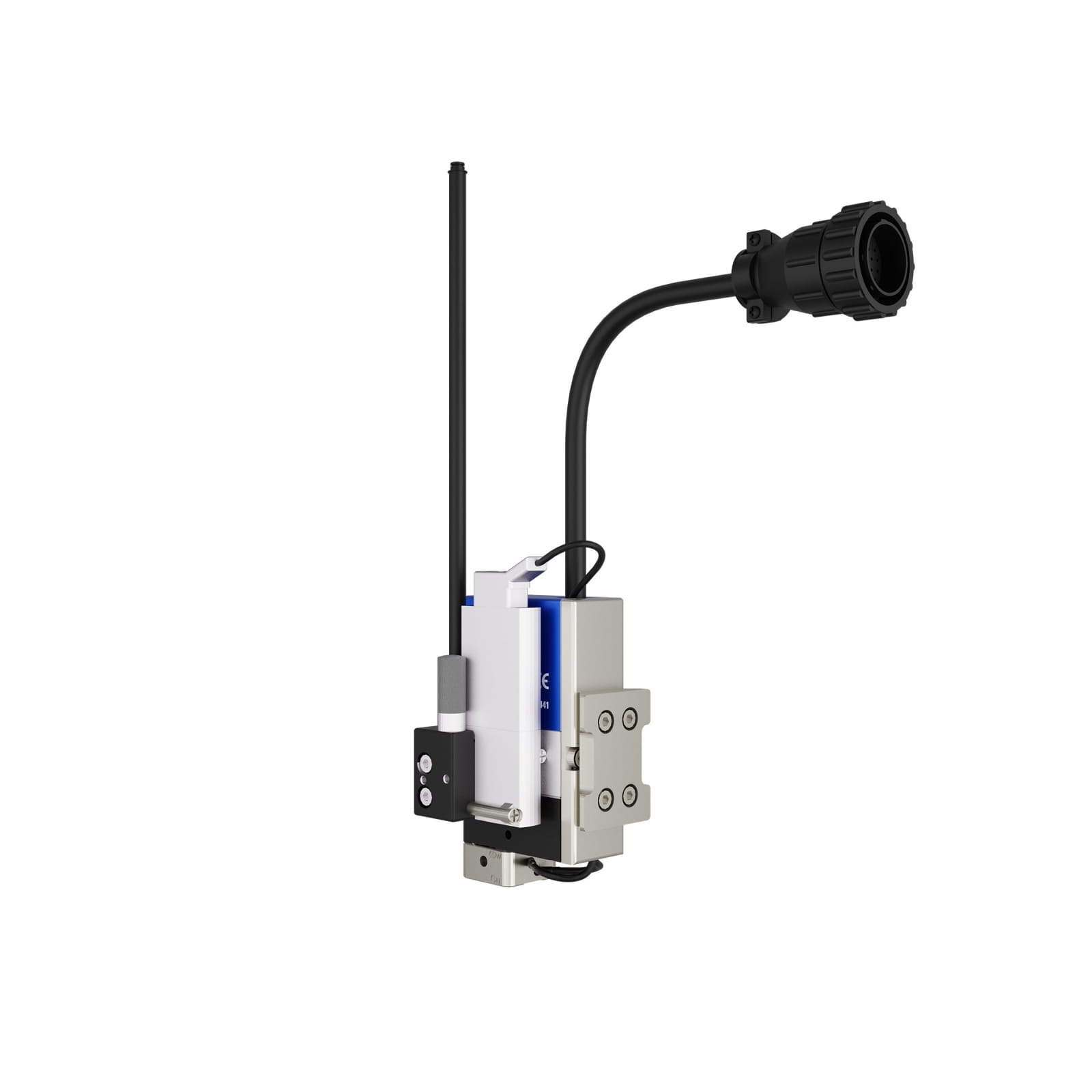

Advanjet HV-9500b jet valve, 20W, 7-pin
€18,803.49*
Ready for shipping in 5-8 Werktage
The Advanjet HV-9500b jet valve provides non-contact jet dispensing for successful fluid dispensing in electronics, semiconductor, industrial and life science applications. A single, easily replaceable diaphragm eliminates the need for dynamic material seals common to all other emitters. There is no need to dismantle, clean and replace worn seals, saving time and money. The diaphragm enables high cycle rates due to its very low mass. There is no large sliding valve stem to slow down the process. With this new diaphragm design, the energy required to eject a droplet can be adjusted, allowing for larger process windows.
Diaphragm jet technology available for stand-alone operation
- Easy to clean Only two parts come into contact with the liquid, so parts are easy to change and replace.
- Easy to maintain Unlike complicated piezo ejectors, the jet valve can be maintained on-site at your plant using low-cost maintenance kits.
- Easy to integrate The HV-9500b valve can be easily integrated into existing systems. No external control box required.
- Versatile Choose from a wide range of diaphragms and nozzles for optimum material compatibility.
- Features: Up to 250 drops/second Viscosities up to 400K cps Drops up to 5 nl No material seals to clean or replace Integrated heater for minimal fluid heating No external control box required Right or left profile adapts to system layout or ancillary equipment Syringe capacity from 5 cc to 6 g Heated feed tube available for improved flow stability Add the PS-2000 priming station for a completely bubble-free material path
| Application: | Bonding, sealing, encapsulation, underfilling |
|---|---|
| Component type: | Single component |
| Energy type: | Pneumatic |
| Maximum operating pressure (MPa): | 0.6 |
| Maximum operating pressure (psi): | 90 |
| Type: | Adhesive and sealant applicator |
| Wetted parts: | Stainless steel, EPDM, FKM, carbide, ceramic, FFKM, silicone |
- Product number: 1038016
- Manufacturer: Graco
- EAN: 00769946223224
