Manufacturer no.:
17K281

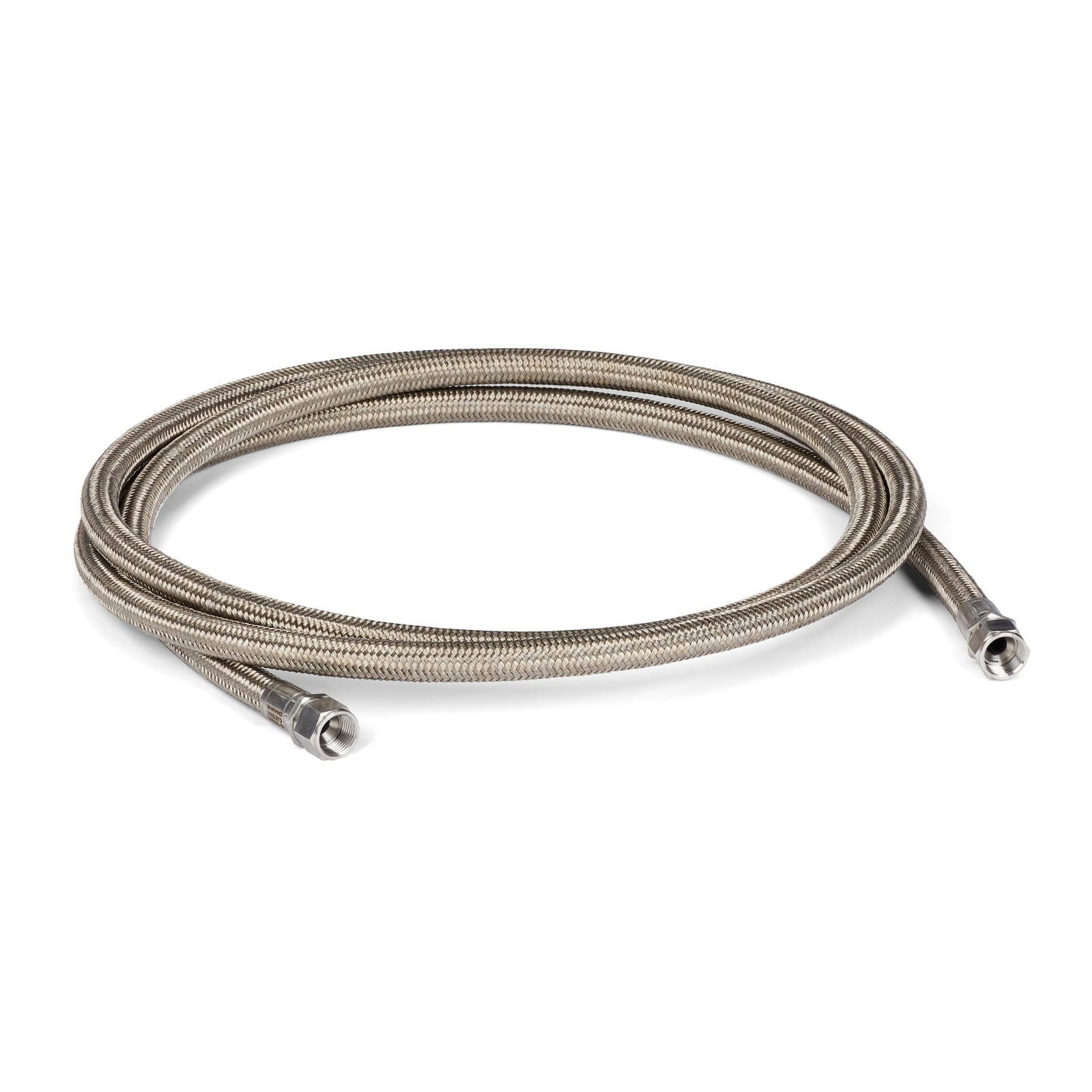

7.6 m (25') stainless steel-coated PTFE surrounding hose, no. 16 (ID 22.0 mm/0.867")
€2,736.41*
% €3,127.32* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco ambient temperature hoses bring reliable performance to sealant and adhesive dispensing systems. Whether your material is moisture sensitive, corrosive or inert, Graco hoses have the construction materials and build quality to meet all your application requirements.
- For use with Graco sealant and adhesive systems.
| Gender of the thread: | Internal thread |
|---|---|
| Hose diameter (inch): | 867 |
| Hose diameter (mm): | 22.0 |
| Hose heater type: | Not heated |
| Hose length (m): | 7.6 |
| Inner diameter (inch): | 867 |
| Inner diameter (mm): | 22,022 |
| JIC size: | JIC16 |
| Material: | Stainless steel wire mesh with PTFE lining |
| Maximum operating pressure (MPa): | 27.6 |
| Maximum operating pressure (psi): | 4000 |
| Maximum temperature (°C): | 100 |
| Permissible operating pressure (bar): | 276 |
| Thread size: | 1 5/16-12 |
| Thread type: | 37° JIC swivel |
| Type: | Hose |
| Voltage (V): | n.a. |
More information
- Product number: 1035675
- Manufacturer: Graco
- EAN: 00755652590231
- Weight: 2.669 kg
Technical details
Operating specifications
| UPC product | 755652590231 |
|---|---|
| Division | IPD |
| Price Block | 225 |
| Country of Origin | US |
| Unit of measurement | EA |
| Height | 31 CM |
| Length | 75 cm |
| Width | 75 cm |
| Volume | . 174 m³ |
| Shipping weight | 17 KG |
| HTS code (GB) | 39 1 7310090 |
| HTS code (EU) | 39 1 7310090 |
Technical
| Heating hose type | Ambi ent |
|---|---|
| Inside diameter (mm) | 22.02 2 |
| Maximum temperature (°C) | 100 |
| Maximum temperature (°F) | 2 12 |
| Maximum working pressure (psi) | 4 0 00 |
| Thread size | 1 5/16-12 |
| Maximum working pressure (bar) | 2 76 |
| Maximum working pressure (MPa) | 27. 6 |
| Hose diameter (in) | 0. 867 |
| JIC Size | JIC 16 |
