Manufacturer no.:
P47LSS

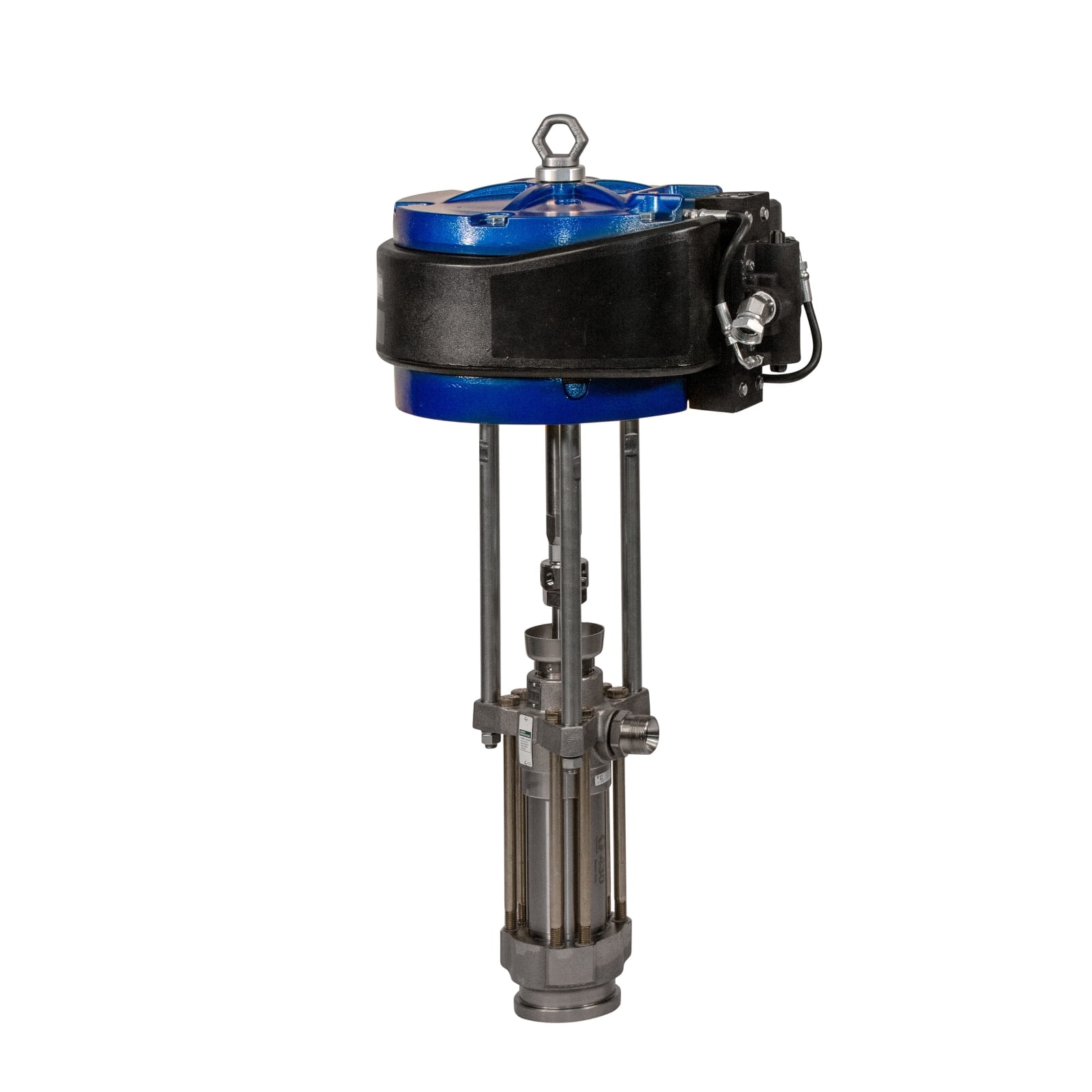

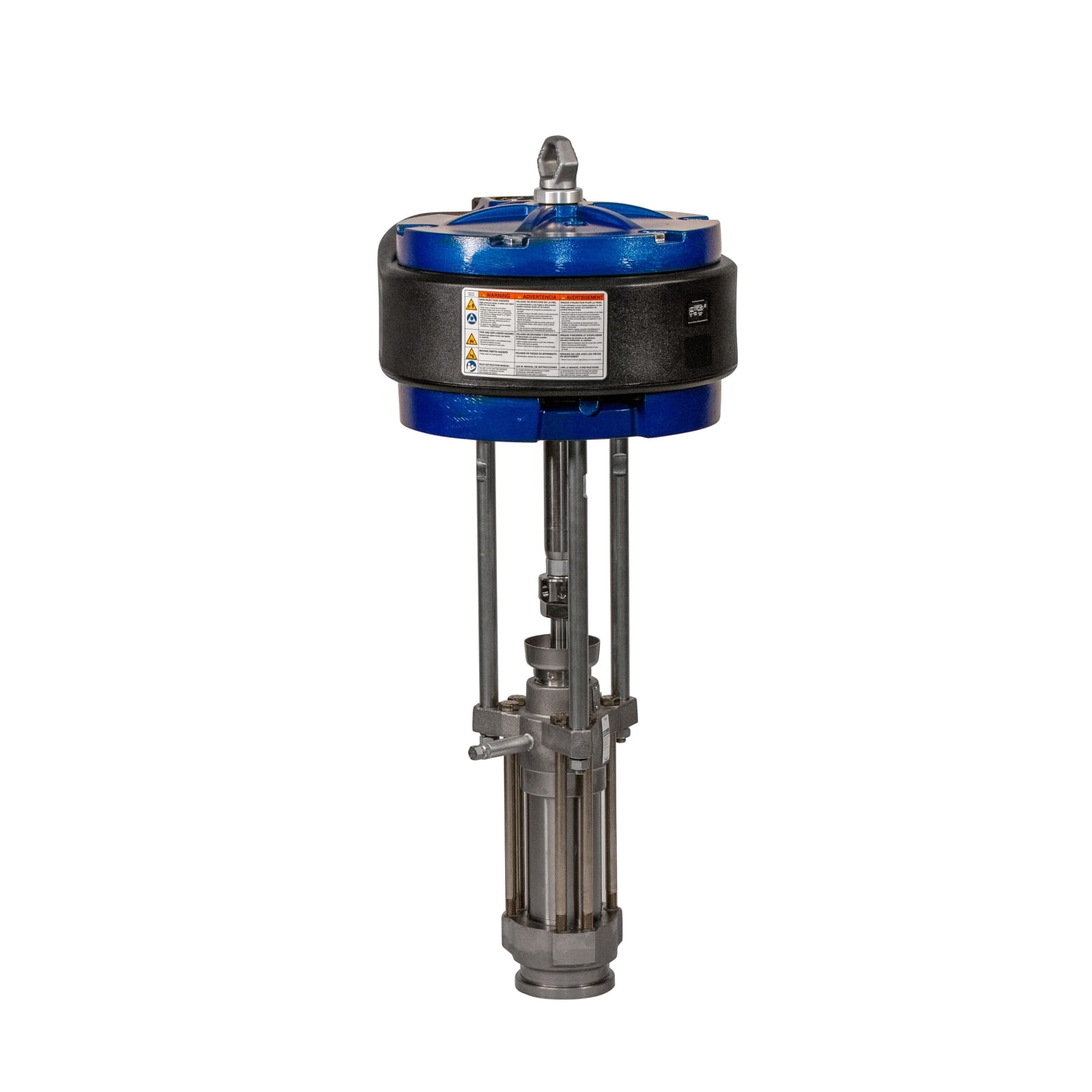

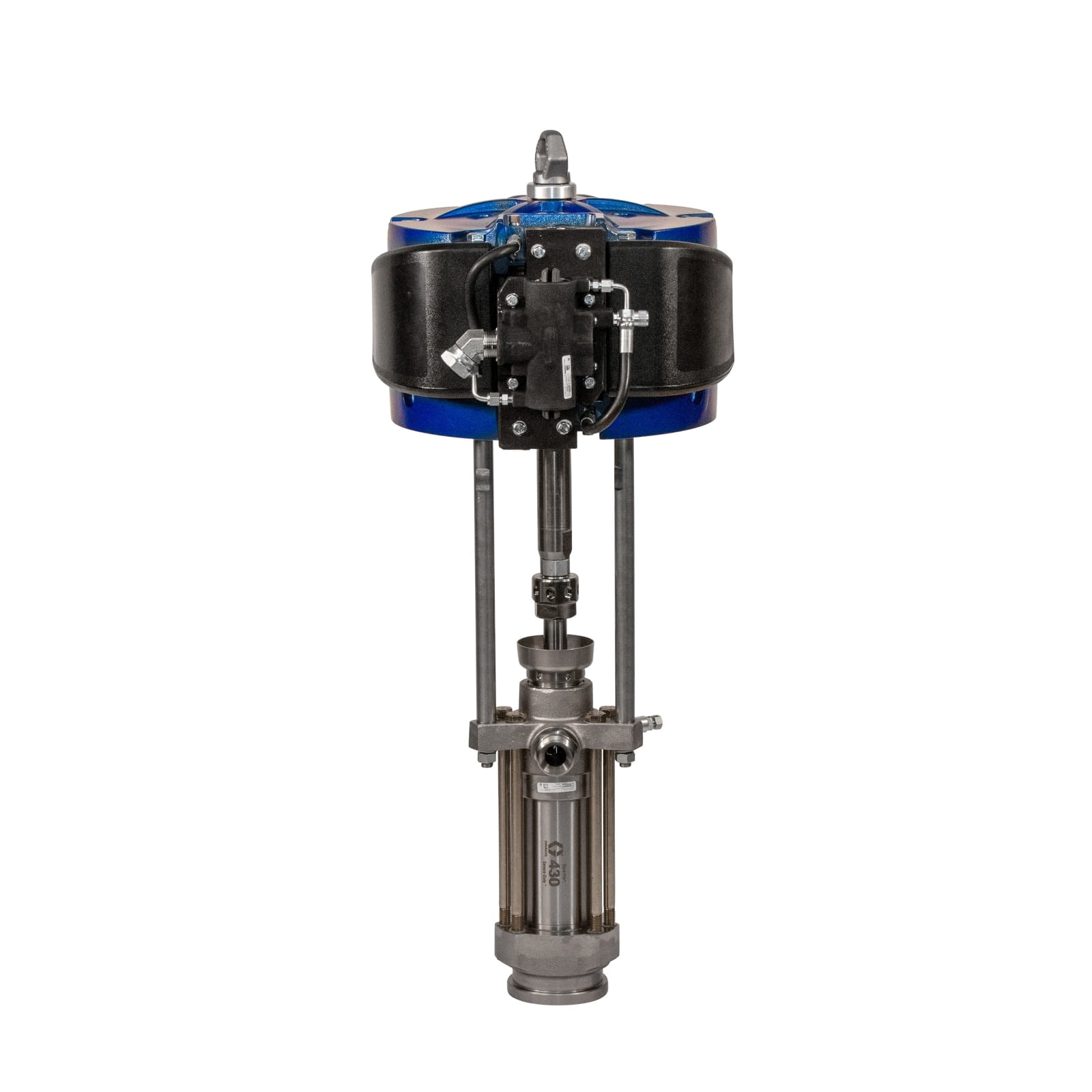

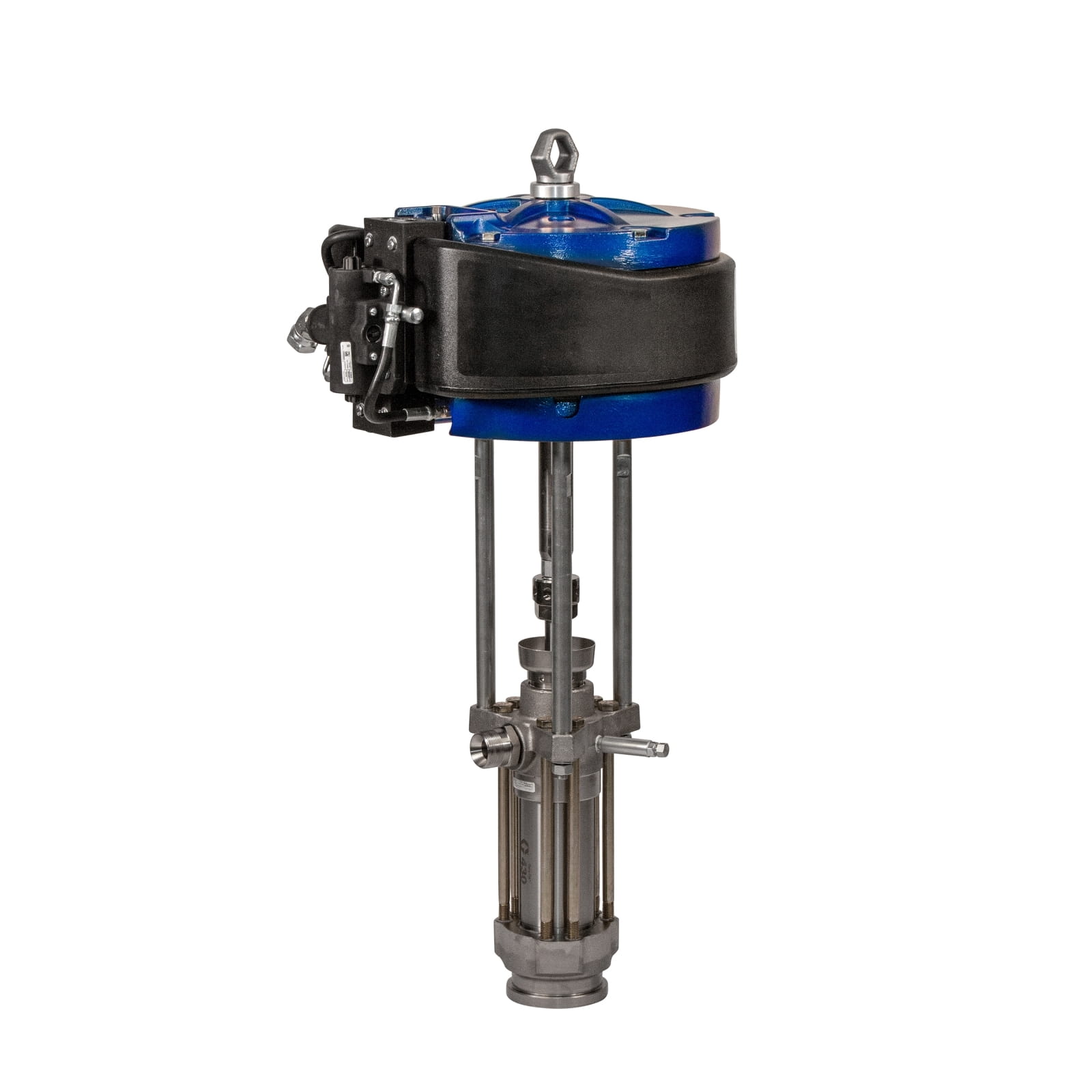

47:1 - 430 cm³ Dura-Flo pump with XL 10000 air motor, Severe Duty stainless steel construction
€14,147.32*
% €17,412.08* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco feed pumps reliably deliver single component sealants, adhesives and other low to medium viscosity materials to dispensing systems. Maximise the production capacity of your system.
Long service life - Dura Flo pumps are proven workhorses
- XL 1000 air motor
- Low noise
- Easier maintenance thanks to modular design
- Robust casing that won't rust or dent
- Air motor with state-of-the-art technology
- 430 cm³ Dura-Flo lower pump
- Severe Duty coatings on piston rods and cylinders extend service life
Standard threaded coupling -
Replaceable 1 1/2"-11 1/2 NPT outlet fitting with male thread
- Reduces repair costs
Replaceable seat
- Minimises service costs
Cast outlet and inlet housing
- Improves structural integrity
Optional DataTrak™ control system
- Dry run protection
- Pump diagnostics
- Material consumption
| Ambient/hot-melting/hot-melting: | Not heated |
|---|---|
| Application: | Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling |
| Compatible material: | CARC, High Solids, Metal, Solvent Based, Stain, Lacquer, Xirallic |
| Energy type: | Pneumatic |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | External thread |
| Includes: | Motor, lower pump, rod anchor, collar bushing coupling, adapter, nut coupling, hex nut, key |
| Material: | stainless steel |
| Material inlet thread type: | NPT |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 32.4 |
| Maximum operating pressure (kPa): | 32400 |
| Maximum operating pressure (psi): | 4700 |
| Model: | Dura Flo |
| Permissible operating pressure (bar): | 324 |
| Size of the material inlet opening (cm): | 5.0800 |
| Size of the material inlet opening (inches): | 2 |
| Size of the material inlet opening (mm): | 508,000 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Transmission ratio of the pump: | 47:1 |
| Type: | Piston pump system |
More information
- Product number: 1034990
- Manufacturer: Graco
- EAN: 00755652280897
- Weight: 146.51 kg
- Length: 670 mm
- Width: 1630 mm
- Height: 840 mm
Technical details
Operating specifications
| UPC product | 755652280897 |
|---|---|
| Division | IPD |
| Price Block | 2 22 |
| Country of Origin | US |
| Unit | EA |
| Height | 84 CM |
| Length | 67 cm |
| Width | 163 cm |
| Volume | . 917 m³ |
| Shipping weight | 146.51 KG |
Technical
| Ambient/Warm Melt/Hot Melt | Ambi ent |
|---|---|
| Fluid inlet size (in) | 2 |
| Fluid inlet size (mm) | 50. 8000 |
| Fluid inlet thread gender | Female |
| Fluid outlet thread gender | Male |
| Includes | Motor, lower, rod tie, collar coupling, adapter, nut coupling, nut hex, wrench |
| Maximum working pressure (bar) | 324 |
| Maximum working pressure (kPa) | 3 2 400 |
| Maximum working pressure (psi) | 4 7 00 |
| Model | D ura-Flo |
| Maximum Working Pressure (MPa) | 32. 4 |
