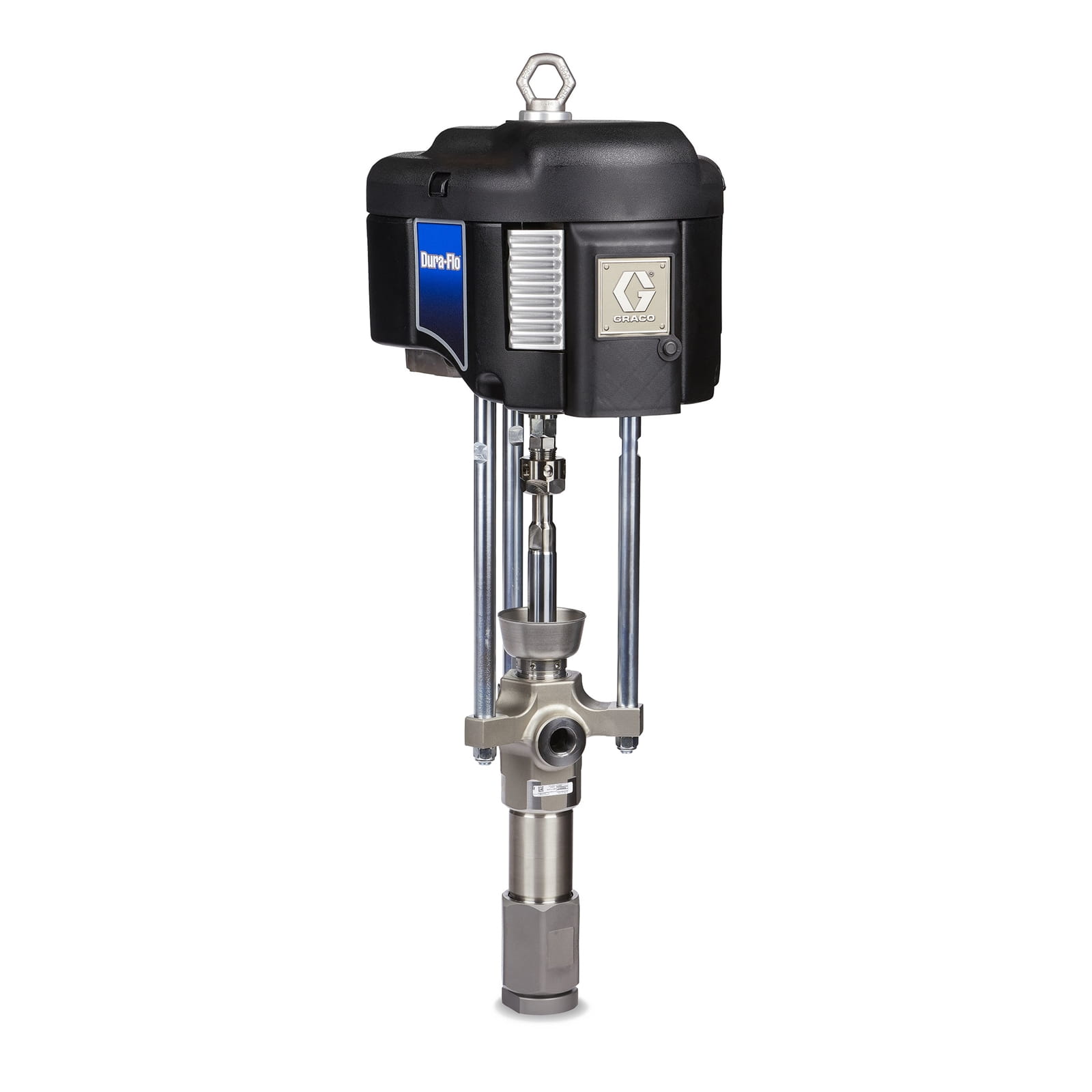

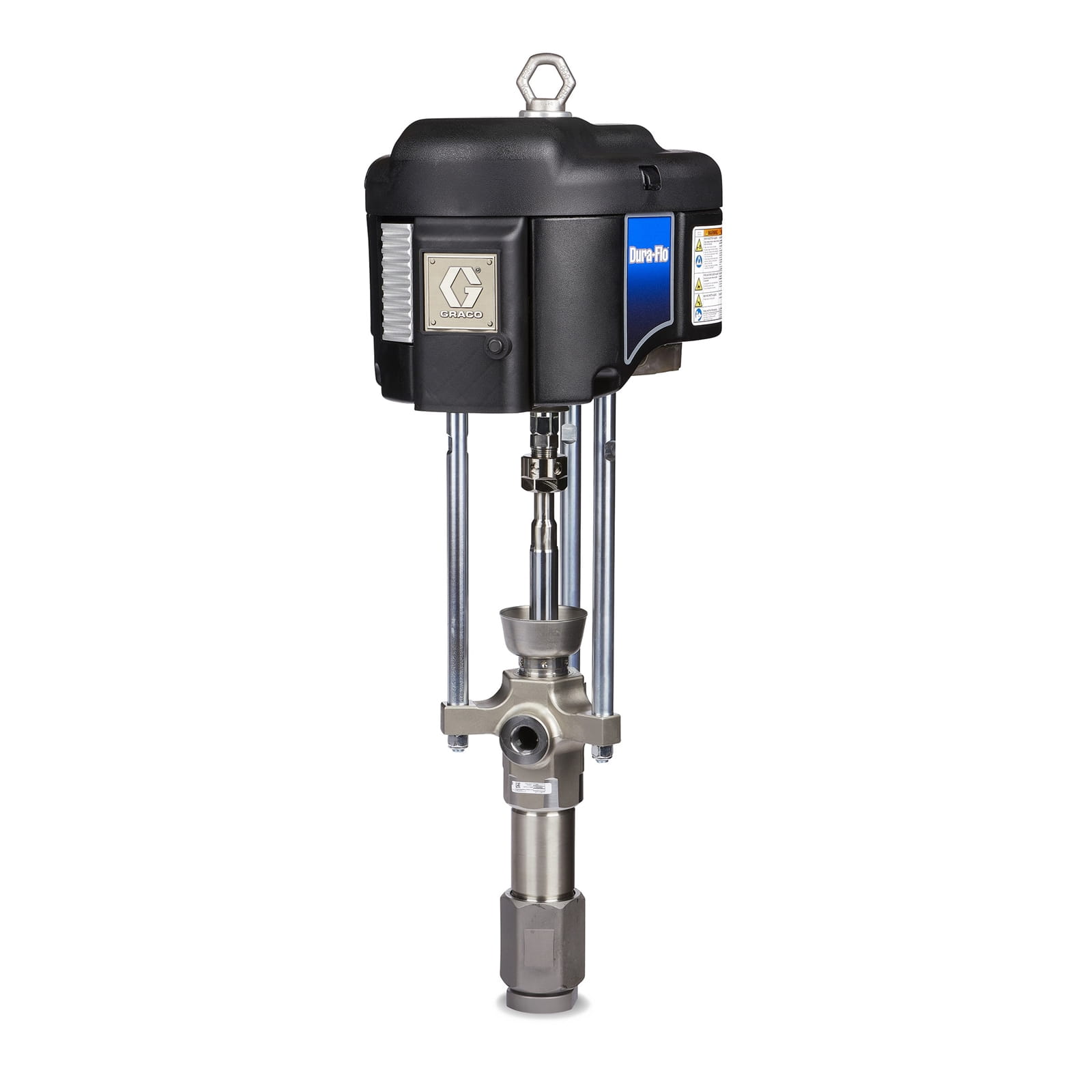

45:1 - 290 cm³ Dura-Flo pump with NXT 6500 air motor, Severe Duty stainless steel construction
45:1 - 290 cm³ Dura-Flo pump with NXT 6500 air motor, Severe Duty stainless steel construction
45:1 - 290 cm³ Dura-Flo pump with NXT 6500 air motor, Severe Duty stainless steel construction
Product images may vary
Manufacturer no.: P45LSS

45:1 - 290 cm³ Dura-Flo pump with NXT 6500 air motor, Severe Duty stainless steel construction

Best price guarantee

Price on request

Ready for shipping in 5-8 days

14 days free exchange
Free shipping within Germany
Authorized Dealer
Trusted Shops


Request price
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number: 1038568
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
  • Manufacturer: Graco
  • EAN: 00633955153899
  • Weight: 62 kg
  • Length: 1500 mm
  • Width: 430 mm
  • Height: 520 mm
    • Our payment methods:

    Question about this product?

    We are here for you. Mon-Fri, 9am - 4pm

    +49 7546 3520019 Go to contact form
    Also interesting
    Product information

    Graco feed pumps reliably deliver single component sealants, adhesives and other low to medium viscosity materials to dispensing systems. Maximise the production capacity of your system.

    Long service life - Dura Flo pumps are proven workhorses

    • NXT 6500 air motor
      • Easier maintenance thanks to modular design
      • Robust casing that won't rust or dent
      • Air motor with the latest technology
    • 290 cm³ Dura-Flo lower pump
      • Severe Duty coatings on piston rods and cylinders extend service life

    • Standard threaded coupling -

    • 1"-11 1/2 NPT outlet with female thread

    • Replaceable seat

      • Minimises service costs

    • Cast outlet and inlet housing

      • Improves structural integrity

    • Optional DataTrak™ control

      • Dry run protection
      • Pump diagnostics
      • Material consumption
    Item type: Pumpe
    Ratio: 45:1
    More information
    • Product number: 1038568
    • Manufacturer: Graco
    • EAN: 00633955153899
    • Weight: 62 kg
    • Length: 1500 mm
    • Width: 430 mm
    • Height: 520 mm

    Technical details

    Operating specifications
    UPC product 633955153899
    Division IPD
    Price Block 2 22
    Country of origin US
    Unit EA
    Height 52 CM
    Length 150 cm
    Width 43 cm
    Volume . 335 m³
    Shipping weight 62 KG
    Technical
    Ambient/Warm Melt/Hot Melt Ambi ent
    Fluid inlet size (in) 2
    Fluid inlet size (mm) 50. 8000
    Fluid inlet thread gender Female
    Fluid outlet size (mm) 25. 4000
    Fluid outlet thread gender Female
    Includes Motor, lower, rod tie, collar coupling, adapter, nut coupling, nut hex, wrench
    Maximum working pressure (bar) 314
    Maximum working pressure (kPa) 3 1400
    Maximum working pressure (psi) 4 5 50
    Model D ura-Flo
    Maximum Working Pressure (MPa) 31. 4

    Further manufacturer information

    Produkthandbücher
    CAD Drawings
    Verkaufsliteratur
    Zertifizierungen
