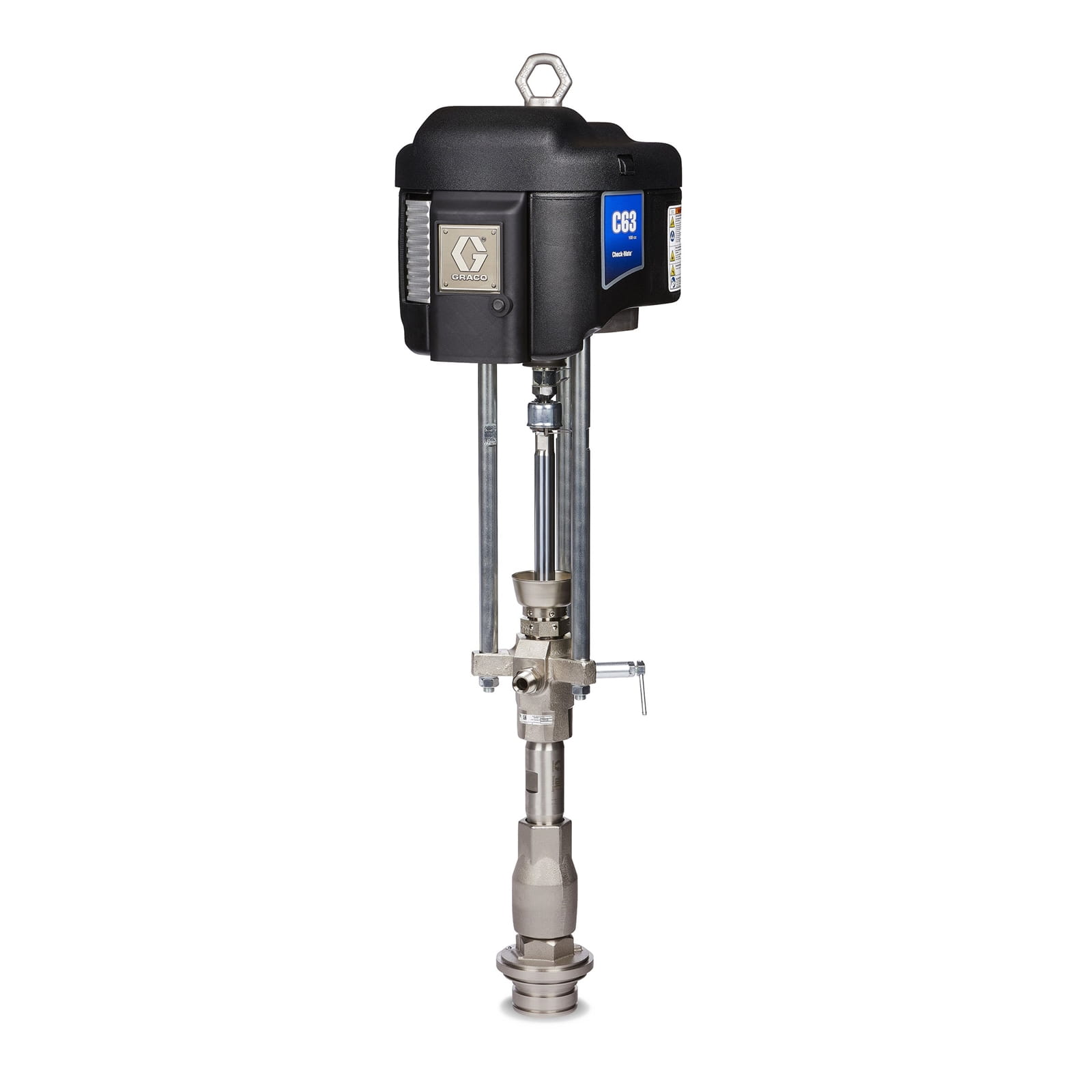

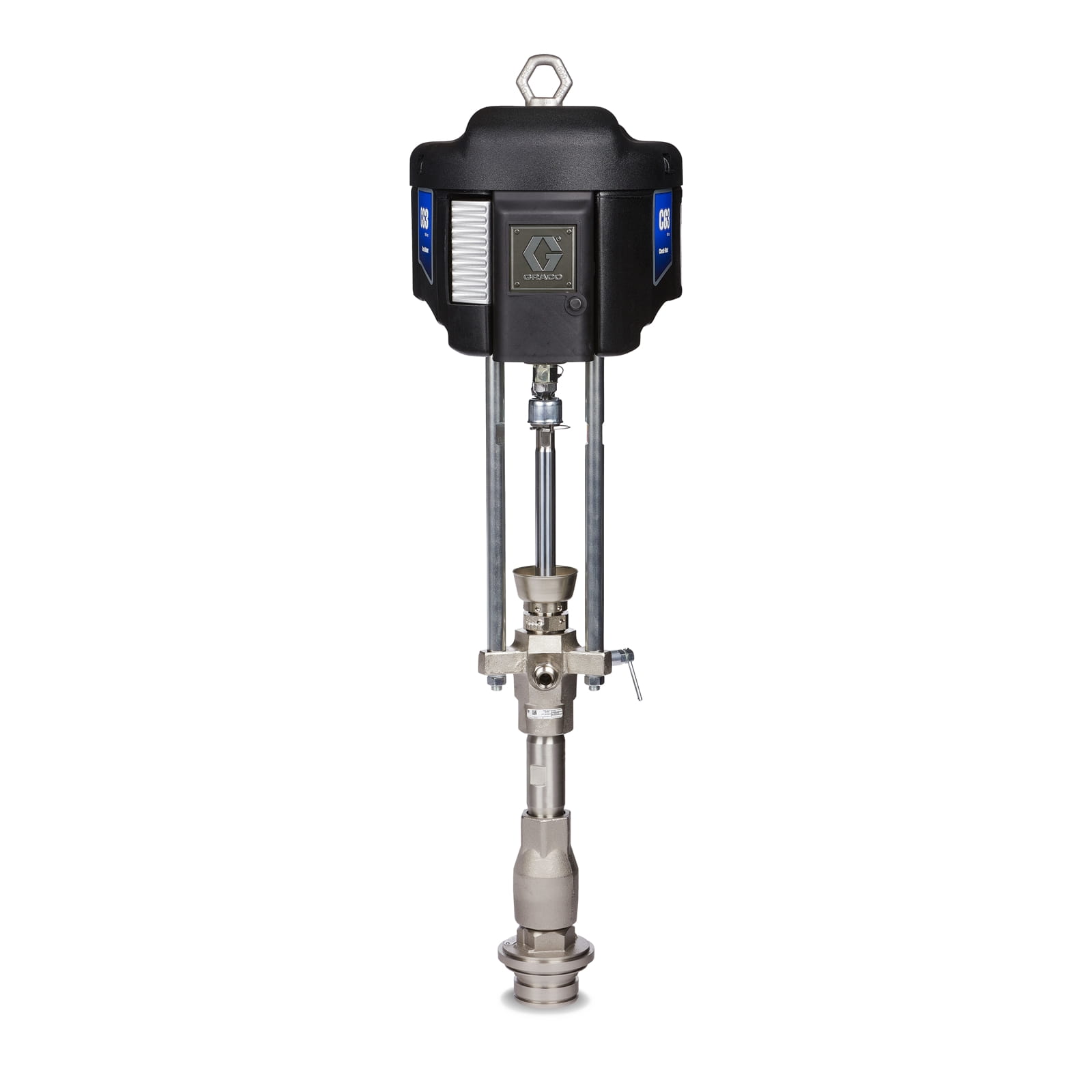

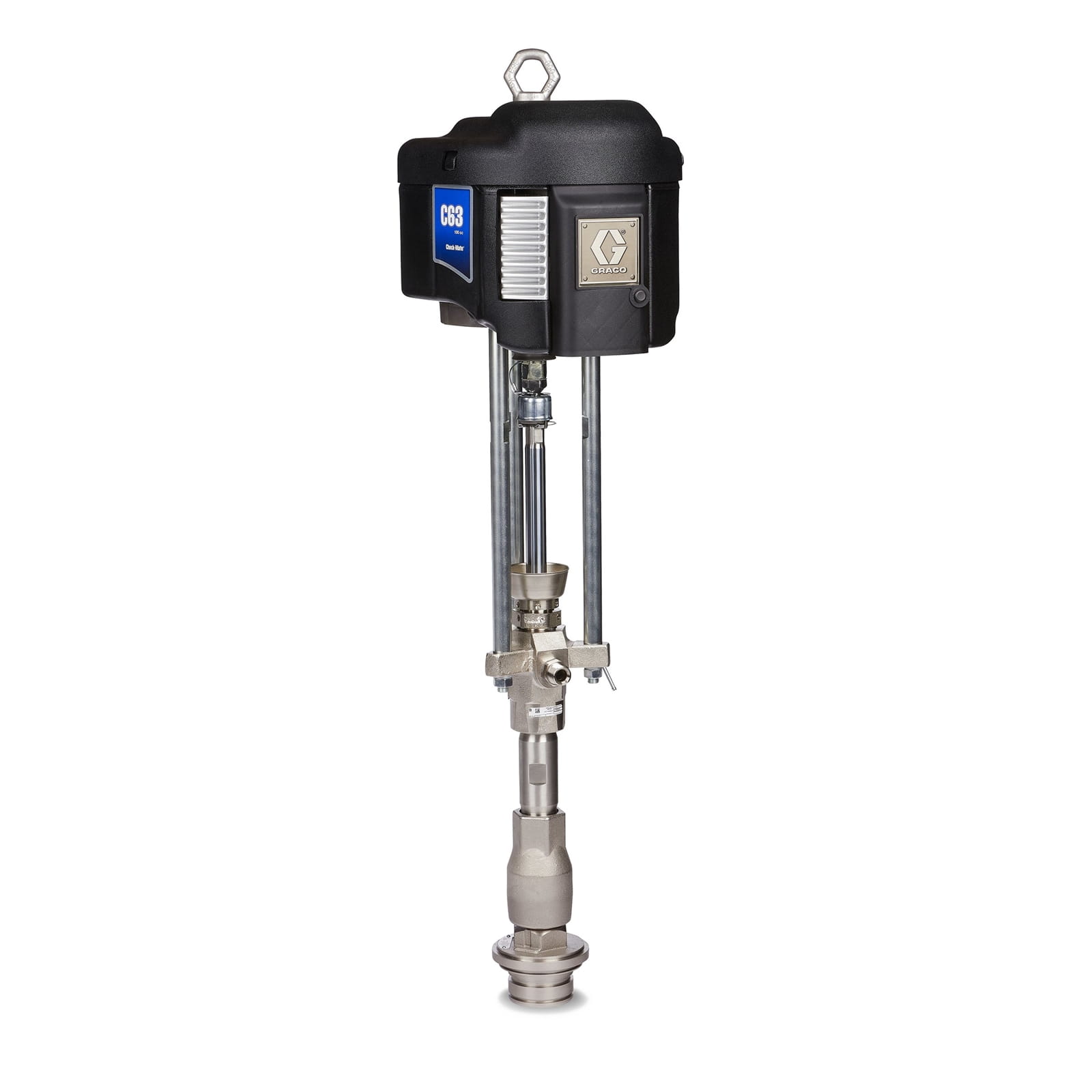

38:1 - 60 cm³ Dura-Flo pump with NXT 1200 air motor, Severe Duty, carbon steel construction
38:1 - 60 cm³ Dura-Flo pump with NXT 1200 air motor, Severe Duty, carbon steel construction
38:1 - 60 cm³ Dura-Flo pump with NXT 1200 air motor, Severe Duty, carbon steel construction
Product images may vary
Manufacturer no.: P38LCS

38:1 - 60 cm³ Dura-Flo pump with NXT 1200 air motor, Severe Duty, carbon steel construction

Best price guarantee

Price on request

Ready to ship in 5-8 days

14 days free exchange
Free shipping within Germany
Authorized Dealer
Trusted Shops


Request price
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number: 1037997
PDF offer
Create PDF offer for this product Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
  • Manufacturer: Graco
  • EAN: 00633955464186
  • Weight: 39.638 kg
  • Length: 1530 mm
  • Width: 460 mm
  • Height: 530 mm
    • Our payment methods:

    Question about this product?

    We are here for you. Mon-Fri, 9am - 4pm

    +49 7546 3520019 Go to contact form
    Also interesting
    Product information

    Graco feed pumps reliably deliver one-component sealants, adhesives and other low- to medium-viscosity materials to dosing systems. Maximise your system's production capacity.

    Long service life – Check-Mate pumps are proven workhorses

    • NXT 1200 air motor
      • Quiet
      • Easier maintenance due to modular design
      • Air motor with the latest technology
    • 60 cm³ Check-Mate displacement pump
      • Severe-duty coatings on the piston rods and cylinders extend service life.

    • Standard threaded coupler -

    • Replaceable 3/4"-14 NPT male outlet fitting

      • Reduces repair costs

    • Replaceable seat

      • Minimises service costs

    • Cast inlet and outlet housings

      • enhances structural integrity

    • NEW Xtreme® Coupling

      • Quick-disconnect coupling makes servicing easy

    • Replaceable outlet fitting

      • Reduces repair costs

    • Piston valve with floating piston seal

      • Maximum pressure equalisation over a wide range of material viscosities

    • Replaceable seat

      • Minimises service costs
    Ambient/hot-melting/hot-melting: Not heated
    Application: Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
    Energy type: Pneumatic
    Gender of the material outlet thread: External thread
    Includes: Motor, positive displacement pump, washer (6), screw
    Material: Normal steel
    Material outlet thread type: NPT
    Maximum operating pressure (MPa): 26.2
    Maximum operating pressure (kPa): 26200
    Maximum operating pressure (psi): 3800
    Model: Check Mate
    Permissible operating pressure (bar): 262
    Size of the material outlet opening (inches): 3/4
    Transmission ratio of the pump: 38:1
    Type: Piston pump system
    More information
    • Product number: 1037997
    • Manufacturer: Graco
    • EAN: 00633955464186
    • Weight: 39.638 kg
    • Length: 1530 mm
    • Width: 460 mm
    • Height: 530 mm

    Technical details

    Operating specifications
    UPC product 633955464186
    Division IPD
    Price Block 2 22
    Country of origin US
    Unit EA
    Height 53 CM
    Length 153 cm
    Width 46 cm
    Volume . 37301 m³
    Shipping weight 39.638 KG
