Manufacturer no.: CM153B

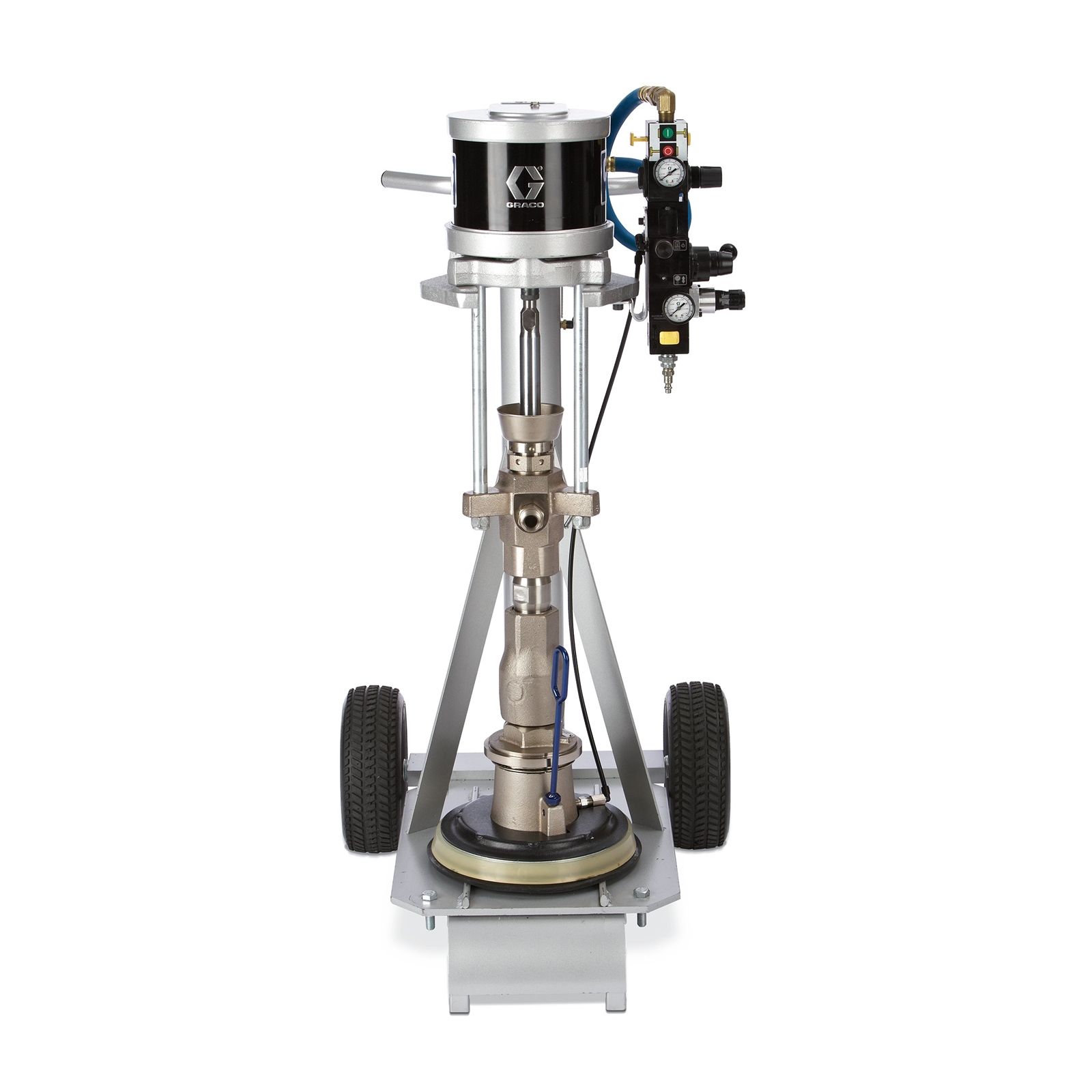

20 litre S20 feeder, ratio 63:1

€9,907.18*

% €13,759.97* (28% saved)

Prices include VAT plus shipping costs

€8,325.36*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feed systems reliably deliver single component sealants, adhesives and other medium to high viscosity materials from pails or drums to the metering and dispensing systems.

Large volume emptying devices for sealants, adhesives and other medium to high viscosity materials at ambient temperature

Bucket sizes of 20 litres (5 gallons) offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20 - For low volume applications of medium to high viscosity materials
Industry-first controllers give you immediate and critical information at the touch of a button
Quick bucket placement
Plate wipers can be replaced in seconds
Quick disconnect, turnbuckle attachment and pump cartridge packings allow pump maintenance without removing it from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	6.1
Maximum height (cm):	150.6
Maximum height (m):	1.51
Maximum height (mm):	1506
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	434.4
Maximum material pressure (kPa):	43440
Maximum material pressure (psi):	6300
Maximum operating pressure (MPa):	44.1
Maximum operating pressure (kPa):	44100
Maximum operating pressure (psi):	6300
Maximum operating temperature (°C):	49
Minimum height (cm):	90.9
Minimum height (m):	0.91
Minimum height (mm):	909
Model:	Check Mate
Permissible operating pressure (bar):	441
Pump type:	Suction piston
Series:	S20
Total depth (cm):	48.26
Total depth (mm):	482.6
Total width (cm):	43.18
Total width (mm):	431.8
Transmission ratio of the pump:	63:1
Type:	Feeding device

More information

Product number: 1030283
Manufacturer: Graco
EAN: 00633955488182
Weight: 91.506 kg
Length: 823 mm
Width: 762 mm
Height: 1859 mm

Technical details

Specifications

Operating specifications

UPC product	633955488182
Division	IPD
Price Block	2 22
Country of Origin	US
Unit	EA
Height	185.9 CM
Length	82.3 CM
Width	76.2 CM
Volume	1 .166 m³
Shipping weight	91.51 KG

Technical

Ambient/Warm Melt/Hot Melt	Ambi ent
Container Type	Pail
Material container volume (gal)	5. 3
Material Container Volume (l)	20
Maximum air inlet pressure (bar)	8. 62
Maximum air inlet pressure (kg/cm²)	8. 79
Maximum air inlet pressure (kPa)	862
Maximum air inlet pressure (psi)	125
Maximum flow rate (L/min)	6. 1
Maximum fluid pressure (bar)	434. 4
Maximum fluid pressure (kPa)	4 3440
Maximum fluid pressure (psi)	6300
Maximum height (cm)	150. 6
Maximum height (ft)	4. 94
Maximum height (in)	59. 3
Maximum height (m)	1. 51
Maximum height (mm)	1506
Maximum operating temperature (°C)	4 9
Maximum operating temperature (°F)	120
Maximum working pressure (bar)	4 41
Maximum working pressure (kPa)	4 4 100
Maximum working pressure (MPa)	44. 1
Maximum working pressure (psi)	6300
Minimum height (cm)	90. 9
Minimum height (ft)	2. 98
Minimum height (in)	35. 8
Minimum height (m)	0. 91
Minimum height (mm)	909
Model	Check-Mate
Overall Depth (cm)	48. 26
Overall depth (in)	19
Overall depth (mm)	482. 6
Overall width (cm)	43. 18
Overall width (in)	17
Overall width (mm)	431. 8
Ram material	Carbon steel
Series	S20
Ram post diameter (in)	3
Platen Material	Carbon steel
Platen Style	Flat, Single Wi per
Platen size (L)	20
Platen Size (Gal)	5
