Manufacturer no.:
CM7B3C

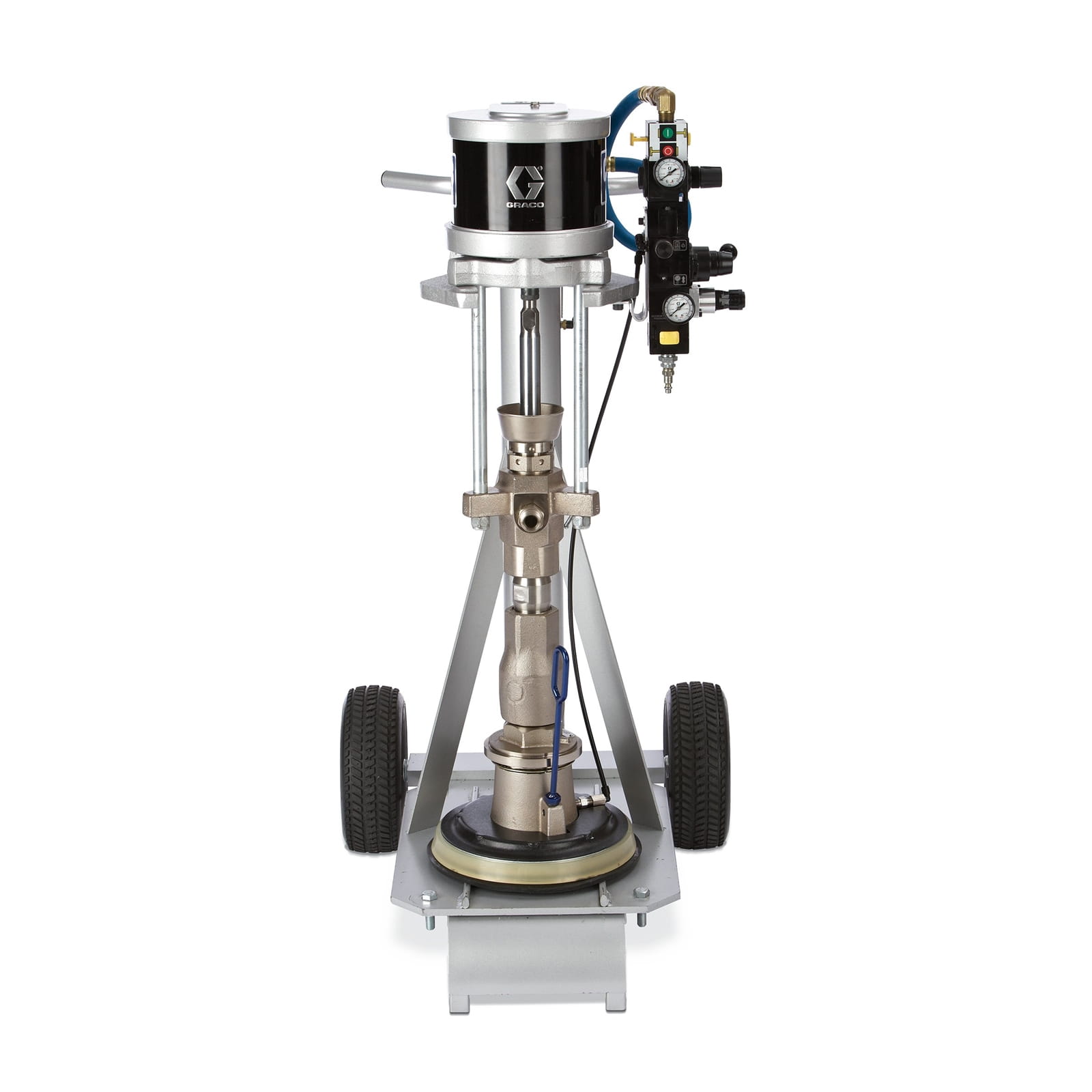

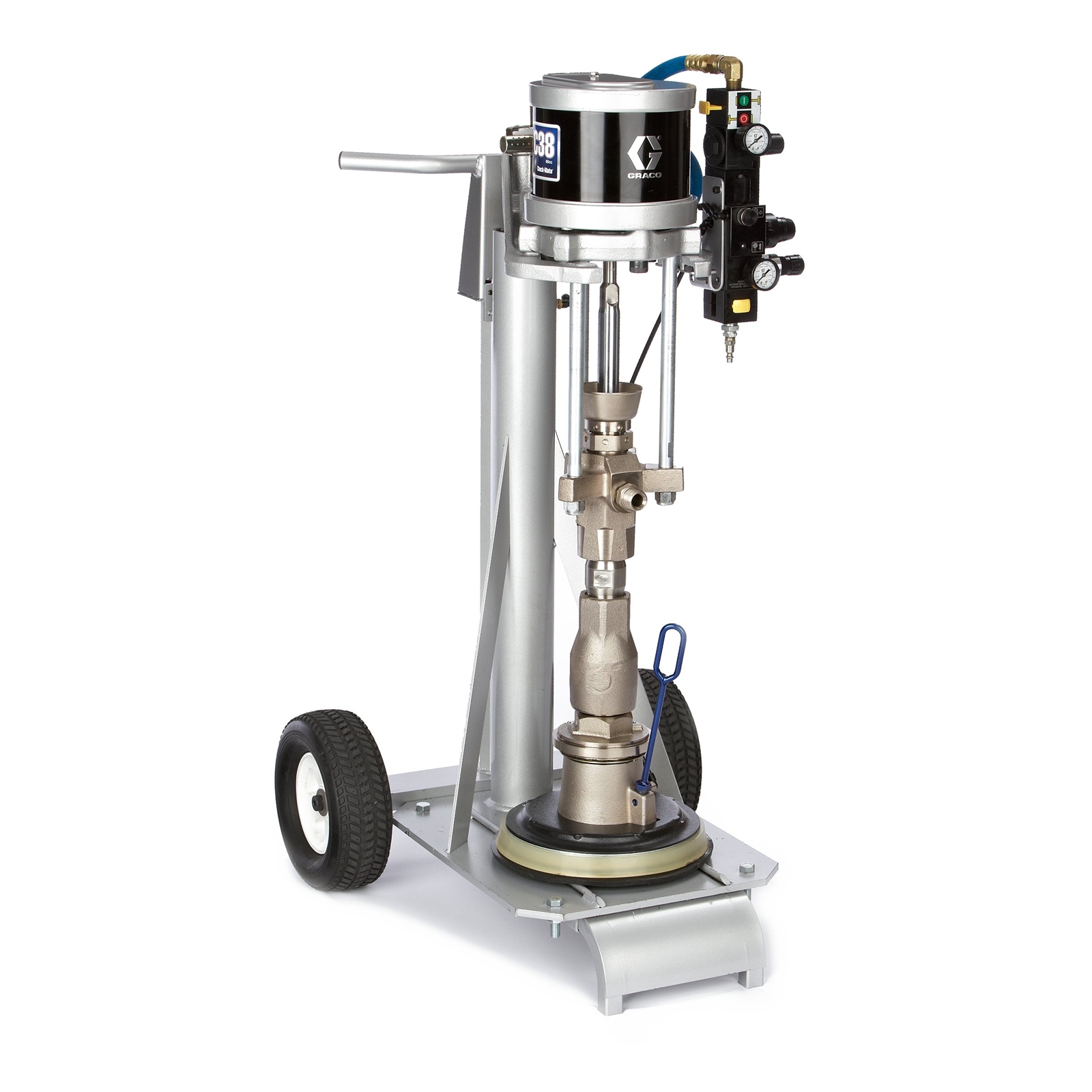

20 litre S20 feeder, ratio 20:1
€9,900.56*
% €11,647.72* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Graco feeders reliably deliver single component sealants, adhesives and other medium to high viscosity materials from pails or drums to dispensing systems.
Bulk dispenser for ambient temperature sealants, adhesives and other medium to high viscosity materials
- 20 litre (5 gallon) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
- Graco S20 - For low volume applications of medium to high viscosity materials
- Industry-first controls give you immediate and critical information at the touch of a button
- Quick bucket placement
- Plate scrapers can be replaced in seconds
- Quick disconnect, turnbuckle attachment and pump cartridge packings allow pump maintenance without removing it from the ram
- High-quality, robust parts reduce maintenance time and maximise uptime
| Ambient/hot-melting/hot-melting: | Surroundings |
|---|---|
| Application: | Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling |
| Container type: | Bucket |
| Control console material: | n.a. |
| Energy type: | Pneumatic |
| Material container volume (litres): | 20 |
| Material follower plate: | Normal steel |
| Maximum air supply pressure (bar): | 8.62 |
| Maximum air supply pressure (kPa): | 862 |
| Maximum air supply pressure (kg/cm²): | 8.79 |
| Maximum delivery rate (L/min): | 3.4 |
| Maximum height (cm): | 150.6 |
| Maximum height (m): | 1.51 |
| Maximum height (mm): | 1506 |
| Maximum inlet air pressure (psi): | 125 |
| Maximum material pressure (bar): | 137.9 |
| Maximum material pressure (kPa): | 13790 |
| Maximum material pressure (psi): | 2000 |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (kPa): | 13800 |
| Maximum operating pressure (psi): | 2000 |
| Maximum operating temperature (°C): | 49 |
| Minimum height (cm): | 90.9 |
| Minimum height (m): | 0.91 |
| Minimum height (mm): | 909 |
| Model: | Check Mate |
| Permissible operating pressure (bar): | 138 |
| Pump type: | Suction piston |
| Series: | S20 |
| Total depth (cm): | 48.26 |
| Total depth (mm): | 482.6 |
| Total width (cm): | 43.18 |
| Total width (mm): | 431.8 |
| Transmission ratio of the pump: | 20:1 |
| Type: | Feeding device |
More information
- Product number: 1034653
- Manufacturer: Graco
- EAN: 00633955498792
- Weight: 98.883 kg
